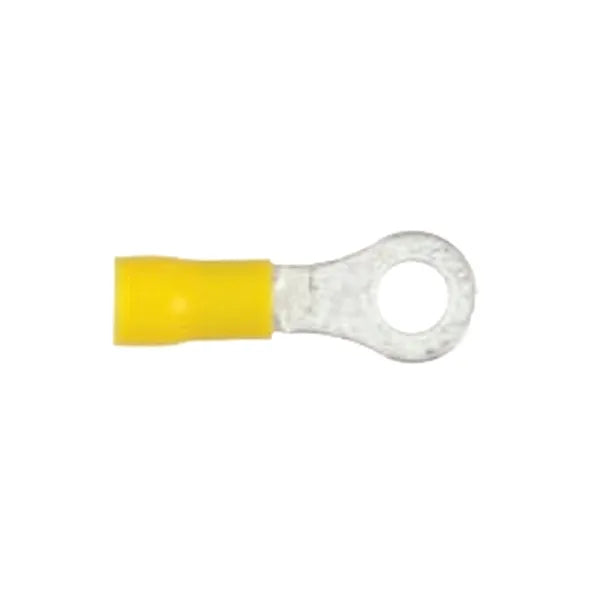

Yellow Pre Insulted Terminal - Y7 8.5mm Hole

The Y7 pre-insulated terminal is a yellow ring terminal with an 8.5 mm mounting hole, designed for robust and safe connections in DC or low-voltage systems. It is compatible with cable sizes commonly used in automotive, marine and industrial applications, making it ideal for wiring harnesses, battery circuits or power distribution blocks.

Constructed with a copper conductive core, the terminal offers reliable electrical performance and low resistance. The yellow PVC insulation provides both colour-coding clarity and electrical protection. This design helps minimise the risk of short circuits and ensures a professional finish when terminating wires.

Installation is straightforward: strip the correct length of conductor, insert the wire into the terminal, and crimp securely. The pre-insulated sleeve covers the crimped core, locking into place to stabilise the connection and resist vibration or movement. This makes it particularly useful in applications where wires may be subject to motion or mechanical stress.

The 8.5 mm ring accommodates standard stud sizes frequently found on bus bars, battery lugs and standard electrical terminals. The insulation thickness is optimised to balance protection and compactness, so the terminal does not take up unnecessary space on tightly packed terminal blocks.

These terminals are configured for trade-volume use, allowing installers to order exactly the number they need. Whether wiring a 12 V battery bank, building control panels or working on vehicle power wiring, the Y7 terminal provides a dependable, coded and serviceable solution.
