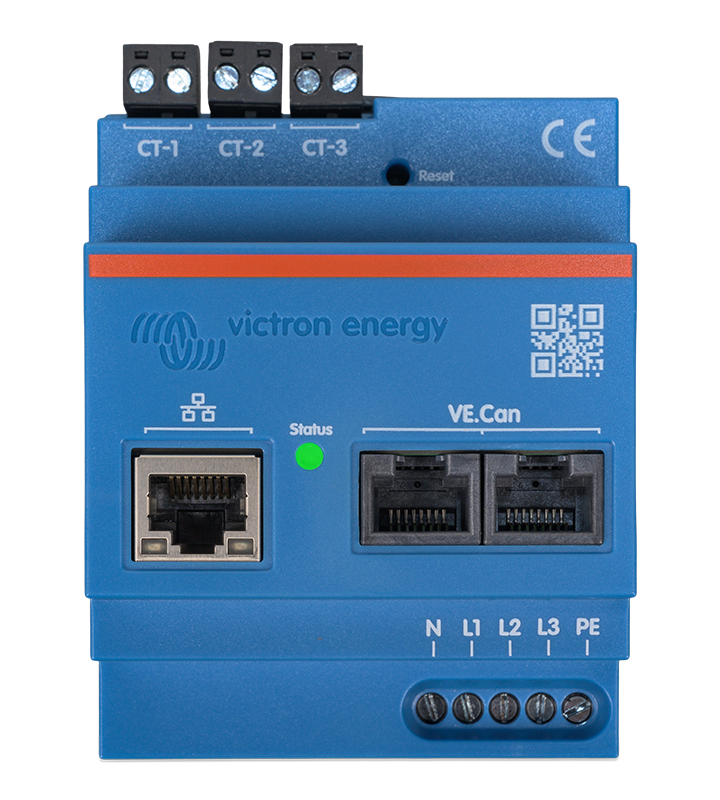

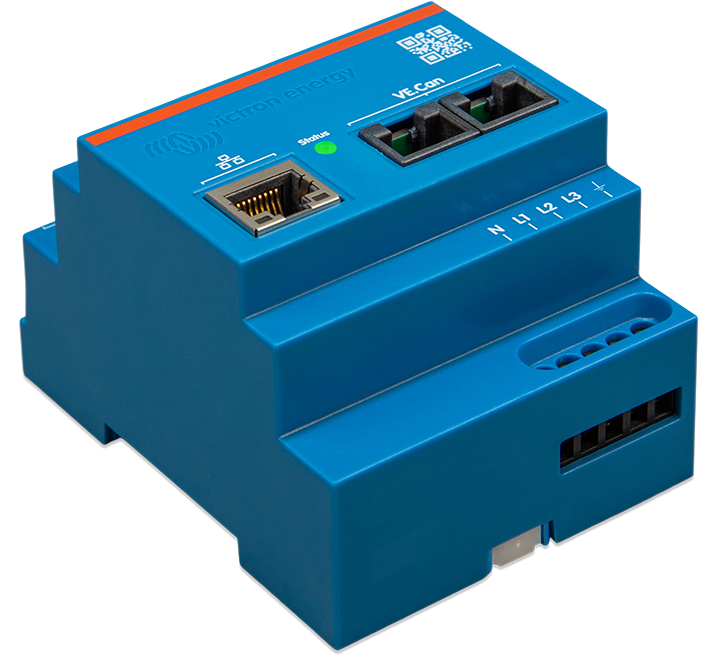

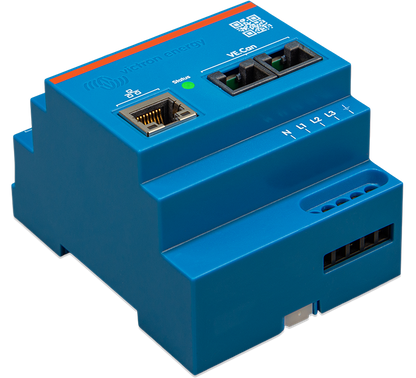

Victron Three-Phase Energy Meter - VM-3P75CT
Victron Three-Phase Energy Meter - VM-3P75CT
SKU:REL200300100
Brand: Victron
Low stock: 7 left
Couldn't load pickup availability
Product Details
Product Details
The Victron Three-Phase Energy Meter is engineered for precise monitoring of three-phase electrical systems, making it an essential component for energy management in residential, commercial, and industrial applications. With a current rating of 80A per phase, it ensures accurate measurement of power and energy consumption.
This energy meter features both Ethernet and VE.Can communication ports, allowing seamless integration with Victron's GX devices such as the Cerbo GX or Ekrano GX. The dual communication options provide flexibility in system design and data accessibility.
Installation is straightforward, thanks to the included split-core current transformers with 640mm wire length, enabling quick and non-invasive setup without the need to disconnect existing wiring. The meter's real-time data refresh rate of 100ms ensures up-to-date monitoring of your electrical system's performance.
Designed with a compact form factor of 90 x 71 x 59 mm, the VM-3P75CT is suitable for mounting in standard distribution panels, saving valuable space while providing comprehensive energy monitoring capabilities.
Whether you're managing a solar energy system, an AC genset, or tracking grid imports and exports, the Victron VM-3P75CT Energy Meter offers the precision and reliability needed for effective energy management.
Product Specifications
Product Specifications
Performance & Electrical Specifications
- Voltage Connection: Direct
- Input Voltage Range (L-N): 85 to 265 VAC
- Input Voltage Range (L-L): 150 to 460 VAC
- Frequency Range: 50/60 Hz
- Current Connection: Via clamp-type current transformers (included)
- Rated Current: 75 A
- Current Transformer Wire Length: 640 mm
- Refresh Rate: 100 ms (Transmits RMS power values at a high rate for precise control)
- Power Supply: Self-powered via L1-N
- Power Consumption: 1.45 W / 3.1 VA
Communication & Monitoring
- VE.Can Port: Two RJ45 connectors (VE.Can terminators included)
- Ethernet Port: One RJ45 connector, supports Modbus UDP
- System Integration: View real-time data via the VictronConnect App, GX devices (such as Cerbo GX or Ekrano GX), and the VRM Portal.
- Configurable Energy Registration: Selection between vector, arithmetic, or absolute registration to meet various regional requirements.
- Comprehensive Parameter Reporting: Monitors line-to-neutral voltage, line-to-line voltage, power factor (IEEE convention), phase sequence, phase rotation warnings, protective earth voltages, and neutral/line currents.
- Diagnostic LED: Features a status LED that can be configured as an energy pulse signal for visual diagnostics.
Mechanical Specifications
- Enclosure Material: Polycarbonate, blue (RAL 5012)
- Dimensions (h x w x d): 90 x 71 x 59 mm (3.5 x 2.8 x 2.3 inches)
- Weight: 370 g (including packaging)
- Voltage Connection Terminals: Screw terminals 1.0 – 2.5 mm² (22 – 12 AWG)
- Current Transformer Connection: Pluggable screw terminals
- Protection Category: IP20
Environmental & Standards
- Installation Environment: Indoor only
- Operating Temperature Range: -10 to +55 °C
- Storage Temperature Range: -20 to +70 °C
- Relative Humidity: < 90% non-condensing
- Maximum Altitude: 2000 m (6562 ft)
- Overvoltage Category: Cat. III
- Pollution Degree: 2
- Safety Standard: EN-IEC 61010-1

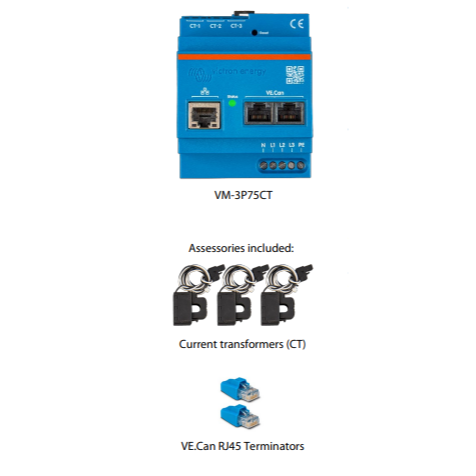

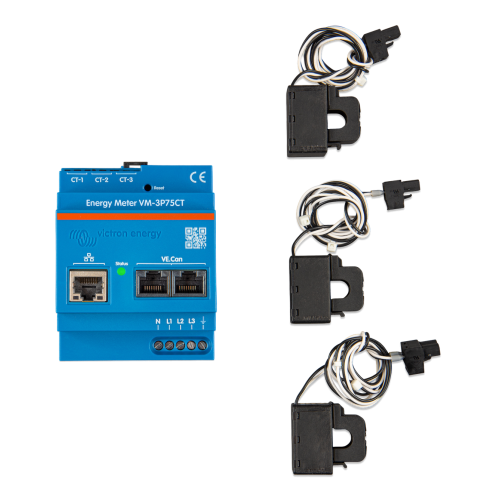

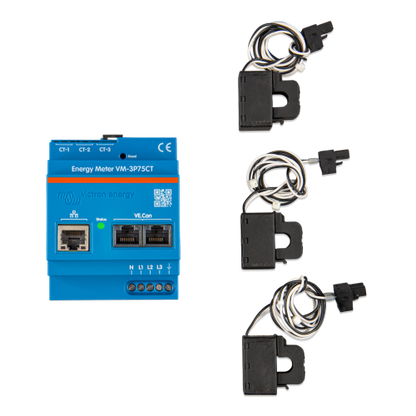

Included Accessories
- Three clamp-type current transformers (CT)
- VE.Can RJ45 terminators
