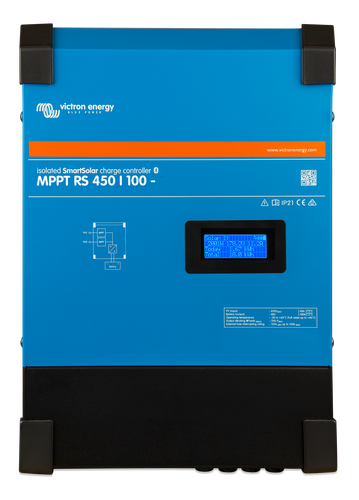

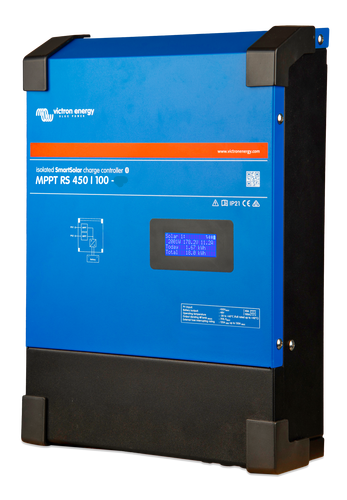

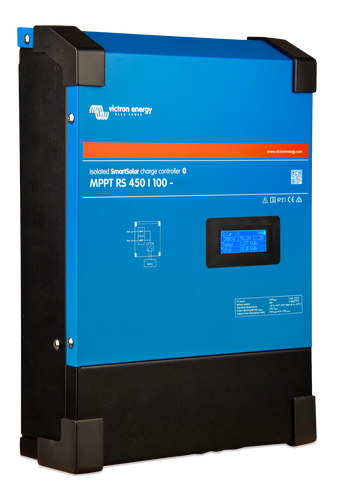

Victron SmartSolar MPPT RS 450/100 - MC4 For 48V Systems
Victron SmartSolar MPPT RS 450/100 - MC4 For 48V Systems
SKU:SCC145110512
Brand: Victron
Low stock: 4 left
Couldn't load pickup availability
Product Details
Product Details
The Victron SmartSolar MPPT RS 450/100 is a high-performance solar charge controller designed for demanding 48V systems. Built for professional off-grid and hybrid energy setups, it delivers fast and reliable battery charging from large solar arrays. With its ability to accept high voltages from multiple solar strings, it is well suited to commercial installations, workshops, agricultural sites, and remote power systems where consistent energy capture is essential.
At the heart of the unit is advanced Maximum Power Point Tracking. This technology constantly adjusts the operating point of the connected solar panels to extract the best possible energy throughout the day. Even when conditions change, such as shifting cloud cover, the controller reacts quickly to maximise usable power. Its impressive 100A charge current supports larger battery banks, giving installers and system designers flexibility when scaling up storage capacity.
The SmartSolar MPPT RS 450/100 includes built-in wireless connectivity, allowing quick configuration and real-time performance monitoring through the VictronConnect app. System data, firmware updates, and parameter adjustments can be completed without opening the enclosure, simplifying commissioning and maintenance. For integration with more complex energy management setups, VE.Can communication ports allow the controller to work smoothly alongside Victron inverters and system monitors.
Installation is made straightforward with MC4 compatible connectors, helping reduce wiring time and ensuring secure long-term operation. Designed for 48V battery systems, it supports common lithium, lead acid, and other supported chemistries through configurable charge profiles. Safety and reliability are further enhanced by extensive electronic protection against overvoltage, overheating, and short circuits.
Thanks to its robust design and proven Victron engineering, this controller provides dependable service in demanding environments. When used as part of a wider Victron energy system, it becomes a key component in delivering stable renewable power where it is most needed.
Product Specifications
Product Specifications
Charger Specifications
- Nominal Battery Voltage: 48V DC
- Rated Charge Current: 100A
- Maximum Charge Power: 5.8 kW at 57.6V
- Charge Voltage 'Absorption' (Default): 57.6V (Fully adjustable)
- Charge Voltage 'Float' (Default): 55.2V (Fully adjustable)
- Programmable Voltage Range: Minimum 36V / Maximum 60V (Equalization can be set up to 62V)
- Charge Algorithm: Multi-stage adaptive (Fully adjustable)
- Maximum Efficiency: 96%
- Self-Consumption: 15 mA
Solar Input (PV Side)
- Maximum DC PV Voltage: 450V DC
- Start-up Voltage: 120V DC
- MPPT Operating Voltage Range: 65 – 450V DC (Constrained by battery voltage)
- Number of MPPT Trackers: 2
- Maximum PV Operational Input Current: 16A per tracker
- Maximum PV Short Circuit Current: 20A per tracker (Note: Higher current may damage the controller if connected in reverse polarity)
- Maximum DC Output Charging Power: 4000W per tracker (5760W total)
- Maximum PV Array Size per Tracker: 7200 Wp (450V x 20A)
- PV Isolation Fail Level: 100 kΩ
Physical & Connection Data
- Material & Colour: Steel chassis, Blue (RAL 5012)
- Protection Category: IP21
- Dimensions (H x W x D): 440 x 313 x 126 mm
- Weight: 7.9 kg
- Battery Connection: 2x M8 bolts (1x positive, 1x negative)
- Power Terminals PV Input: 1 pair of male and female MC4 connectors per tracker
- Operating Temperature Range: -40°C to +60°C (Active fan-assisted cooling)
- Humidity (Non-condensing): Maximum 95%
Compliance & Quality Standards
- Safety: EN-IEC 62109-1
- Warranty: Backed by Victron Energy's industry-leading 5-year standard warranty
- Design & Origin: Designed in The Netherlands, manufactured in India
