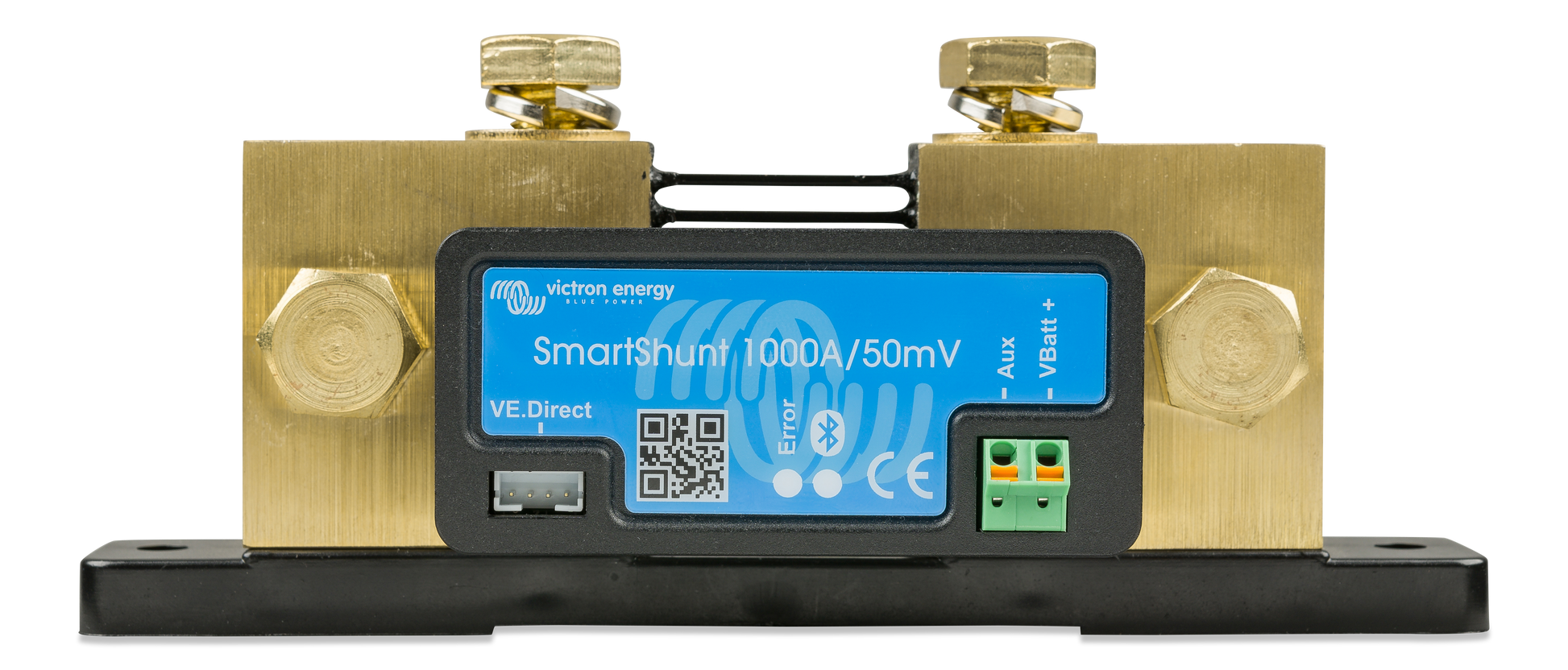

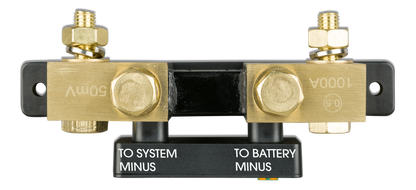

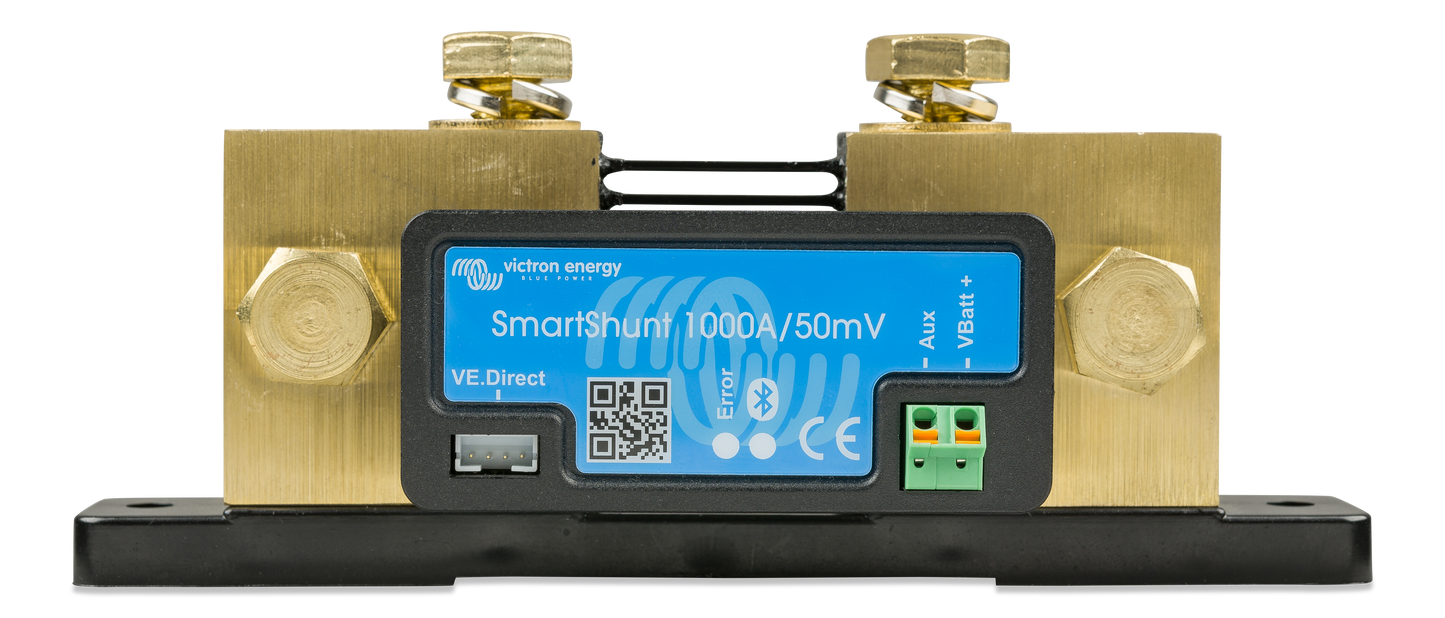

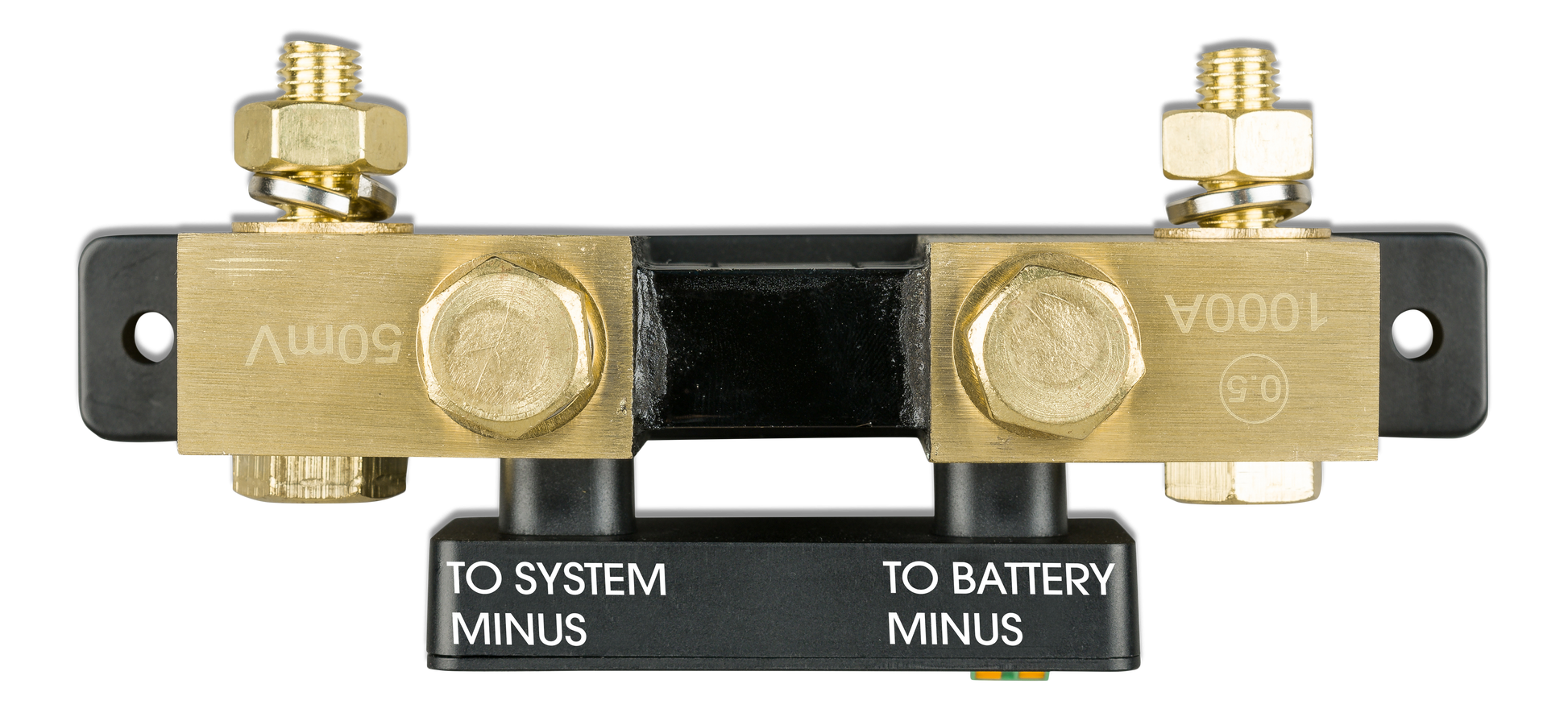

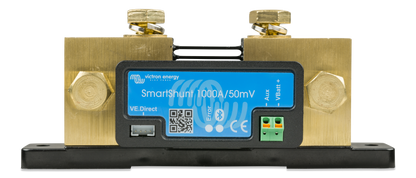

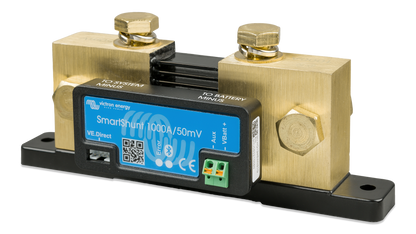

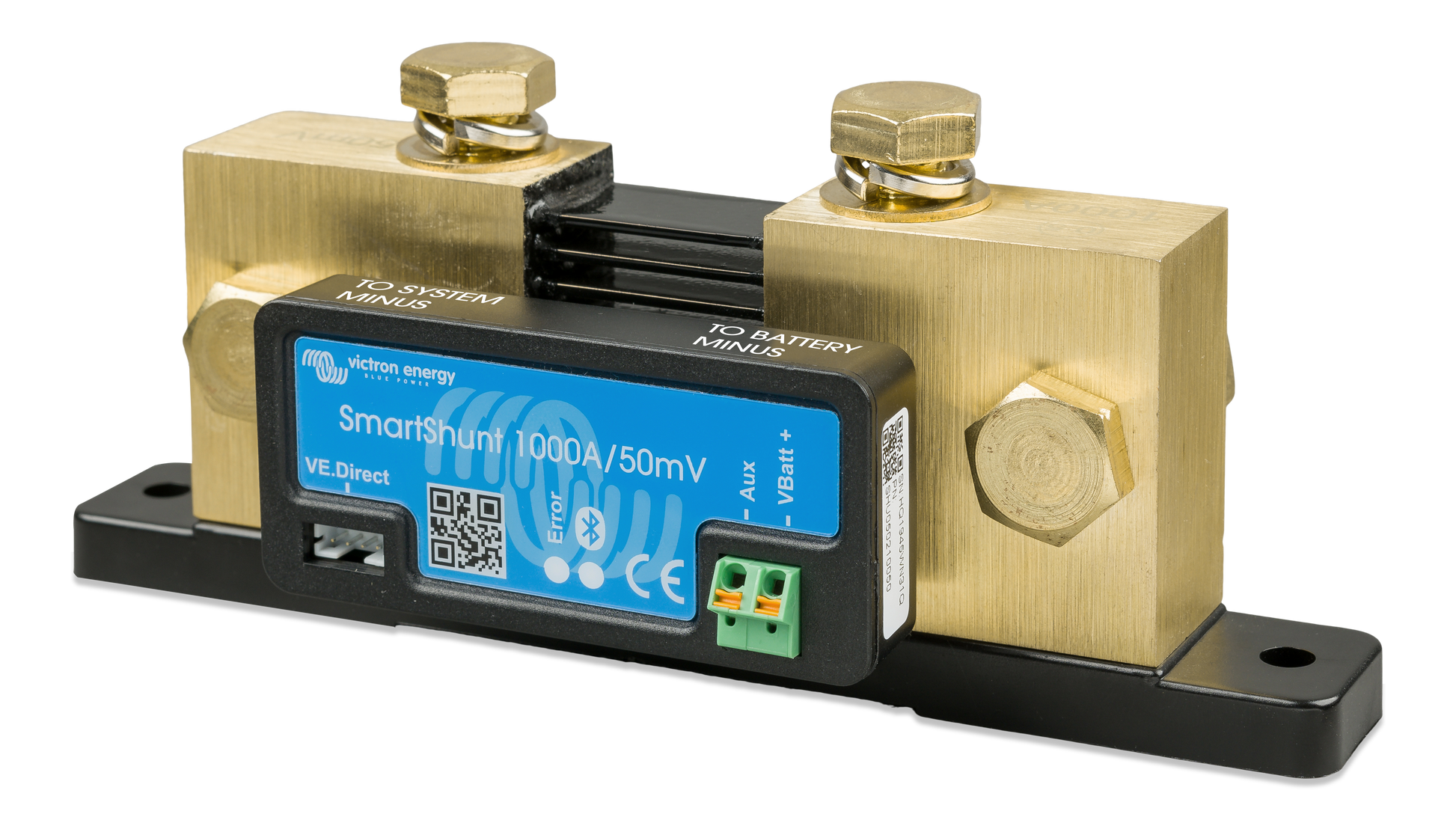

Victron SmartShunt 1000A/50mV (Model SHU050210050)
Victron SmartShunt 1000A/50mV (Model SHU050210050)
SKU:SHU050210050
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
Monitor your battery system with confidence using the Victron SmartShunt 1000A/50mV (Model SHU050210050). This advanced battery shunt provides accurate real-time monitoring without the need for a physical display. Instead, your smartphone or tablet becomes the interface, connecting via Bluetooth to the VictronConnect app. You can view essential battery data including state of charge, voltage, current, time remaining, amp hours and historical performance trends.
Designed for systems up to 1000 amps and compatible with 12 V, 24 V and 48 V battery setups, the SmartShunt is ideal for marine, motorhome, caravan, off-grid and solar power installations where space and wiring simplicity matter. With a 50 mV rating at 1000 A, this model delivers reliable readings even under heavy electrical loads.
Installation is simple and tidy. The SmartShunt fits inline with the negative battery cable and requires minimal wiring, helping keep your system neat and easy to manage. A built-in VE.Direct port allows connection to Victron GX devices such as Cerbo GX or Color Control GX for larger system displays or remote monitoring.
An auxiliary input provides extra flexibility. You can monitor a second battery, track battery midpoint voltage or measure temperature when used with an optional sensor. This makes the SmartShunt a practical choice for both new installations and system upgrades.
Built to Victron’s high standards, the SmartShunt features a durable construction and low power consumption to help protect your batteries and extend their lifespan. With a five-year warranty and worldwide support, it offers long-term reliability for any serious power system.
Product Specifications
Product Specifications
Performance & Electrical Specifications
- Supply Voltage Range: 6.5 – 70 VDC
- Current Draw: < 1 mA
- Input Voltage Range (Auxiliary Battery): 6.5 – 70 VDC
- Battery Capacity (Ah): 1 – 9999 Ah
- Operating Temperature Range: -40°C to +50°C (-40°F to 120°F)
- Auxiliary Input: Measures voltage of a second battery (starter battery), temperature (with optional sensor), or midpoint deviation.
- Temperature Measurement Range: -20°C to +50°C
Resolution & Accuracy
- Current Resolution: ± 0.01 A
- Voltage Resolution: ± 0.01 V
- Amp Hours Resolution: ± 0.1 Ah
- State of Charge (0 – 100%) Resolution: ± 0.1 %
- Time to Go Resolution: ± 1 min
- Accuracy of Current Measurement: ± 0.4 %
- Current Offset: Less than 20 mA
- Accuracy of Voltage Measurement: ± 0.3 %
Connectivity & Data Storage
- Bluetooth: Integrated (typical range of 10-15 meters).
- Communication Port: VE.Direct for connection to GX devices or a VE.Direct Bluetooth Dongle.
- Stored Trends: Stores battery voltage, current, state of charge (%), and Aux input data.
- Trend Data History: 46 days.
Mechanical Specifications
- Dimensions (h x w x d): 68 x 168 x 75 mm
- Shunt Connection Bolts: M10 (0.3937 inch)
- Protection Category: IP21
Included Accessories
- Power Cables: Two cables with integrated 1 A fuses for the '+' connection and starter battery or midpoint connection.
Standards & Compliance
- Safety: EN 60335-1
- Emission / Immunity: EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
- Automotive: EN 50498
