Victron Smart Shunt 500A Battery Monitor
Victron Smart Shunt 500A Battery Monitor
SKU:SHU050150050
Brand: Victron
17 in stock
Couldn't load pickup availability
Product Details
Product Details

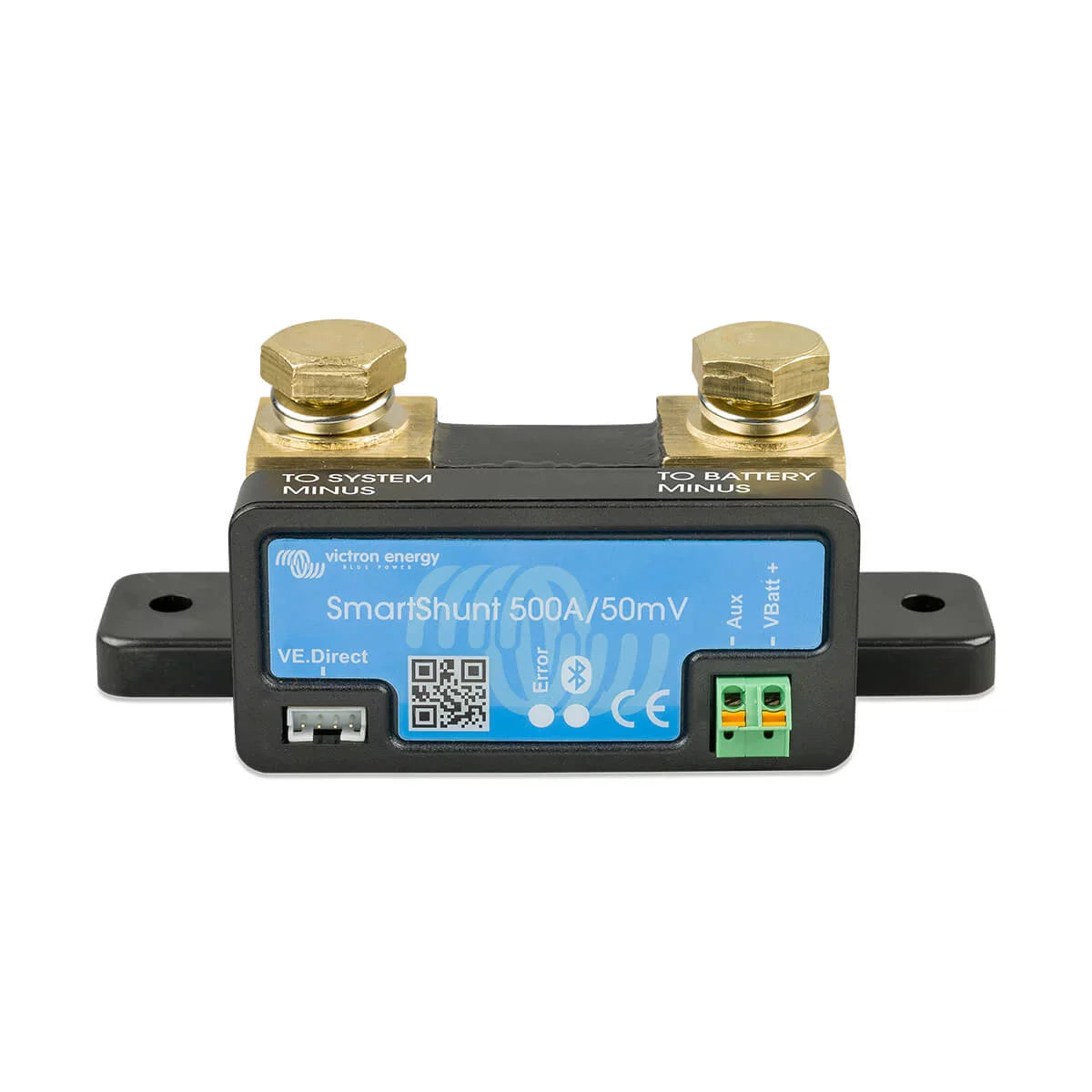

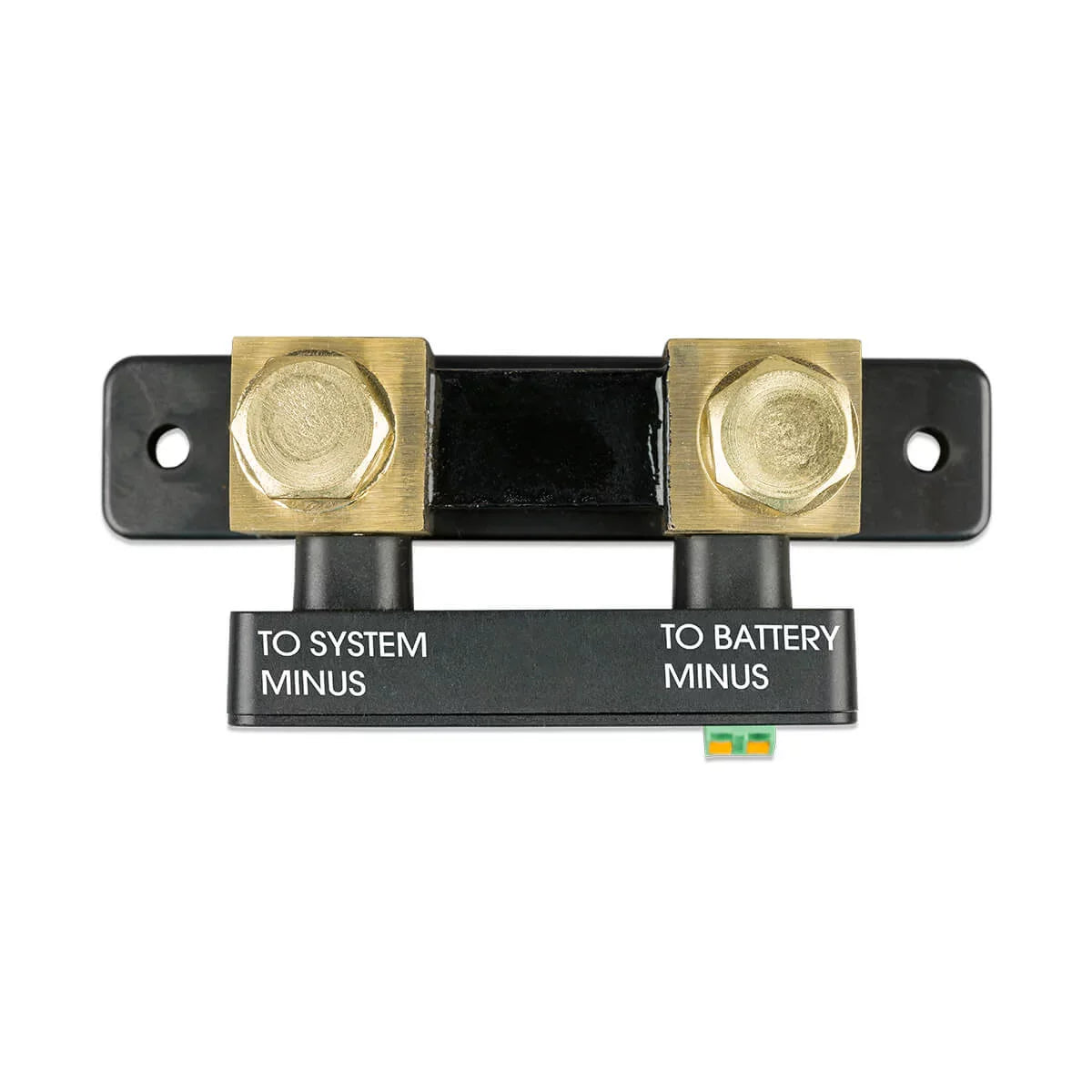

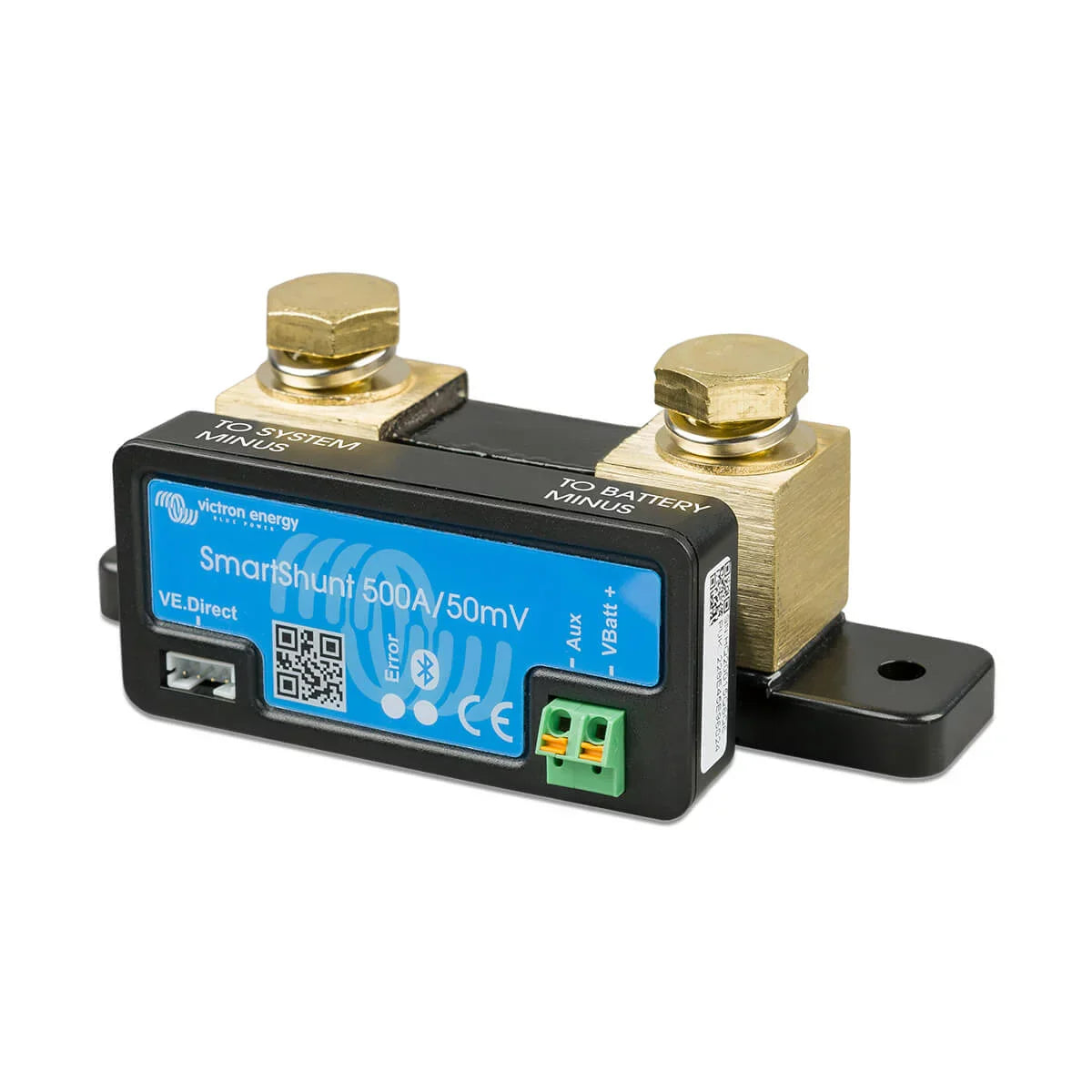

Victron Energy SmartShunt 500A/50mV – SHU050150050
All-in-One Battery Monitoring:
The SmartShunt 500A serves as a comprehensive battery monitor, utilizing your phone as the display for convenient access to key parameters via Bluetooth through the VictronConnect app.
Versatile Connection Options:
Easily connect the SmartShunt to your phone or tablet using Bluetooth or use a GX device with a VE.Direct cable for seamless integration into your system.
Functionality Beyond Monitoring:
Equipped with Bluetooth, a VE.Direct port, and an additional connection for monitoring a second battery, midpoint monitoring, or attaching a temperature sensor, the SmartShunt offers versatility beyond standard battery monitoring.
Alternative to BMV Battery Monitor:
A practical alternative to the BMV battery monitor, the SmartShunt is ideal for systems where comprehensive battery monitoring is essential, but with minimal wiring and clutter.
VictronConnect App Convenience:
The VictronConnect app, available for Android, Apple iOS, MacOS, and Windows, is essential for setup and monitoring. Connect via Bluetooth or USB (with the optional VE.Direct to USB interface) to ensure efficient and user-friendly control of your SmartShunt 500A.
Product Specifications
Product Specifications
Technical Specifications
Combined for SKUs: SHU050150050
Audible Alarm On Device: No
Automotive Directive: EN 50498
Aux Cable: 1.5m cable with 1A fuse
Aux Input Fo Auxiliary Battery Voltage: Yes
Battery Capacity Measurement Range: [1, 9,999] Ah
Bluetooth: Yes
Body Depth: 31 mm
Body Diameter: 52 mm
Capacity Measurement Resolution: 0.1 Ah
Communication Port: VE.Direct
Current Draw: 1 mA
Current Measurement Accuracy: 0.4 %
Current Measurement Offset: 10 mA
Current Measurement Resolution: 0.01 A
Current Rating: 500 A
Data Retention Period: 46 d
Data Stored: Battery voltage,Battery current,Battery temperature,Battery state of charge percentage,Battery midpoint deviation,Starter battery voltage
Depth: 54 mm
Display: No
Emisison Immunity: EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3
Front Diameter: 63 mm
Height: 46 mm
Input Voltage Measurement Range Auxiliary Battery: [6.5, 70] VDC
Measurement Accuracy: 0.4 %
Positive Cable: 1.5m cable with 1A fuse
Protection Category: IP21
Safety: EN 60335-1
Shunt Connection Terminals: M10 bolts
State Of Charge Measurement Resolution: 0.1 %
Supply Voltage Range: [6.5, 70] VDC
Temperature Sensor: Optional (ASS000100000 - Temp. sensor for BMV)
Time To Go Measurement Resolution: 1 min
Visual Alarm On Device: No
Voltage Measurement Accuracy: 0.3 %
Voltage Measurement Resolution: 0.01 V
Weight: 0.32 kg
Width: 120 mm
Source: Victron
