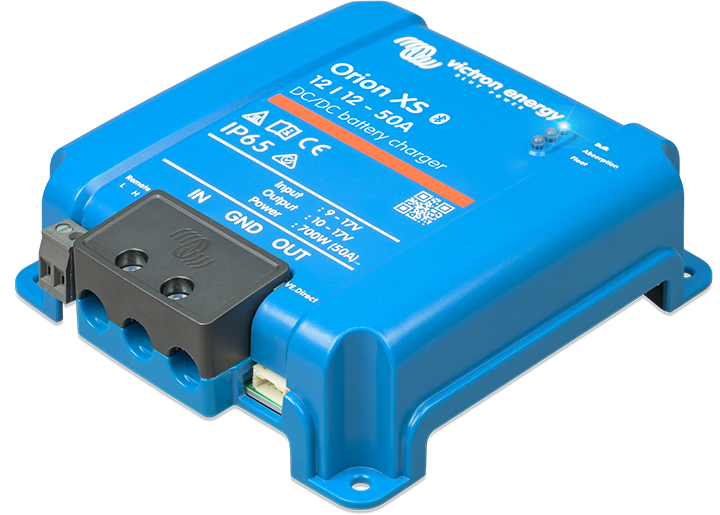

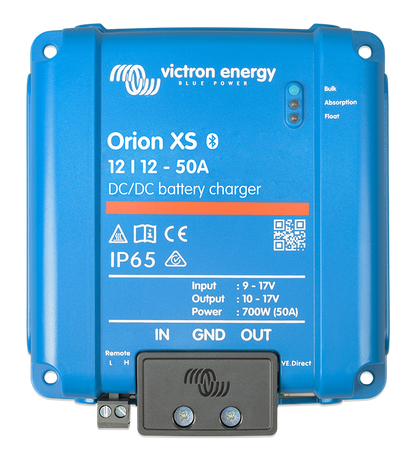

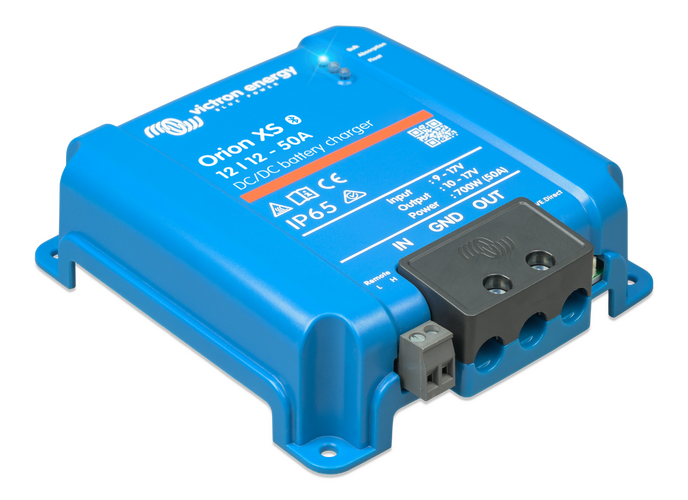

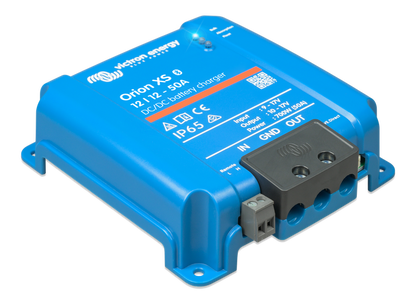

Victron Orion XS 50A DC/DC Charger – 12/12 Non-Isolated Battery To Battery Charger
Victron Orion XS 50A DC/DC Charger – 12/12 Non-Isolated Battery To Battery Charger
SKU:ORI121217050
Brand: Victron
53 in stock
Couldn't load pickup availability
Product Details
Product Details

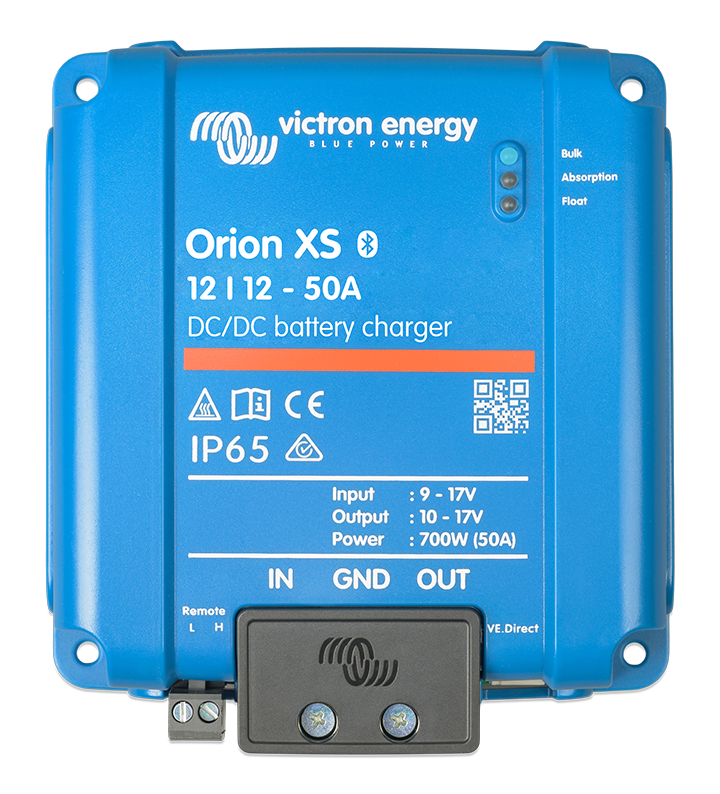

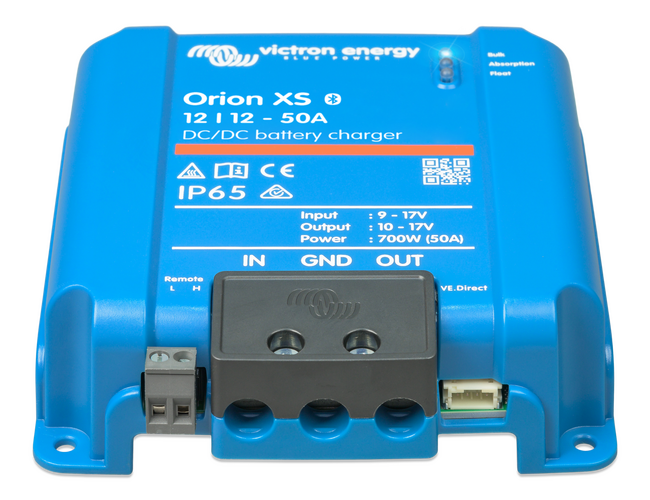

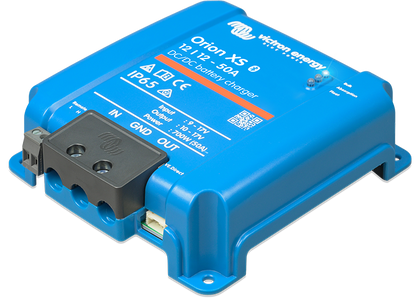

Unleash the Power: The Victron Orion XS 50A DC/DC Battery Charger
Engineered from the ground up by Victron Energy, the Orion XS 50A DC/DC Charger redefines how you manage power in your campervan, 4x4, motorhome, or boat. This non-isolated, battery-to-battery (B2B) charger is the single most efficient and compact unit in its class, designed to protect your starter battery and fully charge your leisure battery while you drive.
Unlike older split-charge systems, the Orion XS delivers a precise, powerful 50 Amp charge via its Adaptive 4-Stage Charging Algorithm. This intelligence is crucial for modern battery chemistries, including sensitive Lithium-ion (LiFePO₄) and all common Lead-Acid types (AGM, Gel, Flooded). The algorithm customises its stages based on how deeply your battery is discharged, ensuring a complete, optimal recharge every single time, which significantly extends the life of your expensive leisure battery.
Installation is made simple with Smart Alternator Compatibility. The integrated 'Engine Shutdown Detection' mechanism precisely senses when your engine is running, ensuring the charger only draws power from the starter battery/alternator at the correct time. This is essential for modern Euro 5 and Euro 6 vehicles, guaranteeing your charger works perfectly without the need for complex ignition wiring.
Complete control is in your hands with built-in Bluetooth Smart and the VictronConnect App. Wirelessly monitor voltage, current, historical data, and charge status from your phone or tablet. You can fully configure every parameter, set input current limits to protect smaller alternators, and even use it as a powerful fixed-voltage power supply. Robust, dust-tight, and protected against heavy rain with an IP65 rating, the Orion XS is ready for life on the road or at sea.
The Victron Orion XS 50A DC/DC Charger is the ultimate choice for those who demand the best. Experience the next level of adaptive DC-DC charging and empower your dual-battery system with confidence.
Product Specifications
Product Specifications
Performance & Electrical Specifications
- Input Voltage Range: 9 – 17 V
- Output Voltage Adjust Range: 10 – 17 V
- Output Voltage Tolerance: +/- 0.25% (max)
- Output Voltage Noise: 10 mV rms
- Input and Output Current Setting Range: 1 – 50 A
- Maximum Constant Short-Circuit Current: 50 A
- Continuous Output Power (up to 40 °C): 700 W (Nominal power level at 14V)
- Maximum Efficiency: 98.5%
- No-Load Current Consumption: < 100 mA
- Standby Current Consumption: < 1.5 mA
Smart Features & Connectivity
- Bluetooth Smart Enabled: Wirelessly change settings, monitor activities, and update software via the VictronConnect App.
- Instant Readout: View key data, warnings, and alarms on the VictronConnect Device list page without needing a direct connection.
- VE.Smart Networking: Wirelessly receive Vsense, Tsense, and Isense data from devices like a BMV, SmartShunt, or Smart Battery Sense to optimize charging parameters.
- VE.Direct Port: Supports wired connection to a GX device (e.g., Cerbo GX, Ekrano GX) or PC for advanced monitoring, control, and diagnostics.
- DVCC Support: Enables advanced system-wide charge current limits and BMS control when connected to a GX device.
- Adjustable Charging Current: Precisely set the charge current via VictronConnect with a minimum step size of 0.1 A.
Protection & Environmental
- Engine Shutdown Detection: Integrated mechanism detects when the engine is running to ensure the charger only draws power when the alternator is supplying power.
- Adaptive 4-Stage Charge Algorithm: Includes fully programmable algorithms for lead-acid (with automatic absorption time adjustment) and lithium batteries.
- Low Temperature Shutdown: Automatically turns off at low temperatures to prevent damage to lithium batteries.
- Input Undervoltage Protection: Shuts down when input voltage drops below a configurable lockout value to protect the starter battery.
- Comprehensive Electronic Protection: Includes protection against overload, short circuits, and excessive temperatures (output power is reduced when maximum product temperature is reached).
- Operating Temperature Range: -20 to +60 °C (derating 1.5% per °C above 40 °C).
- Humidity: 95%, non-condensing.
- Protection Category: IP65 (dust-tight and protected against heavy rain).
Mechanical Specifications

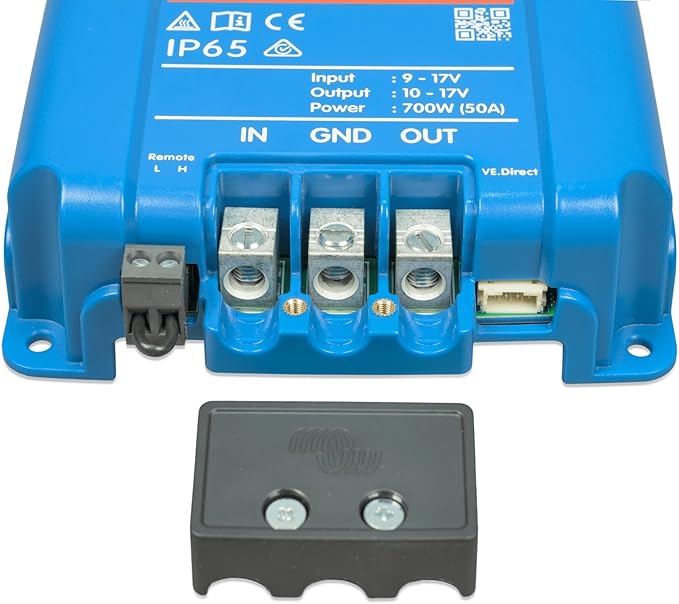

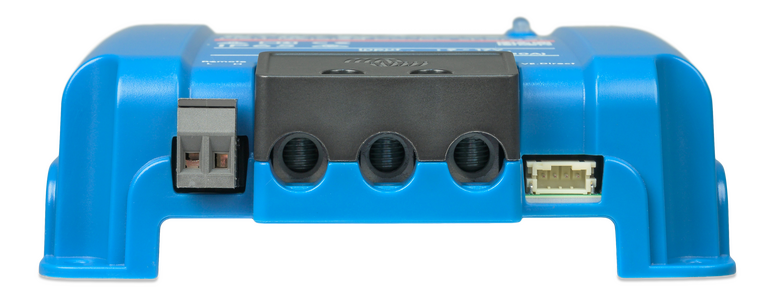

- DC Connection: Screw terminals
- Maximum Cable Cross-Section: 4 AWG (21.2 mm²)
- Weight: 0.330 kg (0.73 lb)
- Dimensions (h x w x d): 137.3 x 123.1 x 40 mm (5.4 x 4.85 x 1.6 inches)
Standards & Compliance
- Safety: IEC 62477-1
- EMC: EN 300 328, EN 301 489-1, EN 301 489-17, FCC 15B, ICES-003
- Automotive Directive: ECE R10-6
Technical Specifications
Technical Specifications
| Battery Charger Rating | 50A |
|---|---|
| Weight KG | 0.33 |
