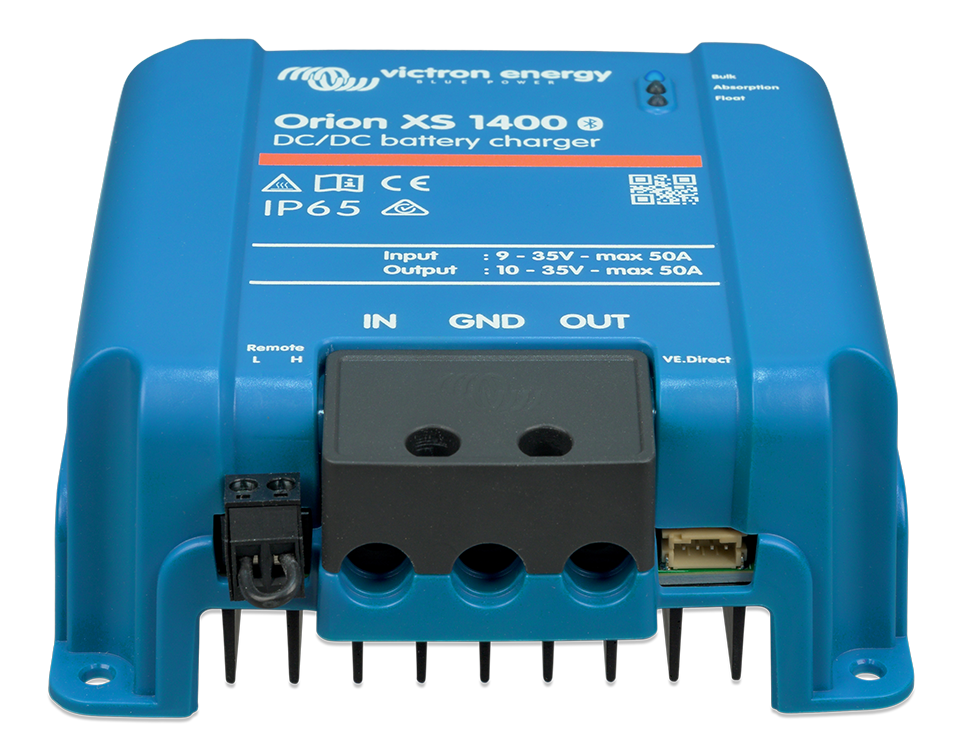

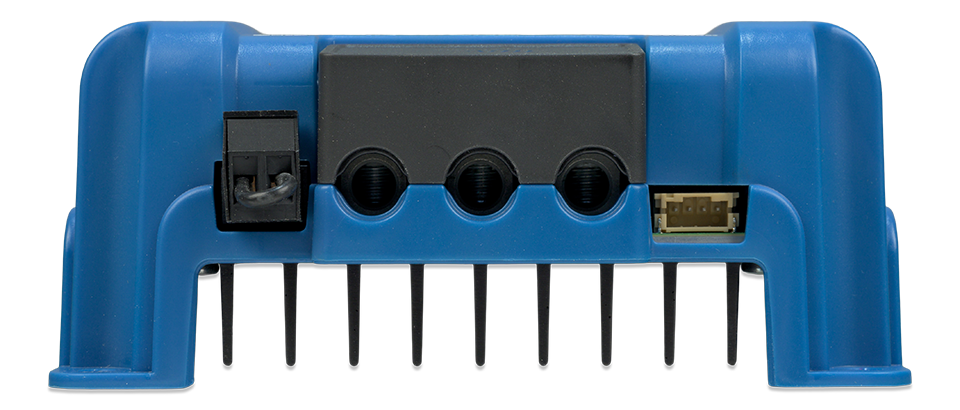

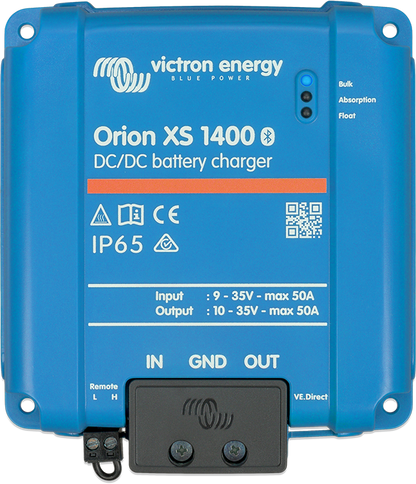

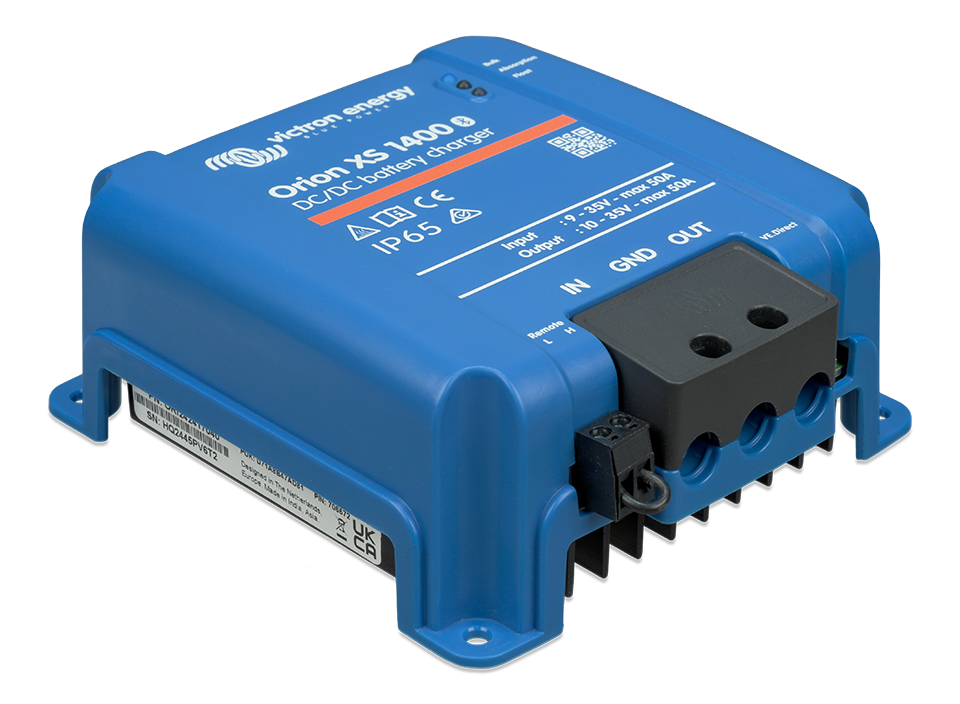

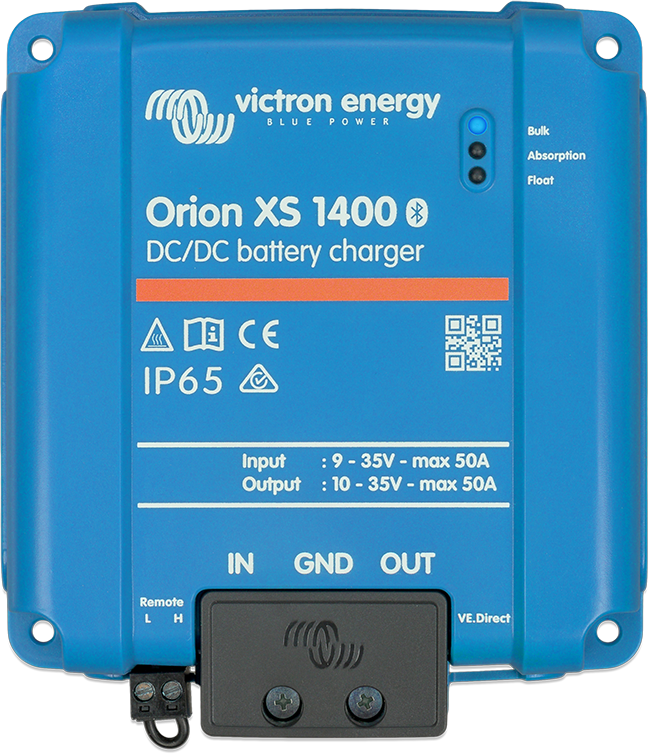

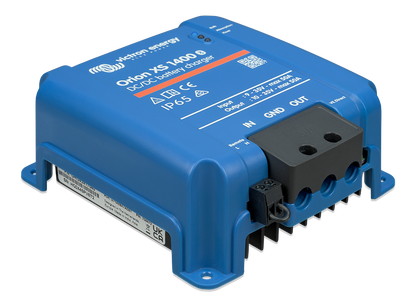

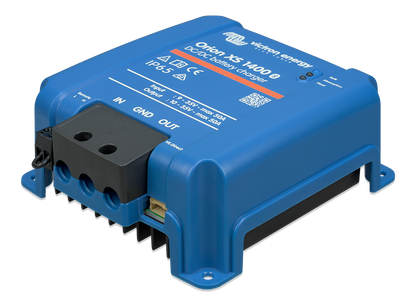

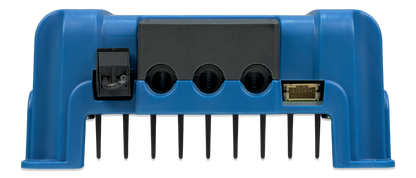

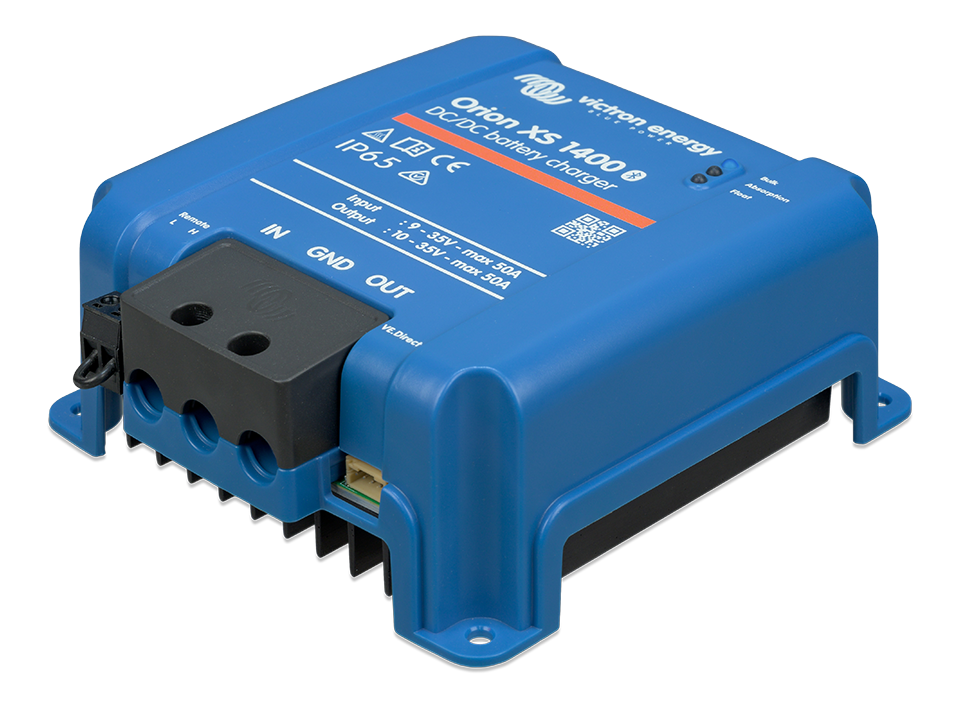

Victron Orion XS 1400 DC-DC Battery Charger (ORI242417040)
Victron Orion XS 1400 DC-DC Battery Charger (ORI242417040)
SKU:ORI242417040
Brand: Victron
Low stock: 10 left
Couldn't load pickup availability
Product Details
Product Details
The Victron Orion XS 1400 DC‑DC Battery Charger is a rugged, high-performance charger designed for dual-battery and mixed-voltage systems. It delivers up to 1,400 W of charging power, making it ideal for converting and regulating voltage between 12 V and 24 V systems, whether you're charging from a smart alternator in a vehicle or balancing battery banks in mobile or off-grid applications.
This unit offers fully configurable input and output currents, adjustable between 1 A and 50 A, giving system designers the flexibility to tailor settings for different battery chemistries such as LiFePO₄, AGM, Gel or flooded lead-acid. Its adaptive four-stage charging algorithm optimises absorption and float phases to protect battery health and extend lifespan.
Connectivity options are excellent. The charger features Bluetooth Smart, allowing configuration and monitoring via the VictronConnect app. In addition, it supports VE.Direct and VE.Smart Networking, enabling integration with other Victron devices for coordinated voltage and temperature compensation, and it supports DVCC for system‑wide charge control when paired with a GX device.
The design is compact and robust. With a durable IP65-rated aluminium housing, the charger is dust-tight and water-resistant, allowing installation in harsh or cramped environments. It operates efficiently up to +40 °C before thermal derating, thanks to its fanless cooling. Despite its power, the unit weighs only 0.52 kg and measures 138.1 × 124.4 × 53 mm.
Safety is a priority: the device includes protection against overload, short circuits, excessive temperature, and low input voltage. It includes engine‑running detection to ensure the charger only draws from the alternator when the engine is on. It also features low-temperature shutdown to protect lithium batteries, and full current control to avoid alternator overload.
Finally, the charger supports parallel operation, so you can scale charging current by installing multiple units. That makes the XS 1400 a flexible, future‑proof choice for expanding systems in marine, automotive, or off-grid installations.
Product Specifications
Product Specifications
Performance & Electrical Specifications
- Input Voltage Range: 9 – 35 V
- Output Voltage Adjust Range: 10 – 35 V
- Output Voltage Tolerance: +/- 0.25% (max)
- Output Voltage Noise: 10 mV rms
- Input and Output Current Setting Range: 1 – 50 A
- Maximum Constant Short-circuit Current: 50 A
- Continuous Output Power (up to 40 °C): 1400 W (Nominal power level at 28V)
- Maximum Efficiency: 98.5%
- No-load Current Consumption: < 100 mA
- Standby Current Consumption: < 1.5 mA
Smart Features & Connectivity
- Bluetooth Smart Enabled: Wirelessly change settings, monitor activities, and update software via the VictronConnect App on smartphones or tablets.
- Instant Readout: Key data, warnings, and alarms are displayed on the device list page in VictronConnect without needing a direct connection.
- VE.Smart Networking: Wirelessly receive voltage, temperature, and current sense data (Vsense, Tsense, Isense) from devices like a SmartShunt or BMV to optimize charging.
- VE.Direct Port: Supports wired connection to a GX device (e.g., Cerbo GX) for advanced monitoring, control, and VRM Portal integration.
- DVCC Support: Enables Distributed Voltage and Current Control for system-wide charge current limits and BMS control.
- Adjustable Charging Current: Charge current is adjustable via VictronConnect with a minimum step size of 0.1 A.
Protection & Environmental
- Engine Shutdown Detection: Integrated mechanism ensures the charger only activates when the engine is running and the alternator is supplying power.
- Adaptive 4-stage Charge Algorithm: Includes Bulk, Absorption, Float, and Storage stages. Automatically increases absorption time after deep discharges to ensure a full recharge.
- Low Temperature Shutdown: Automatically turns off at low temperatures to prevent damage to lithium batteries.
- Input Undervoltage Protection: Shuts down when input voltage drops below a configurable lockout value to protect the starter battery.
- Comprehensive Electronic Protection: Includes protection against overload, short circuits, and excessive temperatures (power is reduced when maximum product temperature is reached).
- Operating Temperature Range: -20 to +60 °C (derating 1.5% per °C above 40 °C).
- Humidity: 95%, non-condensing.
- Protection Category: IP65 (dust-tight and protected against heavy rain).
Mechanical Specifications
- DC Connection: Screw terminals
- Maximum Cable Cross-Section: 4 AWG (21.2 mm²)
- Weight: 0.520 kg (1.14 lb)
- Dimensions (h x w x d): 138.1 x 124.4 x 53 mm (5.44 x 4.9 x 2.1 inches)
Standards & Compliance
- Safety: IEC 62477-1
- EMC: EN 300 328, EN 301 489-1, EN 301 489-17, FCC 15B, ICES-003 (Pending)
- Automotive Directive: ECE R10-6 (Pending)
