Victron Battery To Battery Charger 30A – 12/12 Orion-Tr Smart – Isolated DC-DC Charger
Victron Battery To Battery Charger 30A – 12/12 Orion-Tr Smart – Isolated DC-DC Charger
SKU:ORI121236120
Brand: Victron
Low stock: 4 left
Couldn't load pickup availability
Product Details
Product Details

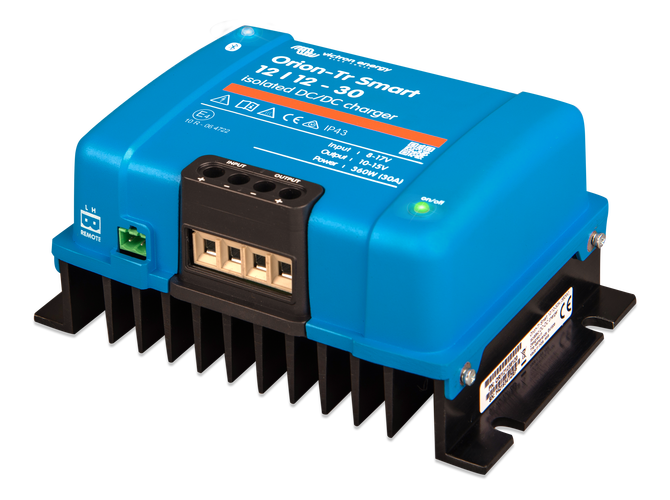

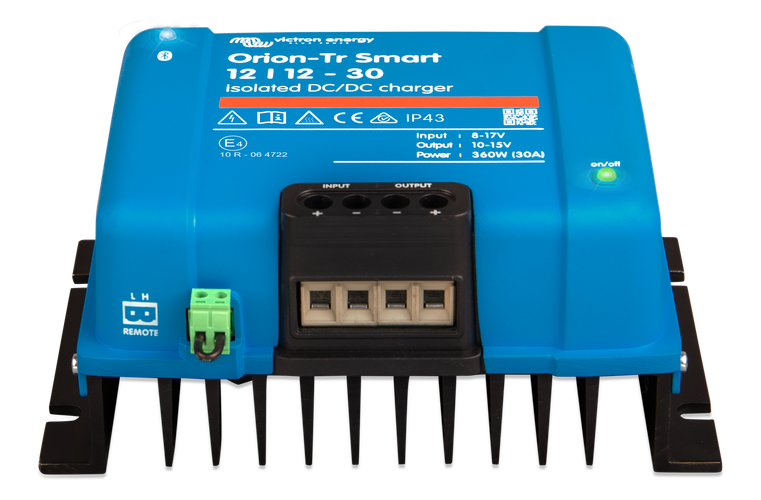

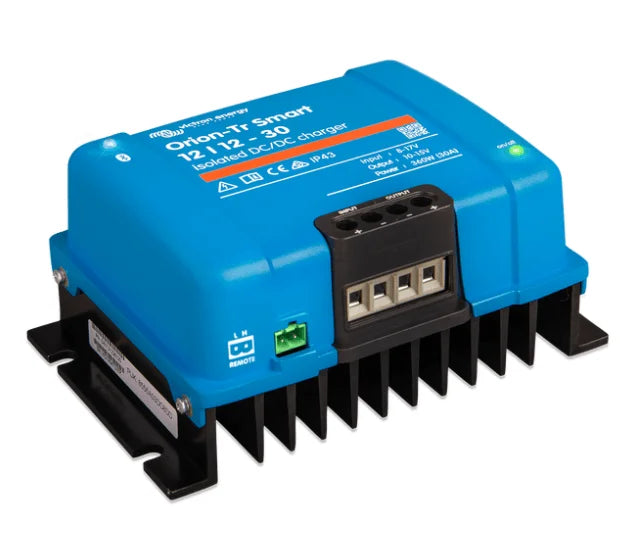

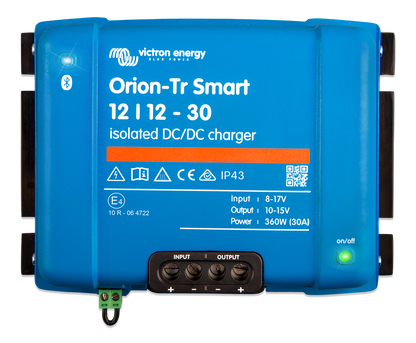

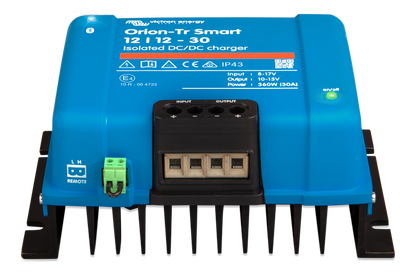

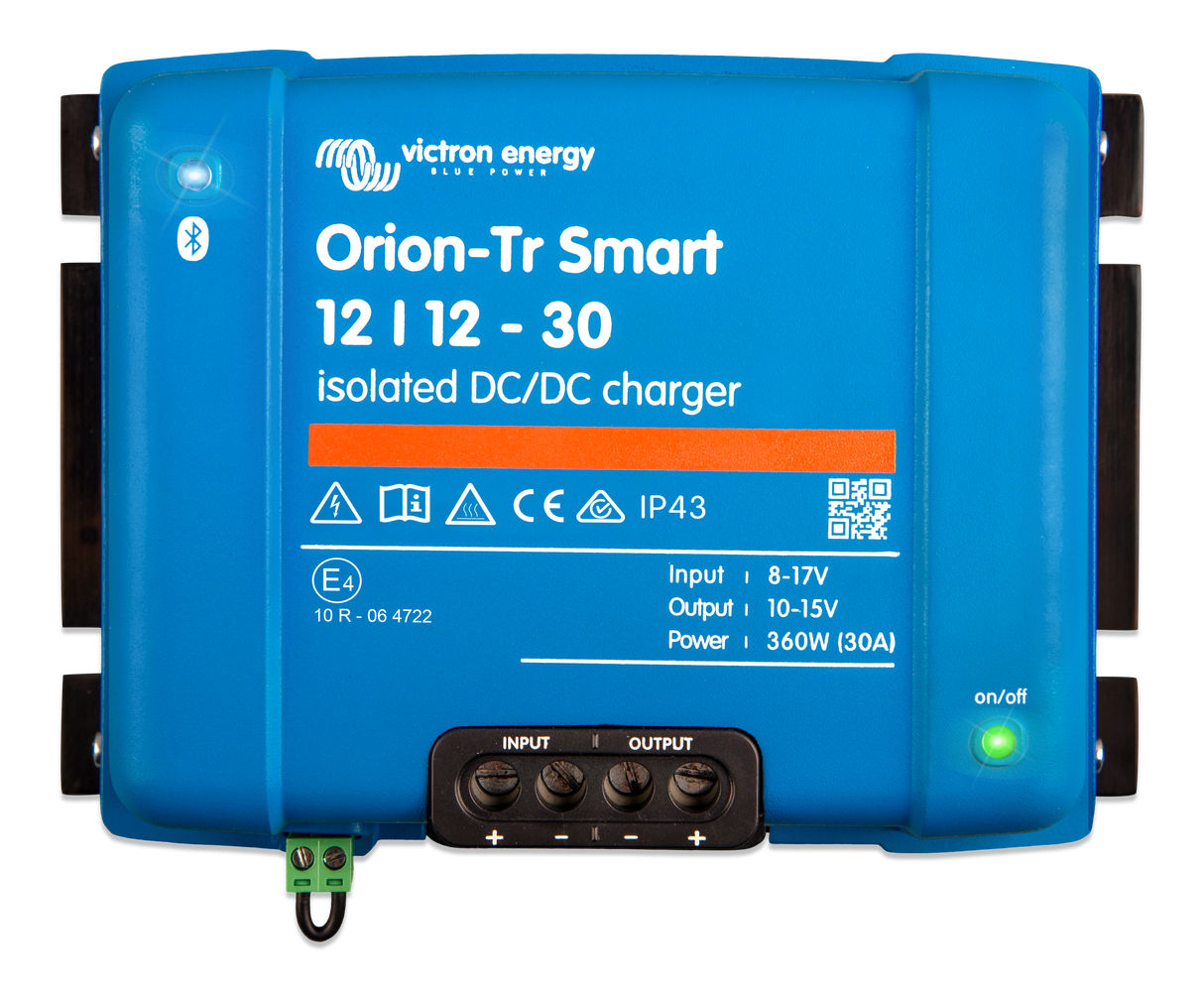

The Victron Energy Orion-Tr Smart 12/12-30A (360W) Isolated DC-DC charger is a robust solution designed for professional mobile, marine and vehicle dual-battery systems. With a nominal input and output of 12V and a continuous output current of 30A (360W), this isolated model offers galvanic separation for input and output chassis ground, making it ideal where isolation is required.

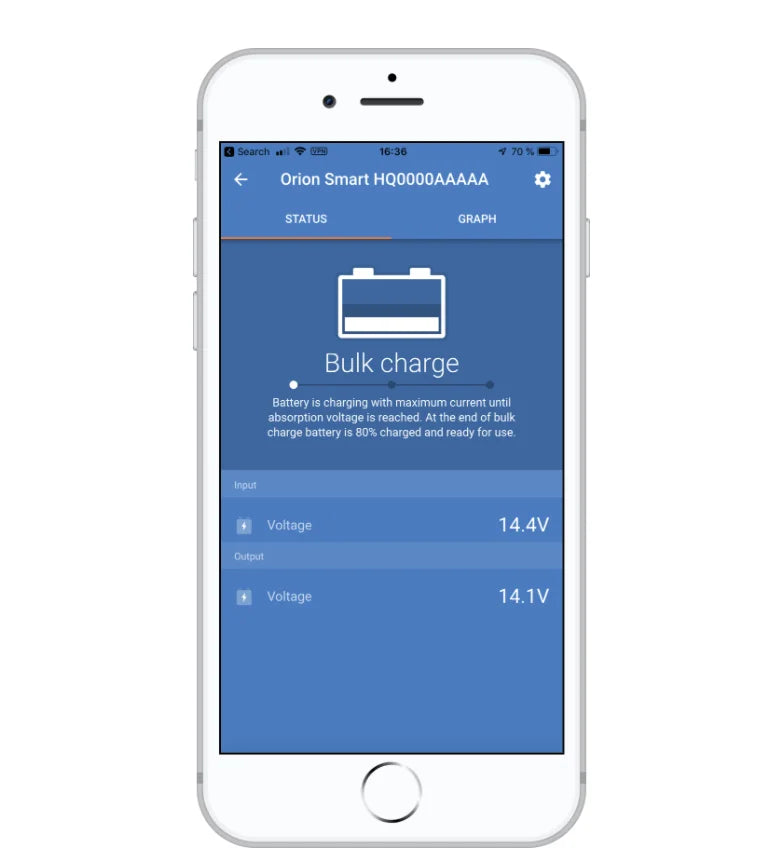

Compatibility is wide: it supports use with lead-acid and lithium batteries and is fully programmable via Bluetooth using the VictronConnect app, allowing real-time monitoring, configuration of charge algorithms and firmware updates. The adaptive three-stage charger algorithm (bulk, absorption, float) ensures efficient and safe charging in demanding environments.
The unit is built for installation ease with screw-terminal connections, compact dimensions (130 × 186 × 80 mm for the 12/12 model) and a weight of around 1.8 kg. It operates reliably up to ambient temperatures of 55 °C (with full rated output up to 40 °C) and allows parallel operation of multiple units for higher power requirements.
In practical use trade professionals will value this charger for vehicle fleets, marine craft, off-grid vans and mobile service units where a dedicated service battery must be charged from a starter or alternator feed while maintaining isolation and system integrity. The engine-running detection mechanism further protects the starter battery by preventing unwanted discharge when the engine or master supply is off.
Product Specifications
Product Specifications
Performance & Electrical Specifications
- Input Voltage Range: 8 – 17 V
- Under Voltage Shut Down: 7 V
- Under Voltage Restart: 7.5 V
- Nominal Output Voltage: 12.2 V
- Output Voltage Adjust Range: 10 – 15 V
- Output Voltage Tolerance: +/- 0.2%
- Output Noise: 2 mV rms
- Continuous Output Current (at Nom. Output Voltage and 40°C): 30 A
- Maximum Output Current (10s at Nom. Output Voltage): 40 A
- Short Circuit Output Current: 60 A
- Continuous Output Power at 25°C: 430 W
- Continuous Output Power at 40°C: 360 W
- Efficiency: 87%
- No Load Input Current: < 80 mA
- Standby Current: < 1 mA
- Galvanic Isolation: 200 VDC between input, output, and case
Smart Features & Connectivity
- Bluetooth Smart Enabled: Allows for wireless monitoring, changing settings, and updating the software using Apple and Android smartphones, tablets, or other devices.
- Fully Programmable: Battery charge algorithm is fully adjustable (via the app) or can be set to a fixed output.
- Engine Running Detection: Features a built-in mechanism to detect when the engine is running, preventing the charger from discharging the starter battery when the alternator is not active.
- Remote On-Off: Dedicated terminal for a remote on-off switch or relay contact to control the unit without high-current wiring.
- Adaptive 3-stage Charge Algorithm: Includes Bulk, Absorption, and Float stages to optimize battery life; for lithium batteries, the charging time is fixed (default 2 hours).
Mechanical & Environmental
- Operating Temperature Range: -20 to +55 °C (Derating 3% per °C above 40 °C)
- Maximum Humidity: 95% non-condensing
- DC Connection: Screw terminals
- Maximum Cable Cross-Section: 16 mm² (AWG6)
- Weight: 1.8 kg (4.2 lb)
- Dimensions (h x w x d): 130 x 186 x 80 mm (5.1 x 7.3 x 3.2 inch)
- Protection Category: IP43 (Electronic components), IP22 (Connection area)
Standards & Compliance
- Safety: EN 60950
- Emission: EN 61000-6-3, EN 55014-1
- Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2
- Automotive Directive: ECE R10-5
