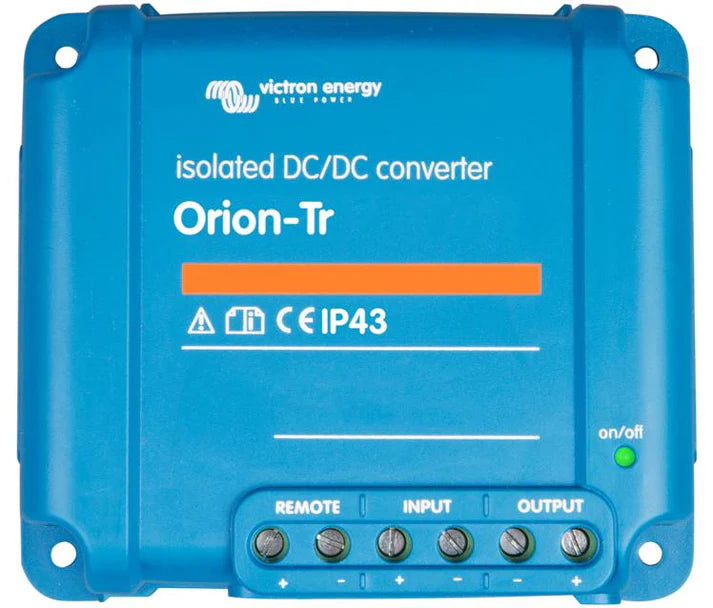

Victron Orion-Tr 48/24-16A (380W) Isolated DC-DC converter - ORI482441110
Victron Orion-Tr 48/24-16A (380W) Isolated DC-DC converter - ORI482441110
SKU:ORI482441110
Brand: Victron
Total Isolation Protection: Features 200VDC galvanic isolation between input, output, and casing to isolate and shield sensitive 24V electronics from electrical noise and voltage spikes.
Fully Adjustable Output: Easily fine-tune your output voltage between 18V and 30V using the onboard potentiometer to deliver the exact voltage your devices require.
Smart Remote On/Off Control: Run a low-power switch or connect directly to an engine run/stop switch to control the unit, saving money on high-current switches and cabling.
Scalable Current Output: Connect an unlimited number of units in parallel to dynamically expand your system's power capacity whenever you need more current.
Robust All-Weather Design: Delivers IP43 splashproof and dust protection when mounted with the heavy-duty screw terminals pointing downwards - no specialized tools required for installation.
In stock
This is pre-order - Available in 7 – 10 days
Regular price
£194.00 GBP
Regular price
Sale price
£194.00 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details
Deliver clean, stable, and protected power to your electronics with the Victron Orion-Tr 48/24-16A Isolated DC-DC Converter. In complex off-grid, RV, or marine power setups, voltage fluctuations on a 48V system can damage or disrupt sensitive 24V electronics. This isolated converter acts as an electrical firewall, ensuring your devices receive smooth, reliable energy under any conditions.
Galvanic Isolation for Ultimate Protection
Safety and equipment longevity are at the core of the Orion-Tr. Featuring 200VDC galvanic isolation between the input, output, and case, this converter prevents voltage spikes, noise, and ground loops from traveling through your system. Your expensive 24V navigation equipment, communications gear, and appliances remain fully protected.
Adjustable Voltage & High Efficiency
The Orion-Tr accepts a wide input range of 32V to 70V and outputs a default 24.2V. Using the built-in potentiometer, you can easily adjust the output voltage between 18V and 30V to perfectly match the specifications of your equipment. With an outstanding 89% efficiency rating, it minimizes power loss and waste heat. (Please note: This converter is designed for stable power supply applications and is not intended for battery charging. For charging applications, please consider the Orion-Tr Smart charger.)
Smart Control & Scalable Power
Installing the converter is simple and highly efficient. The integrated Remote On/Off terminal eliminates the need for a bulky, expensive high-current switch in your primary wiring. Instead, you can operate it using a simple low-power switch or tie it directly to your engine's run/stop switch. Plus, because the unit is completely short-circuit proof, you can connect an unlimited number of units in parallel to easily scale up your system's current output as your power needs grow.
Product Specifications
Product Specifications
Power & Efficiency
- Nominal Output Power @ 25 °C: 430 W
- Nominal Output Power @ 40 °C: 380 W
- Efficiency: 89%
- No Load Input Current: < 80 mA
- Current Consumption (Disabled/Standby): < 200 µA (when remote port is off)
- Galvanic Isolation: 200 VDC between input, output, and case
Input Specifications
- Input Voltage Range: 32 V to 70 V
- Under-Voltage Shut Down: 28 V
- Under-Voltage Restart: 30 V
- Input Fuse: No internal fuse on 48V models (an external fuse is required)
Output Specifications
- Nominal Output Voltage: 24.2 V
- Output Voltage Adjust Range: 18 V to 30 V (via onboard potentiometer)
- Output Voltage Tolerance: +/- 0.2 V
- Output Noise: 2 mV rms
- Continuous Output Current @ Nominal Voltage and 40 °C: 16 A
- Maximum Output Current (10 seconds) @ Nominal Voltage minus 20%: 25 A
- Short Circuit Output Current: 40 A
Environmental & Protection
- Operating Temperature Range: -20 °C to +55 °C (derates 3% per °C above 40 °C)
- Operating Humidity: Max. 95% (non-condensing)
- Protection Class: IP43 (when installed with the screw terminals oriented downwards)
- Over-Temperature Protection: Output current will automatically reduce at high ambient temperatures.
- Short-Circuit Protection: Yes (completely short-circuit proof)
Physical Specifications
- Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inches)
- Weight: 1.6 kg (3.5 lbs)
- DC Connection Type: Screw terminals (no special tools needed for installation)
- Maximum Cable Cross-Section: 16 mm² (AWG6)
Features & Integration
- Parallel Capability: An unlimited number of units can be connected in parallel to increase total output current. (Note: Always adjust output voltages to match before connecting in parallel).
- Remote On/Off Terminal: Replaces the need for a high-current switch in the input wiring. Can be operated with a low-power switch or by an engine run/stop switch via the green remote connector.
- Battery Charging: This unit is an adjustable power supply and is not intended for direct battery charging.
Standards & Certifications
- Safety: EN 60950
- Emission: EN 61000-6-3, EN 55014-1
- Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2
- Automotive Directive: ECE R10-5 (also certified under ECE R10-6 for newer production batches)
