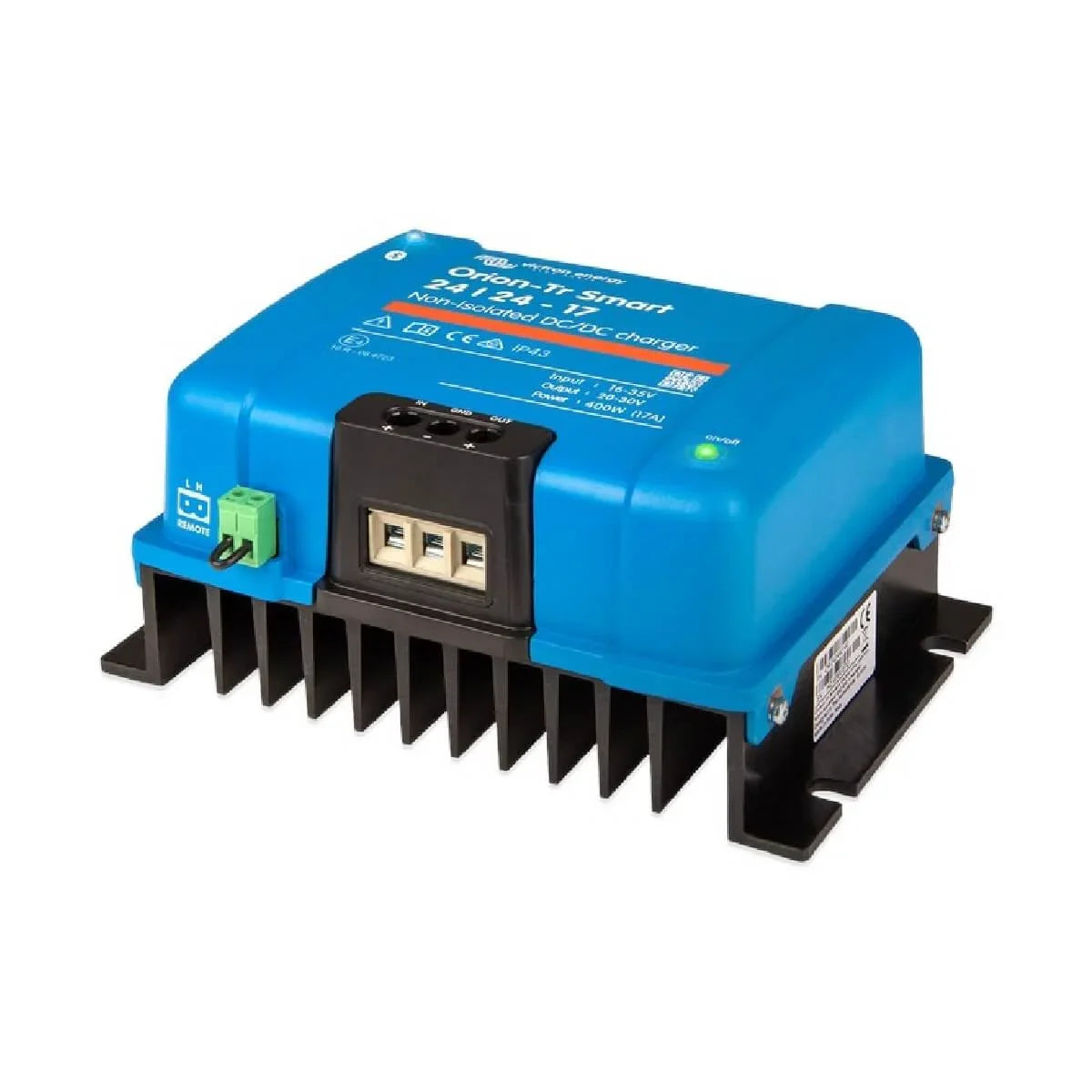

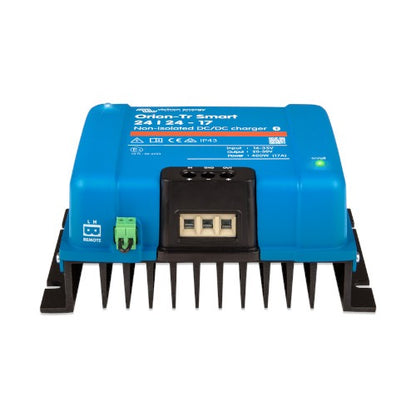

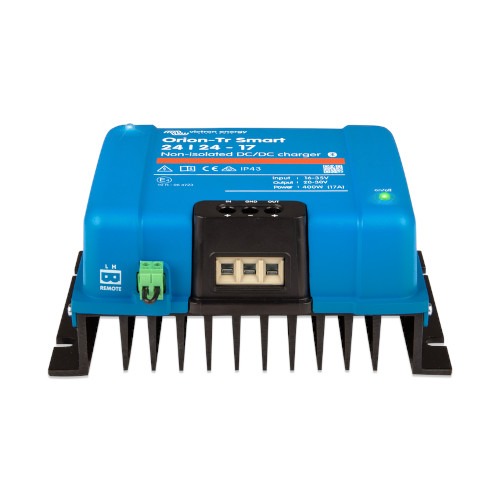

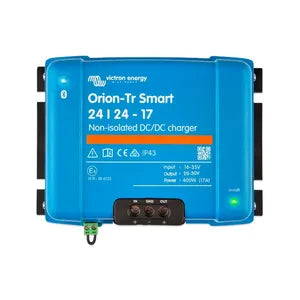

Victron Orion-Tr 24/24-17 (400W) DC-DC charger Non-Isolated
Victron Orion-Tr 24/24-17 (400W) DC-DC charger Non-Isolated
SKU:ORI242440140
Brand: Victron
Adaptive Three-Stage Charging: Ensures optimal battery health for both lead-acid and lithium batteries.
Bluetooth Connectivity: Monitor and configure settings remotely via the VictronConnect app.
Engine Shutdown Detection: Prevents battery drain by activating charging only when the engine is running.
High-Temperature Operation: Full-rated output up to 40°C, with operation possible up to 55°C.
Parallel Connection Capability: Multiple units can be connected in parallel to increase output power.
Dimensions: 130 x 186 x 80mm
Weight: 1.6kg
In stock
This is pre-order - Available in 7 – 10 days
Regular price
£208.00 GBP
Regular price
Sale price
£208.00 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details
The Victron Orion-Tr 24/24-17 (400W) Non-Isolated DC-DC Charger is engineered for dual battery systems in vehicles and boats, where the alternator charges the service battery. This professional-grade charger offers a fully programmable, adaptive three-stage charging algorithm - bulk, absorption, and float - ensuring optimal battery health for both lead-acid and lithium batteries.
Key Features:
- Input Voltage Range: 16–35 V DC
- Output Voltage: 24 V DC
- Maximum Output Power: 400 W
- Bluetooth Connectivity: Monitor and configure settings via the VictronConnect app
- Engine Shutdown Detection: Prevents battery drain by activating charging only when the engine is running
- High-Temperature Operation: Full-rated output up to 40°C, with operation possible up to 55°C
- Parallel Connection Capability: Multiple units can be connected in parallel to increase output power
- IP43 Protection: Suitable for installation in harsh environments
This charger is ideal for applications requiring reliable power conversion and battery charging, ensuring the longevity and performance of your battery systems.
Product Specifications
Product Specifications
Performance & Electrical Specifications
- Input Voltage Range: 16 – 35 V
- Under Voltage Shut Down: 14 V
- Under Voltage Restart: 15 V
- Nominal Output Voltage: 24.2 V
- Output Voltage Adjust Range: 18 – 30 V
- Output Voltage Tolerance: +/- 0.2 V
- Output Noise: 2 mV rms
- Continuous Output Current (at nominal output voltage and 40°C): 17 A
- Maximum Output Current (10s at nominal output voltage minus 20%): 25 A
- Short Circuit Output Current: 40 A
- Continuous Output Power at 25°C: 480 W
- Continuous Output Power at 40°C: 400 W
- Efficiency: 89%
- No Load Input Current: < 80 mA
- Standby Current: Less than 1 mA
Smart Features & Connectivity
- Bluetooth Smart Enabled: Monitor, change settings, and update the charger using any Bluetooth-enabled smartphone, tablet, or device via the VictronConnect App.
- Fully Programmable: Configure the battery charge algorithm or set a fixed output voltage.
- Adaptive 3-stage Charge Algorithm: Includes Bulk, Absorption, and Float stages. For lead-acid batteries, absorption time is automatically adjusted based on discharge depth. For lithium batteries, the absorption time is fixed (default 2 hours).
- Smart Alternator Compatibility: Features an engine running detection mechanism specifically for use with Euro 5 and Euro 6 engines.
- Remote On-Off: Supports a remote on/off switch or relay contact for easy system integration.
- Parallel Operation: An unlimited number of units can be connected in parallel to increase output current.
Mechanical & Environmental
- Operating Temperature Range: -20 to +55°C (Derate 3% per °C above 40°C)
- Humidity: Max 95% non-condensing
- DC Connection: Screw terminals (no special tools needed for installation)
- Maximum Cable Cross-Section: 16 mm² (AWG6)
- Weight: 1.6 kg (3.5 lb)
- Dimensions (h x w x d): 130 x 186 x 80 mm (5.1 x 7.3 x 3.2 inch)
- Protection Category: IP43 (electronic components), IP22 (connection area) when installed with screw terminals oriented downwards.
Protection & Standards
- Integrated Protection: High temperature protected (output current reduces at high ambient temperature) and short-circuit proof.
- Input Fuse: Non-replaceable internal fuse.
- Safety Standards: EN 60950
- Emission Standards: EN 61000-6-3, EN 55014-1
- Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2
- Automotive Directive: ECE R10-5
