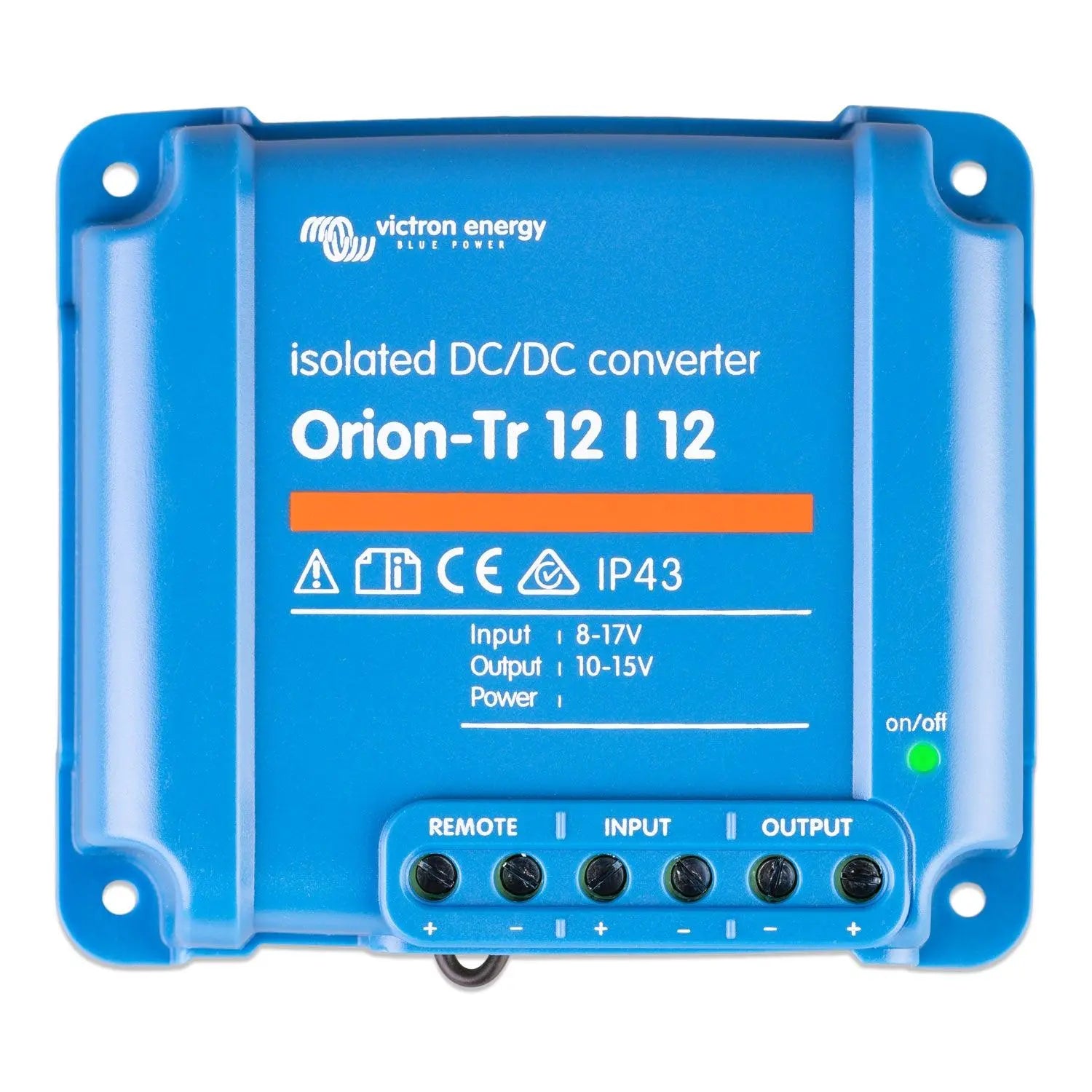

Victron Orion‑Tr 12/12‑18A (220W) Isolated DC‑DC Converter
Victron Orion‑Tr 12/12‑18A (220W) Isolated DC‑DC Converter
SKU:ORI121222110
Brand: Victron
Low stock: 7 left
Couldn't load pickup availability
Product Details
Product Details
The Victron Orion-Tr 12/12-18A (220 W) Isolated DC-DC Converter delivers dependable 12 V power for caravans, motorhomes, boats or mobile systems. It accepts an input voltage from 8 V up to 17 V and provides a regulated 12.2 V output (adjustable between 10 V and 15 V), making it ideal for powering auxiliary systems such as lights, small fridges, cameras or other 12 V accessories.
With a continuous output current of up to 18 A (and up to 25 A for short bursts), the unit provides up to 220 W of output power at 40 °C, and up to 280 W under cooler conditions. The converter features galvanic isolation, which keeps input, output and casing electrically separated. This isolation provides 200 V DC separation for enhanced safety and protection of your system.
Installation is simple thanks to screw-terminal connections that support cable cross-sections up to 16 mm². A remote on/off terminal allows control via a low-current switch, for example triggered by your vehicle ignition or engine run/stop switch. This means you do not need a bulky high-current switch in the input wiring.
The unit is built to cope with real-world conditions. It operates across a temperature range from –20 °C to +55 °C (with output derating as needed) and is rated to resist up to 95 per cent non-condensing humidity.
Because this is a DC-DC converter rather than a battery charger, it is especially suitable when you want to power 12 V loads directly from a vehicle’s alternator or battery system. It is ideal for running appliances in a van or boat, or powering auxiliary batteries to support accessories.
Product Specifications
Product Specifications
Performance & Electrical Specifications
- Input Voltage Range: 8-17 V
- Under Voltage Shutdown: 7 V
- Under Voltage Restart: 7.5 V
- Nominal Output Voltage: 12.2 V
- Output Voltage Adjust Range: 10-15 V
- Output Voltage Tolerance: +/- 0.2 V
- Output Noise: 2 mV rms
- Continuous Output Current (at 40°C): 18 A
- Maximum Output Current (10s at nominal voltage): 25 A
- Short Circuit Output Current: 40 A
- Continuous Output Power (at 25°C): 280 W
- Continuous Output Power (at 40°C): 220 W
- Efficiency: 87%
- No Load Input Current: < 80 mA
- Current Consumption (Disabled via Remote Port): < 200 uA
- Galvanic Isolation: 200 VDC between input, output, and case
Features & Protection
- Remote On/Off Terminal: Eliminates the need for a high-current switch in the input wiring; can be operated by a low-power switch or engine run/stop signal.
- High Temperature Protection: Automatically reduces output current during high ambient temperatures to protect the unit.
- Adjustable Output Voltage: Features a manual adjustment range (10-15V). Note: Not intended for battery charging; for charging applications, the Orion-Tr Smart is recommended.
- Input Fuse: Integrated non-replaceable fuse for circuit protection.
- Parallel Operation: Supports an unlimited number of units connected in parallel to scale current capacity.
Environmental & Physical Data
- Operating Temperature Range: -20 to +55 °C (derate 3% per °C above 40 °C)
- Humidity: Maximum 95% (non-condensing)
- Enclosure Protection: IP43 (when installed with screw terminals oriented downwards)
- DC Connection: Screw terminals
- Maximum Cable Cross-Section: 16 mm² (AWG6)
- Weight: 1.3 kg (3 lb)
- Dimensions (h x w x d): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
Standards & Compliance
- Safety: EN 60950
- Emission: EN 61000-6-3, EN 55014-1
- Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2
- Automotive Directive: ECE R10-5
