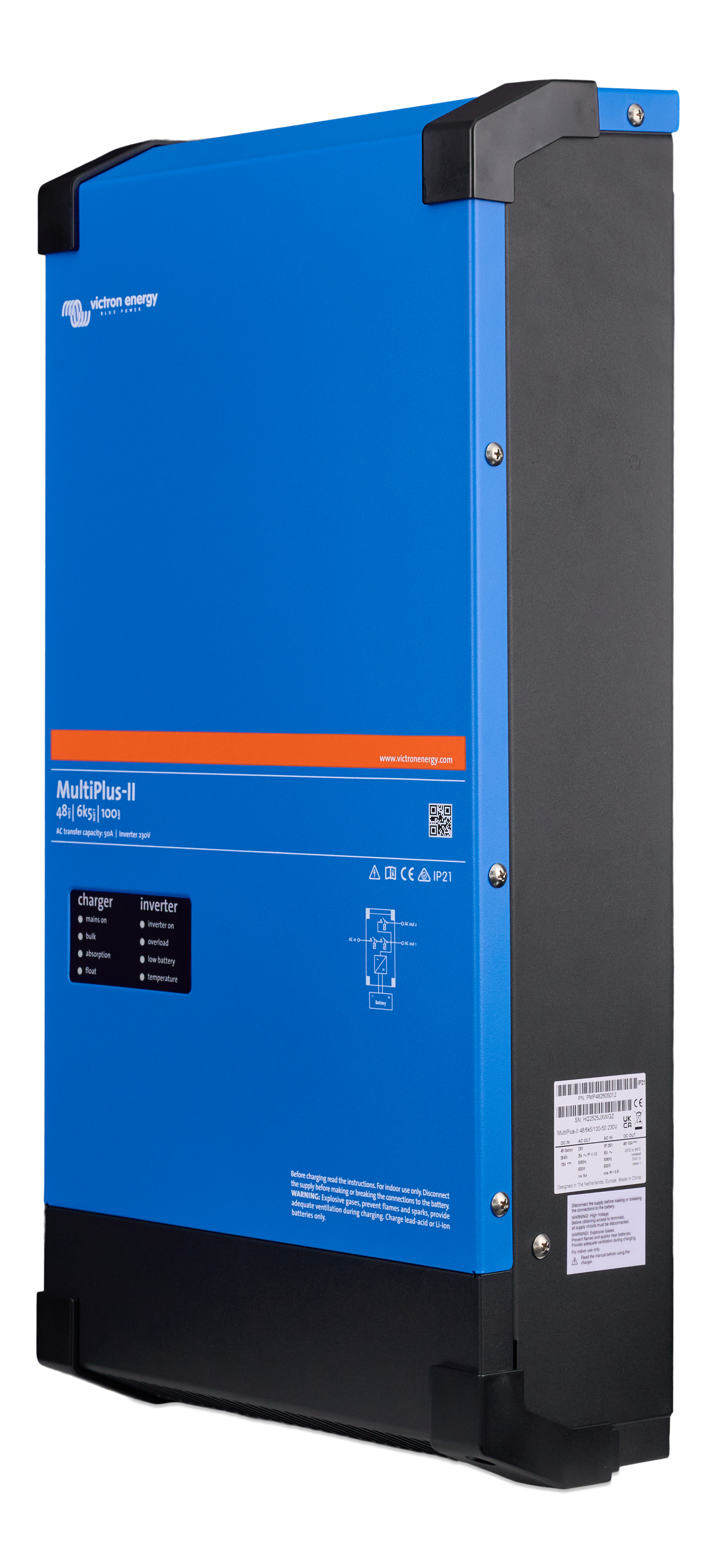

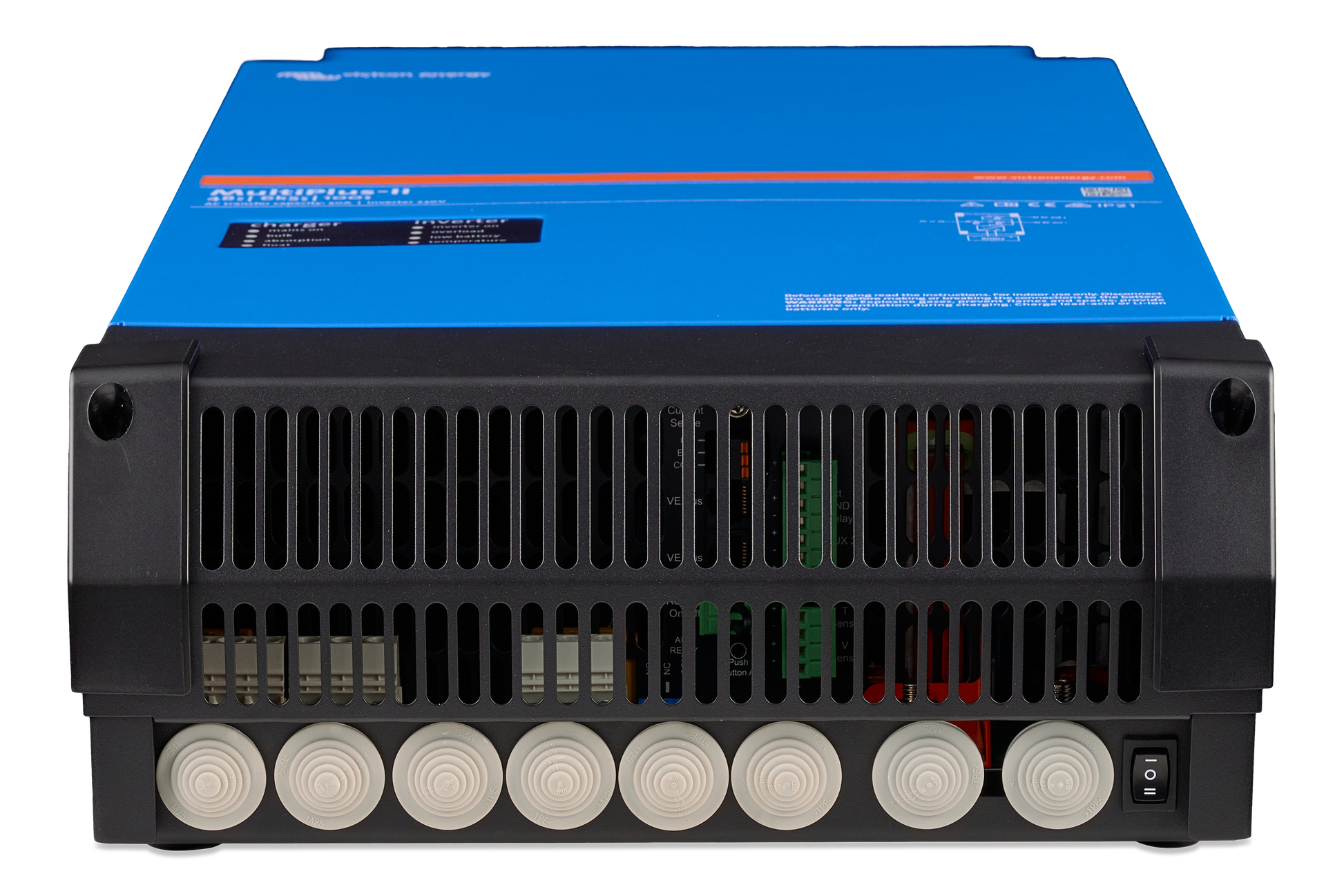

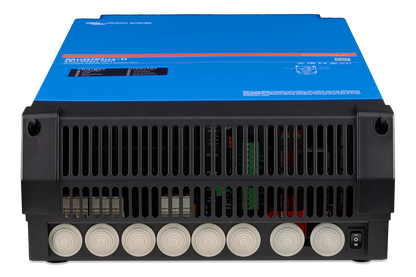

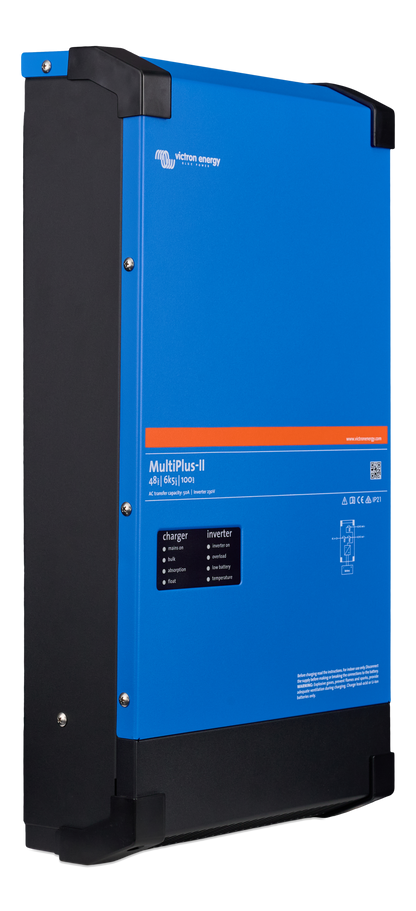

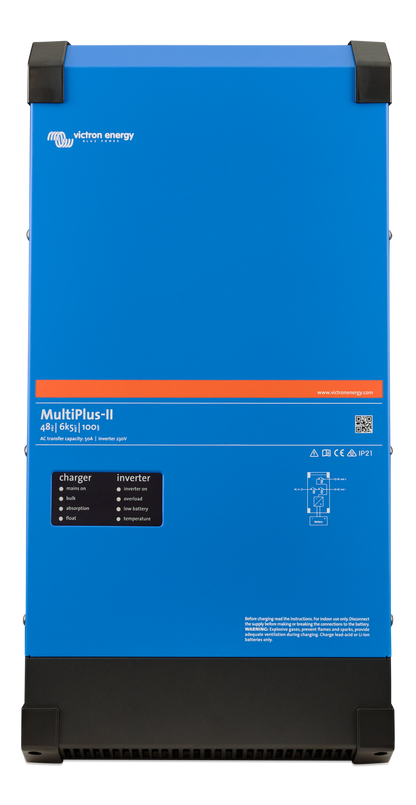

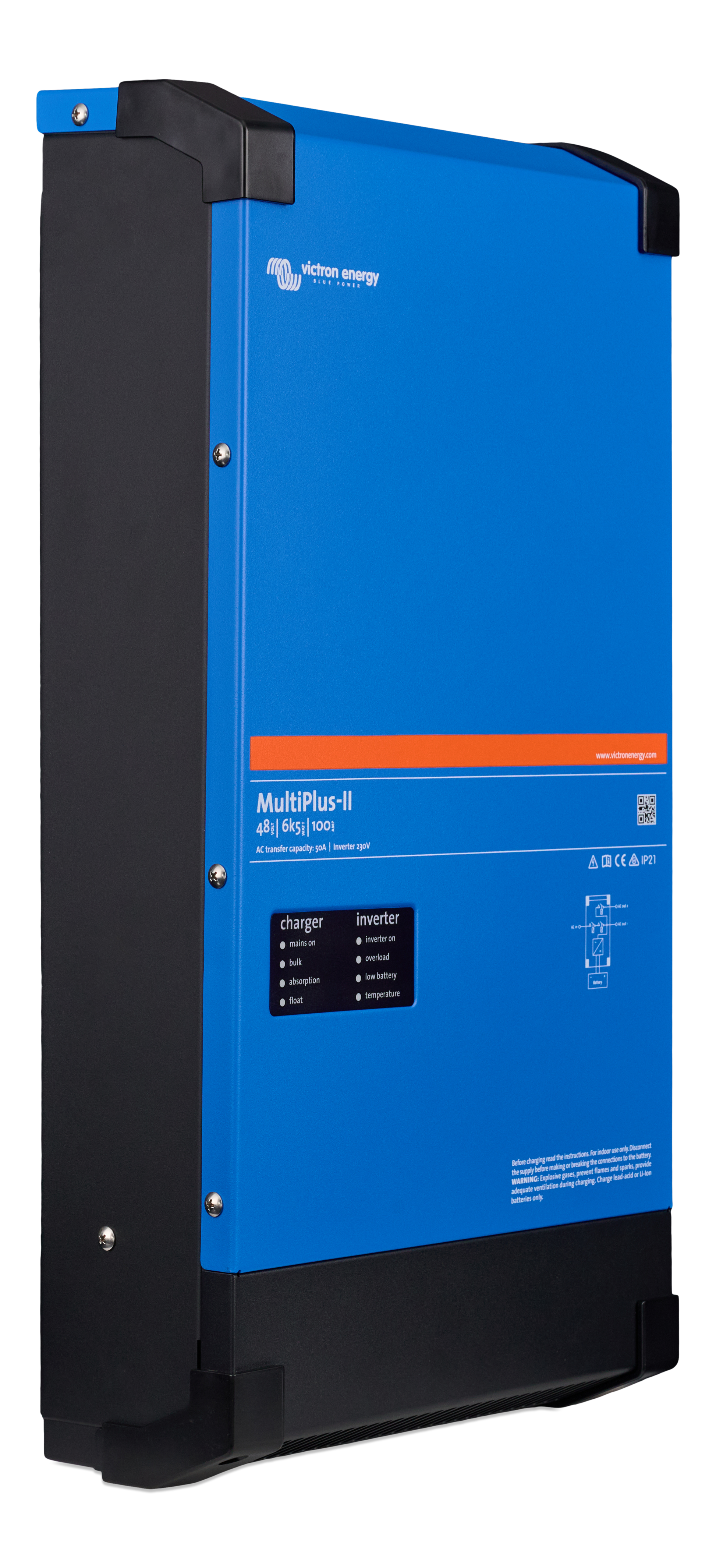

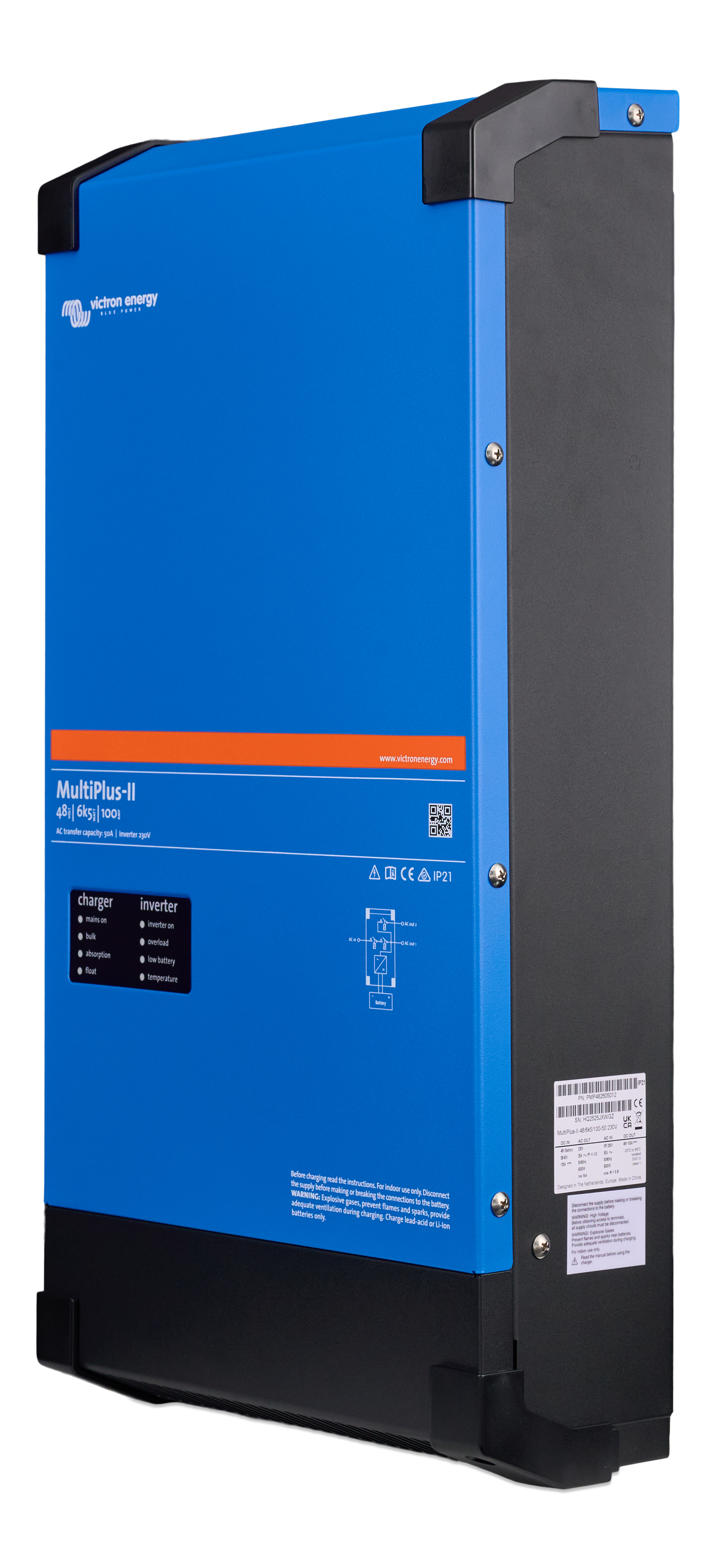

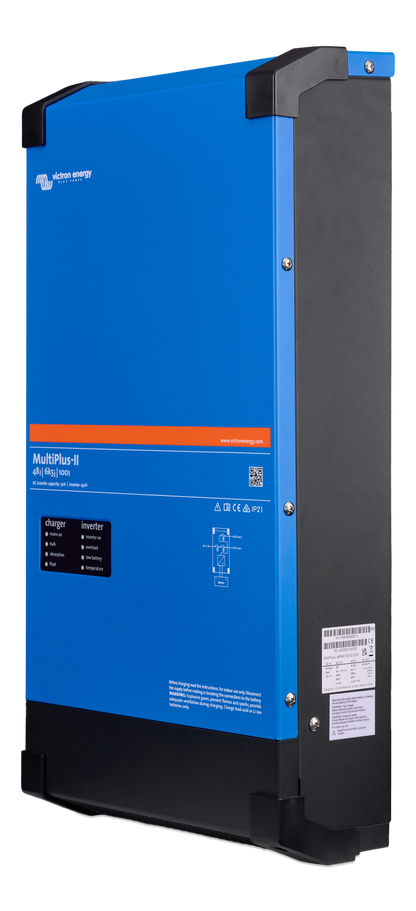

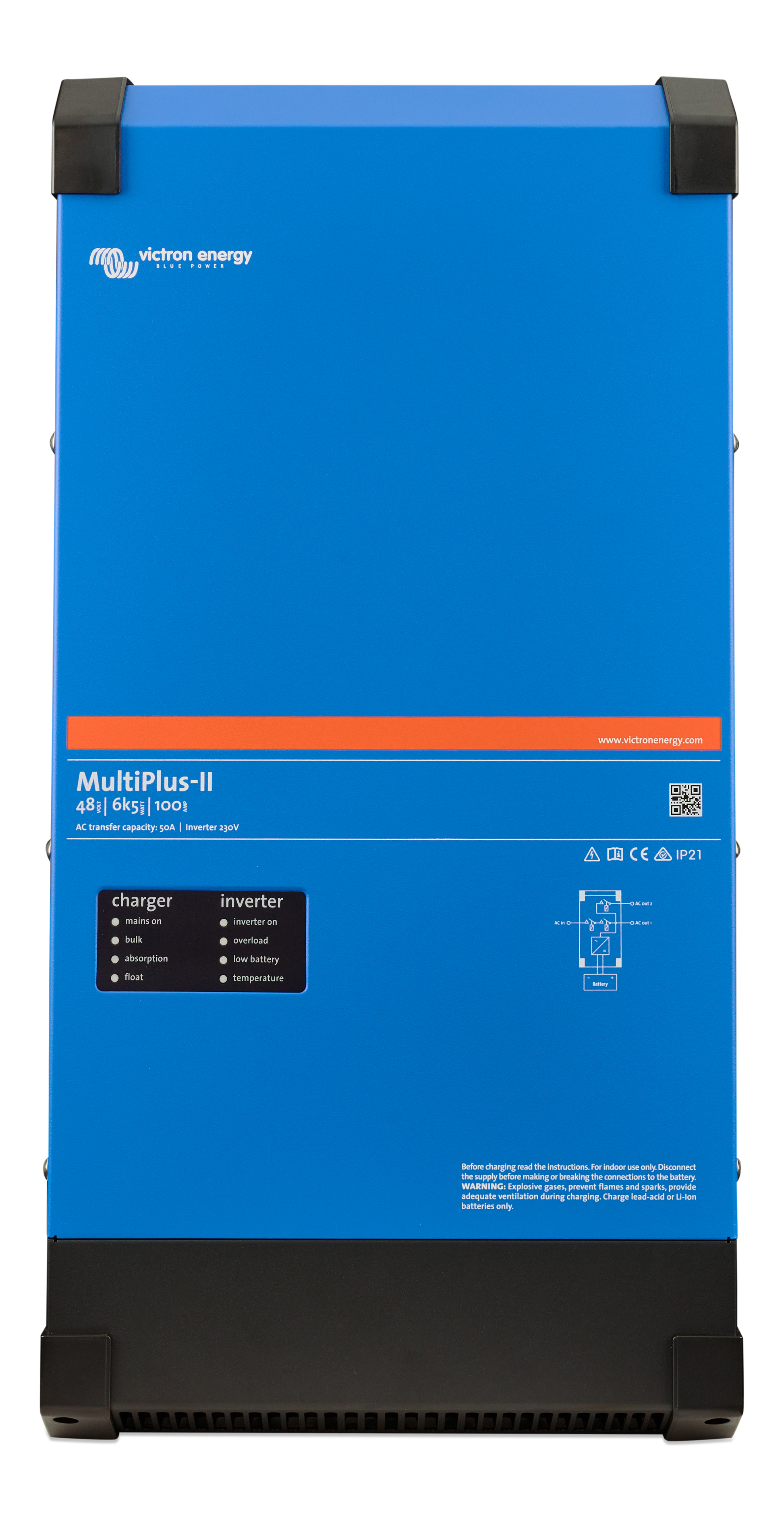

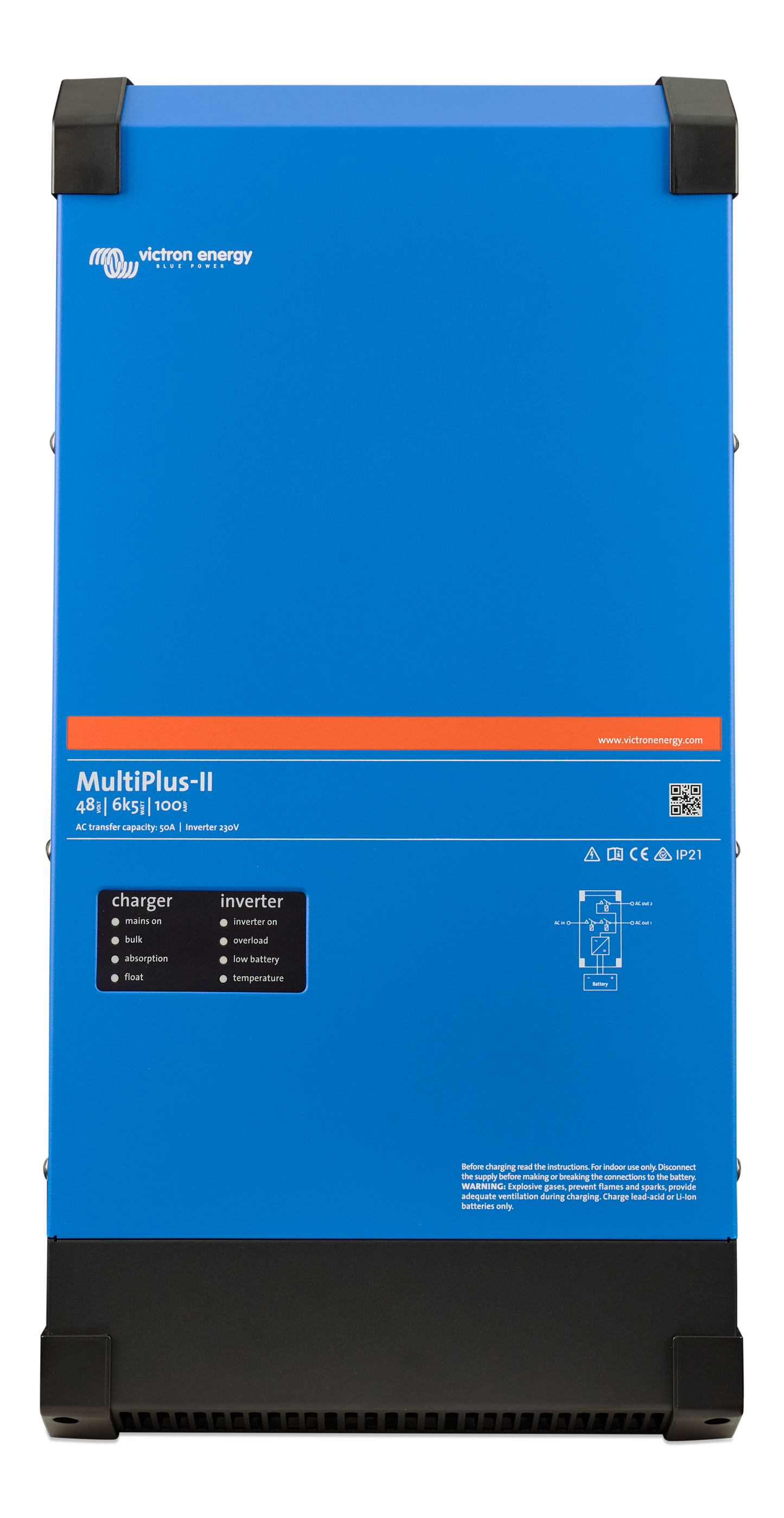

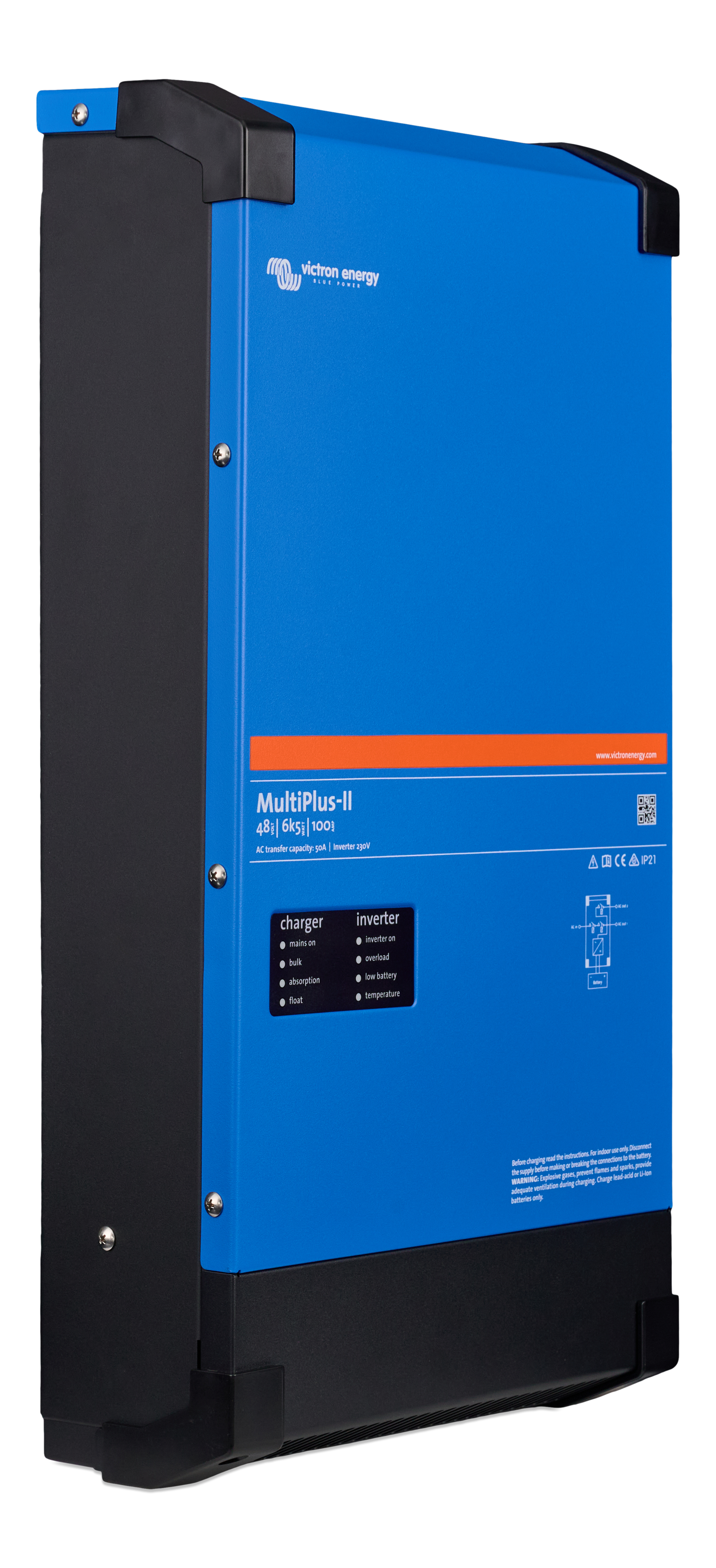

Victron MultiPlus-II 48/6500/100-50 Inverter Charger
Victron MultiPlus-II 48/6500/100-50 Inverter Charger
SKU:PMP482605012
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron MultiPlus-II 48/6500/100-50 Inverter Charger is a heavy-duty inverter charger designed for trade professionals who require a dependable, 48V power hub capable of delivering 6,000 Watts of continuous power at 25°C. This model is particularly suited for professional land-based off-grid systems, yachting, and industrial vehicles that demand high-efficiency energy conversion and sophisticated battery management.
The unit features a 50 Amp transfer switch, allowing it to manage substantial throughput when connected to the grid or a generator. For installers working with limited power sources, the integrated PowerAssist technology is a significant advantage; it enables the system to supplement a generator or shore supply with energy from the battery bank during high peak loads, often allowing for the installation of smaller, more cost-effective generators.
System integration is simplified through the VE.Bus communication port, which supports complex configurations including parallel and three-phase arrangements. The MultiPlus-II is also the primary component for Dynamic Energy Storage Systems (ESS), where it can be programmed to prioritise self-consumption or feed energy back into the grid depending on local regulations and requirements.
For ongoing management, the unit offers comprehensive remote control and monitoring options. When integrated with a Cerbo GX or Ekrano GX, technicians can perform firmware updates, change settings, and troubleshoot systems from any location via the free Victron Remote Management (VRM) portal. The unit is built into a durable steel enclosure with an IP21 rating and is backed by an industry-leading 5-year warranty, providing a reliable long-term solution for professional energy projects.
Product Specifications
Product Specifications
Inverter Performance
- DC Input Voltage Range: 38 – 60 V
- Output Voltage: 230 VAC ± 2%
- Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
- Continuous Output Power (25°C): 6 kW
- Continuous Output Power (40°C): 5.7 kW
- Continuous Output Power (65°C): 4.6 kW
- Time-Limited Power (Cold Start): 6.5 kW for 4 hours / 8 kW for 1 hour
- Peak Power: 11 kW (for 1 minute)
- Maximum Efficiency: 96%
- Zero Load Power: 28 W
- Zero Load Power (AES Mode): 18 W
- Zero Load Power (Search Mode): 8 W
Battery Charger
- AC Input Voltage Range: 187 – 265 VAC
- AC Input Frequency: 45 – 65 Hz
- Charge Voltage 'Absorption': 57.6 V
- Charge Voltage 'Float': 55.2 V
- Storage Mode: 52.8 V
- Maximum Battery Charge Current (25°C): 100 A
- Maximum Battery Charge Current (40°C): 95 A
- Battery Temperature Sensor: Yes
- Compatible Battery Chemistries: Lithium, Lead-acid, Zinc-Bromine, and more
Functional Features
- PowerControl & PowerAssist: Dynamically optimizes grid or generator capacity by prioritizing loads and supplementing power from the battery when peak requirements exceed source limits.
- Dual AC Outputs: The main output provides uninterruptible power (UPS functionality) with a transfer time of less than 20 milliseconds. The second output is live only when AC input is available, ideal for heavy loads like water heaters that should not discharge the battery.
- Scalability: Supports parallel operation for up to 6 units to increase total power output. Can also be configured for three-phase and parallel three-phase systems.
- Programmable Relay: Can be configured for general alarms, DC under-voltage warnings, or generator start/stop functions.
- External Current Sensor (Optional): Supports external sensing (50 A or 100 A) to implement PowerControl and PowerAssist or to optimize self-consumption in grid-parallel topologies.
Environmental & Protection
- Operating Temperature Range: -40 to +65 °C (fan-assisted cooling)
- Maximum Altitude: 4000 m (power derating of 1% per 100 m applies above 2000 m)
- Humidity: Max 95% (non-condensing)
- Integrated Protections: Output short circuit, overload, battery voltage (too high/low), temperature (too high), 230 VAC on inverter output, and input voltage ripple too high.
Mechanical Specifications
- Enclosure Material: Steel
- Enclosure Color: Blue RAL 5012
- Protection Category: IP21
- Dimensions (h x w x d): 644 x 320 x 150 mm
- Unit Weight: 29 kg
- Battery Connection: M8 bolts
- 230 VAC Connection: Screw terminals 13 mm² (6 AWG)
Standards & Compliance
- Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
- Emission/Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
- Uninterruptible Power Supply (UPS): IEC 62040
- Anti-islanding: IEC 62116
Technical Specifications
Technical Specifications
| Inverter Rating | 6500W |
|---|---|
| Battery Charger Rating | 55A |
| Protection | IP21 - Indoor |
| Weight KG | 29 |
