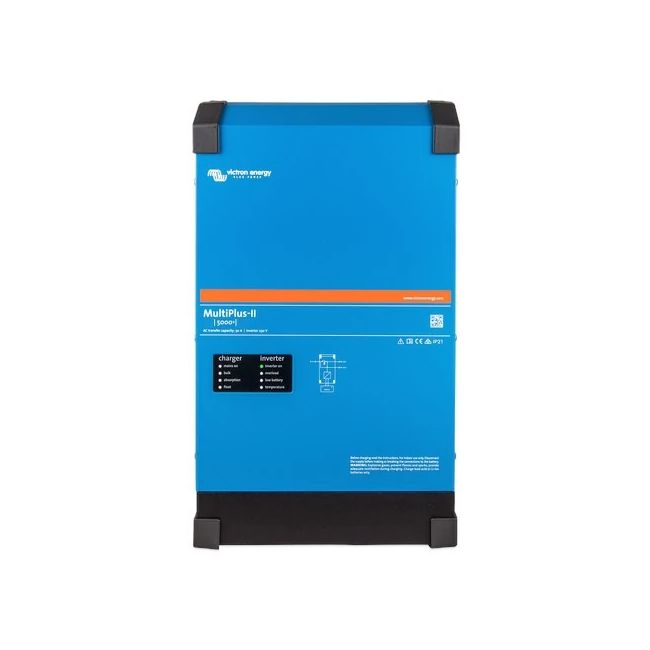

Victron MultiPlus II 24/5000/120 50 230V Inverter Charger
Victron MultiPlus II 24/5000/120 50 230V Inverter Charger
SKU:PMP242505010
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron MultiPlus II 24/5000/120 50 230V is a heavyweight inverter charger that combines robust power conversion, intelligent battery charging and backup power for demanding off grid, marine, mobile or backup applications. Designed with a 24 V DC input and delivering 230 V AC output, this unit provides up to 5000 VA (4000 W) continuous output power with a 9000 W peak surge, giving you ample capacity to run multiple heavy AC appliances, power tools, kitchen appliances or IT systems.
Built for reliability, the MultiPlus II comes in a robust steel enclosure (colour blue RAL 5012) with an IP22 protection rating. It measures 607 × 330 × 149 mm (height × width × depth) and weighs 30 kg, offering a compact but solid footprint for the level of power it delivers.
This unit is more than an inverter. It features a smart 4 stage adaptive charger capable of delivering up to 120 A to your house battery, with charge voltages tuned for absorption, float and storage modes. The charger is temperature compensated to help prolong battery life and includes a battery temperature sensor.
For resilience and peace of mind, the MultiPlus II includes a 50 A AC transfer switch that automatically switches to battery power in under 20 milliseconds during an outage. This provides UPS grade protection for sensitive electronics.
Intelligent features such as PowerControl and PowerAssist stop overloads by limiting AC input current or supplementing with battery power when peak demand occurs. Dual AC outputs, one for essential loads and a second for non critical devices, support smart load management.
The MultiPlus II also supports parallel and three phase configurations, with the ability to combine up to six units for larger installations or commercial use. It integrates smoothly with off grid solar or ESS (Energy Storage System) setups.
Overall, the MultiPlus II 24/5000/120 50 230V combines inverter, charger, UPS and energy management functions in one rugged unit, making it ideal for off grid homes, boats, caravans, solar systems or backup power installations where reliability and flexibility are essential.
Product Specifications
Product Specifications
Inverter Performance
- DC Input Voltage Range: 19 – 33 V
- Output Voltage: 230 VAC ± 2%
- Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
- Continuous Output Power (25°C): 5000 VA
- Continuous Output Power (25°C): 4000 W
- Continuous Output Power (40°C): 3700 W
- Continuous Output Power (65°C): 3000 W
- Peak Power: 9000 W
- Maximum Efficiency: 95%
- Zero Load Power: 18 W
- Zero Load Power (AES Mode): 12 W
- Zero Load Power (Search Mode): 3 W
Battery Charger
- AC Input Voltage Range: 187 – 265 VAC
- Input Frequency Range: 45 – 65 Hz
- Charge Voltage 'Absorption': 28.8 V
- Charge Voltage 'Float': 27.6 V
- Storage Mode: 26.4 V
- Maximum Battery Charge Current (25°C): 120 A
- Battery Temperature Sensor: Yes
- Compatible Battery Chemistries: Lithium, Lead-acid, and more
Functional Features
- PowerControl & PowerAssist: Dynamically optimizes grid or generator capacity by prioritizing loads and supplementing power from the battery when peak requirements exceed source limits.
- Dual AC Outputs: The main output provides uninterruptible power (UPS functionality) with a transfer time of less than 20 milliseconds. The second output (50 A) is live only when AC input is available, ideal for loads that should not discharge the battery.
- Scalability: Supports parallel operation for up to 6 units to increase total power output. Can also be configured for three-phase and parallel three-phase systems.
- Programmable Relay: Can be configured for general alarms, DC under-voltage warnings, or generator start/stop functions.
- External Current Sensor (Optional): Supports external sensing (50 A or 100 A) to implement PowerControl and PowerAssist or to optimize self-consumption in grid-parallel topologies.
Environmental & Protection
- Operating Temperature Range: -40 to +65 °C (fan-assisted cooling)
- Maximum Altitude: 2000 m
- Humidity: Max 95% (non-condensing)
- Integrated Protections: Output short circuit, overload, battery voltage (too high/low), temperature (too high), 230 VAC on inverter output, and input voltage ripple too high.
Mechanical Specifications
- Enclosure Material: Steel
- Enclosure Color: Blue RAL 5012
- Protection Category: IP22
- Dimensions (h x w x d): 642 x 363 x 206 mm
- Unit Weight: 30 kg
- Battery Connection: Four M8 bolts (2 plus and 2 minus connections)
- 230 VAC Connection: Bolts M6
Standards & Compliance
- Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
- Emission/Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
