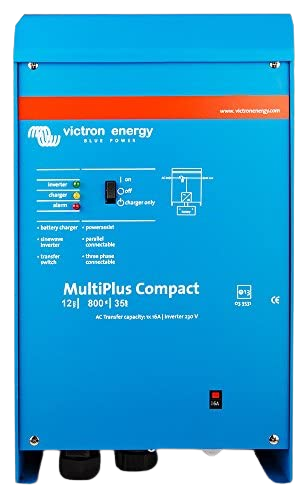

Victron MultiPlus Compact 12/800/35-16 230V VE.Bus - CMP121800000
Victron MultiPlus Compact 12/800/35-16 230V VE.Bus - CMP121800000
SKU:CMP121800000
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron MultiPlus Compact 12/800/35-16 230 V VE.Bus is a compact, all-in-one inverter-charger designed for trade and professional applications such as mobile, marine or off-grid systems. Built to integrate seamlessly into 12 V battery setups, it delivers 800 VA continuous output power, converting your 12 V DC battery bank into reliable 230 V AC power for standard appliances. According to the manufacturer the unit is constructed from aluminium and has a rated operating temperature range of -40 °C to +65 °C, under fan-assisted cooling.
One of its standout features is the high-speed electronic transfer switch that provides uninterrupted AC supply: in the event of a grid or shore power failure the unit switches to battery-based inverter power in under 20 milliseconds, ensuring that connected loads such as computers, electronics and sensitive equipment keep operating.
The MultiPlus Compact also includes advanced system-integration features: true sine wave inverter output for high compatibility, adaptive multi-stage charging for optimum battery health, and the PowerAssist/PowerControl technology which helps prevent generator or shore-supply overload by intelligently managing battery and AC loads.
Installation is trade-friendly: the enclosure is rated IP20 (protection category), it supports VE.Bus communication for monitoring and remote control, and it is suitable for parallel operation or three-phase configurations (when scaled up) to meet larger power demands.
Ideal for conversion vans, commercial mobile power systems, marine vessels or backup power for small installations, this unit offers a reliable, professional-grade solution in a compact footprint and a proven global support network from Victron.
Product Specifications
Product Specifications
Performance & Electrical Specifications (Inverter)
- Nominal Battery Voltage: 12 V
- Input Voltage Range: 9.5 – 17 VDC
- Continuous Output Power at 25°C: 800 VA
- Continuous Output Power at 25°C: 700 W
- Continuous Output Power at 40°C: 650 W
- Continuous Output Power at 65°C: 400 W
- Peak Power: 1600 W
- Maximum Efficiency: 92%
- Zero Load Power: 8 W
- Zero Load Power (AES Mode): 5 W
- Zero Load Power (Search Mode): 2 W
- Output Voltage: 230 VAC ± 2%
- Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
Charger Specifications
- AC Input Voltage Range: 187 – 265 VAC
- Input Frequency: 45 – 65 Hz
- Power Factor: 1
- Charge Voltage 'Absorption': 14.4 VDC
- Charge Voltage 'Float': 13.8 VDC
- Storage Mode: 13.2 VDC
- Charge Current House Battery: 35 A
- Charge Current Starter Battery: 4 A (available on 12V and 24V models)
- Battery Temperature Sensor: Yes
- Lithium-Ion Battery Compatible: Yes
Key Features & System Integration
- PowerControl: Automatically adjusts charging to prevent overloading of a limited generator or shore supply.
- PowerAssist: Supplements a limited AC source with battery power during periods of peak demand.
- Parallel & Three-Phase Operation: Up to 6 units can operate in parallel to achieve higher power output. Three units of the same model can be configured for three-phase output.
- Programmable Relay: Can be set for general alarms, DC under-voltage, or generator start/stop functions.
- VE.Bus Communication Port: For parallel and three-phase operation, remote monitoring, and system integration.
- Remote On-Off: Yes
- Monitoring & Control: Compatible with several options including Battery Monitor, Multi Control Panel, Ekrano GX/Cerbo GX devices, smartphones/tablets (via Bluetooth Smart), and computers (USB).
Mechanical Specifications
- Enclosure Material & Colour: Aluminium (Blue RAL 5012)
- Protection Category: IP20
- Battery Connection: 1.5-meter battery cables included
- 230 VAC Connection: G-ST18i connector
- Weight: 10 kg
- Dimensions (h x w x d): 375 x 214 x 110 mm
- Operating Temperature Range: -40 to +65 °C (fan-assisted cooling)
- Humidity: Max 95% (non-condensing)
Standards & Compliance
- Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
- Emission / Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
- Road Vehicles: ECE R10-4
- Integrated Protection: Output short circuit, overload, battery voltage high/low, temperature high, 230 VAC on inverter output, and input voltage ripple high.
Technical Specifications
Technical Specifications
| Inverter Rating | 800VA |
|---|---|
| Battery Charger Rating | 35A |
| Voltage | 12V |
| Protection | IP20 - Indoor |
| Weight KG | 10 |
