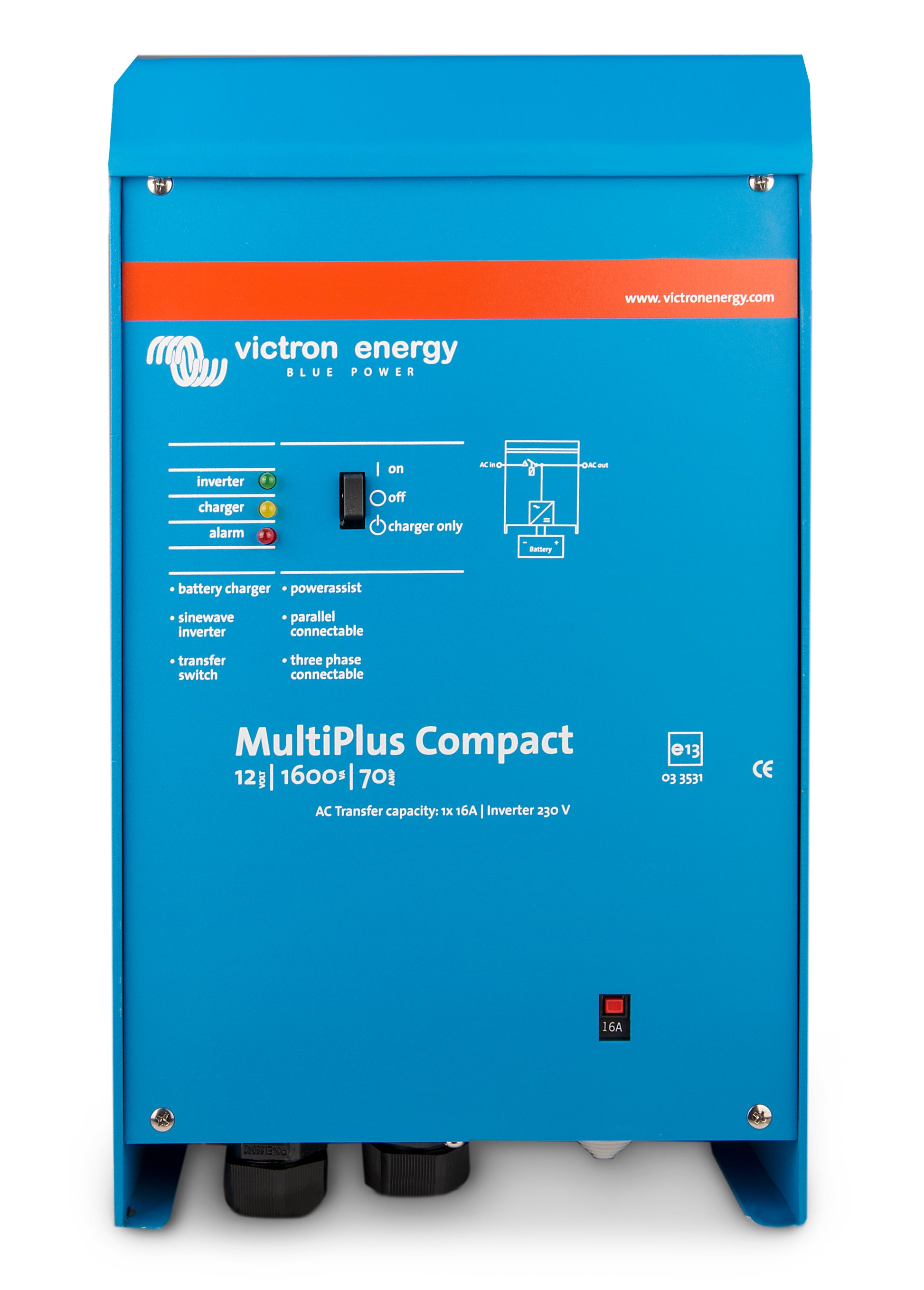

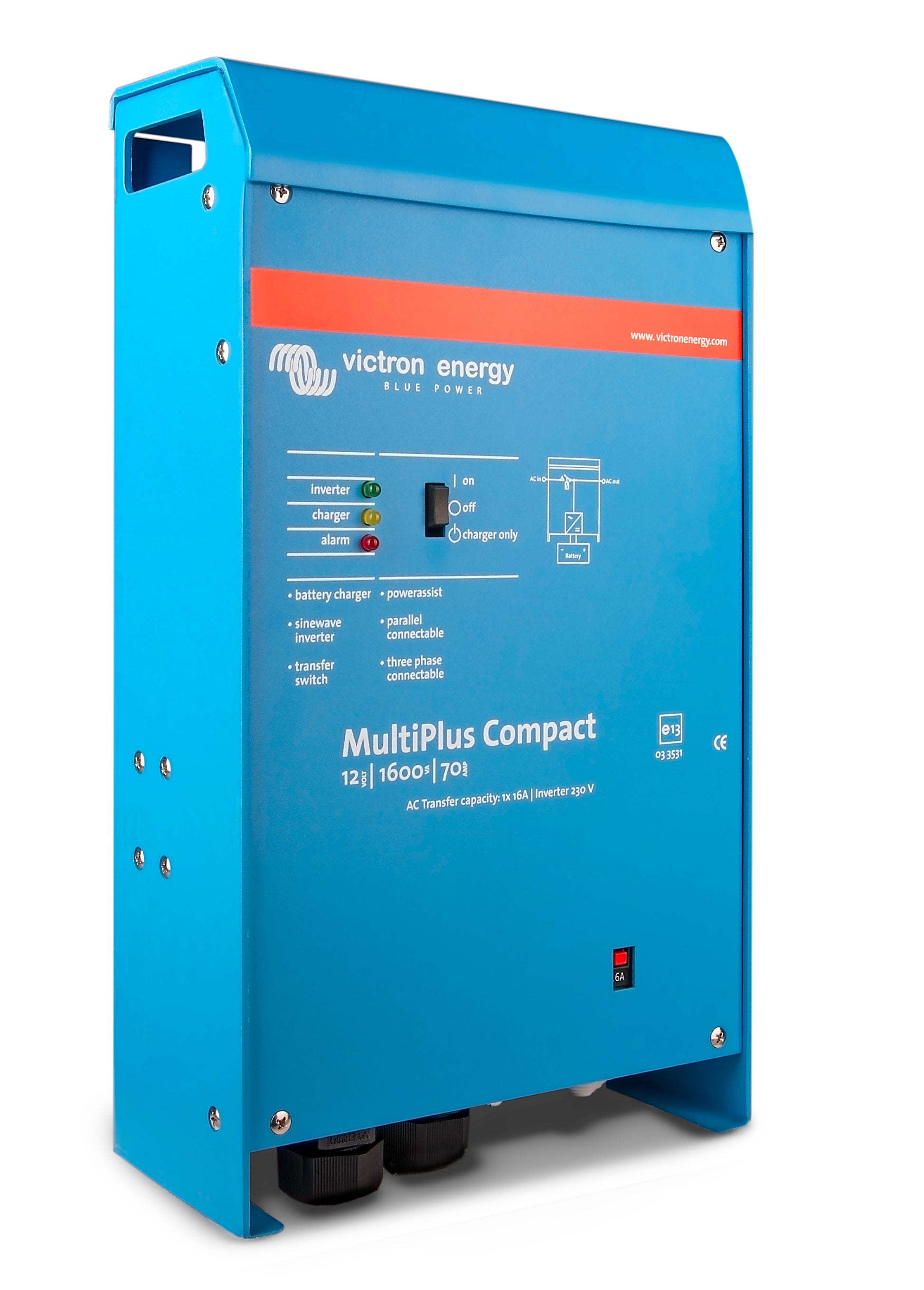

Victron MultiPlus Compact 12/1600/70-16 – 12V 1600VA Inverter/Charger
Victron MultiPlus Compact 12/1600/70-16 – 12V 1600VA Inverter/Charger
SKU:CMP122160000
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron MultiPlus Compact 12/1600/70-16 is a multifunctional energy system that combines a powerful sine wave inverter, a sophisticated battery charger, and a high-speed AC transfer switch in a single compact enclosure. Designed for 12V systems, it delivers a continuous output of 1600VA and a charging current of 70A, ensuring efficient power conversion and battery charging.
This inverter/charger features adaptive charging technology, which optimises the charging process to extend battery life. The high-speed AC transfer switch ensures uninterrupted power supply by seamlessly switching between AC sources. Its compact design allows for easy installation in various applications, including off-grid systems, boats, and caravans.
With its robust performance and integrated features, the MultiPlus Compact 12/1600/70-16 provides a reliable and efficient power solution for 12V systems, ensuring that your devices receive stable and clean power wherever you are.
Product Specifications
Product Specifications
Inverter Performance
- Cont. Output Power at 25°C: 1600 VA
- Cont. Output Power at 25°C: 1300 W
- Cont. Output Power at 40°C: 1200 W
- Cont. Output Power at 65°C: 800 W
- Peak Power: 3000 W
- Maximum Efficiency: 93% / 94%
- Zero Load Power: 8 W / 10 W
- Zero Load Power (AES Mode): 5 W / 8 W
- Zero Load Power (Search Mode): 2 W / 3 W
- Output Voltage: 230 VAC ± 2%
- Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
- Input Voltage Range: 9.5 – 17 VDC
Battery Charger
- AC Input Voltage Range: 187 – 265 VAC
- Input Frequency: 45 – 65 Hz
- Charge Voltage 'Absorption': 14.4 VDC
- Charge Voltage 'Float': 13.8 VDC
- Storage Mode: 13.2 VDC
- Charge Current House Battery: 70 A
- Charge Current Starter Battery: 4 A (Available for 12V and 24V models)
- Battery Temperature Sensor: Yes
- Battery Compatibility: Lithium Ion and Lead-acid compatible
Functional Features
- PowerControl: Manages limited generator or shore side power by setting a maximum current limit. The MultiPlus prioritizes other AC loads and uses whatever is extra for charging, preventing source overload.
- PowerAssist: Supplements the capacity of shore or generator power with energy from the battery during peak load requirements.
- Transfer Switch: Integrated 16 A high-speed switch.
- Scalability: Supports parallel operation (up to 6 units) and three-phase configuration for higher power requirements.
- Programmable Relay: Can be configured for general alarms, DC under-voltage warnings, or generator start/stop functions.
- Remote On-Off: Yes.
Environmental & Protection
- Operating Temperature Range: -40 to +65 °C (fan-assisted cooling)
- Humidity: Max 95% (non-condensing)
- Maximum Altitude: 2000 m
- Integrated Protections: Output short circuit, overload, battery voltage (too high/low), temperature (too high), 230 VAC on inverter output, and input voltage ripple too high.
Mechanical Specifications
- Enclosure Material: Aluminium
- Enclosure Color: Blue (RAL 5012)
- Protection Category: IP20
- Dimensions (h x w x d): 375 x 214 x 110 mm
- Unit Weight: 10 kg
- Battery Connection: 1.5-meter battery cables included
- 230 VAC Connection: G-ST18i connector
Standards & Compliance
- Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
- Emission/Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
- Road Vehicles: ECE R10-4
