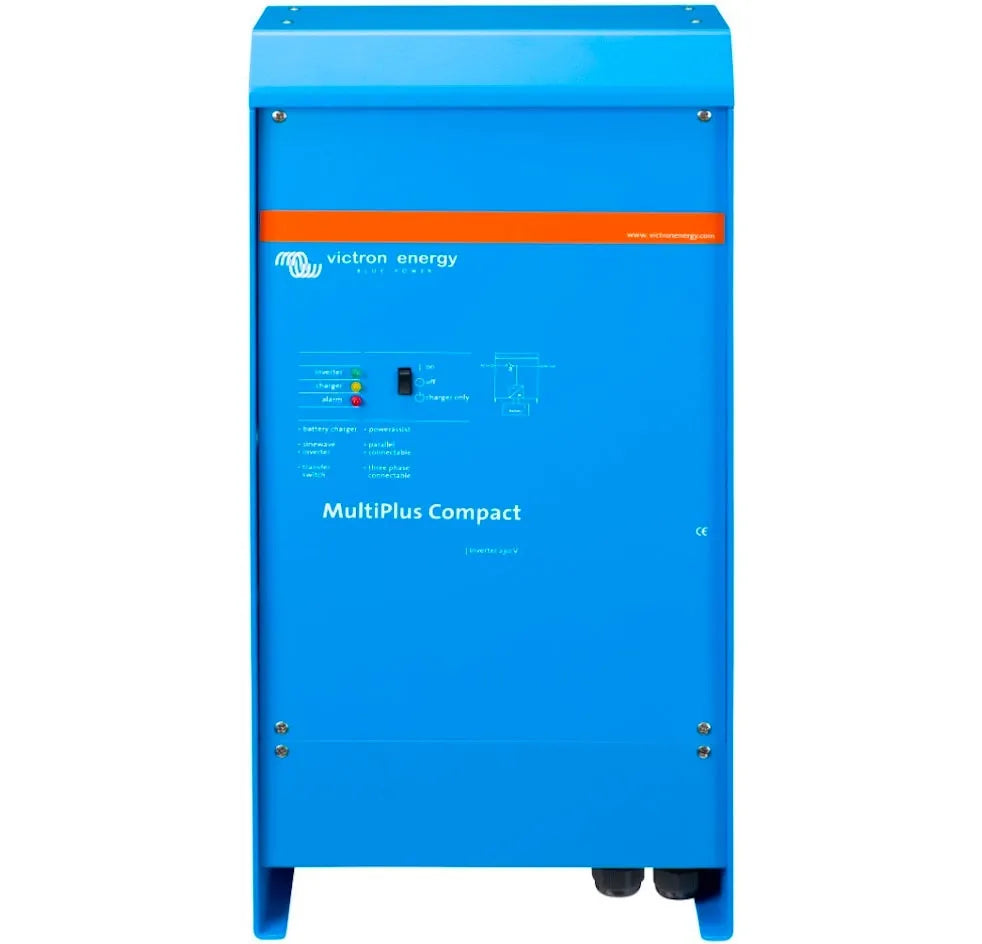

Victron MultiPlus Compact 12/1200/50-16 230V VE.Bus
Victron MultiPlus Compact 12/1200/50-16 230V VE.Bus
SKU:CMP122120000
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron MultiPlus Compact 12/1200/50-16 230V VE.Bus is a reliable inverter and charger designed for professional power management in mobile, marine, and off grid environments. Engineered for space conscious installations, it combines proven Victron quality with smart functionality to keep essential equipment powered when it matters most. With a continuous output of 1200VA, the unit is suitable for running everyday electrical devices such as tools, lighting, networking equipment, and appliances. It also includes a built in 50A battery charger that replenishes batteries quickly and safely, which helps to maintain uptime and reduce operational delays.
A key advantage of this model is its automatic transfer switch rated at 16A. When an external power source is supplied, such as shore power or a generator, the MultiPlus Compact switches over without interruption and charges your batteries simultaneously. If external power is removed, it instantly inverts from the battery bank and keeps your devices running. This eliminates downtime and protects sensitive electronics from unexpected drops in supply.
VE.Bus communication allows the unit to integrate with Victron system components including monitoring displays and remote management platforms. This lets users scale systems, add redundancy, or configure advanced energy behaviours depending on project requirements. The flexible programmability enables features such as dynamic current limiting, priority charging, and load optimisation to ensure maximum efficiency from both batteries and connected supply.
Built within a durable, compact housing, the MultiPlus Compact is simple to install and suitable for commercial vehicles, boats, industrial cabinets, and backup power applications. Its advanced battery charging algorithm reduces wear on battery banks, extending their usable life and lowering long term costs. Protection features include short circuit, temperature, and overload safeguards to minimise risk in demanding working environments.
For trade customers and installers, this product delivers dependable performance and excellent value. The combination of inverter, charger, and transfer switch reduces the need for multiple devices, lowering installation time and simplifying maintenance. When integrated with optional monitoring accessories, system performance can be monitored remotely and adjusted without site visits, improving productivity.
Whether used as a primary off grid supply or as a backup to grid and generator sources, the Victron MultiPlus Compact 12/1200/50-16 provides consistent output, strong charging capability, and the scalability needed to support a wide range of applications. It is a future ready choice for professional power systems that demand reliability.
Product Specifications
Product Specifications
Performance & Electrical Specifications (Inverter)
- Nominal Battery Voltage: 12 V
- Input Voltage Range: 9.5 – 17 VDC
- Continuous Output Power at 25°C: 1200 VA
- Continuous Output Power at 25°C: 1000 W
- Continuous Output Power at 40°C: 900 W
- Continuous Output Power at 65°C: 600 W
- Peak Power: 2400 W
- Maximum Efficiency: 93%
- Zero Load Power: 8 W
- Zero Load Power (AES Mode): 5 W
- Zero Load Power (Search Mode): 2 W
- Output Voltage: 230 VAC ± 2%
- Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
Charger Specifications
- AC Input Voltage Range: 187 – 265 VAC
- Input Frequency: 45 – 65 Hz
- Power Factor: 1
- Charge Voltage 'Absorption': 14.4 VDC
- Charge Voltage 'Float': 13.8 VDC
- Storage Mode: 13.2 VDC
- Charge Current House Battery: 50 A
- Charge Current Starter Battery: 4 A
- Battery Temperature Sensor: Yes
- Lithium-Ion Battery Compatible: Yes
Key Features & System Integration
- PowerControl: Automatically adjusts charging to prevent overloading of a limited generator or shore supply.
- PowerAssist: Supplements a limited AC source with battery power during periods of peak demand.
- Parallel & Three-Phase Operation: Up to 6 units can operate in parallel to achieve higher power output. Three units of the same model can also be configured for three-phase output.
- Programmable Relay: Features a relay that can be configured for general alarms, DC under-voltage, or generator start/stop functions.
- VE.Bus Communication Port: For parallel and three-phase operation, remote monitoring, and system integration.
- Remote On-Off: Yes
- Monitoring & Control: Supports various options including Digital Multi Control Panel, GX devices (Cerbo GX, Ekrano GX), smartphones/tablets (via Bluetooth Smart), and computers (USB).
Mechanical Specifications
- Enclosure Material & Colour: Aluminium (Blue RAL 5012)
- Protection Category: IP21
- Battery Connection: 1.5-meter battery cables included
- 230 VAC Connection: G-ST18i connector
- Weight: 10 kg
- Dimensions (h x w x d): 375 x 214 x 110 mm
- Operating Temperature Range: -40 to +65°C (fan-assisted cooling)
- Humidity: Max 95% (non-condensing)
Standards & Compliance
- Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
- Emission / Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
- Road Vehicles: ECE R10-4
- Integrated Protection: Output short circuit, overload, battery voltage high/low, temperature high, 230 VAC on inverter output, and input voltage ripple high.
Technical Specifications
Technical Specifications
| Inverter Rating | 1200VA |
|---|---|
| Battery Charger Rating | 50A |
