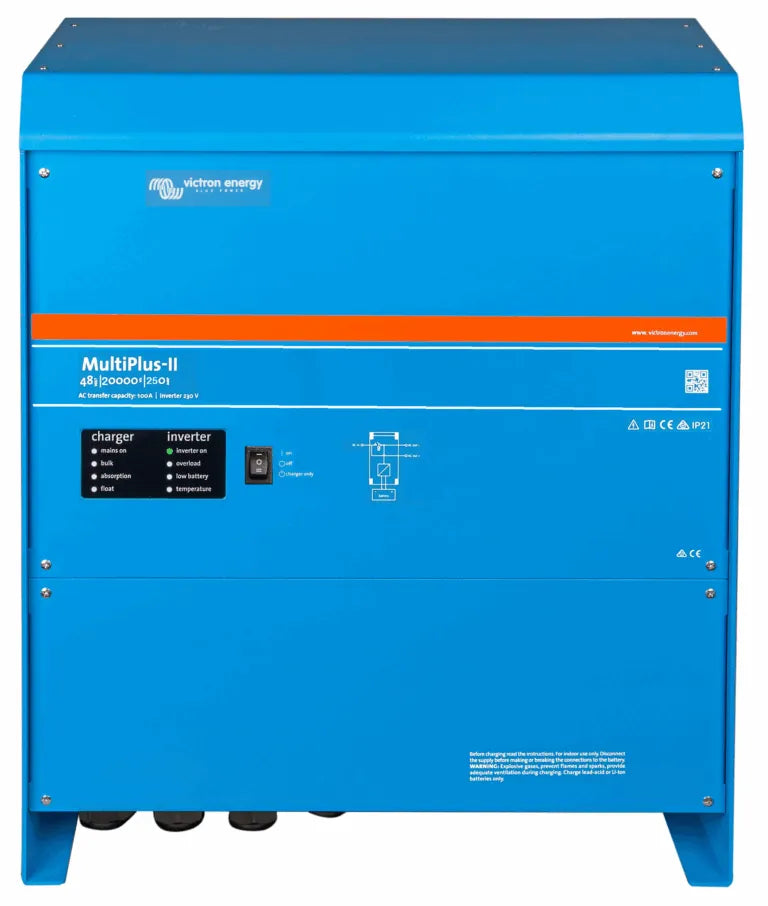

Victron Multiplus-CL 48V 20KW Inverter/Charger - PMC483200400

Victron Multiplus-CL 48V 20KW Inverter/Charger - PMC483200400

PMC483200400

Brand: Victron

20KW Inverter Power 210A Maximum Charge Current Combine 3 Units for 3 Phase Up to 4 units per phase VE.Bus Communication Dimensions: 62 x 73 x 357 mm Weight: 63kg

In stock

This is pre-order - Available in 7 – 10 days

£2,752.00 GBP
£2,752.00 GBP
Sale Sold out

Product Details

Victron MultiPlus-CL 48/20k/250-100 230V

The Victron Energy MultiPlus 48/20k/250-100 230V inverter offers advanced functionality and high performance, making it an ideal solution for a range of energy management applications. Its robust design ensures reliable operation in various environments while providing exceptional efficiency. Mains charger, inverter and mains transfer switch in one

Victron Energy MultiPlus-CL 48/20000: Key Features and Benefits

  1. Versatile battery compatibility: Allows connection to various battery types, including lead-acid, AGM and lithium batteries.
  2. Parallel / Cluster Feature: Units can be paralleled on single phase or more units on 3 phase to make unlimited power using the new Microgrid Cluster feature (Out Soon).
  3. Power Assist: Prevents overloading of limited AC power sources such as generators or shore power connections by automatically adjusting the battery charging process.
  4. ESS energy storage solution: Enables the retrofitting of an existing PV system with an energy storage system and uses the Victron Energy Meter to record the power flows.
  5. Phase compensation: The MultiPlus can also be used in 2-phase or three-phase systems.
  6. UPS function: Provides an uninterruptible power supply (UPS) for critical loads by automatically switching to inverter operation in the event of a power outage or within 20 milliseconds.
  7. Combined functions: Combines the features of a charger, inverter and mains transfer switch in one device, including PowerControl and PowerAssist for advanced power management options.
  8. Versatile topologies: Supports various system configurations, whether in series or parallel to the grid, with or without PV inverters, to cover a wide range of applications.
  9. Compatibility with additional devices: Can be connected to Victron GX controllers for centralized control or control via the Internet.
  10. Scalability: Thanks to the possibility of parallel connection and expansion with other Victron devices, the system can be adapted to growing energy needs.
  • AC input voltage range: 187-265 VAC
  • Output power: 20,000W
  • Automatic uninterruptible power supply of 1x230V
  • Internal transfer switch 100A
  • Charger with max. 250A charging current for 48V battery systems, also suitable for lithium batteries
  • DC voltage range: 38V – 66V
  • Can be interconnected with other devices for three-phase power grids
  • Feeding excess solar power into the electricity grid
  • AC terminals: M6 threaded bolts
  • DC connection terminals: M8 threaded bolts (2x positive, 2x negative)

Dimensions: 62 x 73 x 357 mm
Weight: 63kg

Product Specifications

Inverter Performance

  • Continuous Output Power (25°C): 20 kW
  • Continuous Output Power (40°C): 18 kW
  • Continuous Output Power (65°C): 14 kW
  • Maximum Apparent Feed-in Power: 20 kW
  • Time-Limited Output Power (Cold Start): 21 kW for 5 hours
  • Peak Power (1 minute): 25 kW
  • Maximum Efficiency: 96%
  • Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
  • Output Voltage: 230 VAC ± 2%
  • Zero Load Power: 65 W
  • Zero Load Power (AES Mode): 40 W
  • Zero Load Power (Search Mode): 13 W

Battery Charger

  • AC Input Voltage Range: 187 – 265 VAC
  • Input Frequency Range: 45 – 65 Hz
  • Charge Voltage 'Absorption': 57.6 V
  • Charge Voltage 'Float': 55.2 V
  • Storage Mode: 52.8 V
  • Maximum Battery Charge Current (25°C): 250 A
  • Maximum Battery Charge Current (40°C): 240 A
  • Battery Temperature Sensor: Included

Functional Features

  • PowerControl & PowerAssist: Dynamically boosts the capacity of a grid or generator by taking account of other AC loads and using battery power to compensate for insufficient supply during peak periods.
  • Dual AC Outputs: The main output features "no-break" functionality, taking over the supply to critical loads in less than 20 milliseconds during a grid failure. The second auxiliary output (50 A) is live only when AC input is available, preventing non-critical loads from discharging the battery.
  • Scalability: Supports three-phase configuration by using three units.
  • Programmable Relay: Can be set for general alarms, DC under-voltage warnings, or generator start/stop functions (AC rating: 230V / 4A; DC rating: 4A up to 35VDC).
  • External Current Sensor (Optional): Supports a 100A external sensor to implement advanced self-consumption optimization.

Environmental & Protection

  • Operating Temperature Range: -40 to +65°C (fan-assisted cooling)
  • Maximum Altitude: 2000 m
  • Humidity: Max 95% (non-condensing)
  • Integrated Protections: Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, and input voltage ripple too high.

Mechanical Specifications

  • Enclosure Material: Aluminium
  • Enclosure Color: Blue RAL 5012
  • Protection Category: IP20

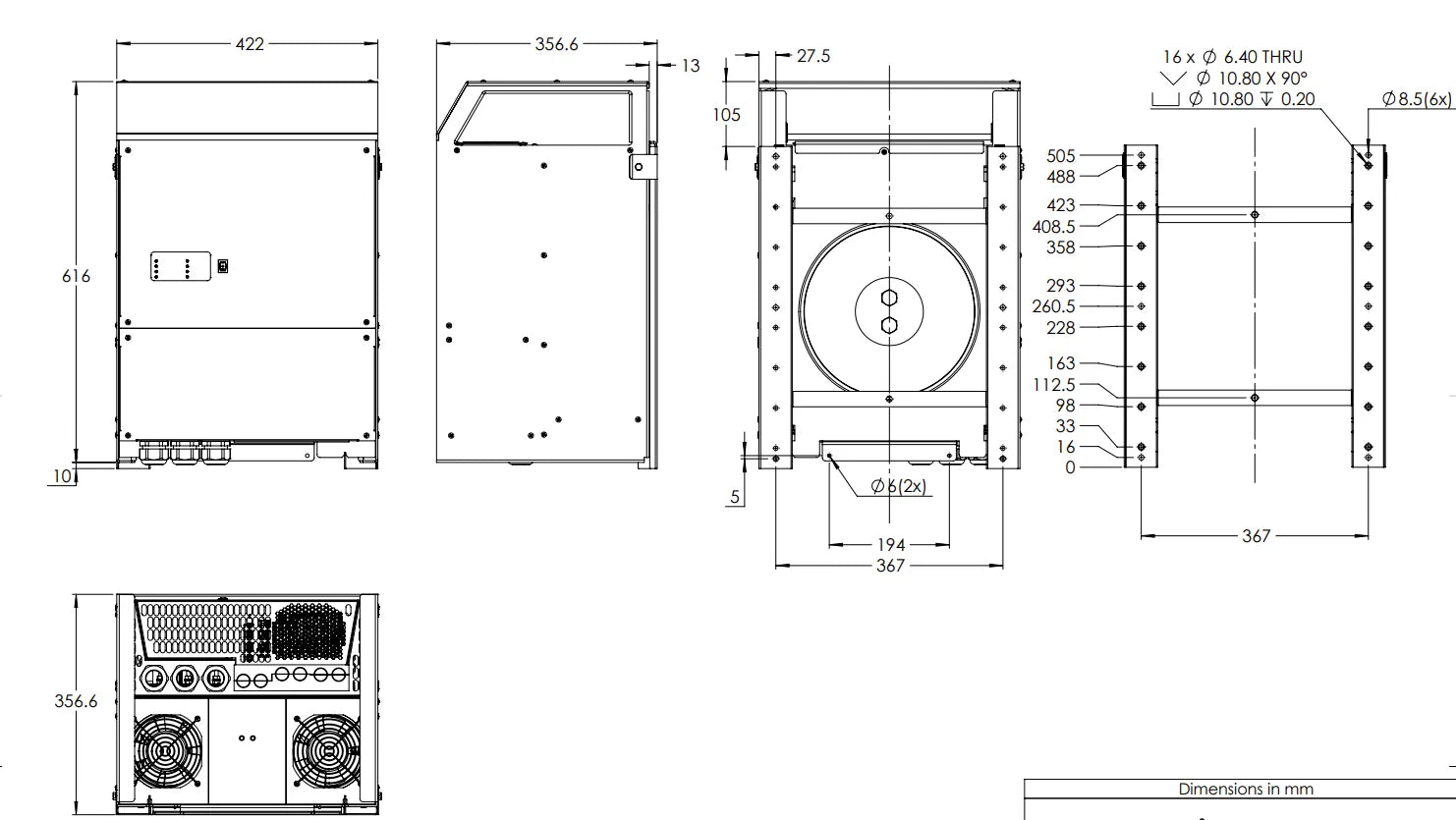

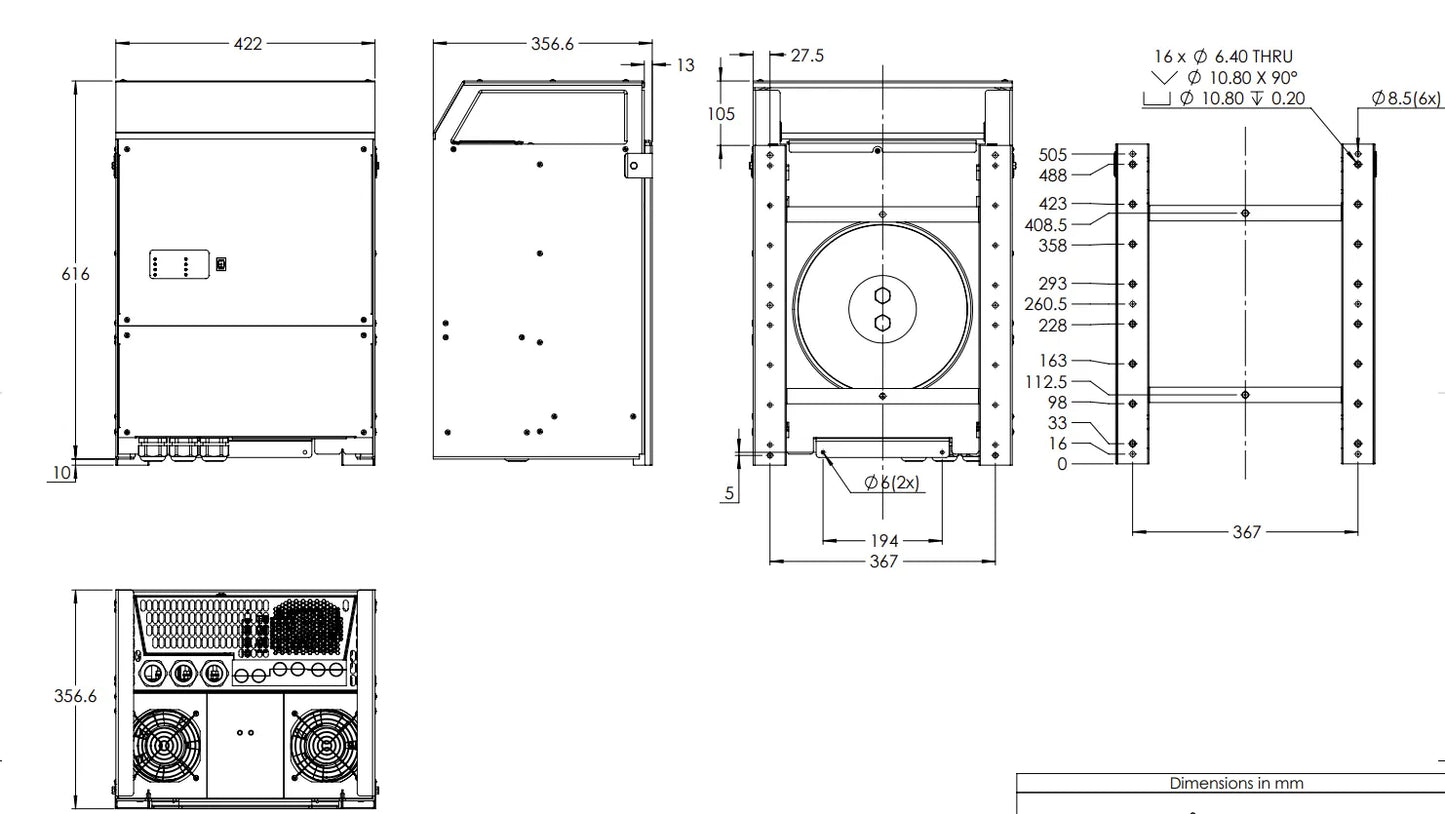

  • Dimensions (h x w x d): 616 x 422 x 357 mm
  • Unit Weight: 80 kg
  • Battery Connection: Four M8 bolts (2 plus and 2 minus)
  • 230 VAC Connection: M6 bolts

Standards & Compliance

  • Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
  • Emission/Immunity: EN-IEC 61000-6-2, EN-IEC 61000-6-4
Inverter Rating 20000W
Battery Charger Rating 250A
