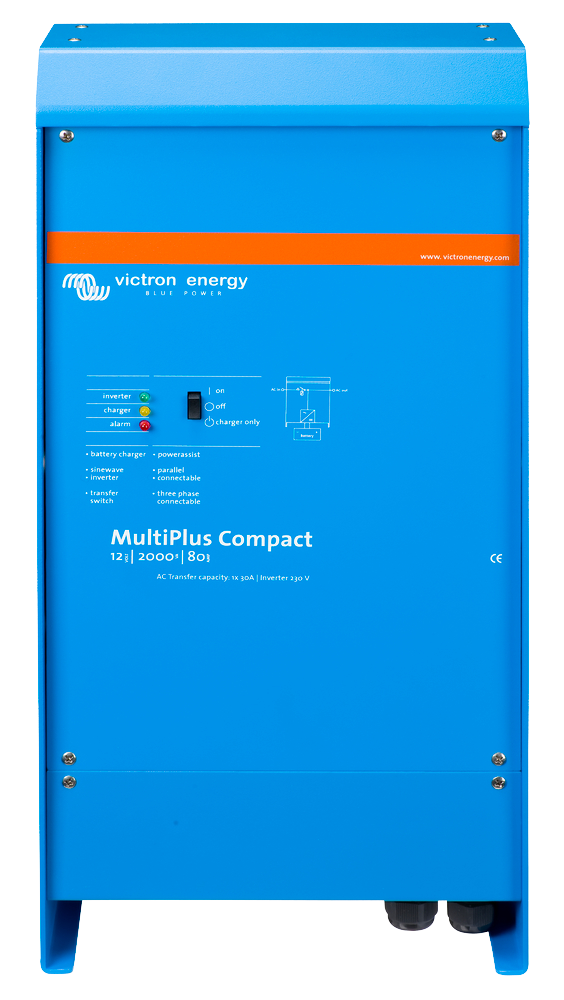

Victron MultiPlus Compact 12/2000/80 Inverter Charger
Victron MultiPlus Compact 12/2000/80 Inverter Charger
SKU:CMP122200000
Brand: Victron
Space-Saving Design: Its compact size makes it perfect for installations where space is limited.
Uninterrupted Power Supply: The high-speed transfer switch ensures continuous power during grid outages.
Efficient Battery Charging: Adaptive charging technology extends battery life and enhances performance.
Versatile Applications: Suitable for marine, RV, and off-grid setups, offering flexibility in various environments.
Reliable Brand: Backed by Victron Energy's reputation for quality and durability in power solutions.
Dimensions: 520 x 255 x 125mm
Weight: 12kg
In stock
This is pre-order - Available in 7 – 10 days
Regular price
£879.00 GBP
Regular price
Sale price
£879.00 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details
The Victron MultiPlus Compact 12/2000/80 Inverter Charger is a versatile and compact solution designed for off-grid, marine, and mobile applications. This unit combines a true sine wave inverter, an advanced battery charger, and a high-speed AC transfer switch into a single enclosure, providing reliable and efficient power conversion.
Key Features:
- True Sine Wave Inverter: Delivers clean and stable AC power, suitable for sensitive electronics and appliances.
- Advanced Battery Charger: Features adaptive charging technology to prolong battery life and ensure optimal performance.
- High-Speed AC Transfer Switch: Automatically switches to inverter power within 20 milliseconds during grid failure, ensuring uninterrupted power supply.
- PowerAssist Technology: Prevents overload by supplementing shore or generator power with battery power when needed.
- Compact Design: Space-saving form factor ideal for installations with limited space.
Whether you're outfitting a van, boat, or remote cabin, the MultiPlus Compact offers a reliable power solution that adapts to your energy needs.
Product Specifications
Product Specifications
Performance & Electrical Specifications (Inverter)
- Nominal Battery Voltage: 12 V
- Input Voltage Range: 9.5 – 17 VDC
- Continuous Output Power at 25°C: 2000 VA
- Continuous Output Power at 25°C: 1600 W
- Continuous Output Power at 40°C: 1400 W
- Continuous Output Power at 65°C: 1000 W
- Peak Power: 4000 W
- Maximum Efficiency: 93%
- Zero Load Power: 9 W
- Zero Load Power (AES Mode): 7 W
- Zero Load Power (Search Mode): 3 W
- Output Voltage: 230 VAC ± 2%
- Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
Charger Specifications
- AC Input Voltage Range: 187 – 265 VAC
- Input Frequency: 45 – 65 Hz
- Power Factor: 1
- Charge Voltage 'Absorption': 14.4 VDC
- Charge Voltage 'Float': 13.8 VDC
- Storage Mode: 13.2 VDC
- Charge Current House Battery: 80 A
- Charge Current Starter Battery: 4 A
- Battery Temperature Sensor: Yes
- Lithium-Ion Battery Compatible: Yes
Key Features & System Integration
- PowerControl: Automatically adjusts charging to prevent overloading of a limited generator, shore side, or grid supply by taking account of other AC loads.
- PowerAssist: Supplements the alternative source with battery power during periods of peak demand, ensuring insufficient shore or generator power is immediately compensated.
- Parallel Operation: Up to 6 units can operate in parallel to achieve higher power output.
- Three-Phase Capability: Three units of the same model can be configured for three-phase output, and up to 6 sets of three units can be parallel connected for high-capacity systems.
- Programmable Relay: Features a relay that can be configured for general alarms, DC under-voltage, or generator start/stop functions.
- VE.Bus Communication Port: Essential for parallel and three-phase operation, remote monitoring, and system integration.
- Remote On-Off: Yes
- Monitoring & Control: Supports several options including Battery Monitor, Multi Control Panel, Ekrano GX or other GX devices, smartphones/tablets (Bluetooth Smart), and computers (USB or RS232).
Mechanical Specifications
- Enclosure Material & Colour: Aluminium (Blue RAL 5012)
- Protection Category: IP20
- Battery Connection: M8 bolts
- 230 VAC Connection: Spring-clamp
- Weight: 12 kg
- Dimensions (h x w x d): 520 x 255 x 125 mm
- Operating Temperature Range: -40 to +65 °C (fan-assisted cooling)
- Humidity: Max 95% (non-condensing)
- Maximum Altitude: 2000 m
Standards & Protection
- Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
- Emission / Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
- Road Vehicles: ECE R10-4
- Integrated Protection: Output short circuit, overload, battery voltage high, battery voltage low, temperature high, 230 VAC on inverter output, and input voltage ripple high.
Technical Specifications
Technical Specifications
| Inverter Rating | 2000VA |
|---|
