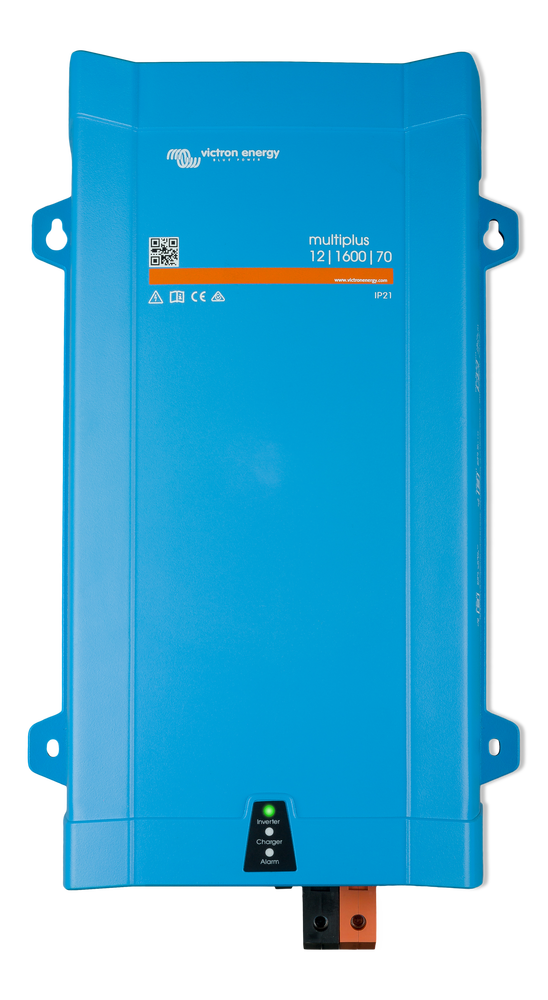

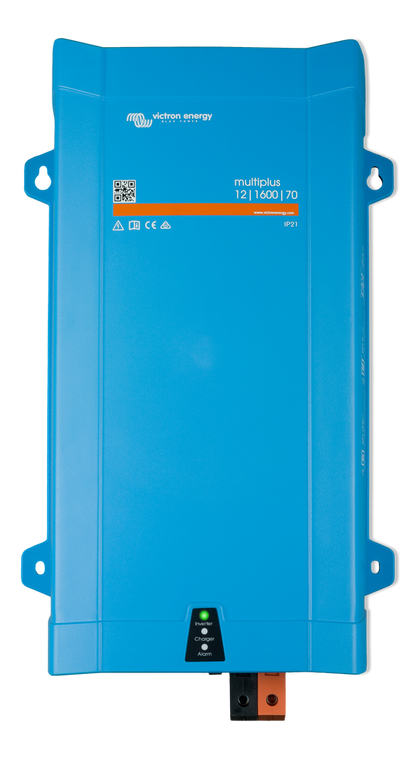

Victron MultiPlus 1600VA 12V Inverter/Charger
Victron MultiPlus 1600VA 12V Inverter/Charger
SKU:PMP122160000
Brand: Victron
Low stock: 6 left
Couldn't load pickup availability
Product Details
Product Details
The Victron MultiPlus 1600VA 12V Inverter/Charger (Model: PMP122160000) is a compact, all-in-one solution designed for professionals seeking reliable AC power in off-grid, backup, or mobile applications. Combining a true sine wave inverter, advanced battery charger, and high-speed AC transfer switch, this unit ensures seamless power delivery and efficient energy management.
Key Features:
- True Sine Wave Output: Delivers clean, stable power suitable for sensitive electronics and appliances.
- Adaptive Charging: Features a four-stage charging process (bulk, absorption, float, storage) that adjusts to battery usage, enhancing battery life.
- PowerAssist Technology: Prevents overload by supplementing shore or generator power with battery energy during peak demands.
- Uninterrupted Power Supply (UPS) Function: Automatically switches to inverter mode within 20 milliseconds during grid failure, ensuring continuous operation of connected loads.
- Remote Monitoring and Control: Compatible with Victron's Cerbo GX, allowing for local and remote system monitoring via the VRM app and portal.
Ideal for use in marine, RV, industrial, and off-grid applications, the MultiPlus 1600VA 12V offers versatility and reliability. Its compact design allows for easy installation in space-constrained environments, making it a preferred choice for professionals requiring robust power solutions.
Product Specifications
Product Specifications
Performance & Electrical Specifications (Inverter)
- Nominal Battery Voltage: 12 V
- Input Voltage Range: 9.5 – 17 V
- Continuous Output Power at 25°C: 1600 VA
- Continuous Output Power at 25°C: 1300 W
- Continuous Output Power at 40°C: 1100 W
- Continuous Output Power at 65°C: 800 W
- Peak Power: 2800 W
- Maximum Efficiency: 93%
- Zero-load Power: 10 W
- Zero-load Power in Search Mode: 3 W
- Output Voltage: 230 VAC ± 2% (Adjustable to 240V)
- Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
Charger Specifications
- AC Input Voltage Range: 187 – 265 VAC
- AC Input Frequency: 45 – 65 Hz
- Charge Voltage 'Absorption': 14.4 V
- Charge Voltage 'Float': 13.8 V
- Storage Mode: 13.2 V
- Charge Current House Battery: 70 A
- Charge Current Starter Battery: 1 A (12V and 24V models only)
- Battery Temperature Sensor: Yes

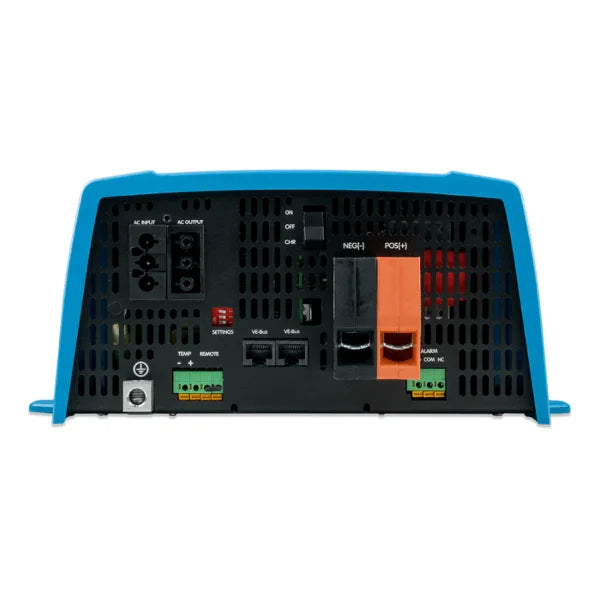

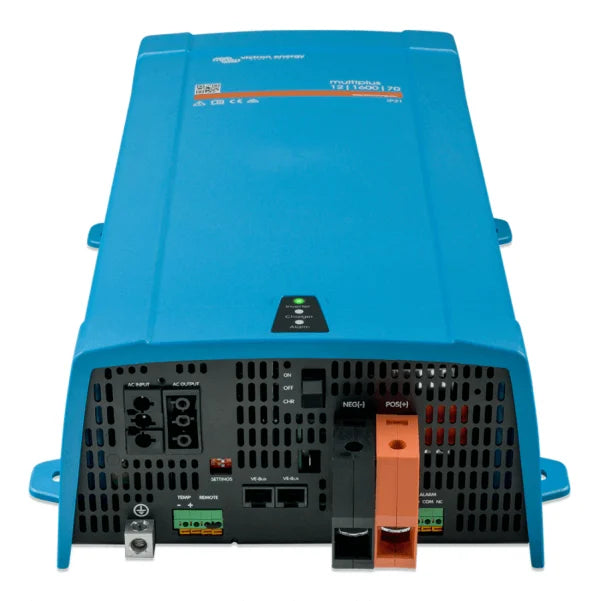

Key Features & System Integration
- PowerControl & PowerAssist: Yes
- Transfer Switch: 16 A
- Parallel and Three-Phase Operation: Up to 6 units can operate in parallel. Three units can be configured for three-phase output.
- Programmable Relay: Features a relay that can be set for general alarms, DC under-voltage, or generator start/stop functions.
- VE.Bus Communication Port: For parallel/three-phase operation, remote monitoring, and system integration.
- Remote On-Off: Yes (On/off/charger only)
- DIP Switches: Yes (For setting battery charge voltage and search mode)
- Internal DC Fuse: 200 A
Mechanical Specifications
- Enclosure Material & Colour: Steel/ABS (Blue RAL 5012)
- Protection Category: IP21
- Battery Connection: 50 / 35 mm²
- 230V AC Connection: G-ST18i connector
- Weight: 10.2 kg
- Dimensions (h x w x d): 470 x 265 x 120 mm
- Operating Temperature Range: -40 to +65°C (fan assisted cooling)
- Humidity: Max 95% (non-condensing)
Standards & Protection
- Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
- Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
- Automotive Directive: ECE R10-5
- Integrated Protection: Output short circuit, overload, battery voltage high/low, temperature high, 230 VAC on inverter output, and input voltage ripple high.
Technical Specifications
Technical Specifications
| Inverter Rating | 1600VA |
|---|
