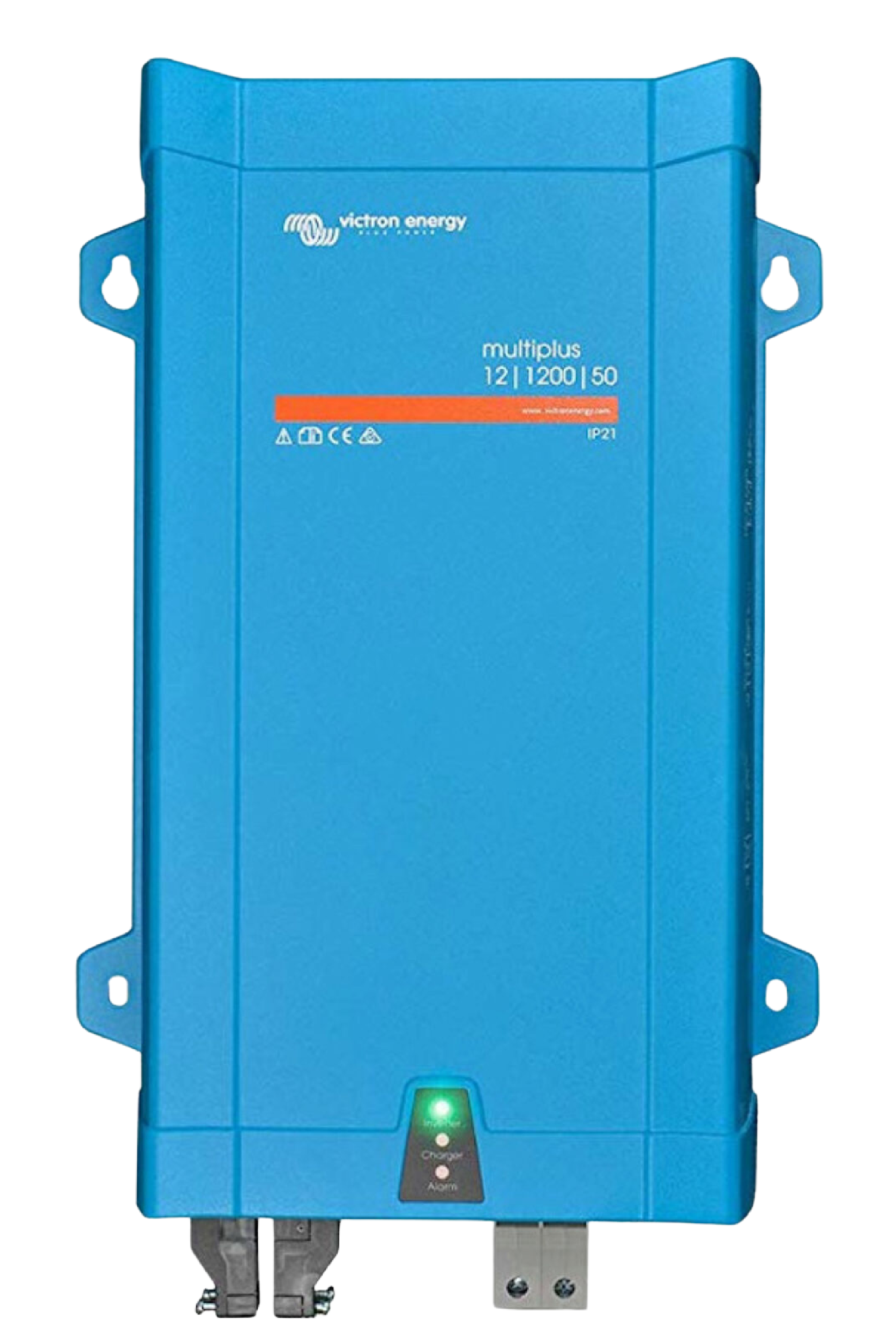

Victron MultiPlus 1200VA 12V Inverter/Charger - VE.Bus
Victron MultiPlus 1200VA 12V Inverter/Charger - VE.Bus
SKU:PMP122120000
Brand: Victron
Low stock: 5 left
Couldn't load pickup availability
Product Details
Product Details
The Victron MultiPlus 1200 VA 12 V Inverter/Charger VE.Bus (SKU PMP122120000) is a robust all-in-one inverter and charger built for professional installers and trade applications. This model handles 12 V battery systems and delivers 1200 VA output, integrating a true sine-wave inverter, adaptive multi-stage charger and high-speed AC transfer switch.
Designed with system flexibility in mind, the MultiPlus supports parallel and three-phase operation to scale for larger installations. Its advanced features include PowerControl and PowerAssist, which monitor and adapt to available AC supply (shore or generator) and offset peak loads via battery support – ideal in mobile fleets, marine or off-grid trade setups.
The charger section uses an adaptive algorithm to manage bulk, absorption, float and storage charging, allowing compatibility with sealed, gel, AGM, flooded and lithium batteries. When input AC fails, the device transitions to inverter mode in under 20 milliseconds, protecting connected equipment from interruption.
Enclosed in steel/ABS housing with the signature Victron blue colour, the unit is rated for heavy-duty use and professional installation, meeting stringent IEC and EN standards. For trade installers tasked with fitting mobile service vehicles, marine vessels or backup systems, this MultiPlus model offers the performance, reliability and system-integration flexibility needed for demanding environments.
Product Specifications
Product Specifications
Performance & Electrical Specifications (Inverter)
- Nominal Battery Voltage: 12 V
- Input Voltage Range: 9.5 – 17 V
- Continuous Output Power at 25°C: 1200 VA
- Continuous Output Power at 25°C: 1000 W
- Continuous Output Power at 40°C: 900 W
- Continuous Output Power at 65°C: 600 W
- Peak Power: 2400 W
- Maximum Efficiency: 93%
- Zero-load Power: 8 W
- Zero-load Power in Search Mode: 2 W
- Output Voltage: 230 VAC ± 2% (Adjustable to 240V)
- Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
Charger Specifications
- AC Input Voltage Range: 187 – 265 VAC
- AC Input Frequency: 45 – 65 Hz
- Charge Voltage 'Absorption': 14.4 V
- Charge Voltage 'Float': 13.8 V
- Storage Mode: 13.2 V
- Charge Current House Battery: 50 A
- Charge Current Starter Battery: 1 A
- Battery Temperature Sensor: Yes
Key Features & System Integration
- PowerControl & PowerAssist: Yes
- Transfer Switch: 16 A
- Parallel and Three-Phase Operation: Up to 6 units can operate in parallel. Three units can be configured for three-phase output.
- Programmable Relay: Features a relay that can be set for general alarms, DC under-voltage, or generator start/stop functions.
- VE.Bus Communication Port: For parallel/three-phase operation, remote monitoring, and system integration.
- Remote On-Off: Yes (On/off/charger only)
- DIP Switches: Yes (For setting battery charge voltage and search mode)
- Internal DC Fuse: 200 A
Mechanical Specifications
- Enclosure Material & Colour: Steel/ABS (Blue RAL 5012)
- Protection Category: IP21
- Battery Connection: 35 mm²
- 230V AC Connection: G-ST18i connector
- Weight: 8.2 kg
- Dimensions (h x w x d): 406 x 250 x 100 mm
- Operating Temperature Range: -40 to +65°C (fan assisted cooling)
- Humidity: Max 95% (non-condensing)
Standards & Protection
- Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
- Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
- Automotive Directive: ECE R10-5
- Integrated Protection: Output short circuit, overload, battery voltage high/low, temperature high, 230 VAC on inverter output, and input voltage ripple high.
Technical Specifications
Technical Specifications
| Inverter Rating | 1200VA |
|---|
