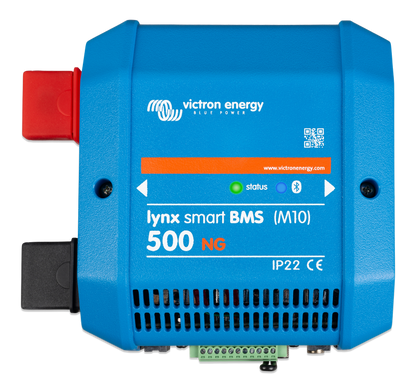

Victron Lynx Smart BMS 500 NG (M10)

Name: Victron Lynx Smart BMS 500 NG (M10)
Brand: Victron
SKU: LYN034160310
Price: 774.00 GBP
Availability: InStock

SKU:LYN034160310

Brand: Victron

High Current System Protection: Integrated heavy duty contactor protects the battery bank and functions as a remotely controlled main switch. Scalable for Large Installations: Supports up to 50 Lithium NG batteries across 12V, 24V and 48V systems. Smart Monitoring via Bluetooth: View key battery data locally using the VictronConnect app without extra equipment. Early Warning Safety Features: Pre alarm alerts help prevent unexpected shutdowns and battery damage. Designed for Professional Systems: Fully compatible with Victron Lynx distribution modules and GX monitoring platforms.

Low stock: 4 left

£774.00 GBP

Sale Sold out

Product Details

The Victron Lynx Smart BMS NG is a professional Battery Management System designed specifically for Victron Lithium NG battery installations. Built for demanding trade, marine and off grid environments, it provides centralised protection, monitoring and control for larger lithium battery banks where reliability and system visibility are essential.

Supporting 12V, 24V and 48V systems, the Lynx Smart BMS NG allows up to 50 Lithium NG batteries to be connected in a single system, making it suitable for commercial vehicles, marine power systems and renewable energy storage installations. The unit features a high capacity integrated contactor rated for continuous heavy current loads, enabling safe connection and disconnection of the battery bank while also acting as a remotely controlled main system switch.

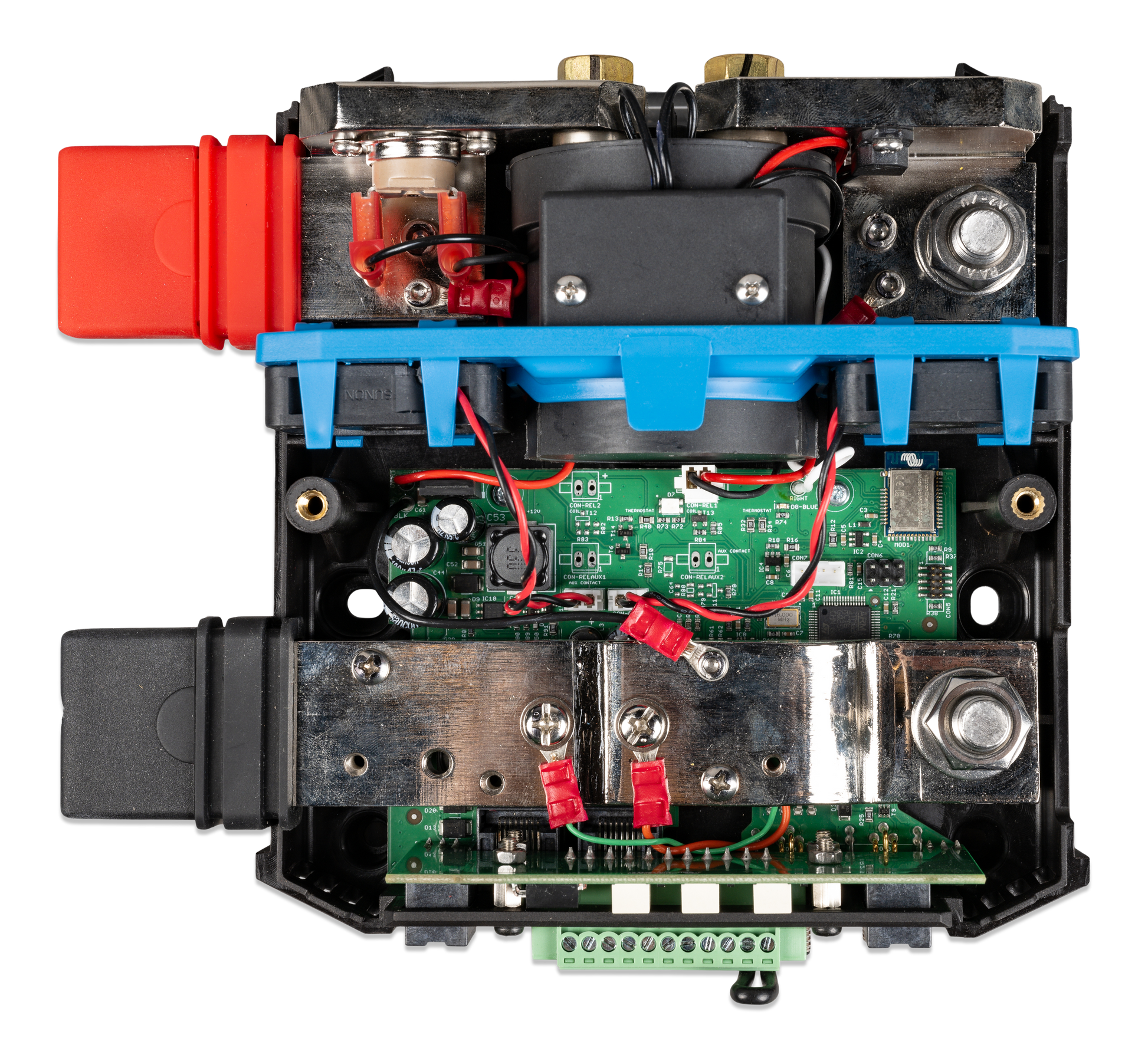

Housed in a durable enclosure with solid copper busbars, the Lynx Smart BMS NG forms part of Victron’s modular Lynx distribution system, allowing clean and professional installation alongside compatible Lynx components. Integrated Bluetooth connectivity provides direct access to battery data using the VictronConnect app, allowing installers and system operators to view battery status, voltage and state of charge without additional hardware.

For more advanced system integration, the Lynx Smart BMS NG communicates via VE.Can, enabling connection to Victron GX devices and remote monitoring platforms. This allows real time system oversight, logging and alerts across complex energy systems. A built in pre alarm function provides early warning of low cell voltage conditions, helping to prevent unexpected system shutdowns and reduce downtime.

Designed for professional installers and trade customers, the Victron Lynx Smart BMS NG delivers scalable lithium battery protection, intelligent monitoring and seamless integration within Victron energy systems. It is an ideal solution where high current capability, safety and system visibility are required.

Product Specifications

Power & Performance

Main Safety Contactor Continuous Current: 500 A
Main Safety Contactor Peak Current: 600 A (for 5 minutes)
Supported System Voltages: 12V, 24V, or 48V
Battery Voltage Range: 9 – 60 VDC
Maximum Input Voltage: 75 VDC
Reverse Polarity Protection: No
Pre-charge Circuit: Integrated; prevents high inrush currents when connecting capacitive loads like inverters.
Minimum Load Resistance (Pre-charging): 10 Ω for 12V systems; 20 Ω for 24V and 48V systems.

Power Consumption

OFF Mode: 0.3 mA for all system voltages.
Standby Mode: Approximately 0.6 W (50 mA at 12V).
ON Mode: Approximately 2.6 W (217 mA at 12V), depending on the state of the relays.

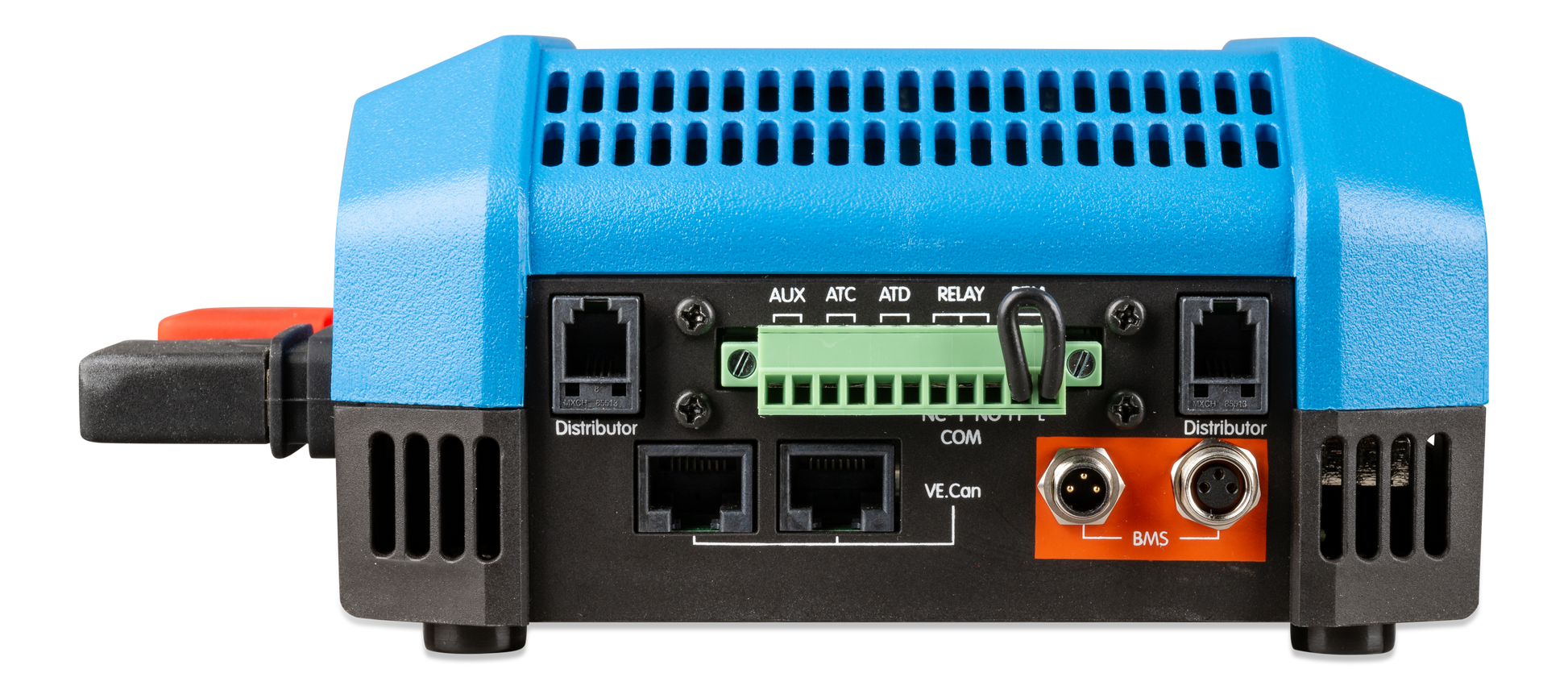

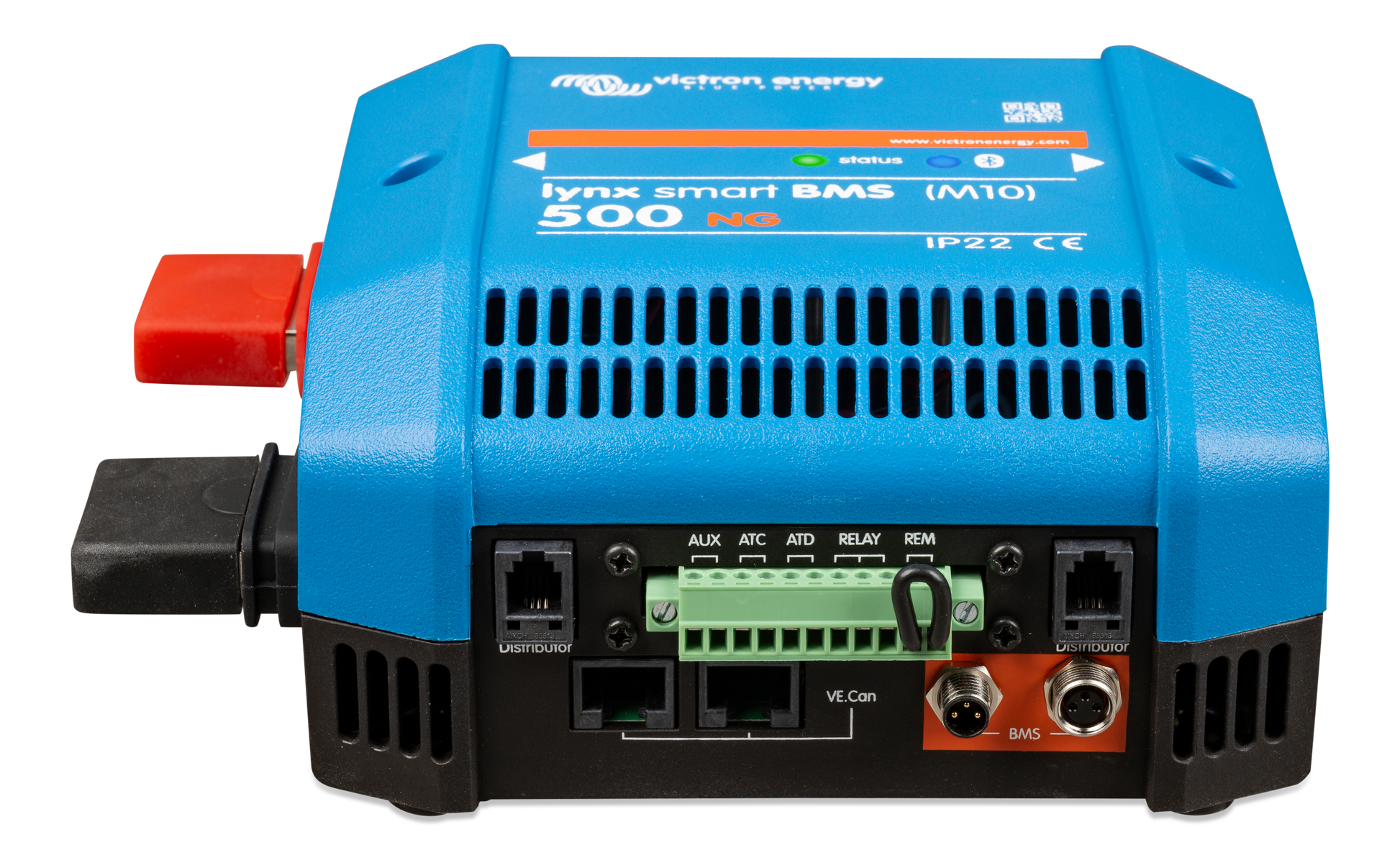

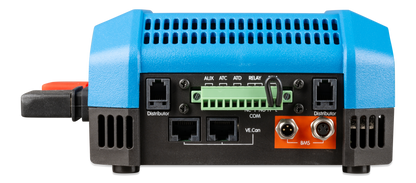

Inputs, Outputs & Connectivity

AUX Terminal: Onboard auxiliary power supply (1.1 A continuous) to power specific loads (e.g., a GX device) post-BMS shutdown.
Allow-to-Charge Port: 0.5 A at 60 VDC (protected by resettable fuse).
Allow-to-Discharge Port: 0.5 A at 60 VDC (protected by resettable fuse).
Programmable Relay (SPDT): 2 A at 60 VDC. Can be used as an alarm relay or for alternator ATC (Allow-To-Charge) control.
VE.Can Communication: Easy connection to GX devices (Cerbo GX, Ekrano GX) via standard RJ45 network cable.
NMEA 2000: Integration into marine networks via protocol (requires optional VE.Can to NMEA 2000 micro-C male cable).
Bluetooth Smart: Built-in for monitoring and control via the VictronConnect App, including Instant Readout for diagnostics.
Lynx Distributor Monitoring: Monitors fuse status for up to 4 connected Lynx Distributor modules via RJ10.

System Scalability & Features

Lithium NG Compatibility: Designed for Lithium NG batteries (12.8V, 25.6V, and 51.2V variants).
Battery Bank Capacity: Supports up to 50 batteries in 12V or 24V banks, or up to 25 batteries in 48V banks.
Parallel Redundancy: Supports paralleling of up to 5 Lynx Smart BMS units, each with its own battery bank, to form a single redundant system.
DVCC Control: Automatically controls compatible Victron inverter/chargers, solar chargers, and the Orion XS 12/12-50A via a connected GX device.
