Victron Lynx Shunt VE.Can (M10) - LYN040102110
Victron Lynx Shunt VE.Can (M10) - LYN040102110
SKU:LYN040102110
Brand: Victron
Stop guessing your power: You can see your exact battery percentage on a screen or your phone, so you never have to worry about running out of power unexpectedly.
Safety as standard: It provides a secure home for your main system fuse, protecting your expensive equipment from electrical faults.
A neat and tidy installation: The modular design gets rid of messy wires, creating a clean and professional battery area in your van or boat.
Know your time-to-go: The system calculates exactly how many hours of power you have left based on the appliances you are running at that moment.
Smart warnings: A built-in light and remote messages warn you immediately if a fuse blows or if your batteries are getting too low.
Built for heavy demands: Constructed with high-quality tinned copper, it is designed to handle massive power loads for years to come.
In stock
This is pre-order - Available in 7 – 10 days
Regular price
£342.00 GBP
Regular price
Sale price
£342.00 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details

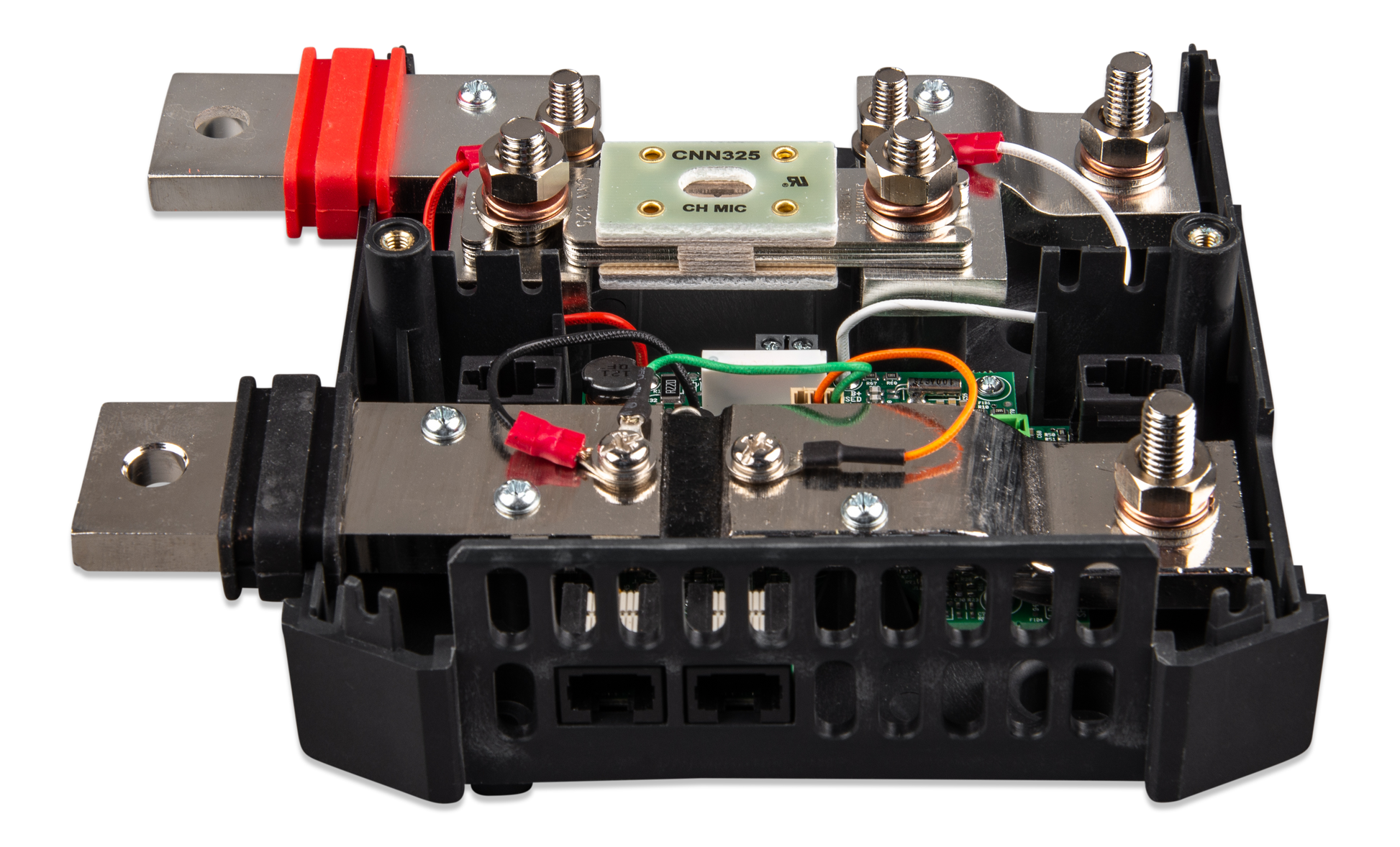

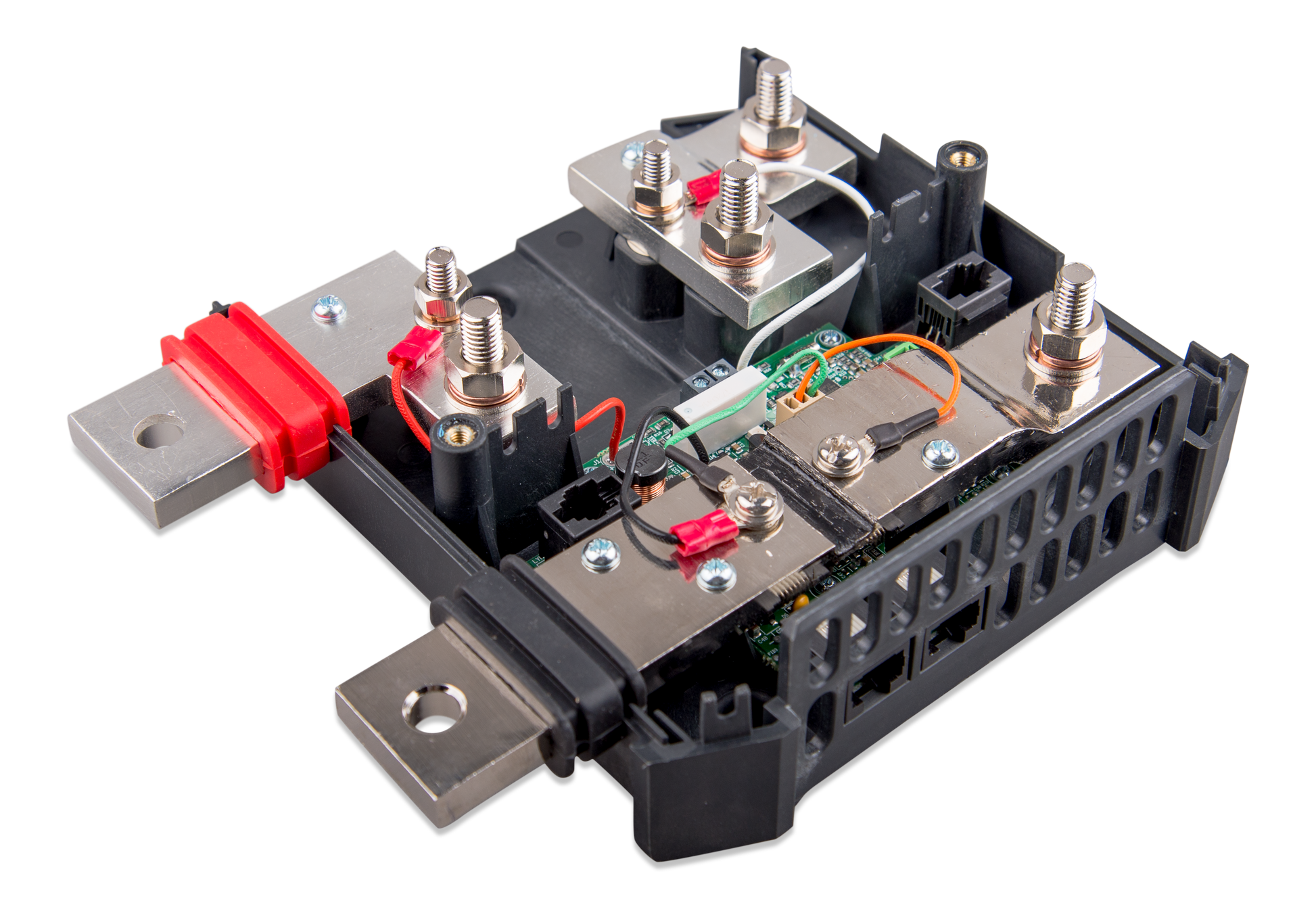

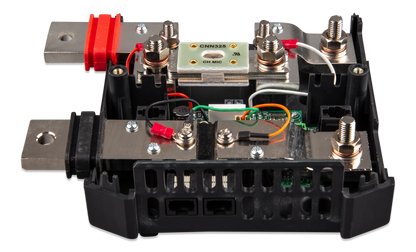

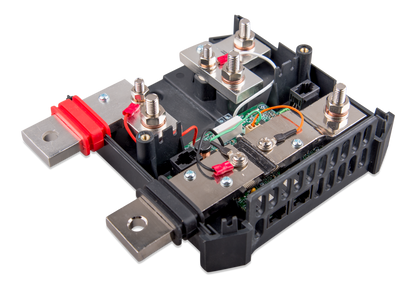

The LYN040102110 is a high-performance 1000A shunt designed to be the central hub of your DC distribution system. As an integral part of the Victron Lynx ecosystem, it integrates a positive busbar with a fuse holder and a negative busbar containing the battery monitor electronics. This specific M10 model is particularly versatile because it includes a fuse dummy busbar. This allows you to replace the internal fuse if you prefer to mount your main protection elsewhere in a larger or more complex setup.

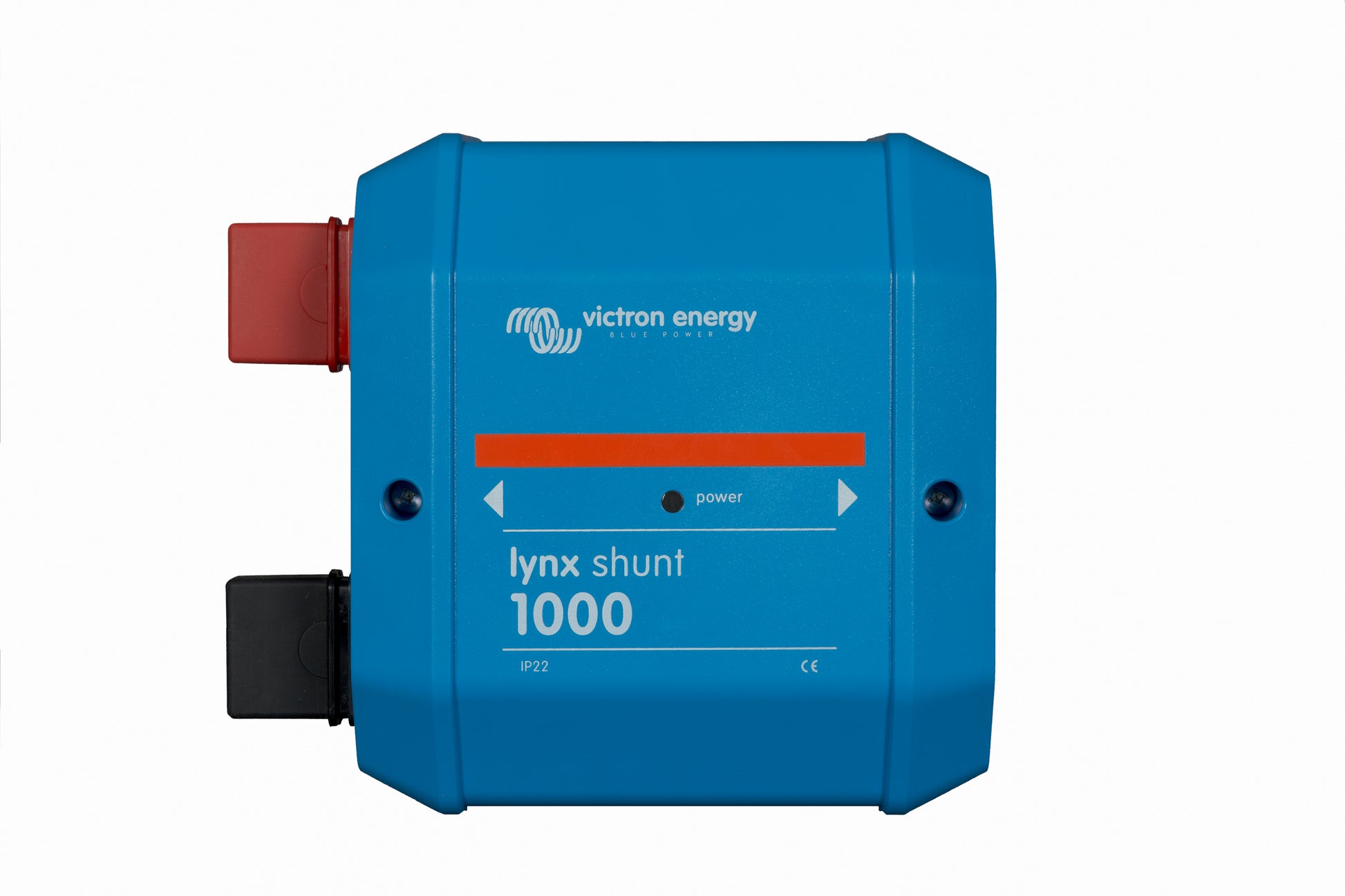

Communication is handled through the VE.Can port, which connects directly to a GX device such as a Cerbo GX. This connection allows you to view detailed history and real-time data on voltage, current, energy usage and consumed Amp-hours. If a fault occurs, such as a blown fuse, the unit sends an instant alarm to your monitoring screen and lights up a red status LED on the front cover.
The unit also features a programmable relay. This can be used to automatically start a generator or trigger an external alarm based on your battery voltage or state of charge. Inside the rugged ABS enclosure, the tinned copper busbars are rated for 1000A continuous current. Whether you are running a 12V, 24V or 48V system, this shunt is capable of managing the heavy loads required for professional marine and off-grid installations. For the most accurate readings possible, it even comes with a dedicated temperature sensor to monitor the physical condition of your battery bank.
Product Specifications
Product Specifications
Power & Performance
- Current Rating: 1000 Adc continuous
- Supported System Voltages: 12V, 24V, or 48V
- Supply Voltage Range: 9 – 70 Vdc
- Power Consumption:60 mA @ 12V33 mA @ 24V20 mA @ 48V
- Reverse Polarity Protection: No
- Potential Free Alarm Contact: 3 A, 30 Vdc, 250 Vac
Monitoring & Communication
- Connectivity: VE.Can communication for monitoring and setup via a GX device (e.g., Cerbo GX).
- Status Indication: Integrated Power LED.
- Included Accessories: Two RJ45 VE.Can terminators and a temperature sensor.
Connections & Fusing
- Busbar Connection: M10
- Fuse Connection: M10
- Supported Fuse Types: CNN, ANL, or Mega fuses (fuses sold separately).
- Fuse Dummy Busbar: Included (allows the main fuse to be placed outside the shunt for larger systems).
- VE.Can Port: RJ45
- Power Supply Connection to Lynx Distributor: RJ10
- Temperature Sensor Connection: Screw terminal
- Relay Connection: Screw terminal
Physical Specifications
- Enclosure Material: ABS
- Busbar Material: Tinned copper
- Busbar Dimensions: 8 x 30 mm
- Unit Dimensions (h x w x d): 190 x 180 x 80 mm
- Unit Weight: 1.4 kg
Environmental Data
- Operating Temperature Range: -40 °C to +60 °C
- Storage Temperature Range: -40 °C to +60 °C
- Humidity: Maximum 95% (non-condensing)
- Protection Category: IP22
