Victron Lynx Distributor 1000A Busbar (M10)

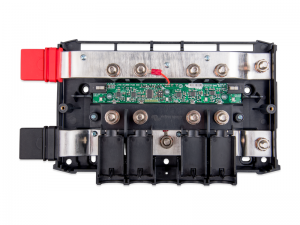

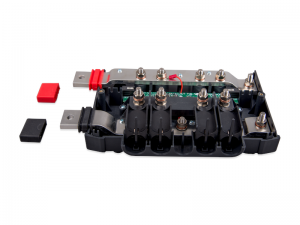

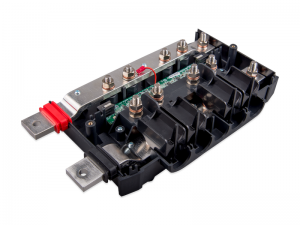

The Victron Lynx Distributor 1000A Busbar is designed to provide a tidy and reliable way to manage high current DC power distribution in off-grid electrical systems. It combines a positive and negative busbar in one enclosure, giving you a clear central point for connecting up to four protected circuits. Each circuit is fitted with its own Mega fuse, held in place by M10 studs, helping protect critical components from overloads or unexpected faults.

Built to handle up to 1000A, the Lynx Distributor is suitable for large leisure battery banks and installations that rely on high current loads. For boat builders, campervan converters, and off-grid system installers, this level of capacity offers confidence when powering inverters, chargers, DC loads, and essential onboard equipment. It allows system growth without having to replace distribution hardware, making it a long term choice for professional electrical setups.

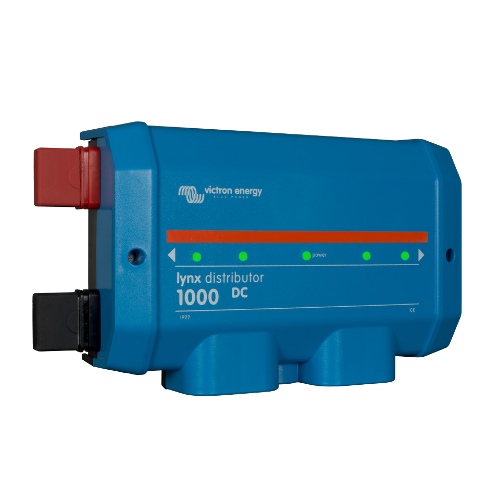

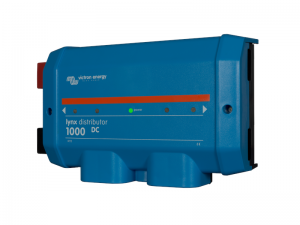

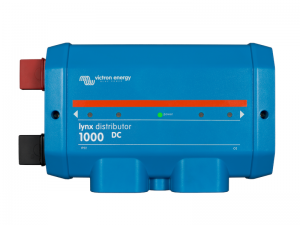

Status LEDs on the front of the housing provide clear indication of system health. A green light in the centre confirms that fuses are present and functioning. If a fuse has blown or been removed, the corresponding LED turns red, allowing you to quickly identify the issue without disassembling the enclosure. This reduces downtime and helps improve safety in confined installations where components can be harder to reach.

The Lynx Distributor integrates cleanly with the wider Victron Lynx power management ecosystem. RJ10 fly leads are supplied in the box and can be connected directly to a Lynx Shunt for communication and system monitoring. This helps installers offer customers an organised and visible approach to power distribution, especially when paired with remote monitoring platforms and battery management devices.

With both busbars housed inside a single compact enclosure, cable management becomes tidier, and installation is simplified. This helps reduce wiring faults and shortens build time for larger electrical projects. For mobile platforms such as motorhomes and narrowboats, where space is valuable, a neat layout supports better airflow and reduces long term maintenance concerns.

Whether you are upgrading an existing electrical system or designing one from scratch, the Victron Lynx Distributor 1000A Busbar offers robust current handling, clear visual feedback, and straightforward integration with other Victron components. It is a dependable choice for professionals who value reliability and clear organisation in their DC power distribution.

Connection Tips:
Make sure to use MEGA fuses. Also, be careful, some MEGA fuses are only good for 24V systems. If your system is 48V, you need 58 or 64V fuses rated for 48v systems.

Victron Lynx Distributor 1000A Busbar (M10) – Manual
