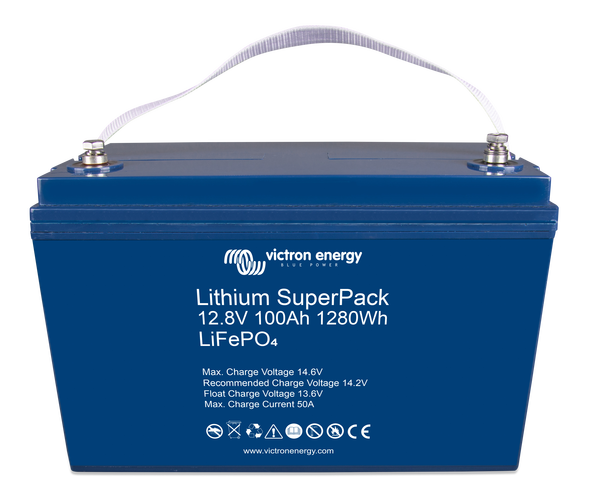

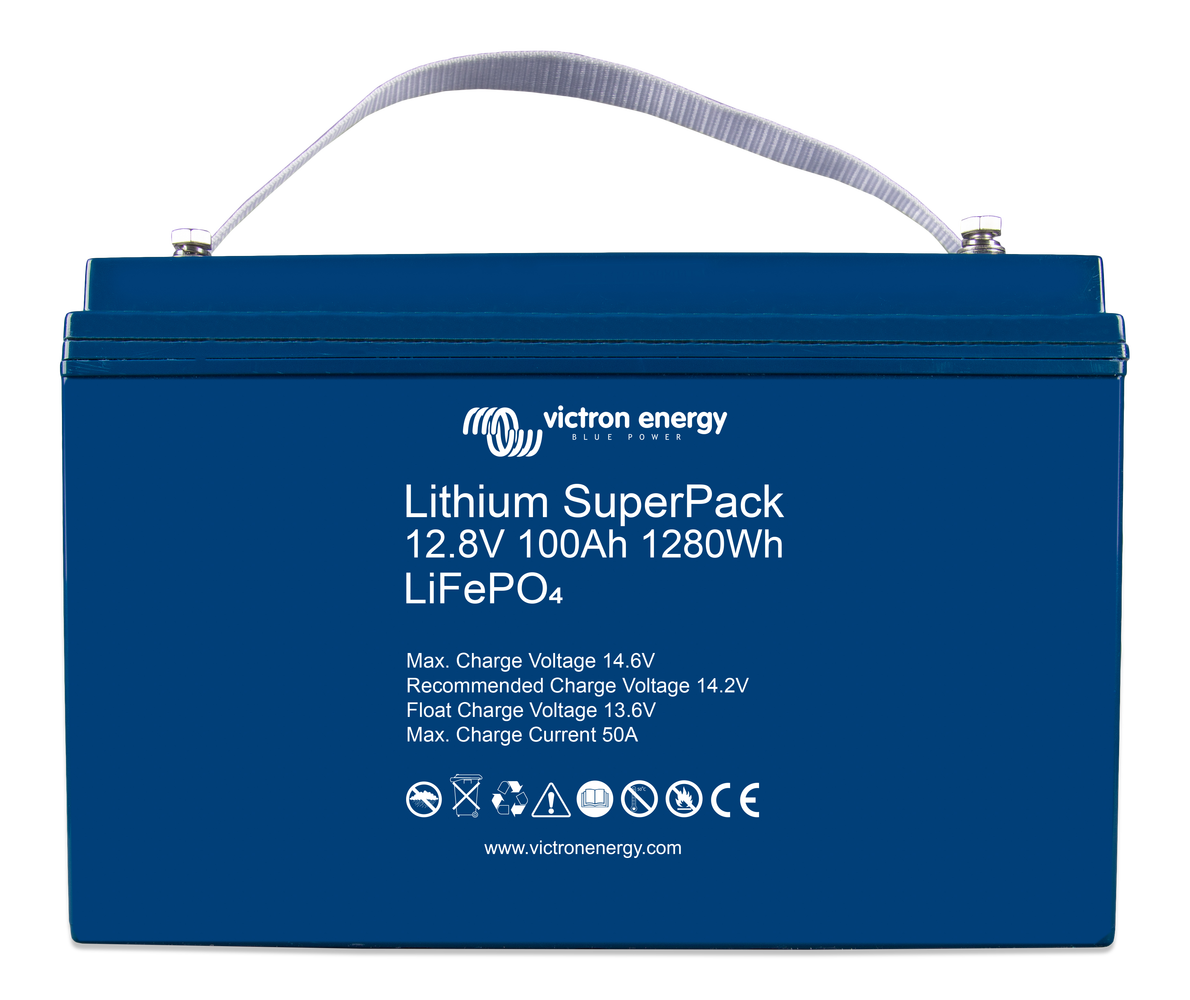

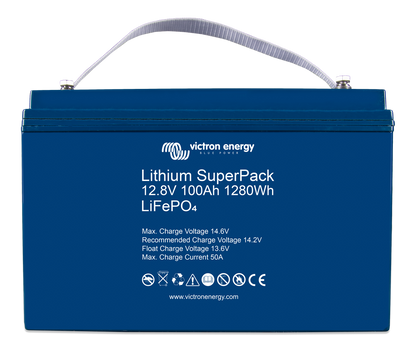

Victron High Current Lithium SuperPack 12,8V/100Ah (M8) battery
Victron High Current Lithium SuperPack 12,8V/100Ah (M8) battery
SKU:BAT512110712
Brand: Victron
High Discharge Capacity: Powers high-demand systems with up to 100A continuous discharge.
Integrated BMS: Protects the battery from overcharge, over-discharge, and thermal events, ensuring safety and longevity.
Bluetooth Connectivity: Allows for remote monitoring and configuration via the VictronConnect app.
Scalable Energy Storage: Supports up to 20 batteries in parallel, catering to varying power needs.
Compact and Lightweight: Easy to install and transport, fitting into space-constrained environments.
Dimensions: 220 x 330 x 172 mm
Weight: 14 kg
In stock
This is pre-order - Available in 7 – 10 days
Regular price
£492.00 GBP
Regular price
Sale price
£492.00 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details
The Victron High Current Lithium SuperPack 12.8V/100Ah (M8) battery is a robust and compact energy storage solution, ideal for demanding applications requiring high discharge currents. This LiFePO₄ battery offers exceptional cycle life, rapid charging capabilities, and built-in safety features, making it a reliable choice for both professional and recreational use.
Key Features:
- High Discharge Capacity: Delivers up to 100A continuous discharge current, ensuring reliable power delivery for high-demand applications.
- Integrated Battery Management System (BMS): Monitors voltage, current, and temperature to protect against overcharge, over-discharge, and thermal events, enhancing safety and longevity.
- Bluetooth Connectivity: Enables remote monitoring and configuration via the VictronConnect app, providing real-time insights into battery performance.
- Parallel Connection Capability: Supports up to 20 batteries in parallel, allowing for scalable energy storage solutions to meet varying power requirements.
- Compact Design: With dimensions of 199 x 188 x 147 mm and a weight of 7 kg, it offers a space-saving solution without compromising on performance.
Ideal Applications:
- Marine Systems: Serves as a reliable house battery, providing consistent power for onboard systems.
- Recreational Vehicles (RVs): Powers appliances and lighting, ensuring comfort during off-grid adventures.
- Professional Vehicles: Supports auxiliary systems, enhancing operational efficiency in commercial applications.
Product Specifications
Product Specifications
Electrical Specifications
- Chemistry: LiFePO4
- Nominal Voltage: 12.8 V
- Nominal Capacity @ 25 °C: 100 Ah
- Nominal Capacity @ 0 °C: 80 Ah
- Nominal Energy @ 25 °C: 1280 Wh
- Round Trip Efficiency: 92%
- Cycle Life (@ 80% DoD and 25 °C): 2500 cycles
Charge & Discharge Performance
- Max. Continuous Discharge Current: 100 A
- Peak Discharge Current (10 seconds): 150 A
- End of Discharge Voltage: 10 V
- Max. Continuous Charge Current: 100 A
- Charge Voltage, Absorption: 14.2 V – 14.4 V (Recommended absorption period: max 4 hours)
- Charge Voltage, Float: 13.5 V
System Configuration & Safety
- Parallel Connection: Yes, unlimited number of units allowed.
- Series Connection: Not allowed.
- Integrated Protection: The battery automatically cuts off if maximum ratings are exceeded. It may disconnect when high capacitance loads (like inverters) are connected but will retry after approximately 10 seconds.
- Low Temperature Protection: For newer units (Serial HQ2040+), charging is automatically blocked below 0°C (±3°C) and discharge is blocked below -20°C (±3°C).
Environmental Data
- Operating Temperature (Discharge): -20 °C to +50 °C
- Operating Temperature (Charge): +0 °C to +45 °C
- Storage Temperature: -40 °C to +65 °C
- Humidity: Max. 95 % (non-condensing)
- Protection Class: IP 43
Mechanical Specifications
- Power Connection: M8 Threaded Inserts
- Dimensions (h x w x d): 215 x 306 x 169 mm
- Weight: 10.5 kg
- Mounting: Can be mounted upright or on its longest side (terminals must not face downwards).
Technical Specifications
Technical Specifications
| Battery Capacity | 100A |
|---|---|
| Battery Type | Lithium |
| Weight KG | 14 |
