Victron GX I/O Extender 150 (Add more inputs, outputs and relays to GX Devices)
Victron GX I/O Extender 150 (Add more inputs, outputs and relays to GX Devices)
SKU:BPP900800150
Brand: Victron
Low stock: 4 left
Couldn't load pickup availability
Product Details
Product Details

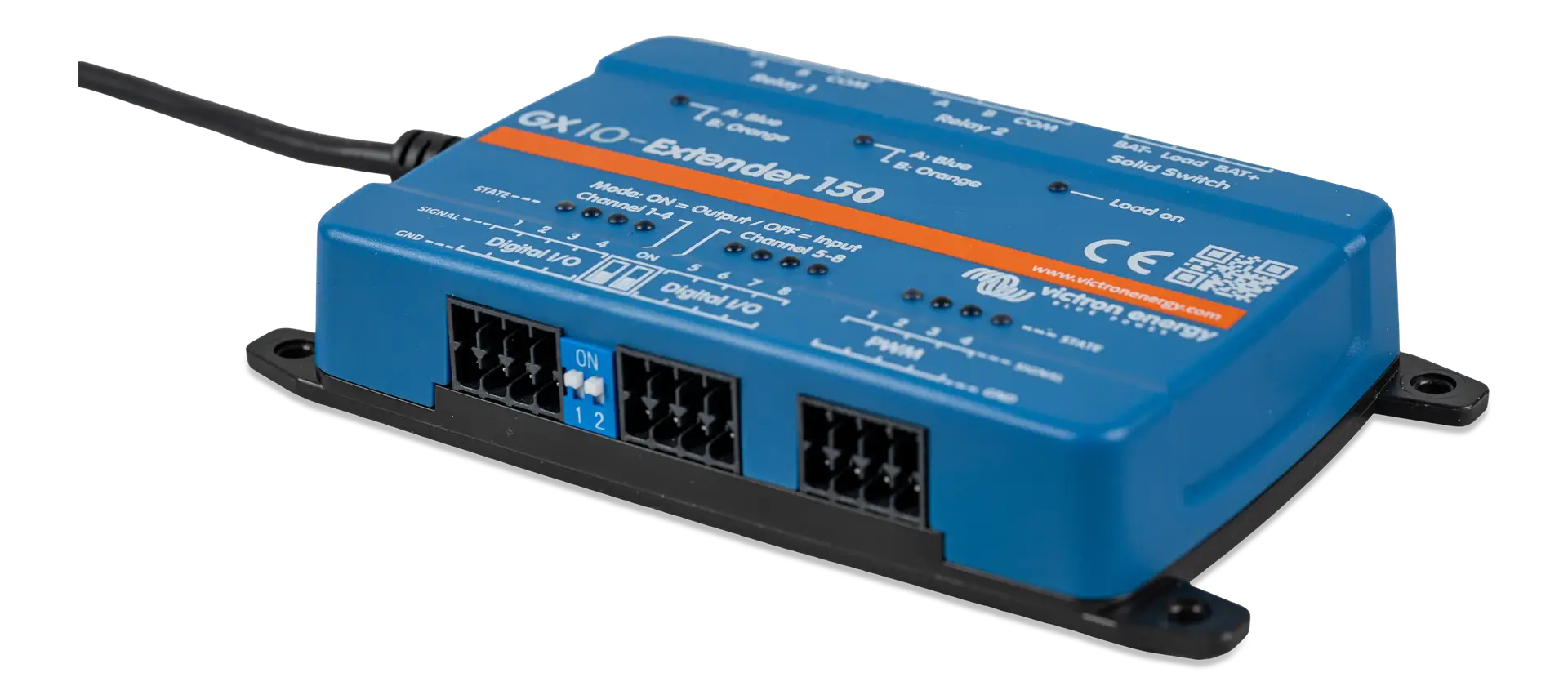

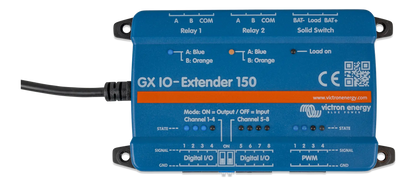

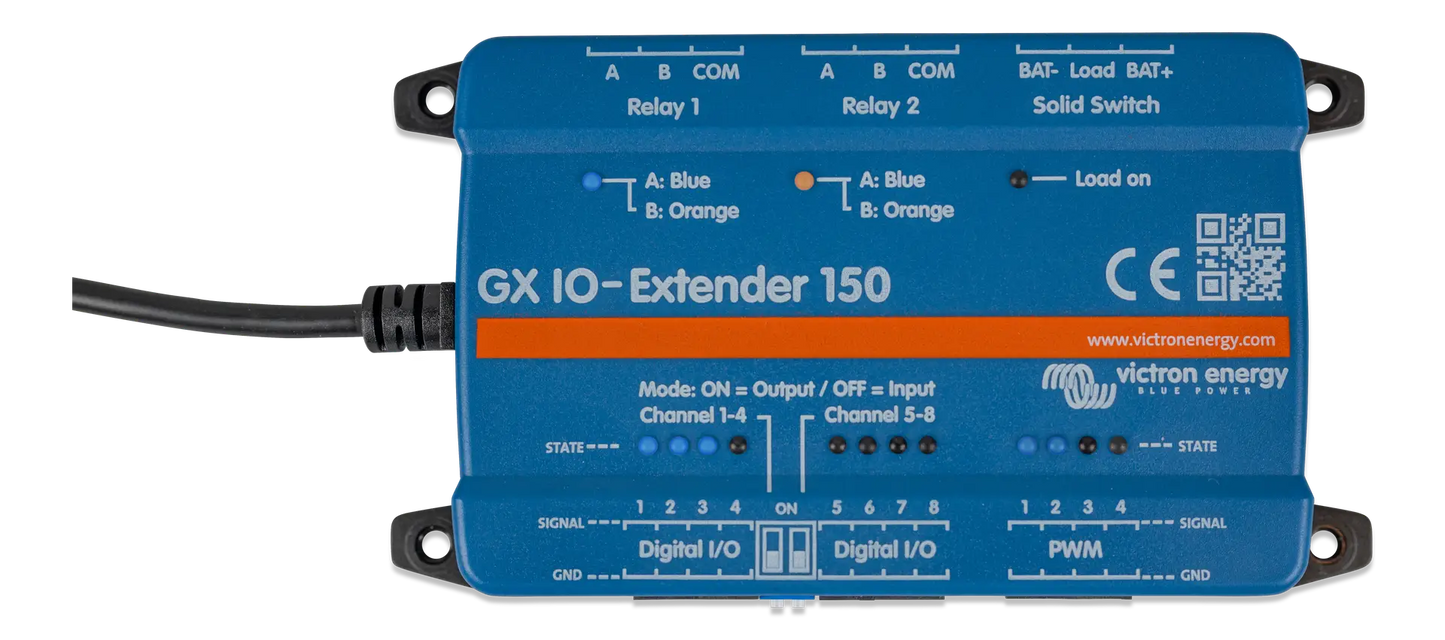

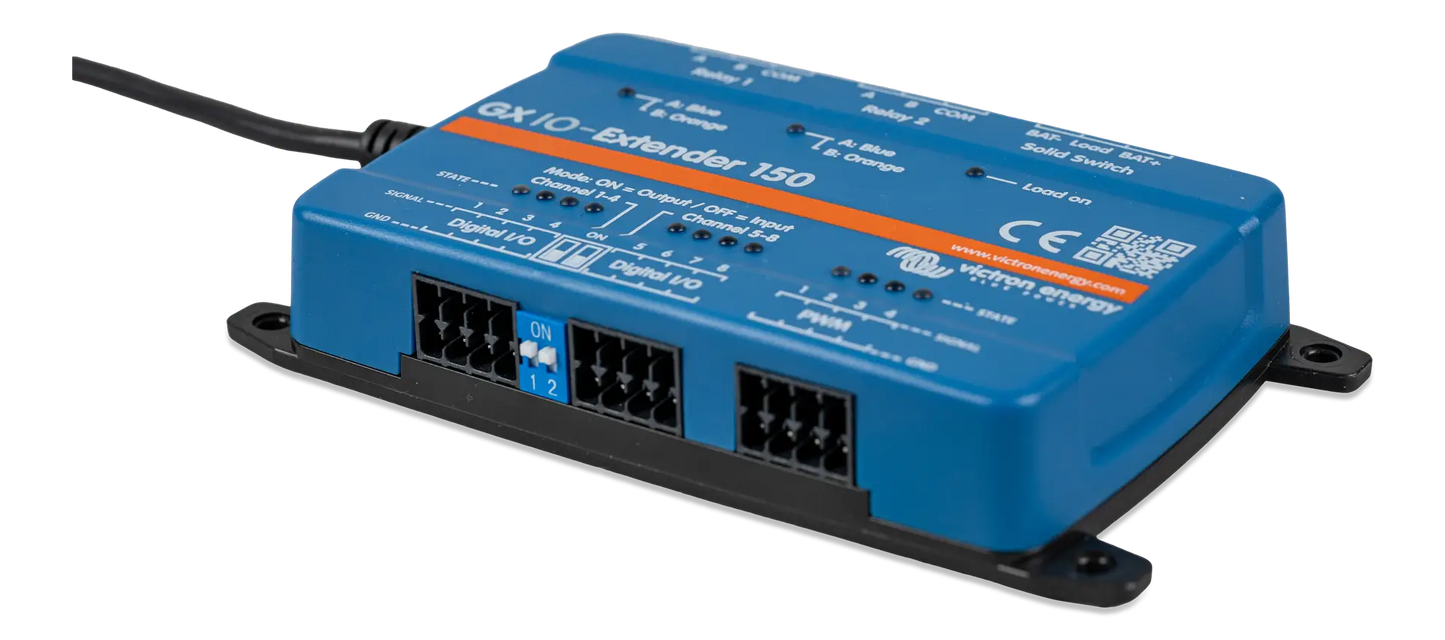

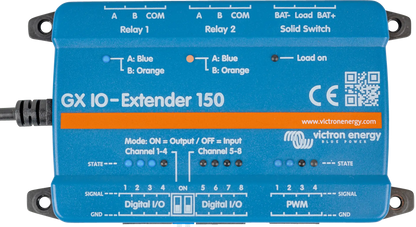

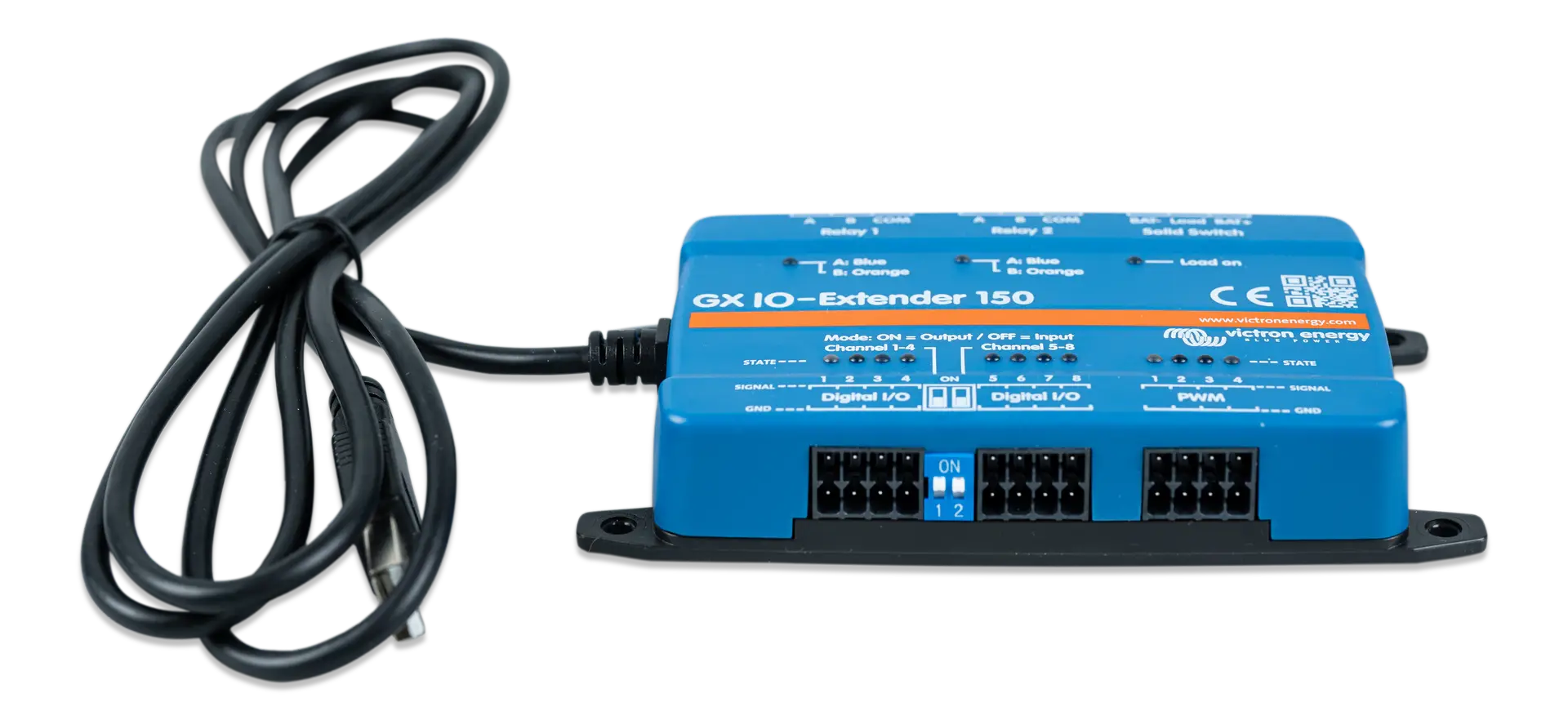

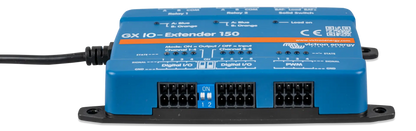

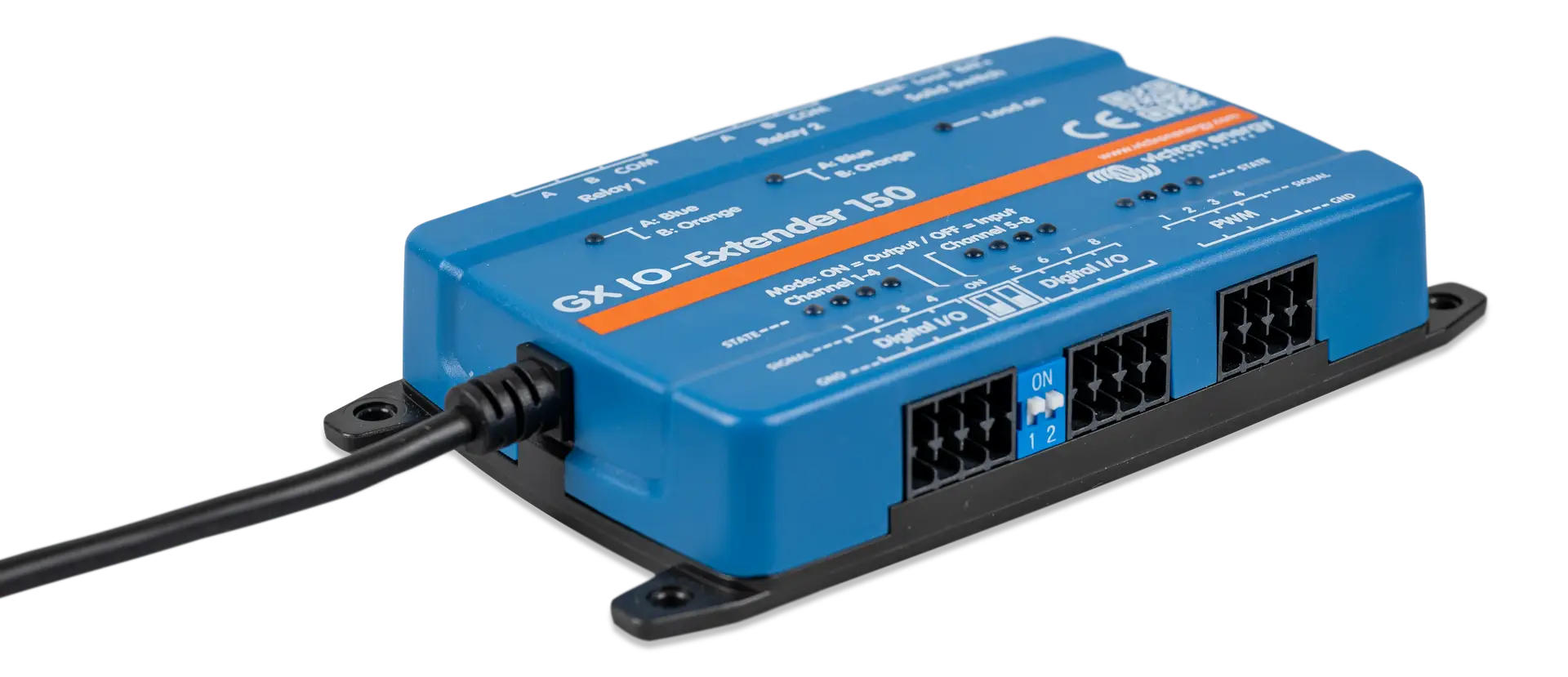

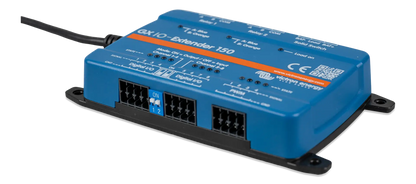

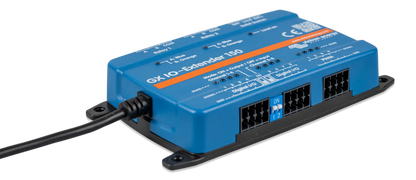

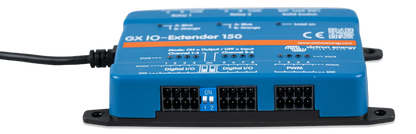

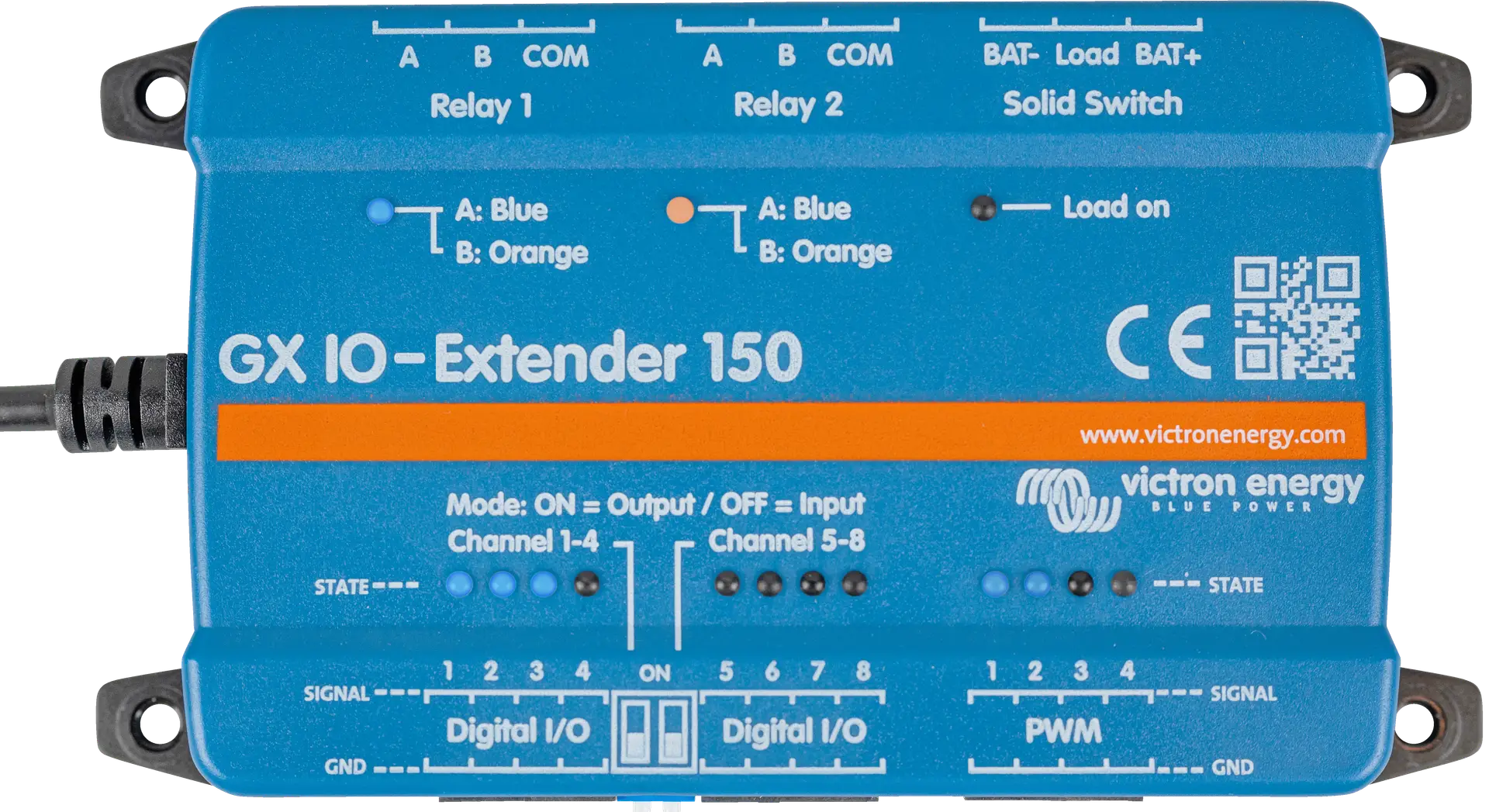

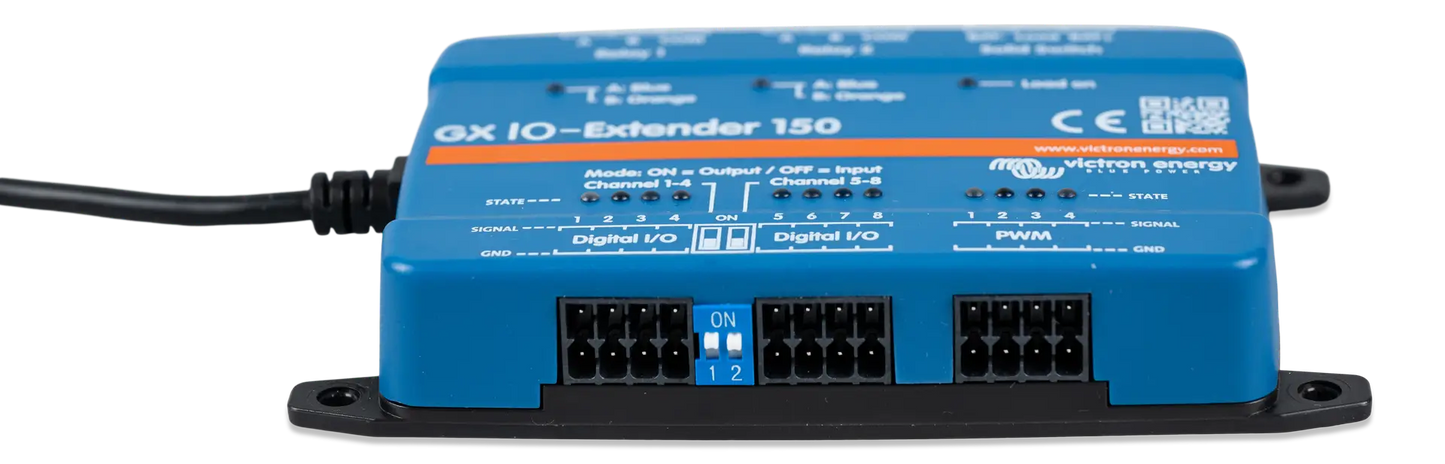

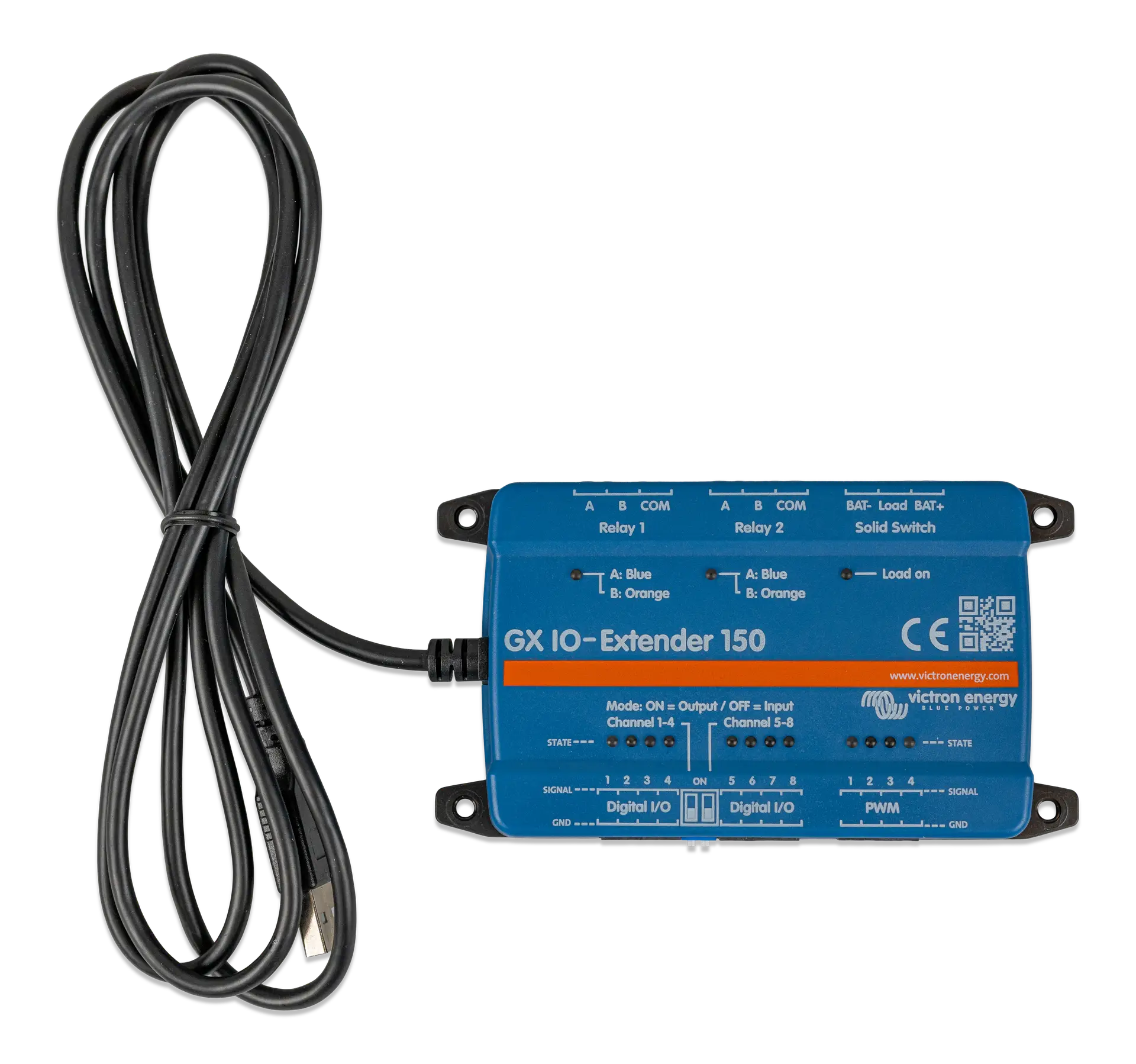

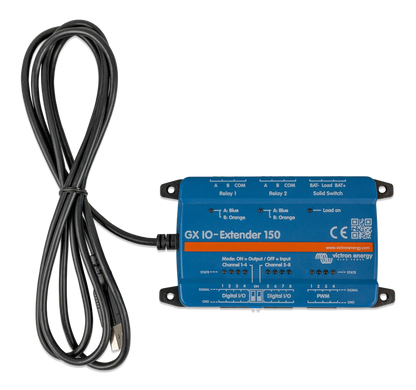

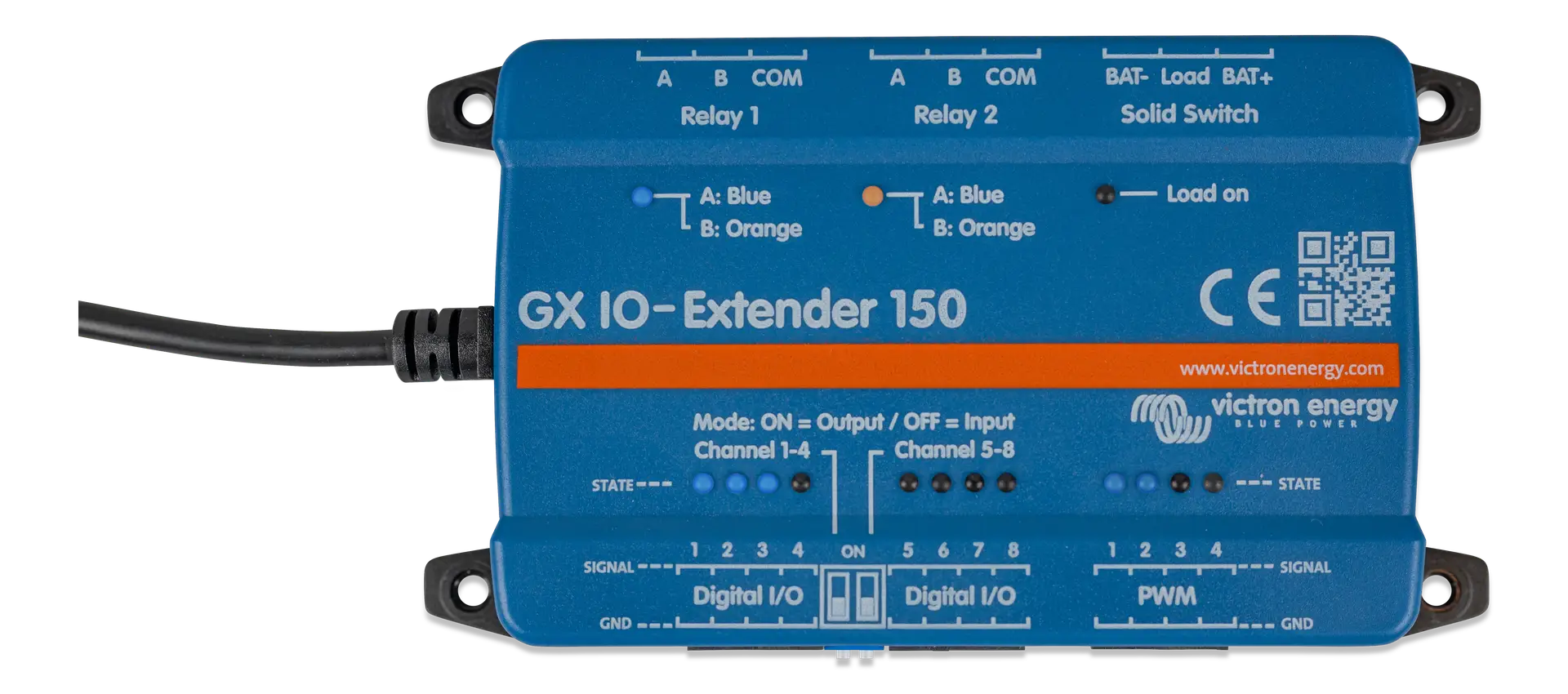

The Victron GX I/O Extender 150 (SKU BPP900800150) is a compact I/O expansion module that enhances the capabilities of any Victron GX device, such as Cerbo GX, Venus GX, or Color GX. It plugs in via USB, which also powers it, so there is no need for a separate power supply. This makes installation clean, simple, and efficient.
It provides 8 digital I/O ports, which can be configured as eight inputs, eight outputs, or a mixed configuration of four inputs and four outputs. This flexibility allows you to tailor the module to your system’s specific needs, whether you are integrating sensors, switches, or external devices. The I/O ports are isolated from the USB supply, and each line has an LED indicator to show its status, which helps with diagnostics.
For control tasks, the unit includes 4 PWM outputs with 8-bit precision at 1.5625 kHz, suitable for dimming lights or driving motors. There are also two bi-stable (latching) relays, enabling low‑power switching of AC or DC loads. These relays hold their state even if the power is lost, providing reliability for signalling or control applications. In addition, a solid-state relay (SSR) is provided for fast DC switching, capable of handling up to 70 V DC and 4 A, ideal for loads such as contactor coils or capacitive circuits.
The module’s form factor is small: 123 × 67 × 23 mm, weighing about 170 g, so it fits neatly in tight installation spaces. It supports wall mounting or DIN-rail mounting using an adapter, giving flexibility for where and how to install it. It operates reliably over a wide temperature range from –20 °C to +50 °C, making it suitable for use in off-grid, marine, or industrial environments.
Integration with the Victron ecosystem is smooth. The Extender works with Node-RED on a GX device, enabling custom automation logic. You can also access and control the extender via the GX user interface using the Switch pane. This allows your installation to support advanced system logic, alarms, automation, or remote control, all managed through your GX system.
Product Specifications
Product Specifications
Key Features
- Configurable Digital I/Os: 8 digital I/Os that can be set as 8 inputs, 8 outputs, or a 4-input + 4-output split.
- Precise Control: Features a PWM output for specialized control applications.
- Versatile Switching: Includes two latching relays for low-power switching and a high-performance solid switch for DC loads.

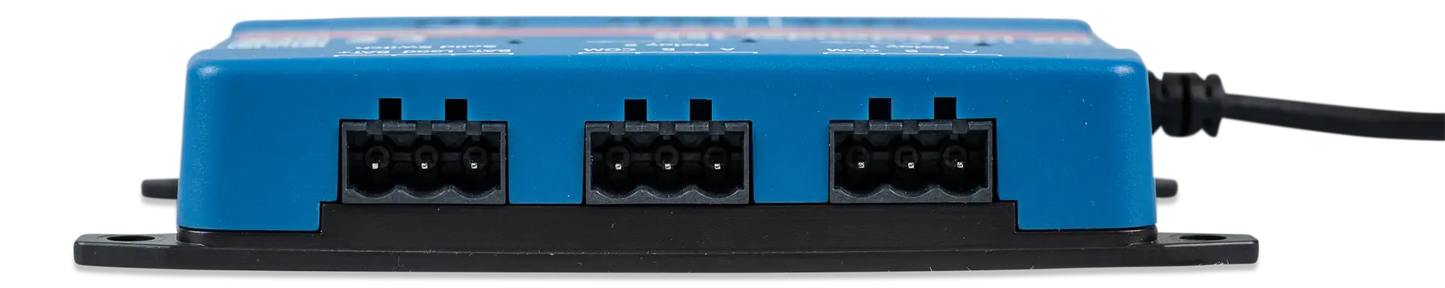

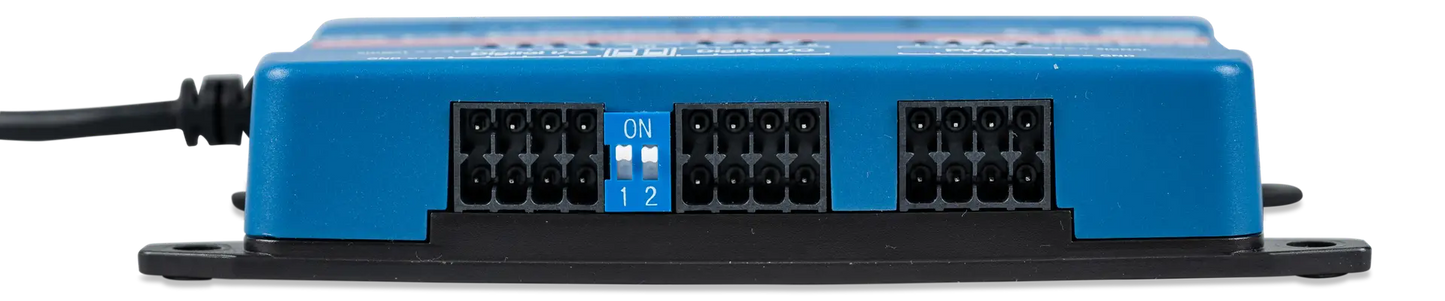

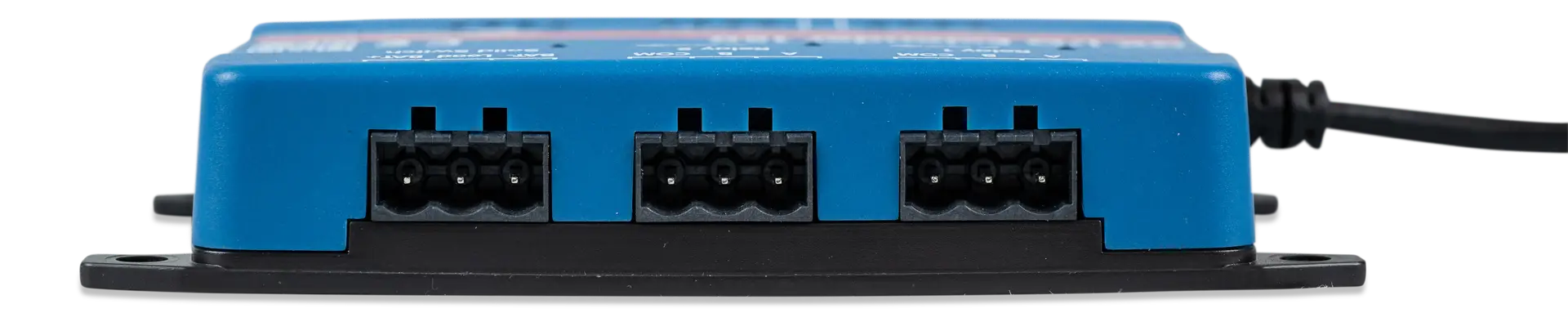

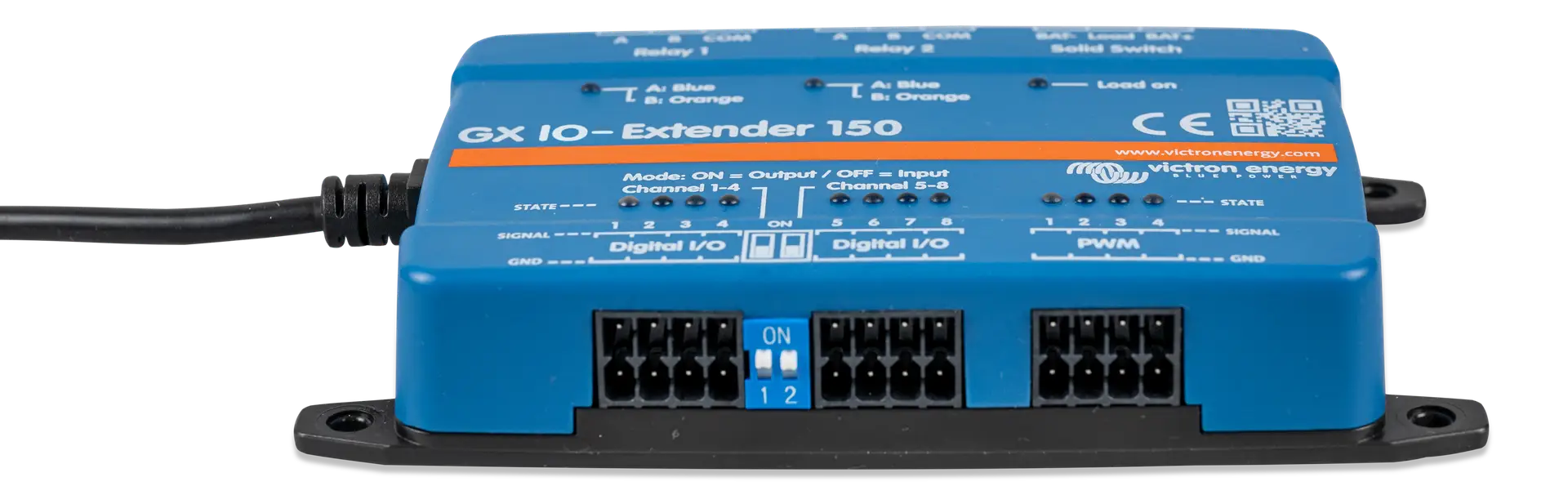

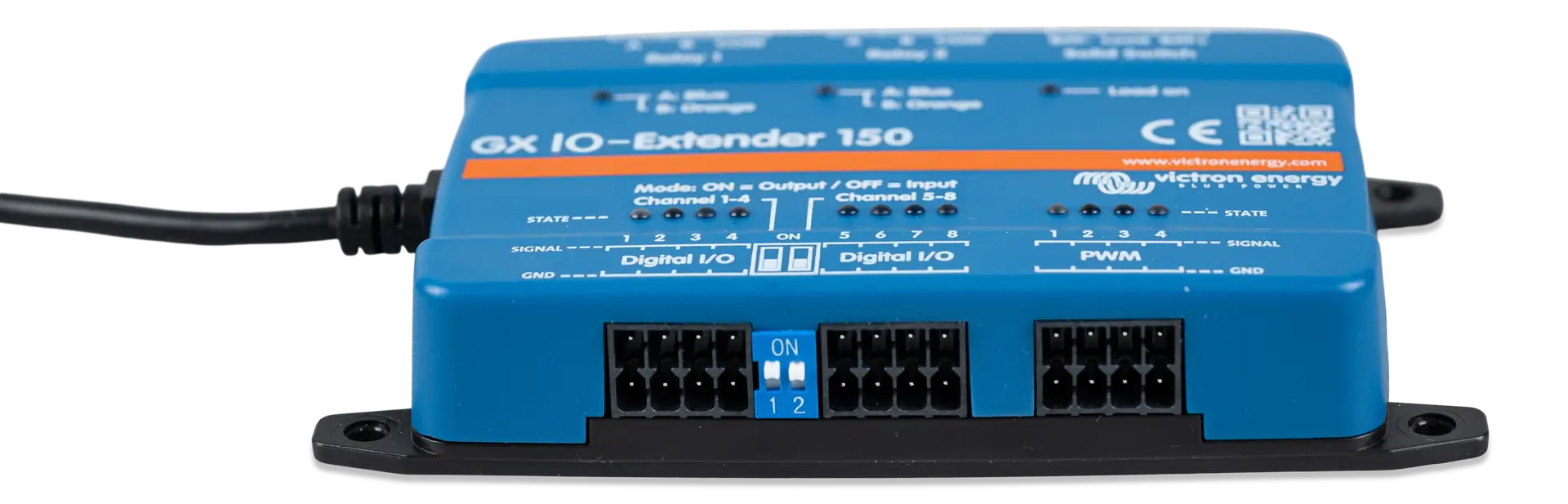

- Simple Installation: Equipped with pluggable spring terminals for fast and secure connections.
- Custom Logic: Fully configurable via Node-RED for easy automation and bespoke system logic.
Electrical Specifications
- Supply Voltage: Powered via USB
- Power Consumption (Idle): < 100 mW
- Power Consumption (Max): 1 W (< 200 mA @ 5 V)
Input and Output Connectivity
- Digital I/Os (Isolated from USB):8 I/Os with status-indicating LEDs.Input Range: 3.8 – 5.5 V.Output: 5 V, 4 mA max (Note: A driver like a transistor or FET is required to switch a relay with a digital output due to the 560 Ω internal series resistor).
- PWM Output (Isolated from USB):4 channels with status-indicating LEDs.Voltage Level: 5 V.Precision: 8 bits @ 1.5625 kHz.
- Latching Relays (Potential Free):2x bi-stable latching relays with status LEDs.DC Contact Rating (Resistive): 3 A @ 30 V, 1 A @ 60 V, 0.3 A @ 220 V (90 W max).AC Contact Rating (Resistive): 2 A @ 60 V, 1 A @ 125 V, 0.5 A @ 250 V (125 VA max).
- Solid Switch (Isolated from USB):Max Battery Voltage: 70 VDC.Max Load Current: 4 A.Designed for resistive, capacitive, or inductive loads (such as high-power contactor coils).
Mechanical & Environmental
- Mounting: Wall or DIN-rail (requires adapter accessory).
- Outer Dimensions (h x w x d): 123 x 67 x 23 mm.
- Weight: 0.170 kg.
- Operating Temperature Range: -20 °C to +50 °C.
