Victron GlobalLink 520 Remote Monitoring Device
Victron GlobalLink 520 Remote Monitoring Device
SKU:ASS030543020
Brand: Victron
Low stock: 1 left
Couldn't load pickup availability
Product Details
Product Details

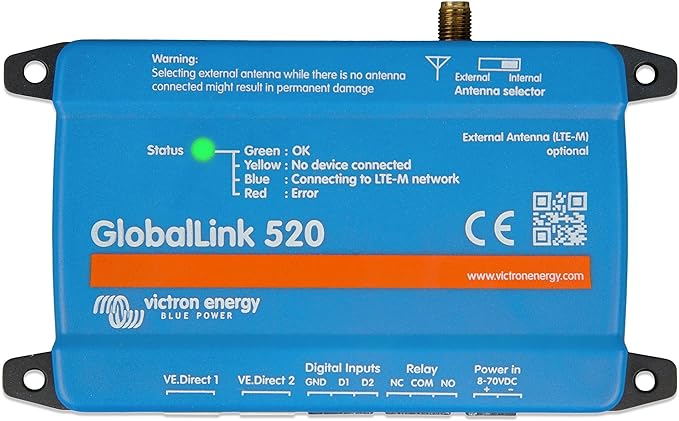

The Victron GlobalLink 520 (SKU ASS030543020) is a compact and powerful remote-monitoring gateway that connects your VE.Direct devices to the Victron Remote Management (VRM) portal via LTE‑M cellular. It provides continuous remote visibility into battery state, power flows, alarms, and energy metrics, ideal for off‑grid, mobile, and remote power systems.
It features two isolated VE.Direct ports, allowing hard-wired connection to two Victron devices such as a shunt or MPPT controller. There are two digital inputs (also usable as pulse counters) and a relay (NO/NC) for remote control or switching via VRM.
Built-in 4G LTE‑M connectivity uses an included SIM pre-loaded with 5 years of data, so there is no contract or monthly fee for that period. It supports 17 LTE‑M bands worldwide to maximise coverage options.
Bluetooth Low Energy (BLE) is also supported. You can wirelessly connect up to 10 Victron Smart devices or RuuviTag sensors, enabling remote monitoring of temperature, humidity, or pressure.
The GlobalLink 520 runs on a wide DC input range (8 V to 70 V), making it suitable for most battery systems. It is wall mountable and comes with an internal LTE antenna plus an SMA connector for optional external antenna to improve signal strength.
With a small footprint (123 × 67 × 23 mm) and low power consumption, it is easy to integrate into trade-level installations. The factory SIM and hardware are covered by a 5-year warranty, giving long-term reliability for remote monitoring applications.
Product Specifications
Product Specifications
Electrical Specifications
- Supply Voltage: 8 – 70 VDC
- Power Draw (Relay Open):12 V: 50 mA (20 mA with Bluetooth disabled)24 V: 26 mA (10 mA with Bluetooth disabled)48 V: 14 mA (5 mA with Bluetooth disabled)
- Power Draw (Relay Closed):12 V: 64 mA (40 mA with Bluetooth disabled)24 V: 34 mA (20 mA with Bluetooth disabled)48 V: 19 mA (10 mA with Bluetooth disabled)
Connectivity & Inputs
- VE.Direct Ports: 2 (Always isolated)
- Digital Inputs: 2
- Smart Device Support: Connect up to 10 Victron smart products via BLE (Bluetooth Low Energy)
- RuuviTag Support: Yes (Monitor temperature, humidity, and atmospheric pressure via BLE)
- Instant Readout: Supported via Bluetooth and the VictronConnect app
Outputs & Control
- Programmable Relay: 1 x NO/NC (Normally Open/Normally Closed)DC Rating: Up to 30 VDC at 2 AAC Rating: 0.5 A at 125 VAC
- Bluetooth: Built-in Smart connectivity
- WiFi: No
Cellular Specifications
- Technology: CAT M1 (LTE-M)
- Bands Supported: 1, 2, 3, 4, 5, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 66 (World-wide support)
- Data Speeds: LTE Cat 1 (Up to 10 Mbps Download / 5 Mbps Upload)
- Communications: LTE-TDD, LTE-FDD, GSM, GPRS, EDGE
- SIM Management: Factory included prepaid 1nce data SIM (5 years); support for custom SIM cards available
Mechanical Specifications

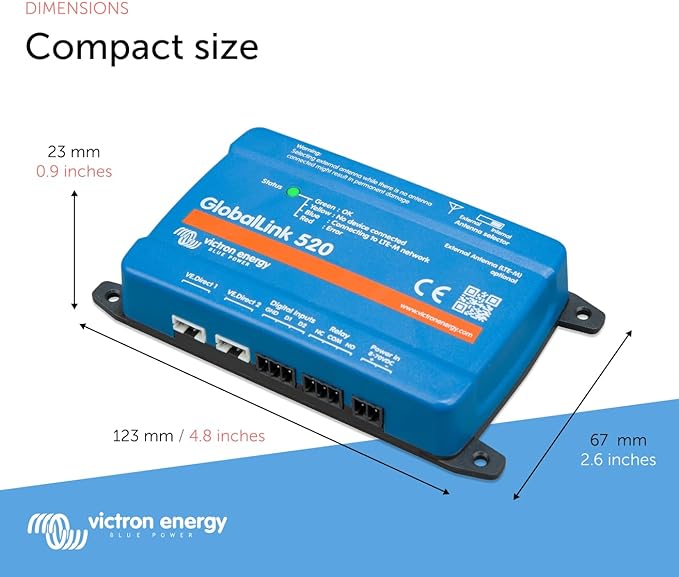

- Outer Dimensions (H x W x D): 123 x 67 x 23 mm
- Mounting: Wall mountable
- Operating Temperature Range: -20 to +50 °C

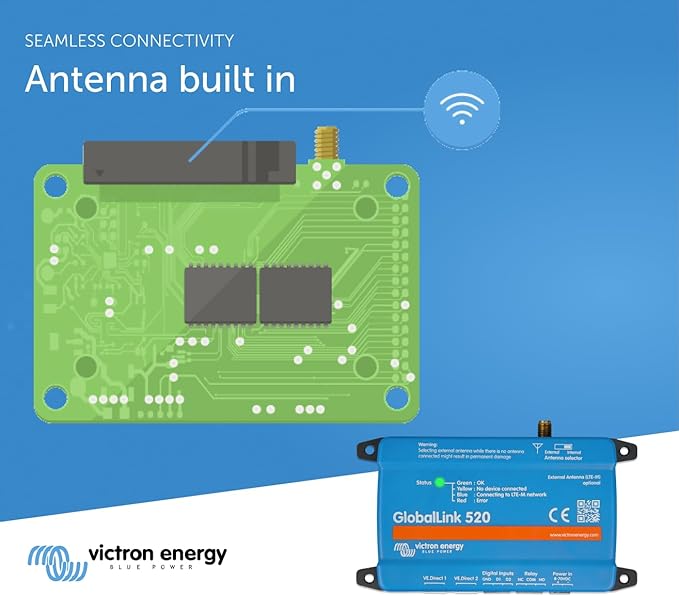

- Antenna: Internal antenna included; SMA connector available for optional external antenna
Accessories & Options

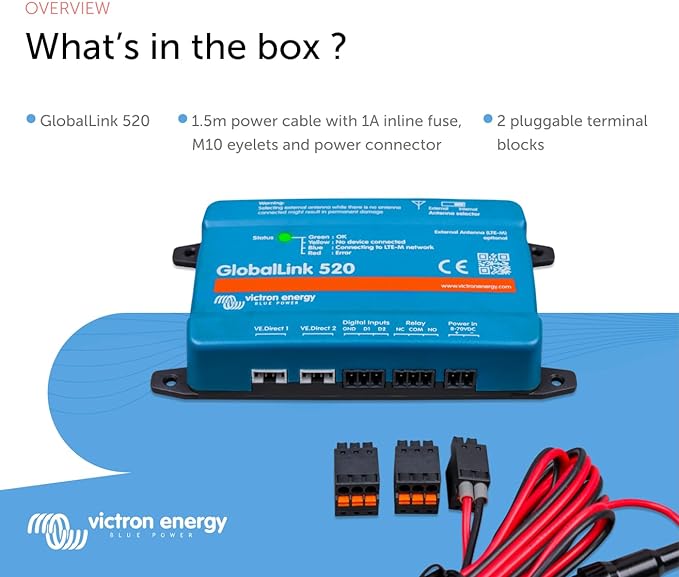

- Included: Prepaid data SIM with 5 years of connectivity.
- Optional: External LTE-M SMA-M antennas (Wall-mount or Puck style with 3-meter cables).
