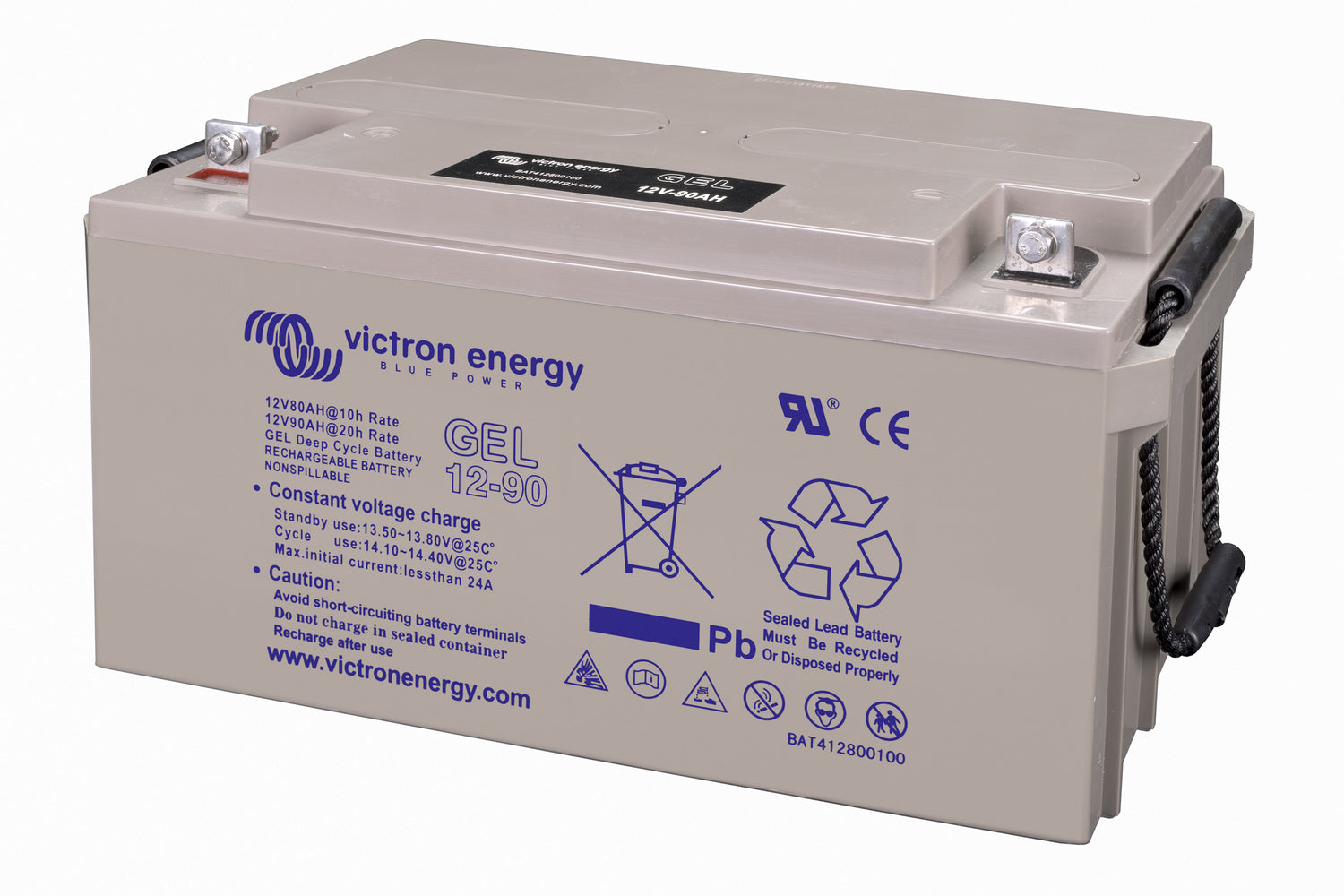

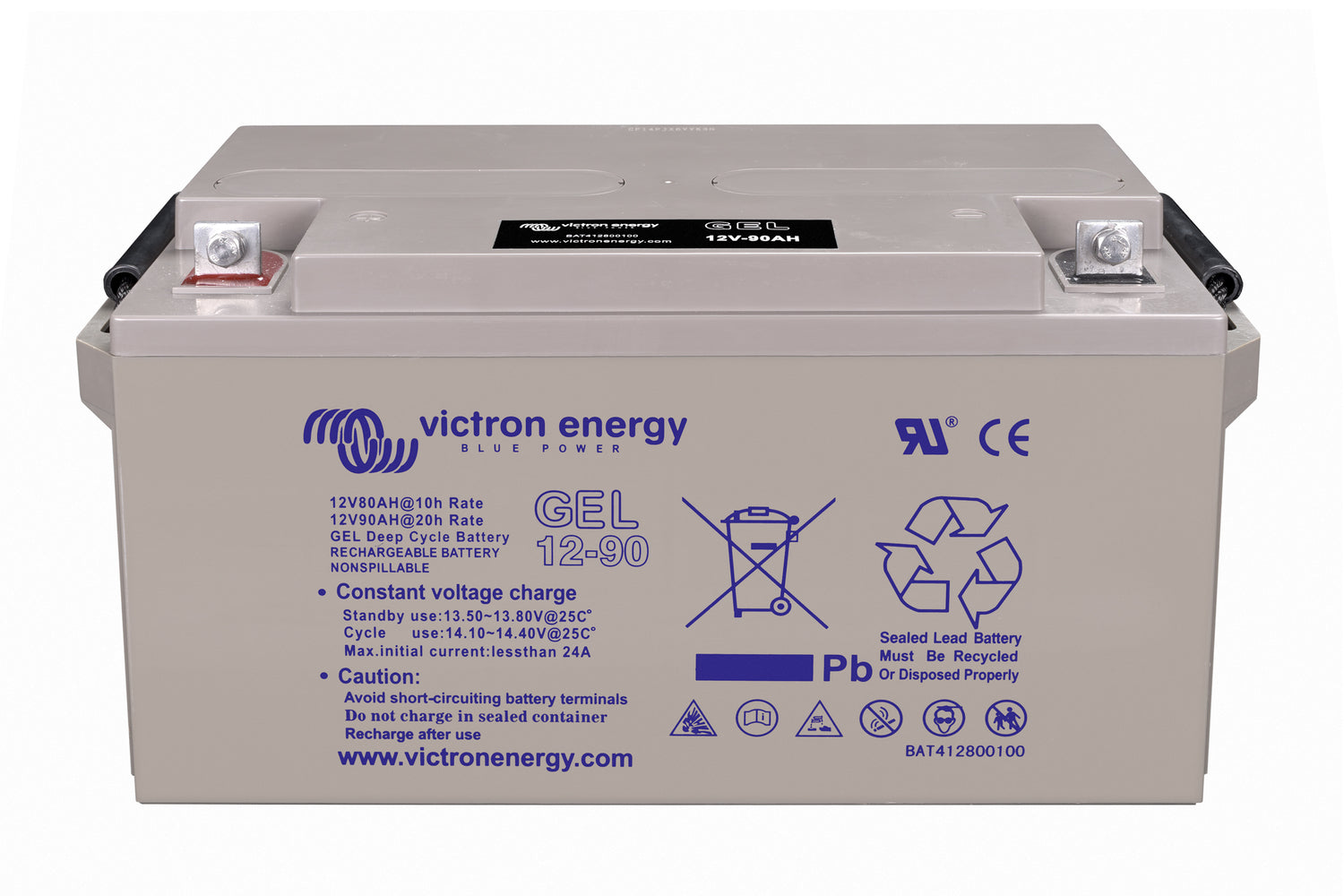

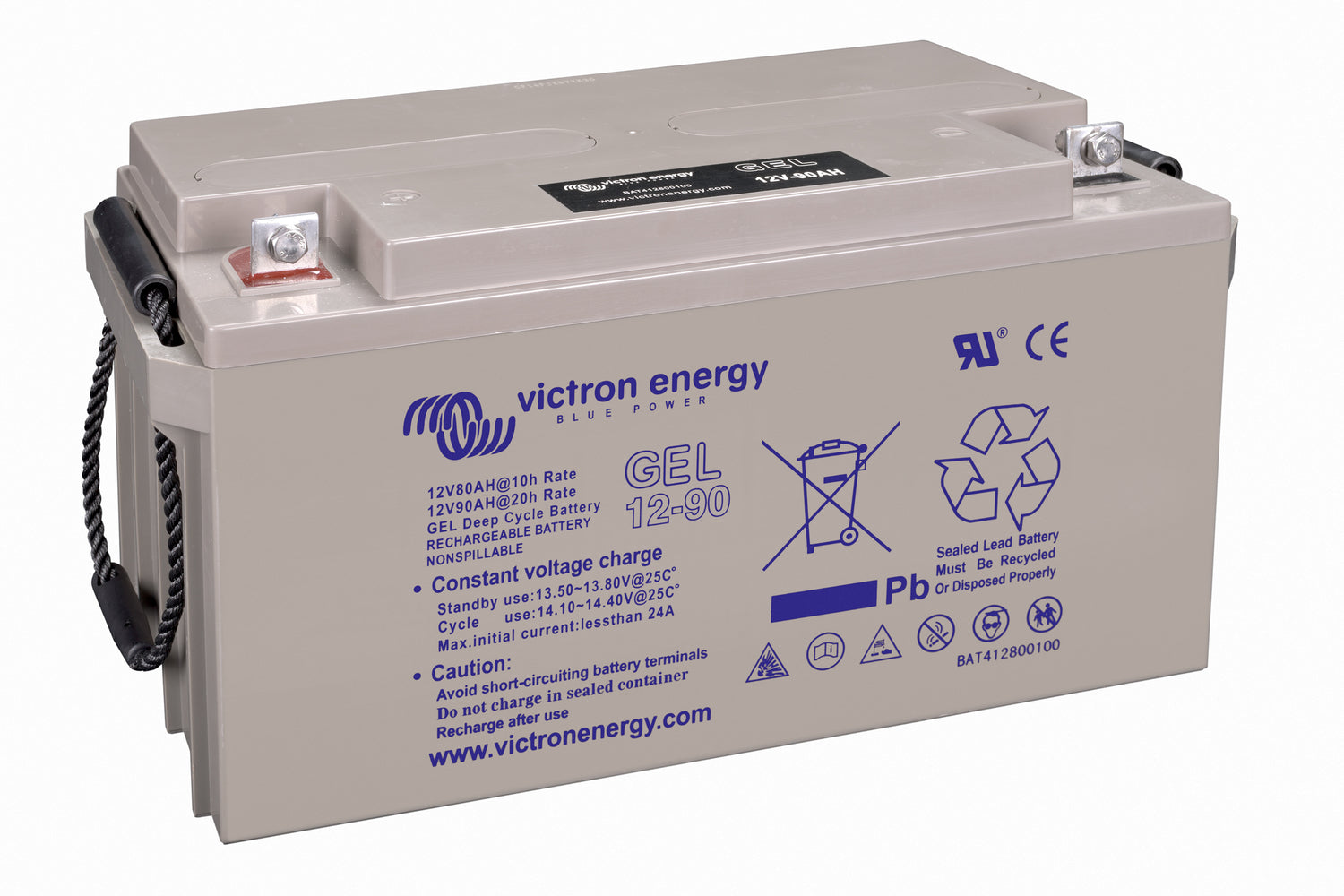

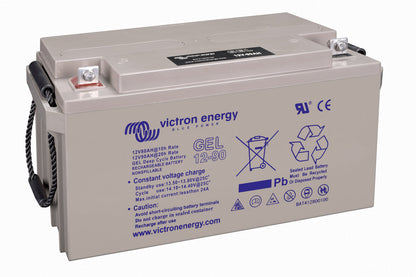

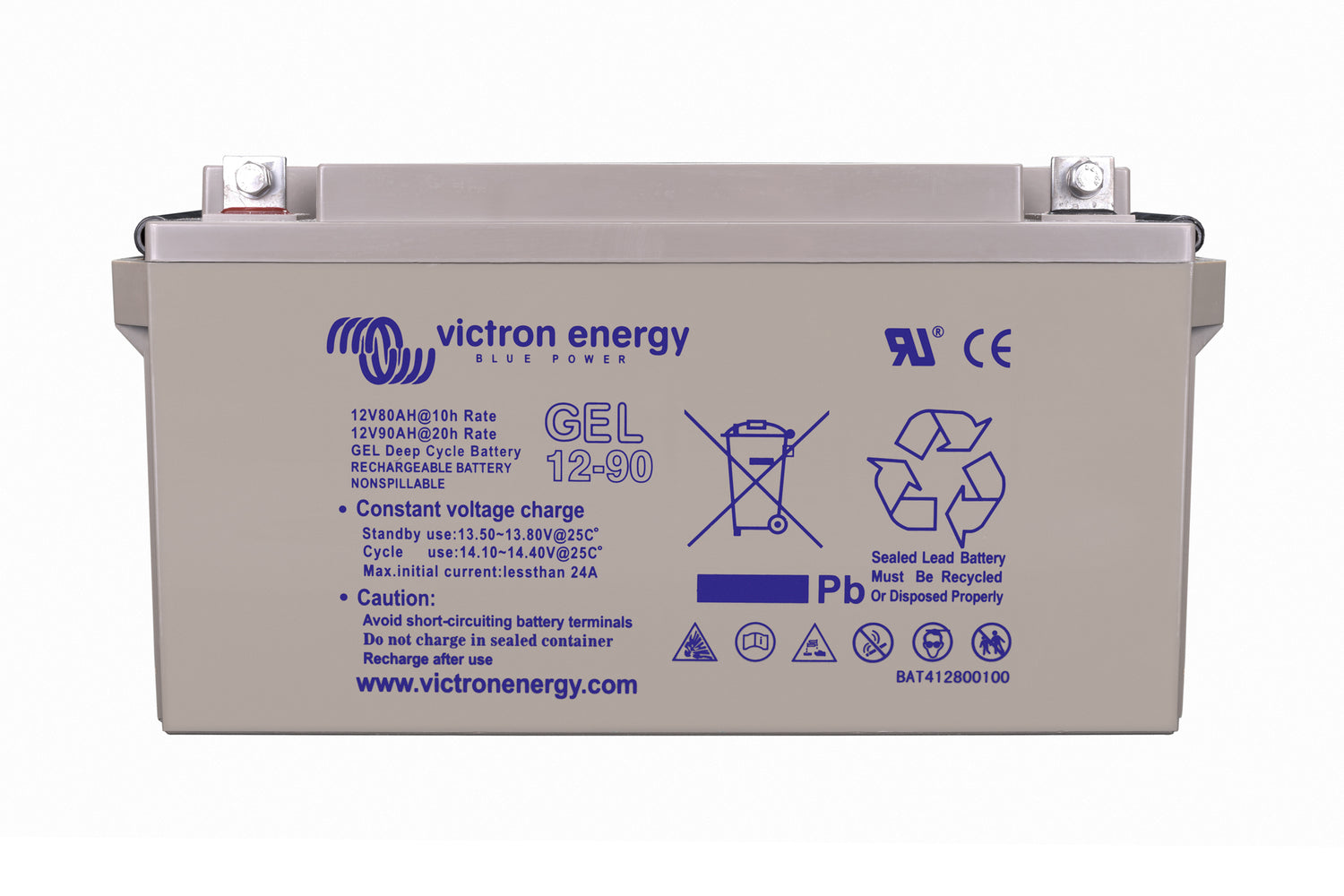

Victron Gel Deep Cycle Battery 12V 90Ah
Victron Gel Deep Cycle Battery 12V 90Ah
SKU:BAT412800104
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron Gel Deep Cycle Battery 12V 90Ah (BAT412800104) represents the gold standard in deep cycle battery technology for professional installations. Engineered with VRLA (Valve Regulated Lead Acid) gel technology, this battery delivers exceptional performance for renewable energy systems, off-grid applications, and backup power solutions.
At the heart of this battery's superior performance are high purity materials and lead calcium grids, ensuring remarkably low self-discharge rates of less than 2% per month at 20°C. This means the battery can be stored for up to 12 months without recharging when kept in cool conditions, making it ideal for seasonal installations or emergency backup systems that require reliable standby performance.
The gel electrolyte technology provides best-in-class deep cycle durability with a design life of 12 years, significantly outlasting conventional AGM alternatives. The immobilised gel electrolyte offers superior cycle capacity, making this battery perfect for applications requiring regular, repeated discharge cycles such as solar energy storage, marine systems, and off-grid power solutions.
Installation is straightforward thanks to the M8 drilled, flat copper terminals that ensure optimal connection contact without requiring additional battery terminals. The battery is housed in an ABS fireproof container and complies with both CE and UL specifications, meeting international safety standards for professional installations.
With dimensions of 350mm x 167mm x 183mm (including terminals) and weighing 26kg, this compact yet powerful battery fits standard battery enclosures whilst delivering a robust 90Ah capacity at C20 rating. The battery demonstrates exceptional deep discharge recovery, bouncing back even after prolonged discharge periods, though proper battery management will maximise service life.
Backed by Victron Energy's 2-year worldwide warranty, this battery is the reliable choice for installers and system integrators who demand proven performance. Whether you're specifying equipment for renewable energy installations, marine applications, or commercial backup systems, the Victron 12V 90Ah Gel battery delivers dependable, maintenance-free power year after year.
Product Specifications
Product Specifications
Electrical Specifications
- Nominal Voltage: 12 V
- Nominal Capacity (20 hr. discharge @ 25°C): 90 Ah
- CCA @ 0°F: 360
- RES CAP @ 80°F: 120
Performance & Design Life
- Technology: Flat plate GEL
- Float Design Life: 12 years at 20°C
- Cycle Design Life (80% Discharge): 500 cycles
- Cycle Design Life (50% Discharge): 750 cycles
- Cycle Design Life (30% Discharge): 1800 cycles
Charging Specifications
- Absorption Voltage: 14.1 – 14.4 V
- Float Voltage: 13.5 – 13.8 V
- Storage Voltage: 13.2 – 13.5 V
- Recommended Charge Current: Should preferably not exceed 0.2 C (18 A for this 90 Ah model).
- Temperature Compensation: -24 mV/°C for a 12V battery (Required if battery temperature is expected to be < 10°C or > 30°C for long periods).
Mechanical Specifications
- Dimensions (l x w x h): 350 x 167 x 183 mm
- Weight: 26 kg
- Terminals: Copper
Key Features
- Enhanced Longevity: Optimized for a high number of charge-discharge cycles and extended float life.
- VRLA Technology: Maintenance-free operation with safety valves to prevent excessive gas pressure.
- Adaptive Charging Support: Performs best when used with Victron 4-step adaptive chargers featuring Battery Safe and Storage modes to prevent overcharging and plate corrosion.
Product Downloads
Product Downloads
Technical Specifications
Technical Specifications
| Battery Type | Gel |
|---|
