Victron EV Charging Station NS - EVC200300200
Victron EV Charging Station NS - EVC200300200
SKU:EVC200300200
Brand: Victron
Low stock: 6 left
Couldn't load pickup availability
Product Details
Product Details
The Victron EV Charging Station NS is a robust, trade-grade AC charger designed for installers and specifiers who need flexibility and system integration. It supports up to 22 kW on three-phase supplies and 7.3 kW on single-phase supplies, giving fast charge capability suitable for small fleets, workplace bays and energy-aware residential installations. Configuration is handled locally via Bluetooth using VictronConnect or through the integrated web interface over Wi-Fi, allowing quick on-site commissioning and straightforward updates.
Integration with the Victron ecosystem is a core advantage. The unit can be controlled and monitored remotely when connected to a Victron GX device and the VRM portal, enabling session tracking, load management and reporting. For solar-led installations, use the automatic mode to prioritise surplus PV energy for vehicle charging and maximise self-consumption. Manual mode allows the installer or end user to set current between 6 A and 32 A, and scheduled mode enables off-peak charging windows.

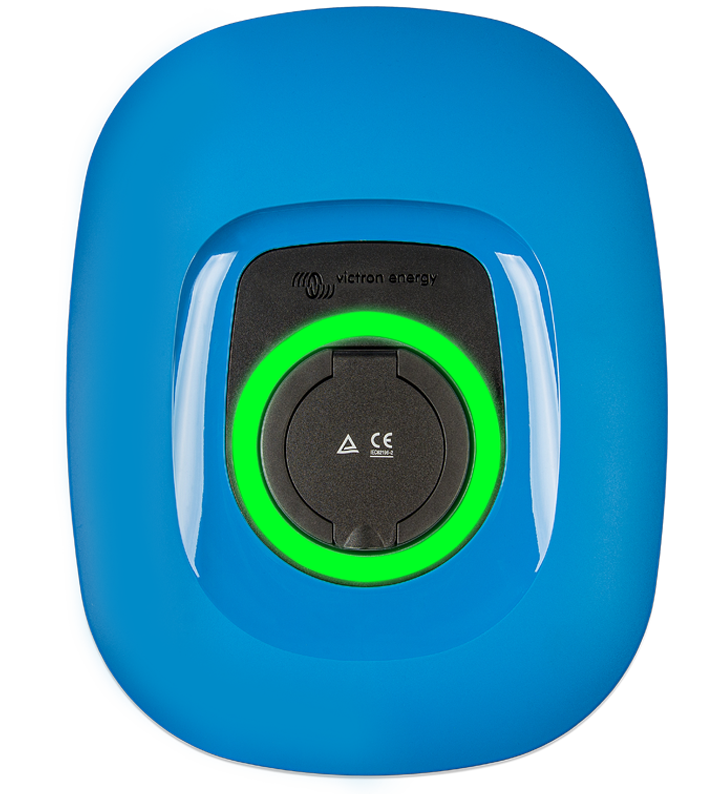

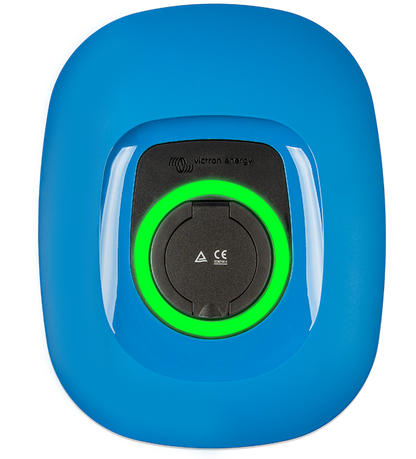

Operational feedback is immediate thanks to the fully programmable RGB light ring around the Type 2 socket. The ring offers numerous visual effects to indicate device status such as disconnected, charging, charged or fault, which reduces confusion for drivers and maintenance staff. The unit is built for field conditions with IP44 enclosure protection and an operating temperature range of -25 °C to +50 °C, meeting the expectations of commercial installations.

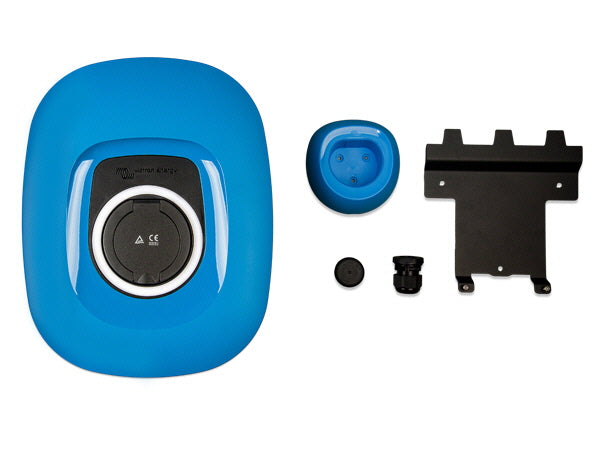

Safety and compliance are prioritised with fault detection for welded relay contacts, missing earth or protective conductor, and shorted control pilot, and conformance to IEC 61851-1 and IEC 61851-22 standards. The compact dimensions and light weight make it straightforward for trade installers to mount and wire, and the option of three front-panel colours lets specifiers match site aesthetics.
Product Specifications
Product Specifications
Performance & Electrical Specifications
- Input Voltage Range: 170 – 265 VAC
- Rated Charge Current: 32 A per phase
- Nominal Power: 22 kW (3-phase) / 7.3 kW (1-phase)
- Current Output Range: 6 – 32 A
- Configurable Max. Current: 6 – 32 A
- Configurable Min. Current: 6 – 32 A
- Self-Consumption: 15 mA @ 230 V

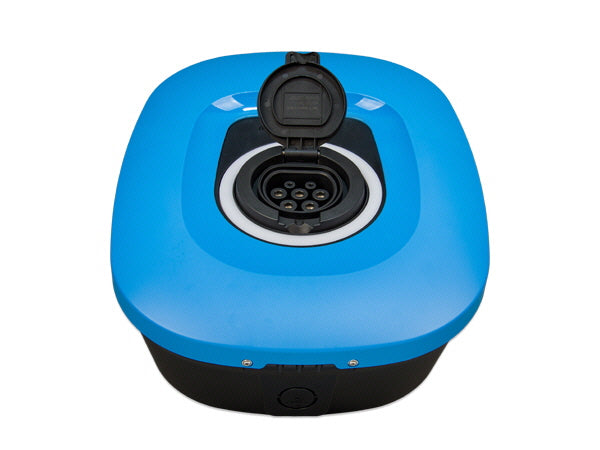

- Connector Type: IEC 62196 Type 2
Operation Modes
- Manual Mode: Allows for manual configuration of output current between 6-32 A. Charging can be regulated via the web interface, a GX device, or the VictronConnect app.
- Automatic Mode: Designed to ensure maximum PV system efficiency by detecting excess solar power and using it exclusively to charge the vehicle.
- Scheduled Mode: A fully programmable scheduler that allows charging at specific time intervals, such as during the night when grid energy is cheaper.
Connectivity & Monitoring
- WiFi Standards: 802.11 b/g/n (2.4 GHz only)
- WiFi Communication: Internal module can be configured in Access Point or Station mode for initial setup, monitoring, and control.
- Bluetooth: Integrated for easy operation, configuration, and viewing of session statistics via the VictronConnect app.
- Data Communication: Modbus TCP over WiFi and Bluetooth.
- System Integration: Control and monitor from a GX device touch display, Remote Console, and the VRM Portal for real-time and custom reports.
Mechanical & Environmental

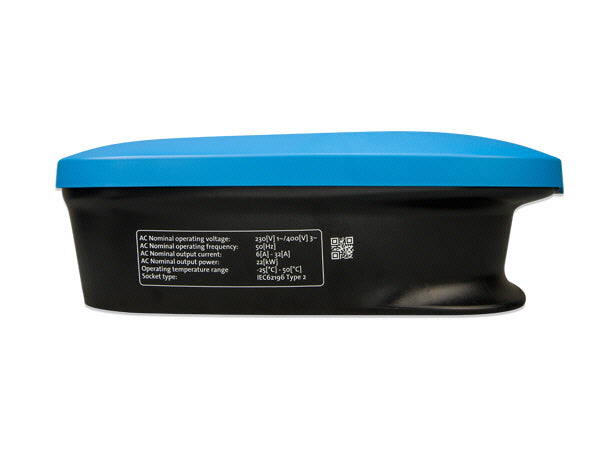

- Dimensions (h x w x d): 372 x 292 x 122 mm
- Weight: 3 kg
- Enclosure Colour: Light Blue (RAL 5012) default; Traffic Black (RAL 9017) or Traffic White (RAL 9016) fronts can be purchased separately.
- Power Terminals: 6–10 mm² / AWG 10-8
- Protection Category: IP44
- Ventilation: Not required
- Operating Temperature Range: -25 °C to +50 °C
- Storage Temperature Range: -40 °C to +80 °C
- Humidity: 95%, non-condensing
Safety & Protection
- Required Protection: External RCD and an external circuit breaker (40 A recommended) are required.
- Onboard Monitoring: Detection for Relay Contact welded, missing protective conductor, missing Ground, and shorted CP.
- Safety Standards: IEC 61851-1, IEC 61851-22
Additional Features
- Programmable Light Ring: Features 55 configurable RGB light effects around the charging port to quickly determine device state (e.g., disconnected, charging, charged).
- Cost Management: Includes a configurable price/kWh calculator (Default: 0.13 EUR, adjustable) to track session costs and savings.
Technical Specifications
Technical Specifications
| Protection | IP44 |
|---|
