EV Charging Station Victron EVC300400300
EV Charging Station Victron EVC300400300
SKU:EVC300400300
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron EV Charging Station (model EVC300400300) is a professional-grade EV charger designed for commercial, fleet and trade applications. Offering both single-phase and three-phase operation, it delivers up to 22 kW AC in three-phase mode, and 7.3 kW in single-phase mode, enabling flexible deployment in a variety of installation scenarios.

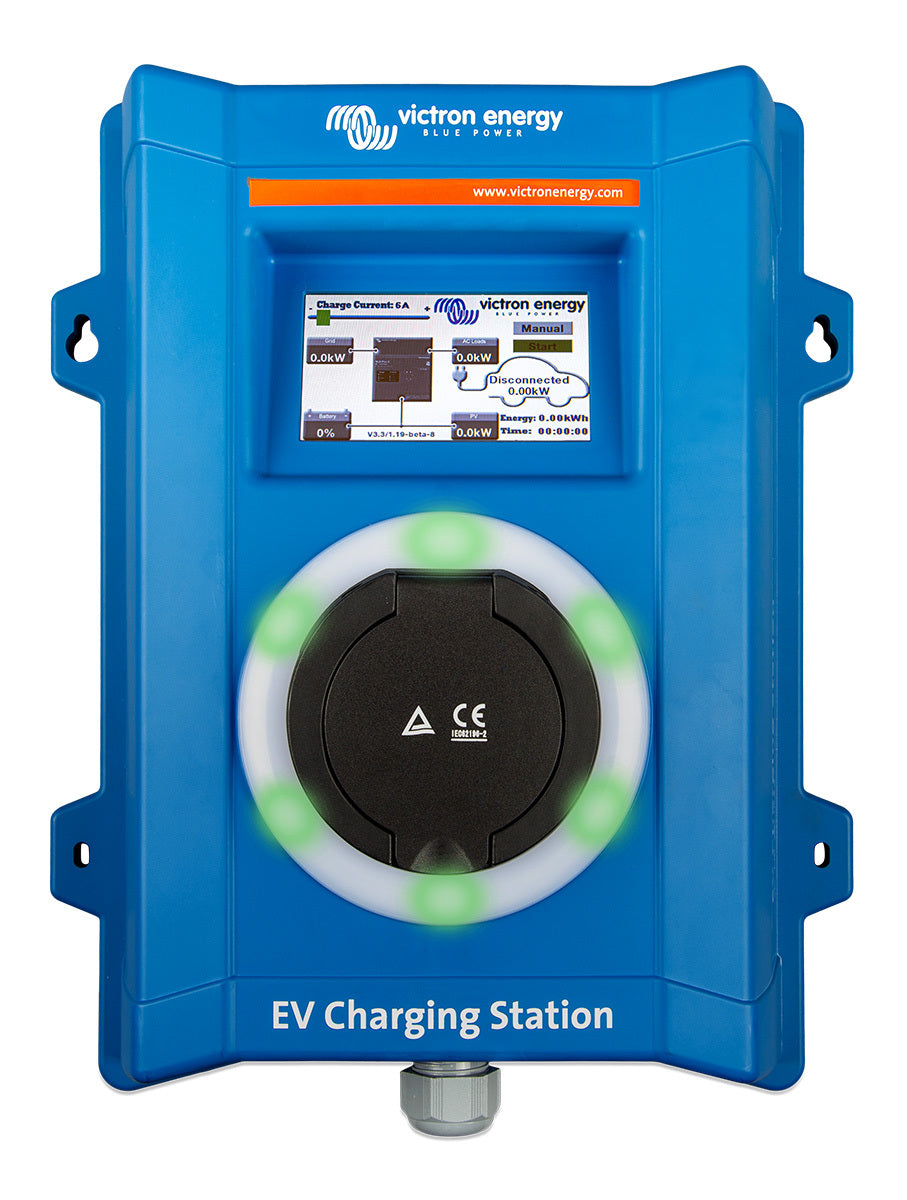

Incorporated into the unit is a 4.3-inch LCD touch-screen for local monitoring and configuration. The charger supports Bluetooth and WiFi connectivity (802.11 b/g/n) for setup, firmware updates and remote control via the VictronConnect app and web interface. A fully programmable RGB light-ring around the charging port provides a clear visual indication of charging status helping trade installers and users check status at a glance.
Designed for integration with the Victron ecosystem, this charging station can be linked to a GX device or the VRM portal for centralised system management. It also supports a “solar excess” charging mode, enabling electric-vehicles to be charged using surplus solar energy when installed alongside solar systems.
For installers seeking a future-proof solution for commercial EV charging, this model offers high flexibility, network connectivity, and smart system integration, whether in a depot, workplace, hotel or multi-unit residential environment.
Product Specifications
Product Specifications
Electrical Specifications
- Input Voltage Range: 170 – 265 VAC
- Rated Charge Current: 32 A per phase
- Nominal Power: 22 kW
- Current Output Range: 6 – 32 A
- Configurable Maximum Current: 6 – 32 A

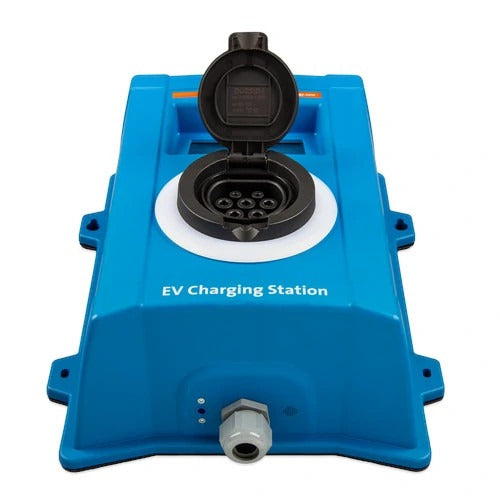

- Connector Type: IEC 62196 Type 2
- Self-Consumption: 15 mA @ 230 V
Operation Modes
- Manual Mode: Allows for manual start/stop and configurable output current between 6-32 A via the touchscreen or web interface.
- Automatic Mode: Maximizes PV system efficiency by detecting excess solar power and using only that surplus for vehicle charging.
- Scheduled Mode: Allows for a fully programmable scheduler to charge the vehicle at specific time intervals, such as during off-peak night rates.
Connectivity & Control
- WiFi: 802.11 b/g/n (2.4 GHz only) for configuration, monitoring, and control.
- Bluetooth: Built-in Smart connectivity for use with the VictronConnect App.
- Data Communication: Modbus TCP over WiFi and Bluetooth.
- Control Interfaces: Touchscreen, Web page, GX Device (over Modbus TCP), and VictronConnect via Bluetooth.
- System Integration: Full monitoring and reporting available through GX device touch displays, Remote Console, and the VRM Portal.
Mechanical & Enclosure
- Dimensions (H x W x D): 377 x 307 x 148 mm
- Weight: 3 kg
- Enclosure Color: Blue (RAL 5012)
- Protection Category: IP44
- Power Terminals: 6-10 mm² / AWG 10-8
- Ventilation: Not required
Safety & Protection
- Required Protection: External circuit breaker (40 A recommended) and an external RCD are required.
- Safety Standards: IEC 61851-1, IEC 61851-22.
- Integrated Detections: Relay contact welded detection, missing protective conductor detection, missing ground detection, and shorted CP detection.
Environmental Specifications
- Operating Temperature Range: -25 °C to +50 °C
- Storage Temperature Range: -40 °C to +80 °C
- Humidity: 95%, non-condensing
Additional Features
- Light Ring: 55 configurable light effects available for status indication.
- Cost Management: Built-in configurable price/kWh calculator (default setting: 0.13 Eur, adjustable).
Technical Specifications
Technical Specifications
| Protection | IP44 |
|---|
