Victron Energy Sun Inverter 12V 250VA - Inverter & PWM Charge Controller All In One.
Victron Energy Sun Inverter 12V 250VA - Inverter & PWM Charge Controller All In One.
SKU:SIN121251100
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron Energy Sun Inverter 12V 250VA – Inverter & PWM Charge Controller All In One is a compact, high-quality energy solution designed for trade and business-to-business applications in leisure, off-grid and mobile installations.

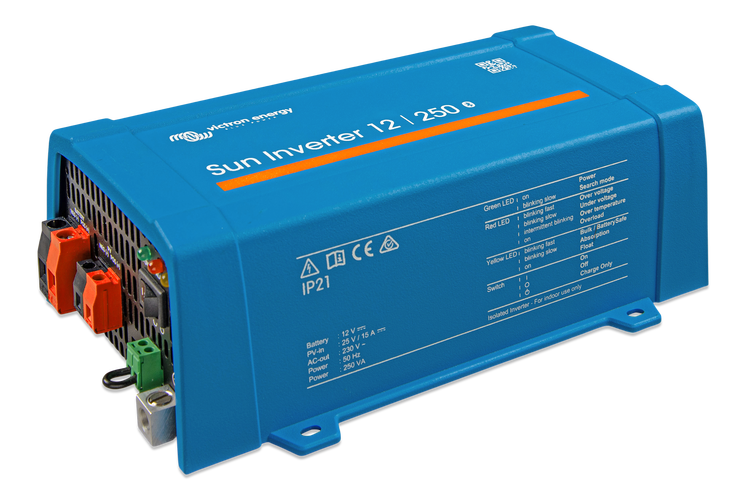

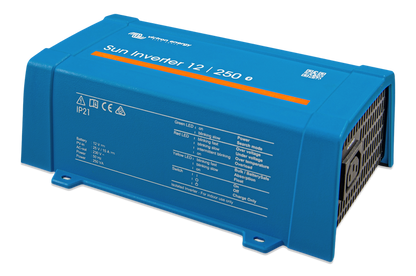

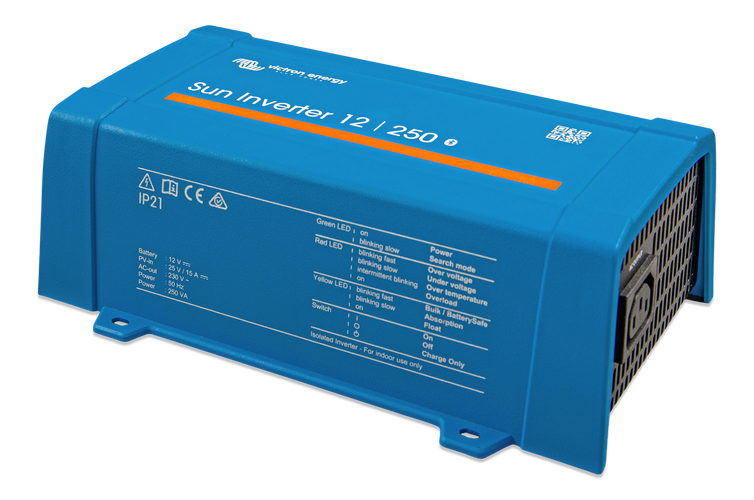

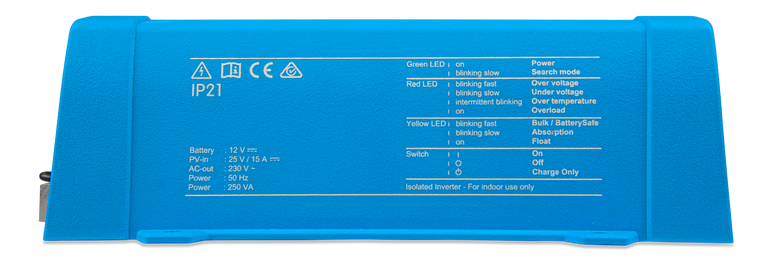

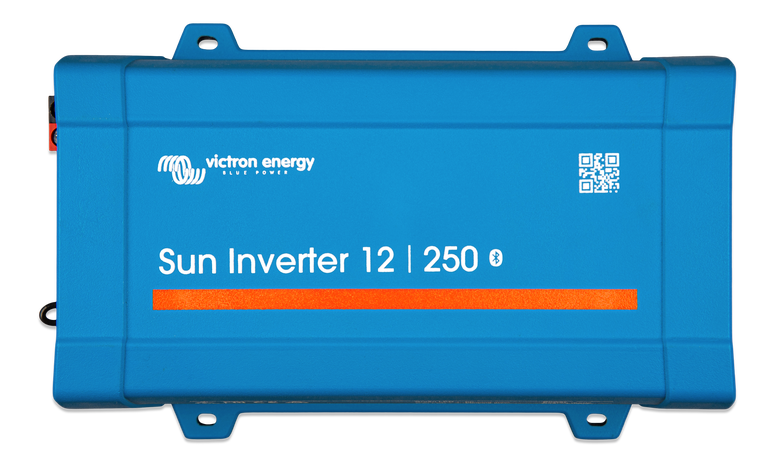

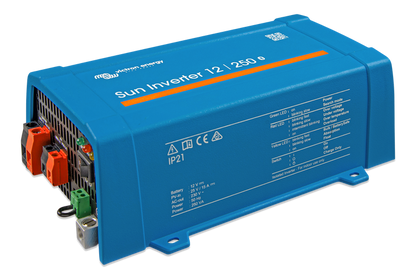

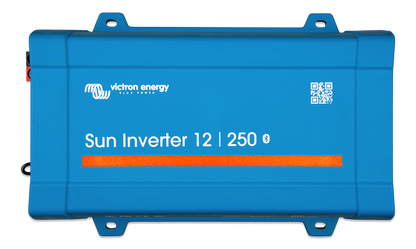

Housed in a robust steel chassis with a blue plastic cover, this unit measures 86 × 165 × 260 mm and weighs around 2.4 kg, making installation straightforward in tight spaces. Drawing from a 12-volt battery bank, the 250 VA pure sine-wave inverter delivers stable 230 V AC output suitable for domestic loads, tools or devices typically found in mobile or remote setups.
A built-in PWM solar charger accepts your solar array directly, so the same unit both converts battery power and manages solar input, reducing wiring and simplifying your system architecture. With the Bluetooth-enabled VictronConnect app and a VE.Direct port onboard, you can monitor and configure battery status, inverter load and solar performance from a smartphone or networked monitoring system. Protection is designed in- from short-circuit and overheating safeguards to high start-up power capability for demanding loads like power converters and tools.
This all-in-one solution suits van or motorhome electrics, agricultural sheds, remote cabins or any site where you want reliable AC power from a 12 V battery plus solar input, without installing multiple separate components. Its robust metal/plastic build, clearly labelled wiring connections and pre-configured factory settings mean it can drop seamlessly into your commercial or trade setup.
Whether you’re supplying power to a remote lighting system, a mobile workshop or an off-grid event stall, the Sun Inverter ensures the job is done with minimal fuss and maximum reliability.
Product Specifications
Product Specifications
Inverter Specifications
- Continuous Power at 25°C: 250 VA
- Continuous Power at 25°C / 40°C: 200 W / 175 W
- Peak Power: 400 W
- AC Output Voltage/Frequency: 230 Vac +/- 3%, 50Hz or 60Hz +/- 0.1% (Adjustable)
- DC Input Voltage Range: 9.2 – 17 V
- DC Low Shut Down: 9.3 V (Adjustable)
- DC Low Restart & Alarm: 10.9 V (Adjustable)
- Maximum Efficiency: 87%
- Zero-Load Power: 4.2 W
- Zero-Load Power (ECO Mode): 0.8 W
Solar Charger Specifications
- Technology: Pulse Width Modulation (PWM)
- Maximum PV Voltage: 25 V
- Maximum PV Current: 15 A
- Maximum PV Power: 375 W
- Compatible Solar Panel Type: 36 cell solar panel
- Charge Voltages: Fully adjustable and temperature compensatable
- Battery Charged Detect: 14.0 V (Adjustable)
Mechanical & Enclosure
- Dimensions (H x W x D): 86 x 165 x 260 mm
- Weight: 2.4 kg

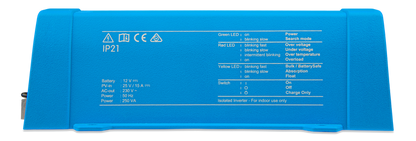

- Protection Category: IP 21
- Enclosure Material: Steel chassis and plastic cover
- Colour: Blue (RAL 5012)

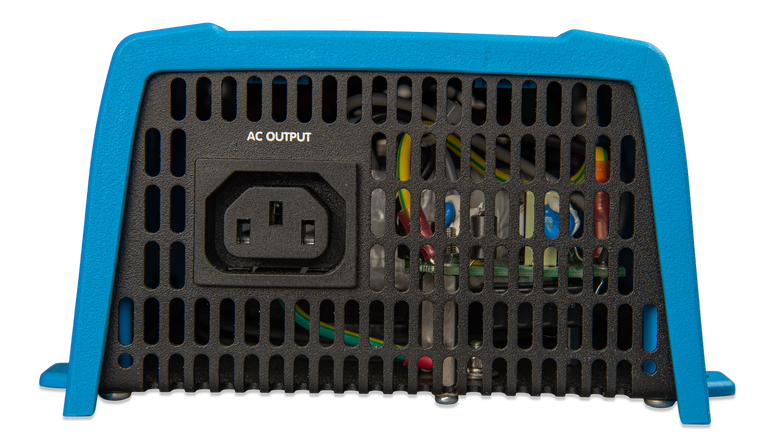

- AC Outlet: IEC-320 (Male plug included)

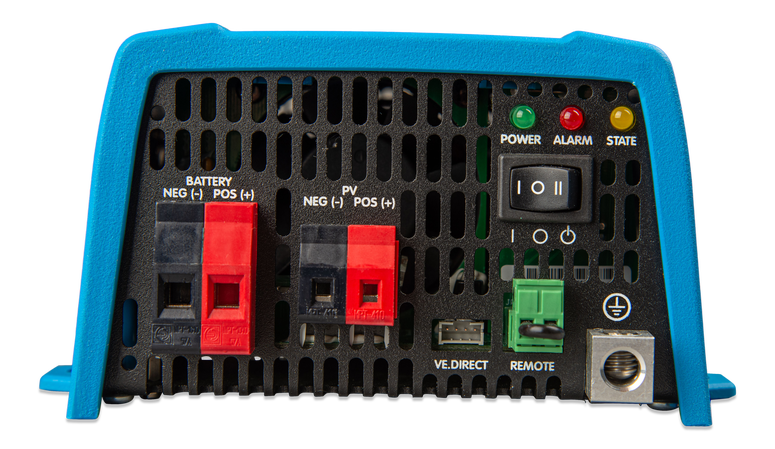

- Battery Connection: Screw terminals (Maximum cable cross-section 10 mm² / AWG 8)
- PV Connection: Screw terminals (Maximum cable cross-section 4 mm² / AWG 12)
Features & Connectivity
- Bluetooth: Built-in for wireless monitoring, configuration, and firmware updates.
- VE.Direct Port: Connects to GX devices, GlobalLink 520, or a computer for system integration.
- ECO Mode: Automatically switches to standby when load decreases below 15 W to save power.
- Remote On/Off: Supported via a two-pole connector for remote control.
- Full Protection: Protected against output short circuits, overloads, battery voltage issues (high/low), high temperature, and high DC ripple.
- Operating Temperature: -40 to +60 °C (Fan assisted cooling; power derating starts above 40 °C).
