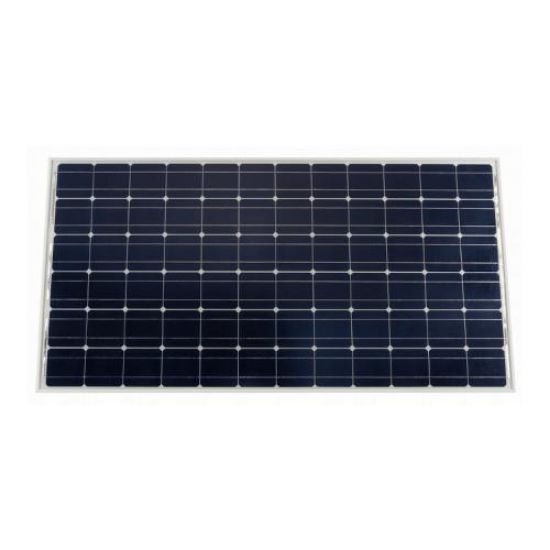

Victron Energy Solar Panel 24V 360W Mono series 4b – SPM043602402
Victron Energy Solar Panel 24V 360W Mono series 4b – SPM043602402
SKU:SPM043602402
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
- Low voltage-temperature coefficient enhances high-temperature operation.
- Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
- 25-Year limited warranty on power output and performance.
- 5-Year limited warranty on materials and workmanship.
- Sealed, waterproof, multi-functional junction box gives high level of safety.
- High performance bypass diodes minimize the power drop caused by shade.
- Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
- A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
- Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
- High power models with pre-wired quick-connect system with MC4 (PV-ST01) connectors.
Product Specifications
Product Specifications
Technical Specifications
Combined for SKUs: SPM043602402
Allowable Hail Load Speed: 23 m/s
Allowable Hail Load Weight: 7.53 g
Cell Type: Polycrystalline
Depth: 40 mm
Frame Material: Aluminium
Height: 1,980 mm
Junction Box Type: PV-JB002
Max Power Current: 9.38 A
Max Power Voltage: 38.4 V
Max System Voltage: 1,000 V
Nominal Power: 360 W
Number Of Cells In Series: 72
Number Of Panels Per Pallet: 37
Open Circuit Voltage: 47.4 V
P VCable Connection Type: 900 mm
P VCable Length: 900 mm
P VOutput Tolerance: 3 %
Product Warranty: 5 y
Short Circuit Current: 10.24 A
Smallest Packaging Unit: 1
Warranty80Output: 10 y
Warranty90Output: 10 y
Weight: 23 kg
Width: 1,002 mm
Source: Victron
