Victron Energy SmartShunt 300A
Victron Energy SmartShunt 300A
SKU:SHU050130050
Brand: Victron
18 in stock
Couldn't load pickup availability
Product Details
Product Details

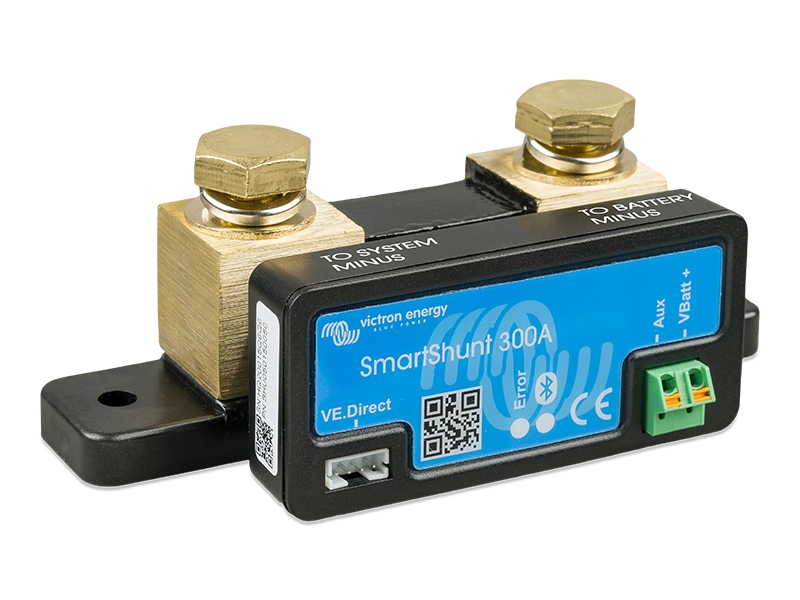

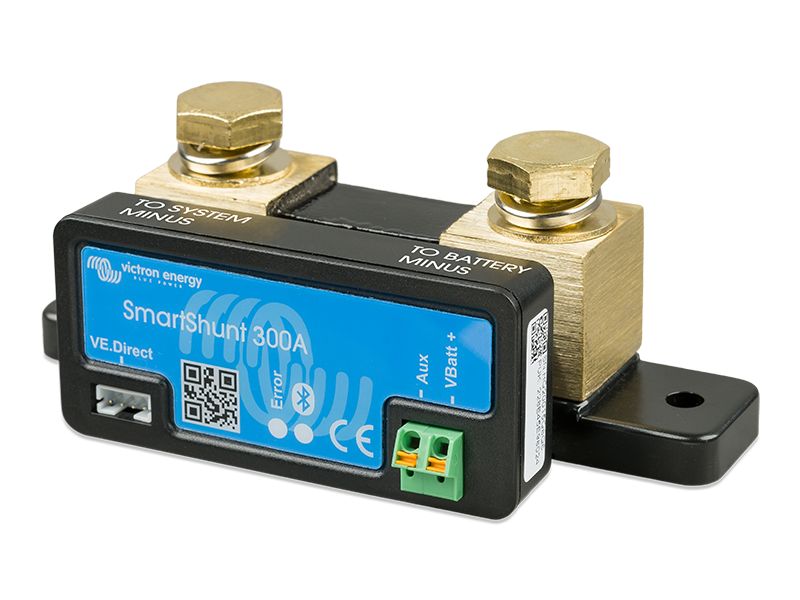

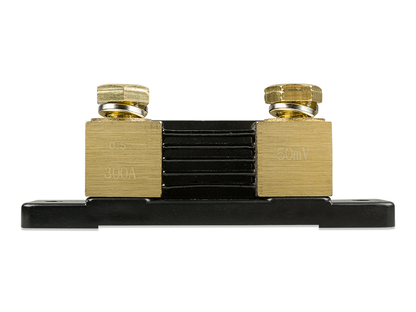

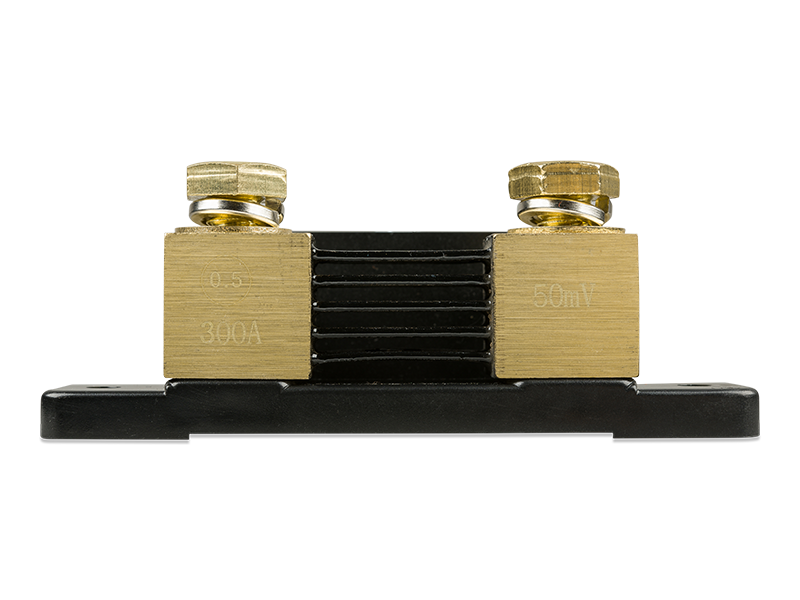

The Victron SmartShunt 300A (SKU SHU050130050) is a compact, all-in-one battery monitor that delivers detailed battery metrics without requiring a separate display. It measures voltage and current through a 300 A / 50 mV shunt, then calculates state of charge (SoC), power, amp-hours, time remaining, and more with high precision.
This unit is suitable for systems using battery banks between 6.5 V and 70 V and supports battery capacities from 1 Ah up to 9,999 Ah, making it highly versatile for small to large battery installations. The SmartShunt draws less than 1 mA in standby, keeping its power consumption minimal.

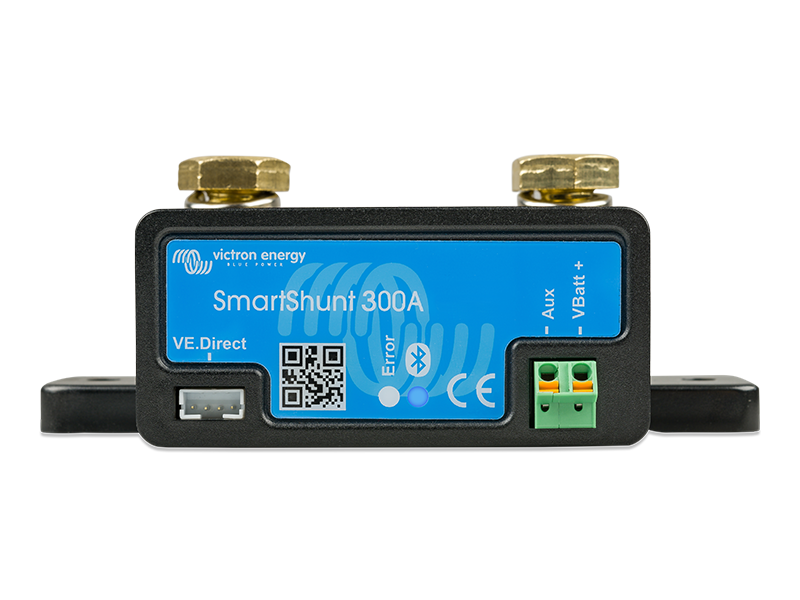

Communication is handled via Bluetooth, allowing direct access to live data through the VictronConnect app. For system integrators, there is also a VE.Direct port for connection to Victron GX devices, enabling integration into larger energy management systems. Additionally, an auxiliary input supports monitoring of a second battery, midpoint voltage, or temperature (with optional sensor).

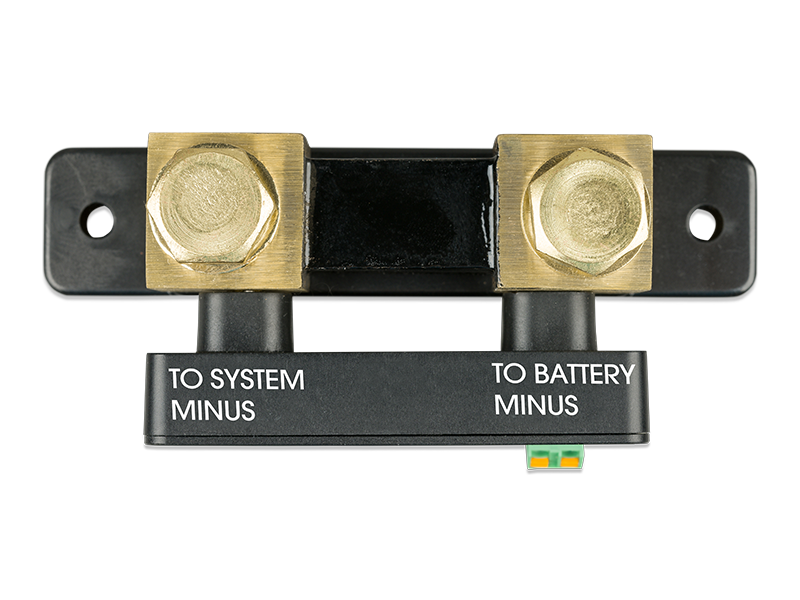

With its rugged design, the SmartShunt operates in a broad temperature range from –40 °C to +50 °C and can take readings from an external sensor ranging from –20 °C to +50 °C. The enclosure is rated IP21, which makes it suited for protected installations. The dimensions are compact at 44 × 120 × 44 mm, and electrical connections use M8 bolts for the shunt terminals, helping to keep the installation tidy and efficient.
Measurement accuracy is high: current resolution is 0.01 A with ±0.4 % accuracy, voltage resolution is 0.01 V with ±0.3 % accuracy, and amp-hours are accurate to ±0.1 Ah. The state of charge is precise to ±0.1 %, and time-to-go readings are accurate to ±1 minute. These metrics provide trade professionals with reliable, granular insight into battery performance and health.
This SmartShunt is ideal for systems where you want full visibility into your battery usage, especially when you do not need a physical display. It helps reduce cabling clutter and allows installers to monitor multiple parameters in real time via mobile devices or GX controllers.
Product Specifications
Product Specifications
Electrical Specifications
- Supply Voltage Range: 6.5 – 70 VDC
- Current Draw: < 1 mA
- Input Voltage Range (Auxiliary Battery): 6.5 – 70 VDC
- Battery Capacity Support: 1 – 9999 Ah
- Operating Temperature Range: -40°C to +50°C (-40°F to 120°F)
- Auxiliary Input: Configurable to measure a second battery (starter battery), midpoint monitoring, or temperature (requires optional temperature sensor).
- Temperature Measurement Range: -20°C to +50°C
- Communication Port: VE.Direct
Resolution & Accuracy
- Current: ± 0.01 A
- Voltage: ± 0.01 V
- Amp Hours: ± 0.1 Ah
- State of Charge (0 – 100%): ± 0.1%
- Time to Go: ± 1 min
- Temperature Accuracy: ± 1 °C/°F (with optional sensor)
- Current Measurement Accuracy: ± 0.4%
- Current Offset: Less than 10 mA
- Voltage Measurement Accuracy: ± 0.3%
Monitoring & Trends
- Stored Trends: Real-time and historical data stored for battery voltage, current, state of charge %, and the Aux input (temperature, midpoint, or starter voltage).
- Trend Data Storage: Number of days trends data is stored: 46 days.
- Wireless Connectivity: Integrated Bluetooth (typical range 10-15 meters).
Mechanical Specifications
- Dimensions (h x w x d): 44 x 120 x 44 mm
- Shunt Connection Bolts: M8
- Protection Category: IP21
Standards & Compliance
- Safety: EN 60335-1
- Emission / Immunity: EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
- Automotive: EN 50498
Included Accessories
- Cables: Two cables with 1 A fuse for '+' connection and starter battery or midpoint connection.
Optional Accessories
- Temperature Sensor: Available separately (ASS000100000).
- VE.Direct Bluetooth Dongle: Optional if Bluetooth range needs extension or bypass in specific installations.
