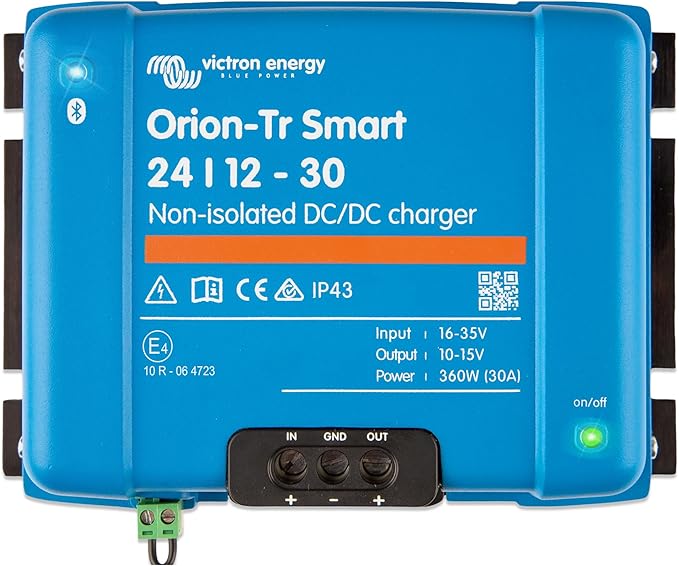

The Victron Orion-Tr Smart DC-DC Charger is a reliable, adaptive non-isolated converter designed to charge a 12 V service battery from a 24 V alternator or source. Rated at 360 W and capable of delivering a continuous 30 A output, it supports professional vehicle systems without the need for extra sensors or complex wiring.
This charger uses an adaptive 3-stage charging algorithm (bulk, absorption, float) and supports both lead-acid and lithium battery chemistries. You can fully configure the charging profile via Bluetooth using the VictronConnect app, allowing you to match the voltage requirements specified by your battery manufacturer.

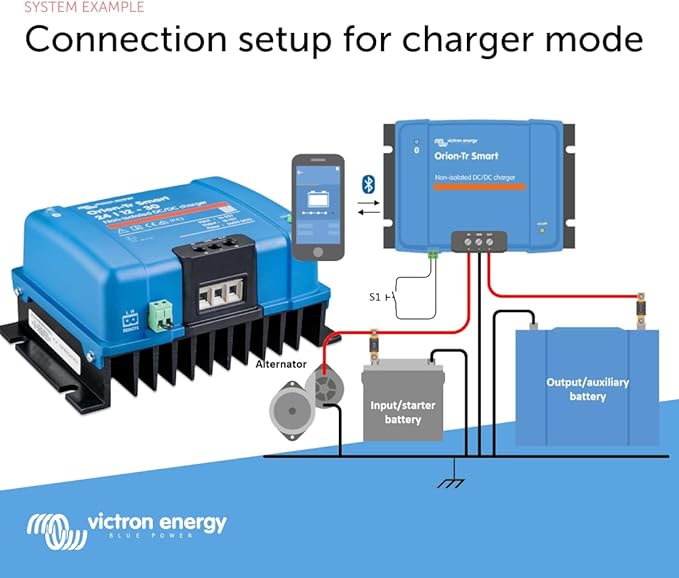

It also features software-driven “engine running” detection so it knows when the alternator is active and begins charging accordingly. You have the option of a remote on/off switch by wiring a relay or a manual switch to the two-pole connector.
Built for demanding environments, the unit operates from an input voltage range of 16–35 V and delivers a nominal output of 12.2 V, with an adjustable range between 10–15 V. The unit provides up to 430 W at 25 °C and up to 360 W at 40 °C, with high efficiency of around 88 percent. It supports parallel operation so installers can combine multiple units to increase output power if required.
Mechanically, it is compact and trade-friendly, measuring approximately 130 × 186 × 80 mm and weighing about 1.6 kg. It connects via screw terminals that accept cables up to 16 mm². It also features IP43 protection for electronics and IP22 on the connection area, making it suitable for vehicle installations. The operating temperature range spans from –20 °C to +55 °C, though the output is derated above 40 °C.
Safety-wise, the charger is short-circuit proof and designed to be resilient, with robust internal protection. You also benefit from Victron’s industry-standard quality and long warranty support typical of their DC-DC product range.
This Orion-Tr Smart model is ideal for trade customers such as vehicle converters, installers of camper vans or commercial vehicles, or anyone building 24 V power-system sub-circuits requiring a dependable 12 V output with remote monitoring and control.
Product Specifications
Product Specifications
Performance & Electrical Specifications
- Input Voltage Range: 16 – 35 V
- Under Voltage Shut Down: 14 V
- Under Voltage Restart: 15 V
- Nominal Output Voltage: 12.2 V
- Output Voltage Adjust Range: 10 – 15 V
- Output Voltage Tolerance: +/- 0.2 V
- Output Noise: 2 mV rms
- Continuous Output Current (at 40°C): 30 A
- Maximum Output Current (10s at nominal voltage -20%): 45 A
- Short Circuit Output Current: 60 A
- Continuous Output Power (at 25°C): 430 W
- Continuous Output Power (at 40°C): 360 W
- Efficiency: 88%
- No Load Input Current: < 100 mA
- Standby Current: Less than 1 mA
Smart Features & Configuration

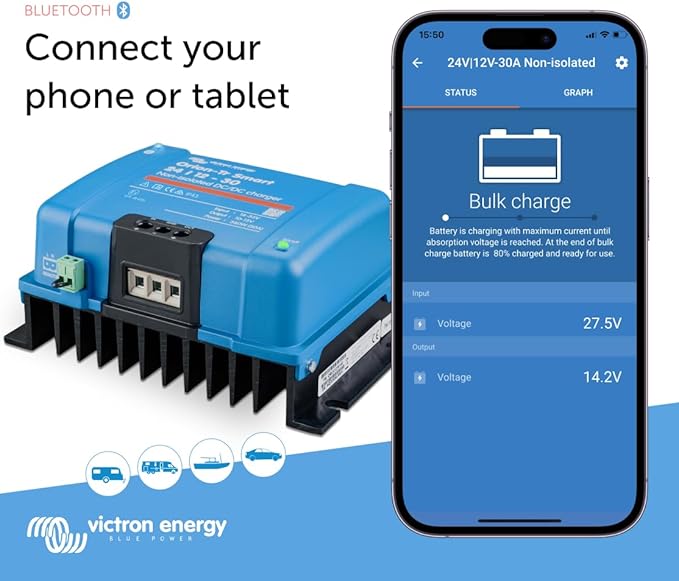

- Bluetooth Smart Enabled: Monitor, change settings, and update the charger wirelessly via the VictronConnect App using any Bluetooth-enabled smartphone or tablet.

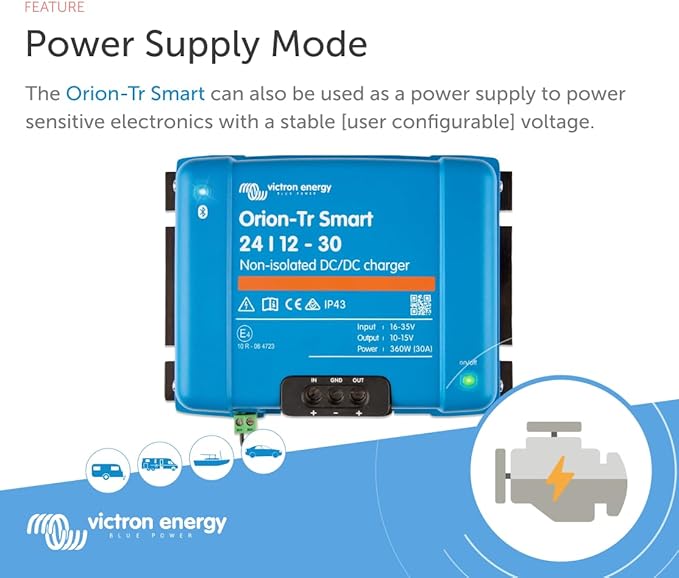

- Fully Programmable: Configurable battery charge algorithm or fixed output voltage mode.

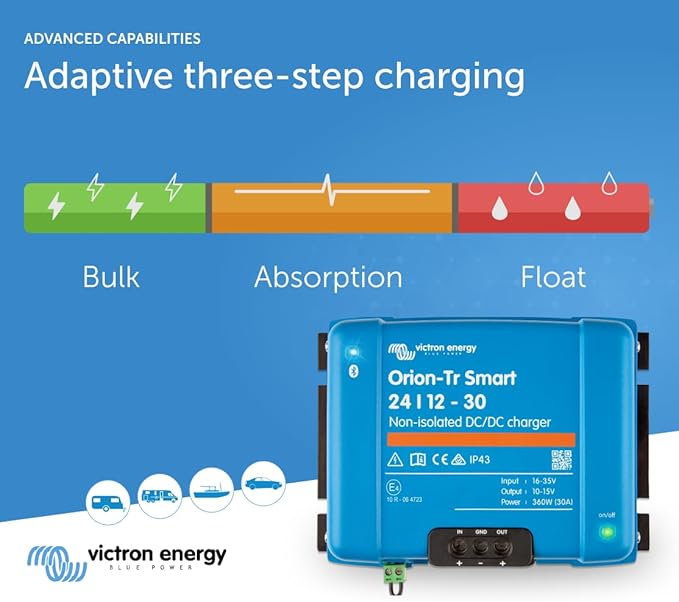

- Adaptive 3-Stage Charge Algorithm: Features Bulk, Absorption, and Float stages. For lead-acid batteries, the absorption time is automatically adjusted based on the depth of discharge. For lithium batteries, the absorption time is fixed (default 2 hours).
- Smart Alternator Compatibility: Includes an integrated engine running detection mechanism to ensure the charger only operates when the engine is running, protecting the starter battery.
- Remote On/Off: Features a two-pole connector for a remote switch or relay contact.
Protection & Environmental
- High Temperature Protection: The output current will automatically reduce at high ambient temperatures (derating 3% per °C above 40 °C).
- Short-Circuit Proof: The unit is protected against output short circuits.
- Parallel Operation: An unlimited number of units can be connected in parallel to increase output current.
- Operating Temperature Range: -20 to +55 °C
- Humidity: Max 95% (non-condensing)
- Protection Category: IP43 (electronic components), IP22 (connection area)
Mechanical Specifications
- DC Connection: Screw terminals
- Maximum Cable Cross-Section: 16 mm² (AWG6)

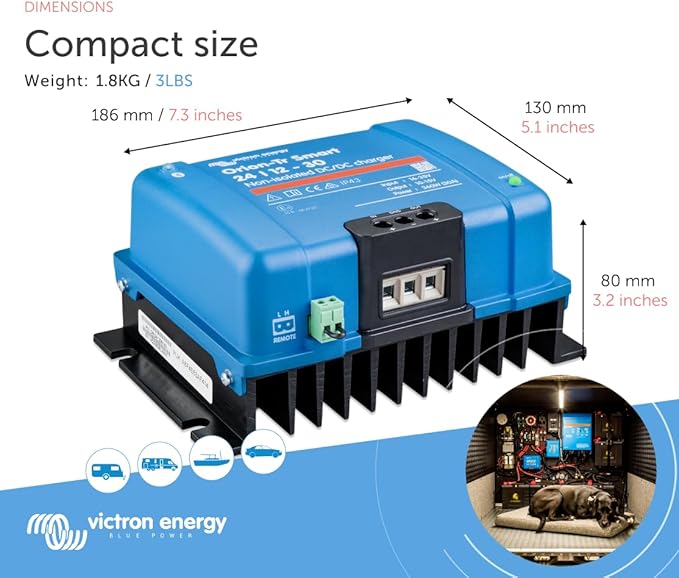

- Dimensions (h x w x d): 130 x 186 x 80 mm
- Unit Weight: 1.6 kg
Standards & Compliance
- Safety: EN 60950
- Emission: EN 61000-6-3, EN 55014-1
- Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2
- Automotive Directive: ECE R10-5
