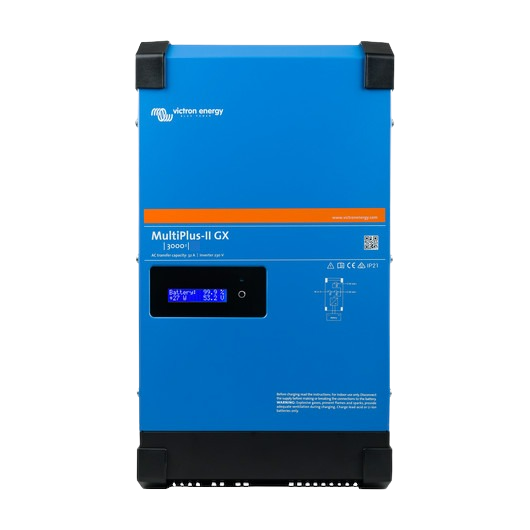

Victron Energy MultiPlus-II 24V 3000VA 70A 32A GX
Victron Energy MultiPlus-II 24V 3000VA 70A 32A GX
SKU:PMP242306000
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron Energy MultiPlus-II 24 V 3000 VA 70 A 32 A GX (PMP242306000) is a professional-grade inverter and charger designed for trade and system-integrator use. It combines a powerful 3000 VA inverter, a 70 A battery charger, and an integrated GX control interface within one compact, durable unit. This makes it suitable for off-grid, hybrid, commercial, marine, and industrial energy systems where reliable performance and straightforward system management are essential.
Delivering 3000 VA (2400 W) of continuous output at 25 °C with a surge capacity of up to 5500 W, the MultiPlus-II is built to handle high-demand loads. The built-in GX device provides local system information via a clear character display and offers a wide range of connectivity options, including USB, Ethernet, VE.Direct, and BMS-CAN. This allows remote access, commissioning, and monitoring through Victron’s online platforms or local network.
The 70 A charger delivers fast, controlled battery charging suitable for a wide range of energy storage systems. The 32 A transfer switch enables automatic switching between grid or generator power and inverter power, providing consistent energy flow. PowerControl and PowerAssist technology help prevent grid or generator overload by supplementing available power with stored battery energy when needed. In the event of a grid failure, the MultiPlus-II switches to inverter mode in under 20 ms, giving near-instant UPS protection for sensitive equipment.
Installation flexibility is a key advantage. The MultiPlus-II can be configured in parallel with up to six identical units for increased power output, or combined into three-phase systems for larger commercial applications. The unit uses Victron’s blue steel enclosure, offering long-term durability with an IP22 rating. It weighs approximately 19–20 kg and measures roughly 506 × 275 × 147 mm, allowing compact system design even in challenging spaces. A five-year manufacturer warranty is included as standard.
For trade users requiring a dependable, expandable, and monitorable power system component, the MultiPlus-II GX offers a proven, long-term solution.
Product Specifications
Product Specifications
Performance & Electrical Specifications (Inverter)
- Nominal Battery Voltage: 24 V
- DC Input Voltage Range: 19 – 33 V
- Continuous Output Power at 25°C: 3000 VA
- Continuous Output Power at 25°C: 2400 W
- Continuous Output Power at 40°C: 2200 W
- Continuous Output Power at 65°C: 1700 W
- Peak Power: 5500 W
- Maximum Efficiency: 94%
- Zero Load Power: 13 W
- Zero Load Power (AES Mode): 9 W
- Zero Load Power (Search Mode): 3 W
- Output Voltage: 230 VAC ± 2%
- Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
- Maximum Apparent Feed-in Power: 3000 VA
Charger Specifications
- AC Input Voltage Range: 187 – 265 VAC
- AC Input Frequency: 45 – 65 Hz
- Charge Voltage 'Absorption': 28.8 V
- Charge Voltage 'Float': 27.6 V
- Storage Mode: 26.4 V
- Maximum Battery Charge Current: 70 A
- Battery Temperature Sensor: Included
Key Features & System Integration
- Integrated GX Functionality: Features a built-in GX device with ports for BMS-Can (for CAN-bus managed batteries), USB, Ethernet, and VE.Direct.
- Display & Connectivity: Integrated LCD reads battery, inverter, and solar charge controller parameters. Data is also accessible via WiFi with a smartphone or other enabled device.
- PowerControl & PowerAssist: Yes
- Transfer Switch: 32 A
- Maximum AC Input Current: 32 A
- Auxiliary Output: Yes (32 A)
- Parallel and Three-Phase Operation: Supported (Only one GX unit is required per system).
- Programmable Relay: Can be set for general alarm, DC under-voltage, or genset start/stop functions.
- VE.Bus Communication Port: Used for parallel/three-phase operation, remote monitoring, and system integration.
Protection & Safety
- Electronic Protection: Includes output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, and input voltage ripple too high.
- Anti-islanding: Certified for grid-parallel applications (please consult specific certificates for regional compliance).
Mechanical Specifications
- Enclosure Material & Colour: Steel, Blue RAL 5012
- Protection Category: IP22
- Weight: 20 kg
- Dimensions (h x w x d): 506 x 275 x 147 mm
- Battery Connection: M8 bolts
- 230V AC Connection: Screw terminals 13 mm² (6 AWG)
- Operating Temperature Range: -40 to +65 °C (fan assisted cooling)
- Humidity: Max 95% (non-condensing)
Standards & Compliance
- Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
- Emission/Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
- Uninterruptible Power Supply: IEC 62040-1
Technical Specifications
Technical Specifications
| Inverter Rating | 3000VA |
|---|
