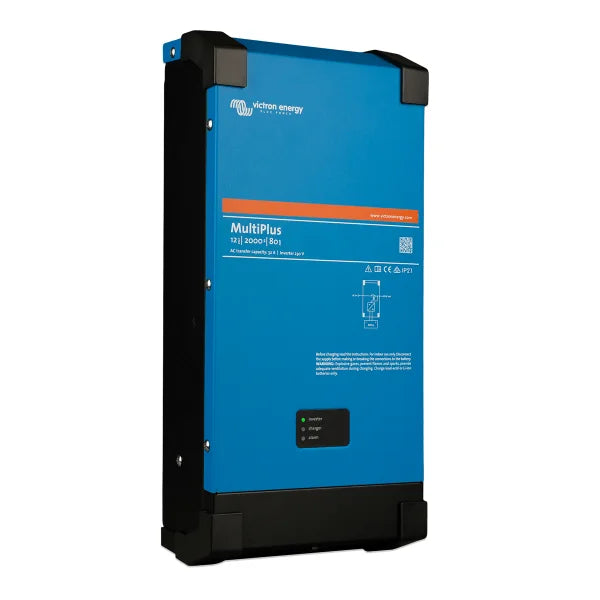

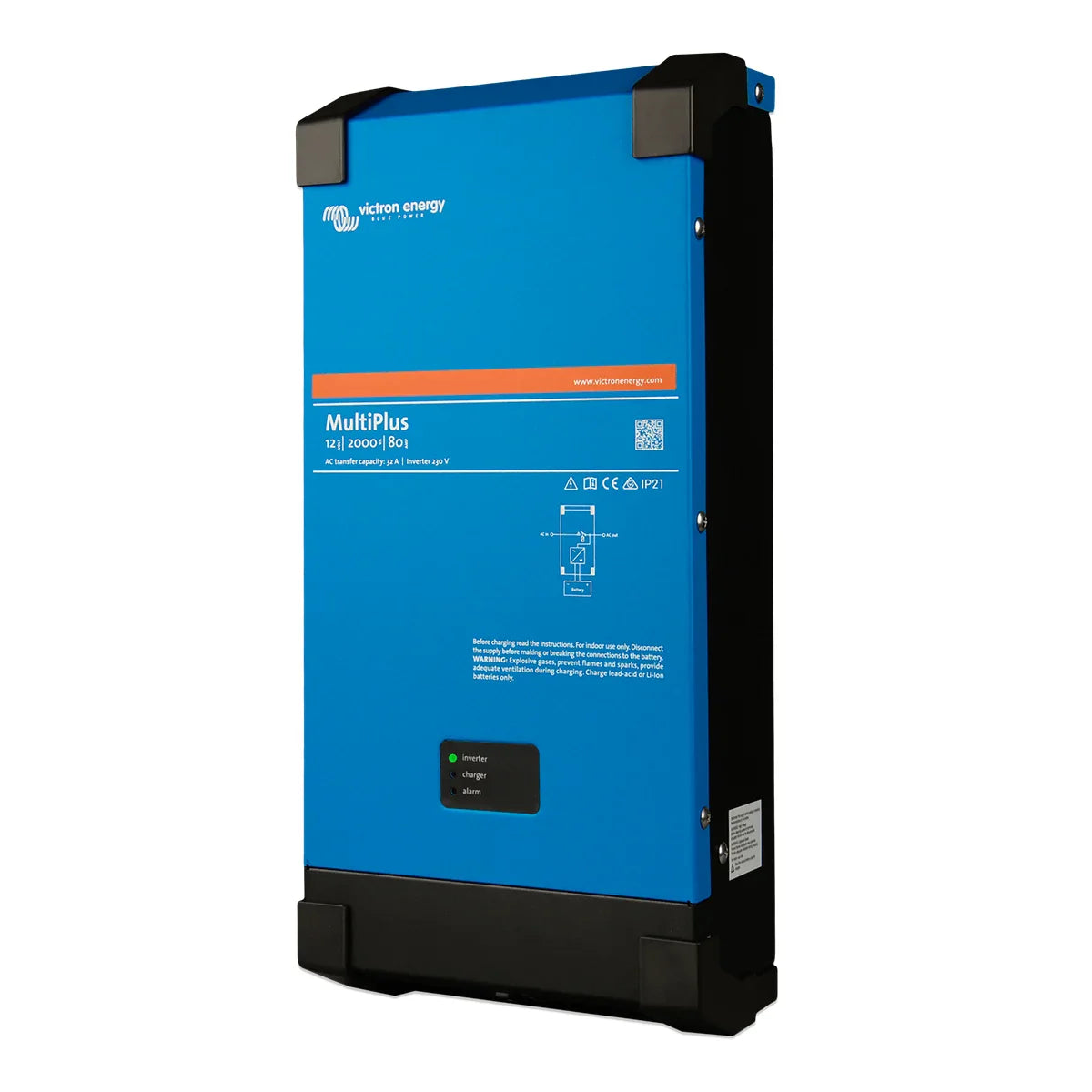

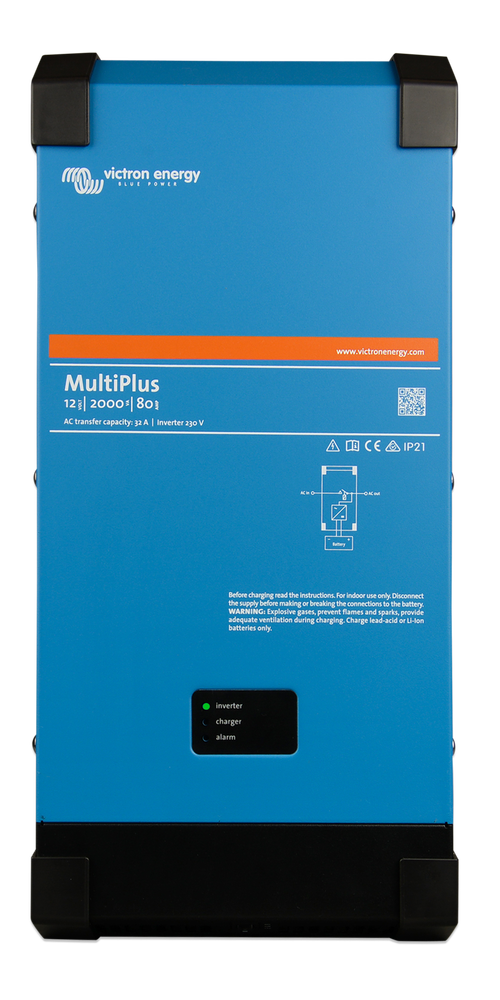

Victron MultiPlus 2000VA 12V Inverter/Charger - PMP122200000
Victron MultiPlus 2000VA 12V Inverter/Charger - PMP122200000
SKU:PMP122200000
Brand: Victron
Comprehensive Power Solution: Integrates inverter, charger, and transfer switch to streamline system design and installation.
Enhanced Battery Longevity: Adaptive charging optimises battery health and performance.
Seamless Power Transition: High-speed AC transfer switch ensures uninterrupted power supply during outages.
Scalable System Integration: VE.Bus communication facilitates easy expansion and integration with other Victron devices.
Versatile Applications: Suitable for off-grid systems, marine setups, and backup power solutions.
Dimensions: 506 x 236 x 147mm
Weight: 15.5kg
Low stock: 6 left
Regular price
£803.00 GBP
Regular price
Sale price
£803.00 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details
The Victron MultiPlus Inverter/Charger 12/2000/80-32 230V VE.Bus is a robust, all-in-one solution designed for demanding applications requiring reliable power conversion and seamless integration. Combining a true sine wave inverter, adaptive battery charger, and high-speed AC transfer switch, it ensures uninterrupted power supply and efficient energy management.
Key Features:
- True Sine Wave Output: Delivers clean and stable AC power, suitable for sensitive equipment.
- Adaptive Charging: Optimises battery life and performance through a sophisticated charging algorithm.
- PowerAssist Technology: Prevents overload of limited AC sources by supplementing with battery power when necessary.
- High-Speed AC Transfer Switch: Ensures a seamless transition to inverter power within 20 milliseconds during grid failure or shore power disconnection.
- VE.Bus Communication: Allows for system expansion and integration with other Victron devices for enhanced monitoring and control.
Ideal for off-grid systems, marine applications, and backup power solutions, the MultiPlus offers flexibility and scalability to meet diverse energy needs.
Product Specifications
Product Specifications
Performance & Electrical Specifications (Inverter)
- Nominal Battery Voltage: 12 V
- Input Voltage Range: 9.5 – 17 V
- Continuous Output Power at 25°C: 2000 VA
- Continuous Output Power at 25°C: 1600 W
- Continuous Output Power at 40°C: 1450 W
- Continuous Output Power at 65°C: 1000 W
- Peak Power: 3500 W
- Maximum Efficiency: 93%
- Zero-load Power: 10 W
- Zero-load Power in Search Mode: 3 W
- Output Voltage: 230 VAC ± 2% (Adjustable to 240V)
- Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
Charger Specifications
- AC Input Voltage Range: 187 – 265 VAC
- AC Input Frequency: 45 – 65 Hz
- Charge Voltage 'Absorption': 14.4 V
- Charge Voltage 'Float': 13.8 V
- Storage Mode: 13.2 V
- Charge Current House Battery: 80 A
- Charge Current Starter Battery: 1 A
- Battery Temperature Sensor: Yes
- Compatible Battery Types: Lithium, Sealed, AGM, Gel, and Flooded batteries
Key Features & System Integration
- PowerControl & PowerAssist: Automatically manages AC input to prevent overloading a generator or shore supply and supplements the source with battery power when needed.
- Transfer Switch: 32 A
- Parallel and Three-Phase Operation: Up to 6 units can operate in parallel. Three units can be configured for three-phase output.
- Programmable Relay: Can be set for general alarms, DC under-voltage, or generator start/stop functions.
- VE.Bus Communication Port: For parallel/three-phase operation, remote monitoring, and system integration.
- Remote On-Off: Yes
- Search Mode: Reduces power consumption in no-load operation by approximately 70%.
- DIP Switches: For on-site setting of battery charge voltage and search mode.
Mechanical Specifications
- Enclosure Material & Colour: Steel (Blue RAL 5012)
- Protection Category: IP21

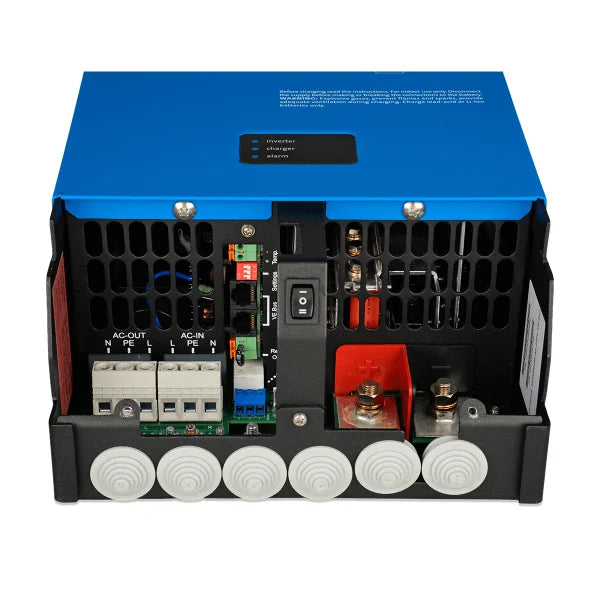

- Battery Connection: M8 bolts
- 230V AC Connection: Screw terminals
- Weight: 15.5 kg
- Dimensions (h x w x d): 506 x 236 x 147 mm
- Operating Temperature Range: -40 to +65°C (fan assisted cooling)
- Humidity: Max 95% (non-condensing)
Standards & Protection
- Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
- Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
- Automotive Directive: ECE R10-5
- Integrated Protection: Output short circuit, overload, battery voltage high/low, temperature high, 230 VAC on inverter output, and input voltage ripple high.
Technical Specifications
Technical Specifications
| Inverter Rating | 2000VA |
|---|---|
| Battery Charger Rating | 80A |
| Voltage | 12V |
| Protection | IP21 - Indoor |
| Weight KG | 15.5 |
