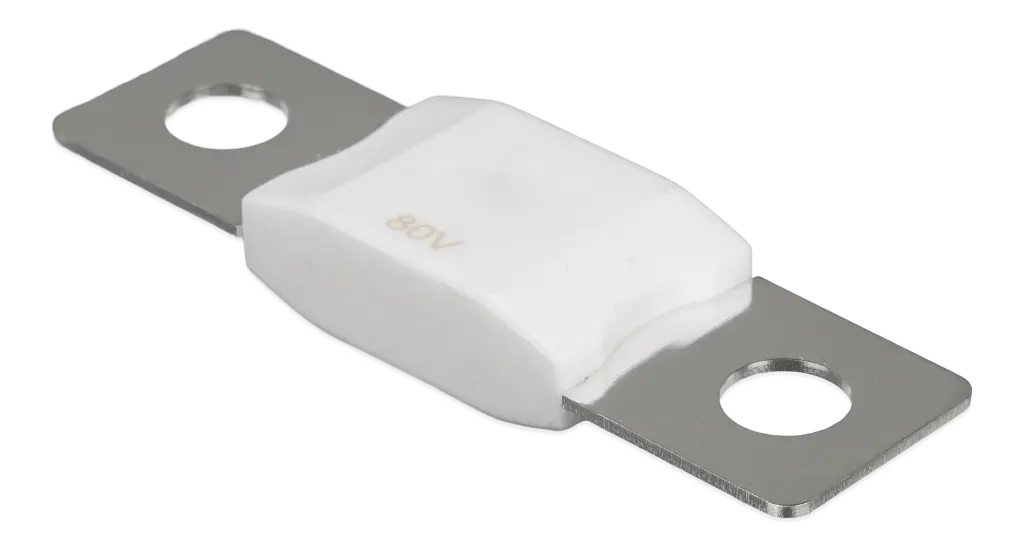

Victron Energy MEGA Fuse 40A/80V CIP138040020 Single Piece
Victron Energy MEGA Fuse 40A/80V CIP138040020 Single Piece
SKU:CIP138040020
Brand: Victron
93 in stock
Couldn't load pickup availability
Product Details
Product Details
The Victron Energy MEGA Fuse 40A/80V is a high-performance fuse designed to provide reliable overcurrent protection for 12V, 24V, and 48V DC systems. With a 40-amp rating and an 80-volt maximum operating voltage, this fuse is ideal for safeguarding circuits in applications such as off-grid power systems, marine installations, and mobile setups.
Supplied as a single unit.
Key Features:
- High Current Capacity: Rated for 40A, suitable for high-power circuits.
- Wide Voltage Compatibility: Operates effectively in 12V, 24V, and 48V DC systems.
- Durable Construction: Built to withstand demanding environments, ensuring long-term reliability.
Technical Specifications:
- Current Rating: 40A
- Voltage Rating: 80V DC
- Dimensions (HxWxD): 9mm x 19mm x 67mm
- Material: Ceramic body with metal end caps
The Victron Energy MEGA Fuse 40A/80V is an essential component for ensuring the safety and reliability of high-current circuits in various electrical systems.
Product Specifications
Product Specifications
Performance & Electrical Specifications
- Current Rating: 40 A
- Voltage Rating: 80 V
- Approximate Voltage Drop: 135 mV
- Cold Resistance: 1.459 mΩ
- Fuse Type: MEGA fuse (standard)
Mechanical Specifications
- Mounting Type: Bolt-on
- Mounting Hole Diameter: 8.7 mm (Designed for M8 bolts)
- Overall Length: 68.8 mm
- Total Width: 19 mm
- Center-to-Center Hole Distance: 50.8 mm
- Internal Body Width: 29.2 mm
- Connection Tab Width: 16.2 mm
System Integration & Safety
- Installation: Must be used with a compatible MEGA fuse holder to ensure safety and proper electrical contact.
- Application: Ideal for primary circuit protection in marine, automotive, and off-grid solar systems, particularly those utilizing 48V battery banks.
- Construction: High-durability design engineered to withstand the vibration and thermal demands of professional power installations.
