Victron Energy Lynx Power In 1000A Busbar (M10)
Victron Energy Lynx Power In 1000A Busbar (M10)
SKU:LYN020102010
Brand: Victron
47 in stock
Couldn't load pickup availability
Product Details
Product Details

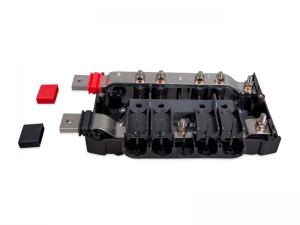

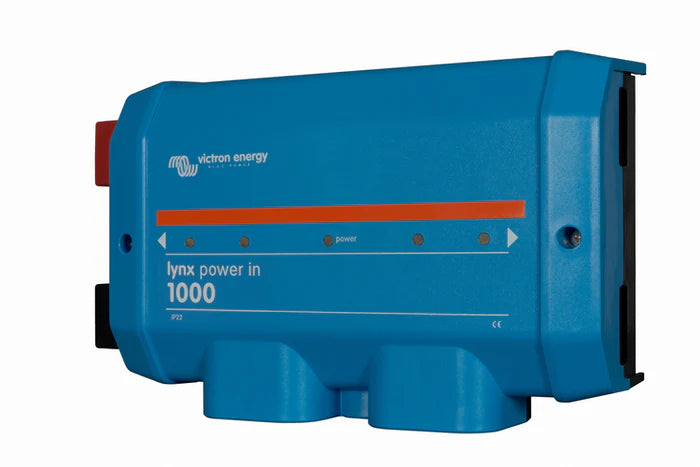

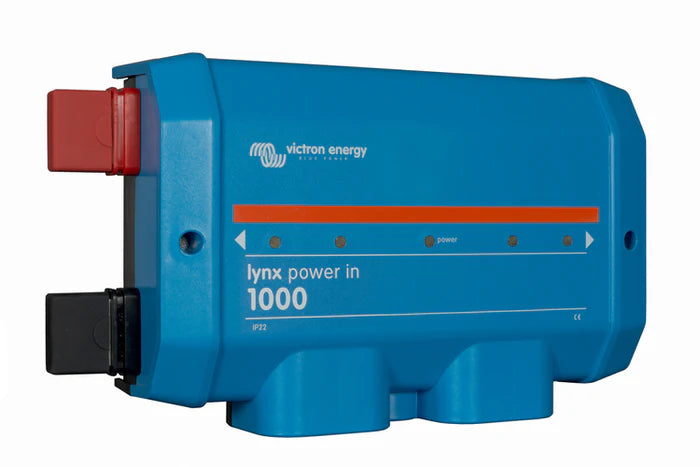

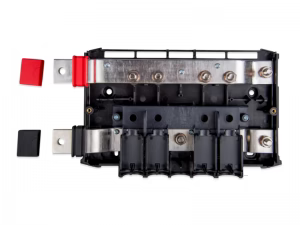

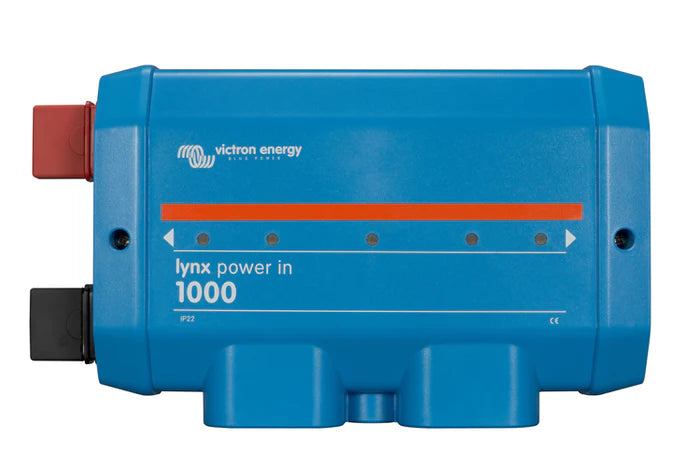

The Victron Lynx Power In 1000A Busbar (M10) is a high-capacity DC input module designed to serve as the main battery interface for a Lynx modular DC distribution system. It integrates both positive and negative busbars in a single enclosure and offers four connection points for batteries, loads or chargers, plus a ground connection.
Capable of continuous operation at 1000 A and operating over a voltage range of 9 V to 60 V DC, it is suited to demanding battery systems. The M10 busbar terminals ensure secure, low-resistance connections with suitably sized battery cables.
As part of the Lynx modular ecosystem, this unit seamlessly integrates with other Lynx distribution components, enabling scalable, robust DC power infrastructure in marine, off-grid, mobile or industrial environments.
Product Specifications
Product Specifications
Performance & Electrical Specifications
- Current Rating: 1000 A DC continuous
- Voltage Range: 9 – 60 VDC
- Supported System Voltages: 12V, 24V, or 48V
- Power Rating (12V): 12 kW
- Power Rating (24V): 24 kW
- Power Rating (48V): 48 kW
- Busbar Material: Tinned copper
- Busbar Dimensions: 8 x 30 mm
Connections & Hardware
- Busbar Interconnections: M10 (Note: M10 modules must only be connected to other M10 modules).
- Equipment Connections: 4 x M8 (The fuse and cable connections are always M8, even on M10 busbar models).
- Ground Connection: 1 x M8
- Terminal Torque (M10): 33 Nm (17 Nm for units with a serial number before HQ2340XXXX).
- Terminal Torque (M8): 14 Nm.
- Cable Lugs: Requires M8 cable lugs for all DC wire connections.
Physical & Environmental
- Enclosure Material: ABS plastic
- Enclosure Dimensions (H x W x D): 290 x 170 x 80 mm
- Unit Weight: 2.1 kg
- Protection Category: IP22
- Operating Temperature Range: -40°C to +60°C
- Storage Temperature Range: -40°C to +60°C
- Humidity: Max 95% (non-condensing)
System Design & Safety
- Fusing: The Lynx Power In does not contain internal fuses. All connected batteries, loads, or chargers must be fused externally.
- Orientation: Can be mounted in any orientation (upright, sideways, or upside down).
- Mounting: Features 5mm mounting holes for secure installation.
- Scalability: Multiple units can be bolted together to create longer busbars with more connection points.
- Battery Management: In systems with a Lynx Shunt VE.Can or Lynx Smart BMS, batteries must be connected to the left side of the busbar, and loads/chargers to the right to ensure correct state-of-charge calculation.
