Victron Energy GX LTE 4-G-E
Victron Energy GX LTE 4-G-E
SKU:GSM100100400
Brand: Victron
Low stock: 5 left
Couldn't load pickup availability
Product Details
Product Details

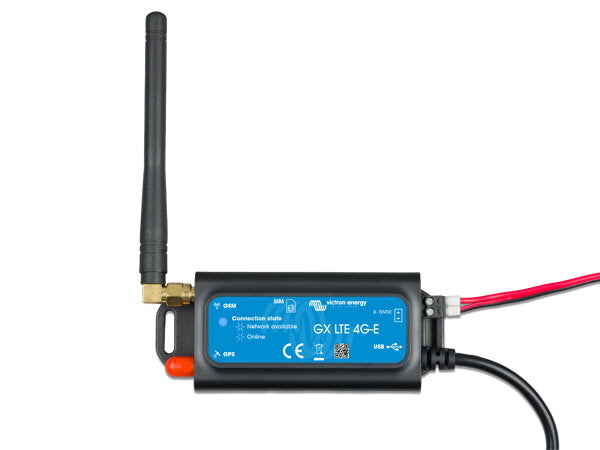

The Victron Energy GX LTE 4-G-E is a durable 2G/3G/4G cellular modem built for Victron GX monitoring devices. It enables remote access over mobile networks to the Victron Remote Management (VRM) portal, making it ideal for off-grid, mobile or hard-to-reach systems.
Designed for the EMEA region (including Europe, Middle East, Africa), Korea, and Thailand, it supports LTE bands 1, 3, 5, 7, 8, 20, 38, 40 and 41. It features a built-in GNSS (GPS/Beidou/GLONASS/GALILEO/QZSS) receiver for tracking and geofencing via VRM when used with an optional active external GPS antenna.
The modem runs on a wide voltage range, from 8-70 V DC, and draws less than 1 W in idle mode. During data transmission (2G/3G/4G) the power use rises to around 2.5 W, with an additional 0.4 W when GPS is active. A 1.4 m power cable with inline fuse and ring terminals is provided, along with a fixed 1.0 m USB-A cable for straightforward connection to your GX device. A small indoor LTE antenna is included, and there are SMA-female connectors for optional external 4G or GPS antennas.
Compact and lightweight at just 106 × 42.5 × 22 mm and 0.08 kg, it fits neatly in enclosures or control panels. The unit has a status-LED (blue) to show power and connection states, and it operates reliably across −40 °C to +50 °C. To use this modem, ensure your GX device is running Venus OS v2.60 or newer.
Product Specifications
Product Specifications
Performance & Electrical Specifications
- Supply Voltage Range: 8 – 70 VDC
- Power Draw (2G/3G/4G Data Transfer): 2.5 W
- Power Draw (Idle Mode): < 1.0 W
- Additional Power Draw (GPS Enabled): +0.4 W
- Operating Temperature Range: -40 °C to +50 °C (-40 °F to 122 °F)
- Recommended Fuse (12V / 24V / 48V): 500mA / 250mA / 100mA
Communication & Cellular Data
- Region Compatibility: EMEA, Korea, Thailand
- Cellular Module: SIMCom SIM7600E
- Supported LTE Bands: 1, 3, 5, 7, 8, 20, 38, 40, 41
- LTE Category: Cat-1 (10 Mbps Download / 5 Mbps Upload)
- 3G (HSPA+) Speed: 42 Mbps Download / 5.76 Mbps Upload
- 2G (EDGE) Speed: 236.8 Kbps (Download/Upload)
- SIM Card Format: Regular Mini-SIM (supports 1.8V and 3V)
- Status Indicator: Multi-function Blue LED (Solid: Power; Slow Blink: Registered; Fast Blink: Internet Connected)
GPS & Navigation
- GNSS Support: GPS, Beidou, GLONASS, GALILEO, QZSS
- GPS Antenna Connector: SMA Female (Requires optional active GPS antenna GSM900200100)
- Features: Provides real-time position data and geo-fencing capabilities via the VRM Portal.
Mechanical Specifications
- Dimensions (l x w x h): 106 x 42.5 x 22 mm
- Weight: 0.08 kg (0.177 lbs)
- USB Port: Fixed 1.0m cable with USB-A connector (connects directly to GX device)
- LTE Antenna Connector: SMA Female (Includes indoor mini-rod antenna)
- Power Terminals: 0.5 – 1.5 mm² (AWG 28 – 16)
Included Accessories
- Integrated 1.0m USB-A cable
- GSM 2G/3G/4G mini rod antenna (for indoor use)
- 1.4m DC power cable with inline fuse holder and M10 ring terminals
- Inline Slow Blow fuse (T3.15A 250V, 5x20mm)
Standards & Compliance
- Safety: EN 60335-1, EN 60335-2-29, EN 62368-1
- Emission / Immunity: ECE R10-5
- Quality Management: EN 9001:2015
