Victron Energy Blue Smart IP67 Waterproof Battery Charger - 12V 7A (1 Output)
Victron Energy Blue Smart IP67 Waterproof Battery Charger - 12V 7A (1 Output)
SKU:BPC120747026
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details

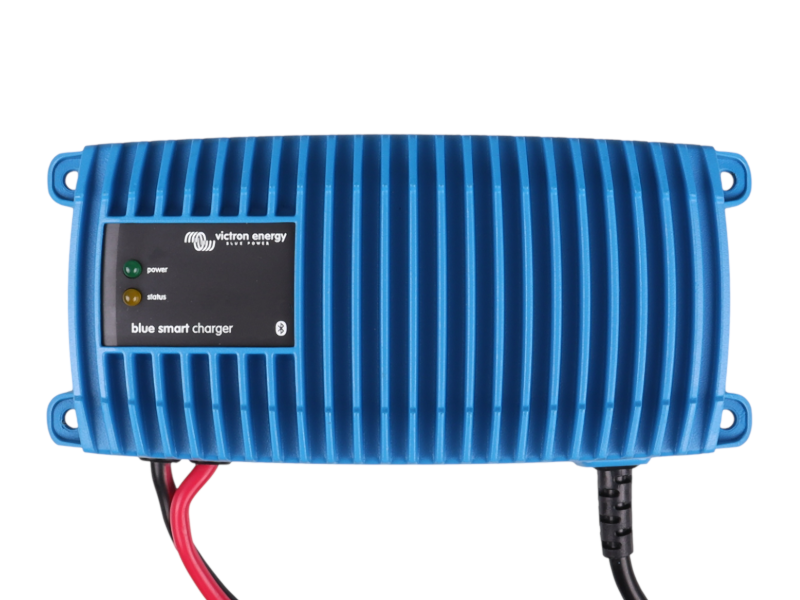

The Victron Blue Smart IP67 Waterproof Charger (12 V, 7 A) is a rugged, professional-grade battery charger designed for demanding environments. It features a cast-aluminium housing with fully encapsulated electronics, making it waterproof, shockproof, and ignition-protected: ideal for marine engine rooms, bilges, outdoor vehicles or any site exposed to moisture, dirt or vibration.
This charger uses a 5‑stage adaptive charging algorithm (Bulk, Absorption, Recondition, Float, Storage) to deliver optimal charging for a wide range of battery types, including lead‑acid (wet, AGM, gel) and Li-ion batteries. It can even revive deeply discharged batteries, initiating a low-current “wake-up” to bring them back from zero volts.

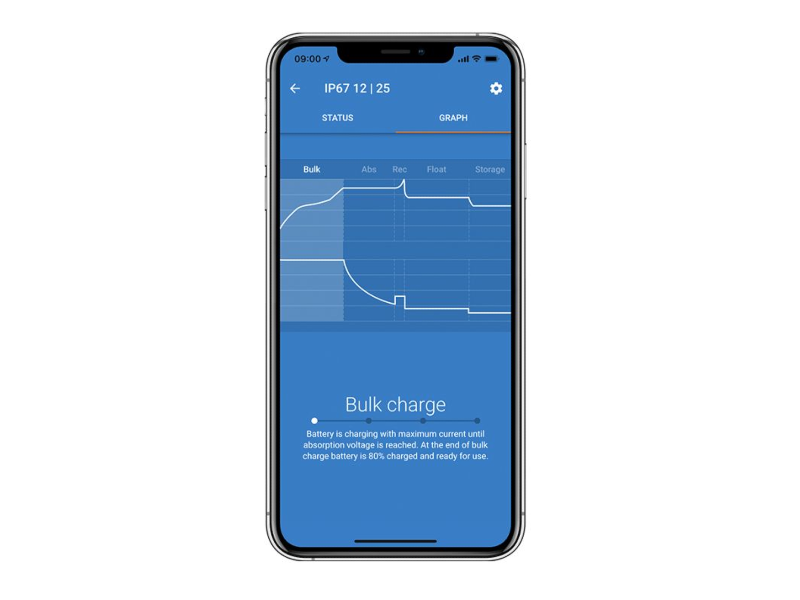

Built-in Bluetooth Smart connectivity allows trade professionals and system integrators to monitor charger status, adjust settings, and perform firmware updates using the VictronConnect app on a smartphone or tablet. The unit is highly efficient, achieving up to 93% efficiency, which minimises heat generation and reduces power waste. In standby, its power draw drops to around 0.5 W, improving its suitability for long-term connections.
The charger supports dual operating modes: normal charging at 7 A and a low current mode at 2 A. This is useful for maintaining smaller batteries without overcharging. It also offers a storage mode that reduces float voltage when the battery has not been used for 24 hours: this protects positive plates in lead-acid batteries and limits degradation.
Temperature control is built in: the unit will reduce its output if ambient temperature rises above 40 °C, but it continues operating up to 60 °C. Electrical protection includes anti short-circuit, over-temperature, and reverse polarity protection. The charger also features LED indicators for Bulk, Absorption, Float and Storage modes, making it easy for engineers or maintenance staff to check status at a glance.

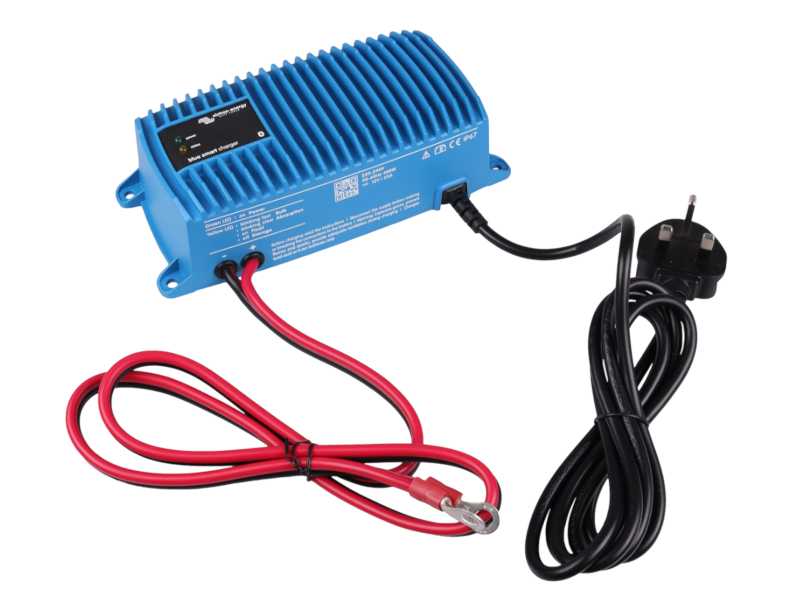

Physically, the charger measures 85 × 211 × 60 mm, weighs 1.8 kg, and comes with 1.5 m cables terminated with M8 ring eyelets, allowing fast, secure wiring. This robust and smart charger delivers reliable power in tough conditions, making it an excellent choice for trade specifiers working on marine, automotive or off-grid systems.
Product Specifications
Product Specifications
Performance & Electrical Specifications
- Charge Current, Normal Mode: 7 A
- Charge Current, LOW Mode: 2 A
- Efficiency: 93% (Setting a new industry standard by wasting 3-4 times less heat)
- Nominal Input Voltage: 220–240 VAC
- Input Voltage Range: 180–265 VAC
- Frequency Range: 45–65 Hz
- No Load Power Consumption: 0.5 W
Charge Voltages (12V System)
- Absorption: Normal: 14.4 V | High: 14.7 V | Li-ion: 14.2 V
- Float: Normal: 13.8 V | High: 13.8 V | Li-ion: 13.5 V
- Storage: Normal: 13.2 V | High: 13.2 V | Li-ion: 13.5 V
Functional Features
- Bluetooth Smart Enabled: Monitor voltage and current, change settings, and update the charger wirelessly via the VictronConnect app.
- Adaptive 5-Stage Charge Algorithm: Bulk – Absorption – Recondition – Float – Storage. The microprocessor-controlled management system automatically optimizes the charging process relative to battery use.
- Storage Mode: Kicks in after 24 hours of no discharge to reduce float voltage to 13.2 V, minimizing gassing and corrosion. Once a week, it raises voltage back to absorption level to 'equalize' and prevent stratification.
- Li-ion Battery Support: Uses a specific bulk – absorption – float algorithm for lithium batteries.
- Deeply Discharged Recovery: Will initiate charging even if the battery has been discharged to zero volts and can reconnect to Li-ion batteries with internal disconnect functions.
- Power Supply Function: Can be used to power DC loads without a battery connected.
- LED Indicators: Features a Yellow LED for charge stage (Bulk, Absorption, Float, Storage) and a Green LED for power status.
Protection & Environmental
- Integrated Protections: Battery reverse polarity (fuse), output short circuit, and over-temperature.
- Temperature Performance: Protected against overheating. Output current reduces as temperature increases up to 60°C, but the charger will not fail.
- Operating Temperature Range: -20°C to +60°C (Full rated output up to 40°C).
- Humidity: Up to 100%.
Mechanical Specifications
- Enclosure Material: Aluminium (Blue RAL 5012)
- Protection Category: IP67 (Waterproof and shockproof)
- Dimensions (h x w x d): 85 x 211 x 60 mm
- Weight: 1.8 kg
- Battery Connection: 1.5-meter black and red cable.
Standards & Compliance
- Safety: EN 60335-1, EN 60335-2-29
- Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2
- Immunity: EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
