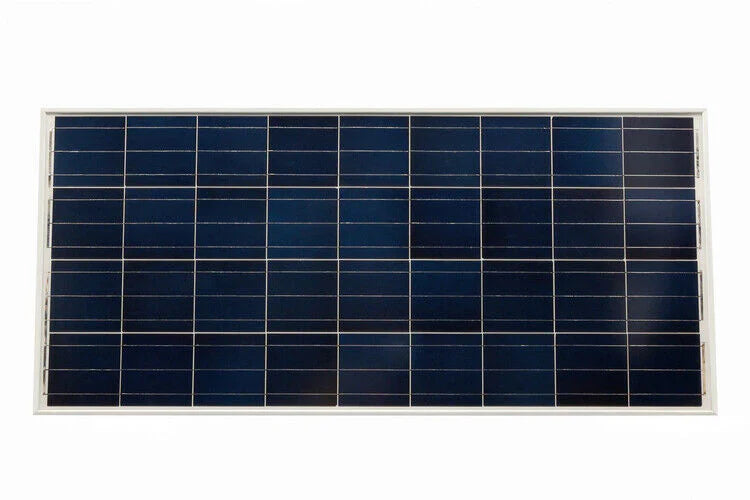

Victron Energy 60W Polycrystalline solar panel

Technical Specifications

Combined for SKUs: SPP040601200

Allowable Hail Load Speed: 23 m/s

Allowable Hail Load Weight: 7.53 g

Cell Type: Polycrystalline

Depth: 25 mm

Frame Material: Aluminium

Height: 545 mm

Junction Box Type: PV-LH0801

Max Power Current: 3.12 A

Max Power Voltage: 19.3 V

Max System Voltage: 1,000 V

Nominal Power: 60 W

Number Of Cells In Series: 36

Number Of Panels Per Pallet: 140

Open Circuit Voltage: 23.1 V

P VCable Connection Type: No Cable

P VOutput Tolerance: 3 %

Product Warranty: 5 y

Short Circuit Current: 3.37 A

Smallest Packaging Unit: 1

Warranty80Output: 10 y

Warranty90Output: 10 y

Weight: 4 kg

Width: 668 mm

Source: Victron
