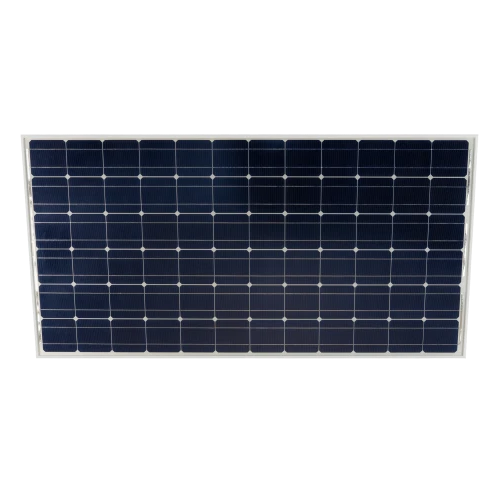

Victron Energy 130W 12V Mono Solar Panel - SPM041301200

Technical Specifications

Combined for SKUs: SPM041301200

Allowable Hail Load Speed: 23 m/s

Allowable Hail Load Weight: 7.53 g

Cell Type: Polycrystalline

Depth: 30 mm

Frame Material: Aluminium

Height: 1,200 mm

Junction Box Type: PV-LH0808-1

Max Power Current: 6.98 A

Max Power Voltage: 18.64 V

Max System Voltage: 1,000 V

Nominal Power: 130 W

Number Of Cells In Series: 36

Number Of Panels Per Pallet: 36

Open Circuit Voltage: 22.83 V

P VCable Connection Type: MC4

P VCable Length: 900 mm

P VOutput Tolerance: 3 %

Product Warranty: 5 y

Short Circuit Current: 7.35 A

Smallest Packaging Unit: 1

Warranty80Output: 10 y

Warranty90Output: 10 y

Weight: 9.1 kg

Width: 668 mm

Source: Victron
