Victron Cerbo GX MK2 Monitoring System
Victron Cerbo GX MK2 Monitoring System
SKU:BPP900451110
Brand: Victron
38 in stock
Couldn't load pickup availability
Product Details
Product Details

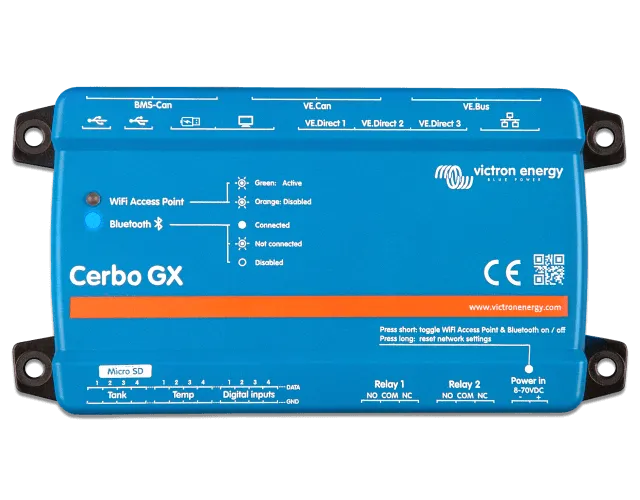

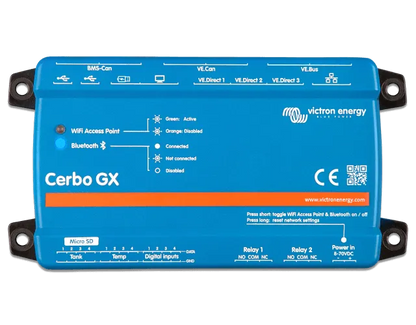

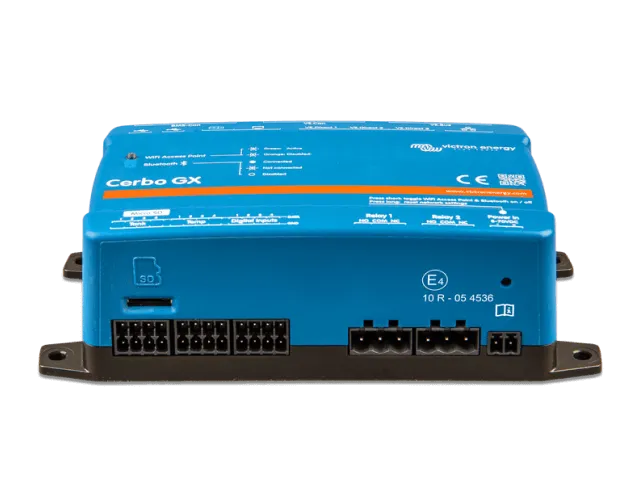

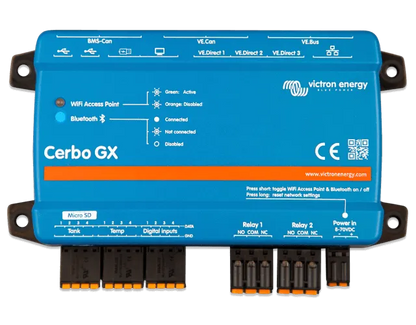

The Victron Cerbo GX MK2 Monitoring System (SKU: BPP900451110) is a high-performance communication hub designed to centralise control and monitoring of your energy system. Ideal for professionals in the marine, RV, and off-grid sectors, this device ensures seamless integration with Victron and third-party components, enhancing system performance and reliability.
Key Features:
- Dual VE.Can Ports: Features two fully functional VE.Can ports, with VE.Can 1 being isolated, allowing for flexible and secure connections to various devices.
- Pulse Counting Digital Inputs: Equipped with four digital inputs capable of pulse counting, enabling precise monitoring of energy consumption and system performance.
- Enhanced USB Connectivity: Offers three fully functional USB host ports, providing expanded connectivity options for peripherals and accessories.

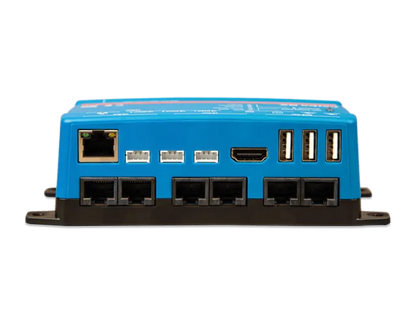

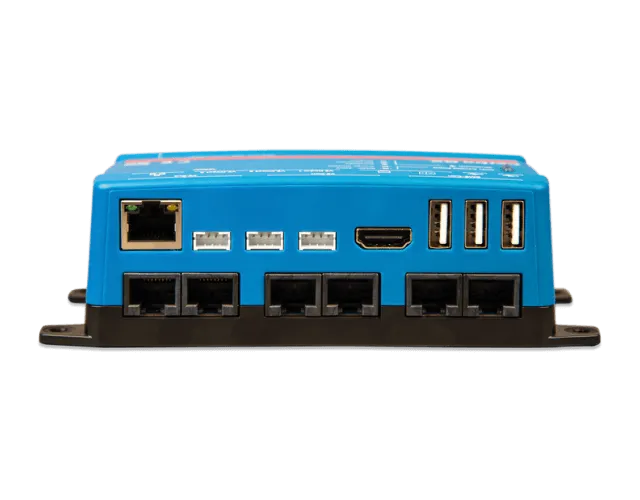

- Rotated RJ45 Ports: RJ45 sockets have been rotated 180 degrees, facilitating easier cable management and installation.
- Versatile Mounting Options: Designed for easy installation, the Cerbo GX MK2 can be mounted on a DIN rail, offering flexibility in various setups.
Remote Monitoring & Control:

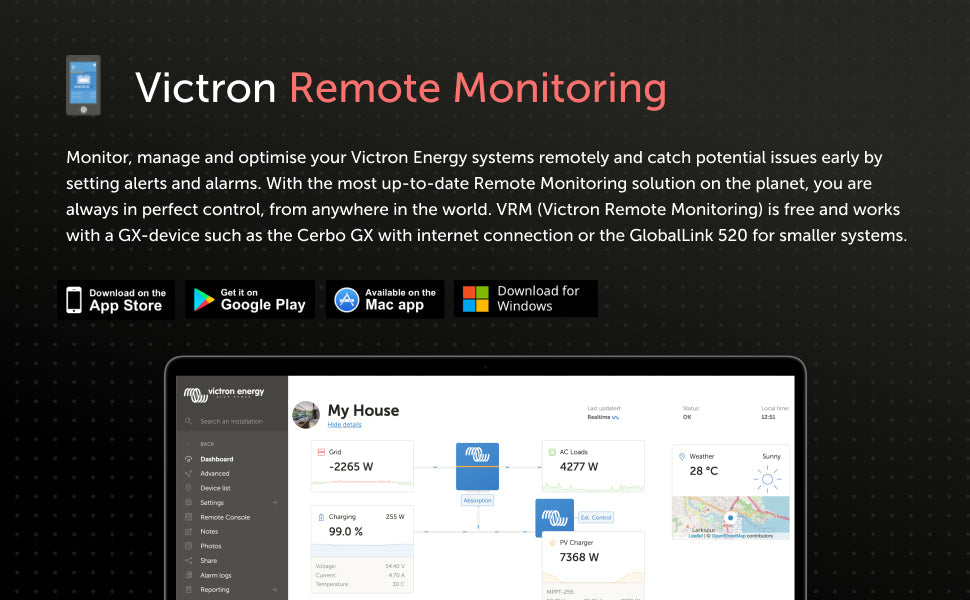

Utilise the Victron Remote Monitoring (VRM) portal or the VictronConnect app to monitor and control your system remotely. The optional GX Touch 50 or GX Touch 70 touchscreen displays provide intuitive local control, enhancing user experience.
System Integration:
Running on the Venus OS operating system, the Cerbo GX MK2 ensures seamless communication between all connected components, including inverter/chargers, solar chargers, DC-DC chargers, and batteries.
Whether you're managing a marine power system, an off-grid solar installation, or an RV energy setup, the Victron Cerbo GX MK2 Monitoring System offers the reliability and flexibility needed for efficient energy management.
Product Specifications
Product Specifications
Performance & Electrical Specifications
- Supply Voltage: 8 – 70 VDC
- Power Draw (without GX Touch): 2.8 W @ 12 V
- Power Draw (with GX Touch): Backlight off: 3.8 W @ 12 V | Backlight at max: 4.8 W @ 12 V
- Operating Temperature Range: -20 to +50 °C

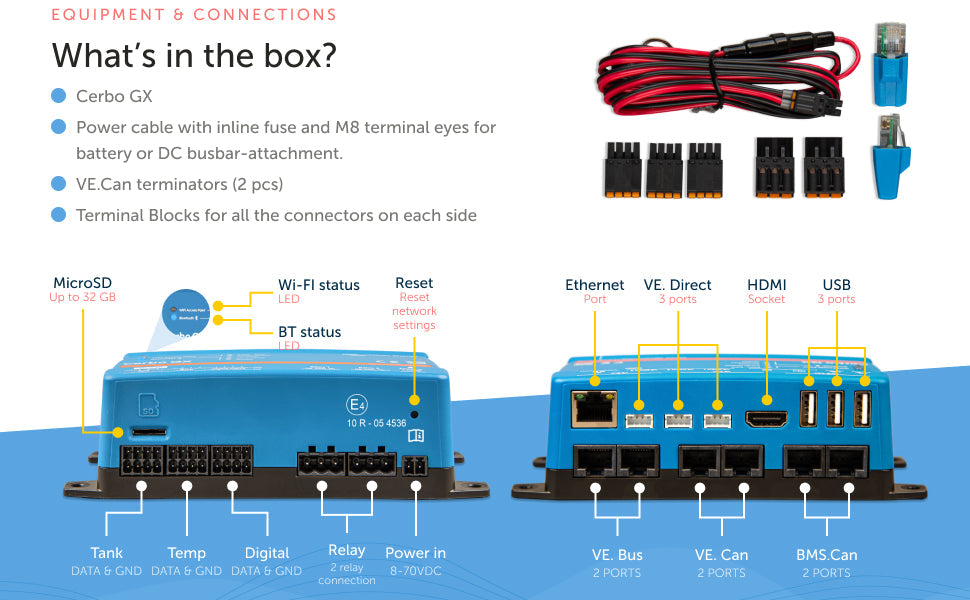

Communication & Connectivity
- VE.Direct Ports (Always Isolated): 3 (supports up to 15 VE.Direct devices via USB hubs)
- VE.Bus (Always Isolated): 2 paralleled RJ45 sockets
- VE.Can: 2 ports (VE.Can 1 isolated, VE.Can 2 non-isolated)
- BMS-Can Port: Yes (integrated via VE.Can)
- USB Host Ports: 3 (High-power ports for data and display connectivity)
- Ethernet: 10/100 RJ45 socket (isolated except for shield)
- WiFi: Built-in
- Bluetooth: Integrated for connection and configuration via VictronConnect
- Rotated RJ45 Sockets: Sockets are rotated 180 degrees on this model for easier cable removal

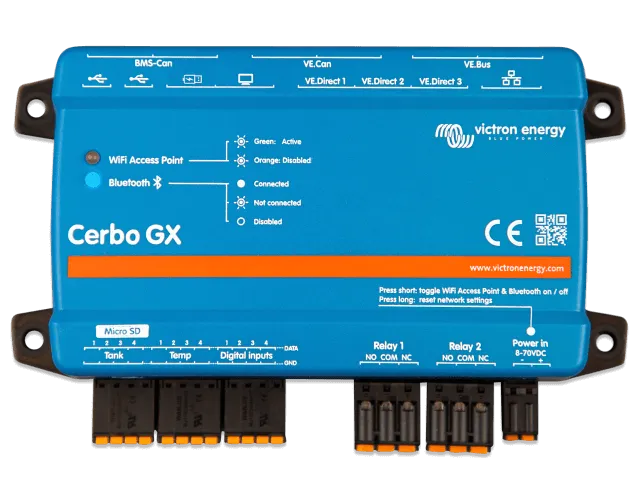

I/O Monitoring & Control
- Resistive Tank Level Inputs: 4
- Temperature Sense Inputs: 4
- Digital Inputs: 4 (Capable of pulse counting)
- Relays: 2 x NO/NC
- DC Capacity: 6 A up to 30 VDC | 1 A up to 70 VDC
- AC Capacity: 6 A, 125 VAC
- Functionality: Programmable for alarms, generator start/stop, tank pump control, or temperature-controlled operation
Mechanical Specifications

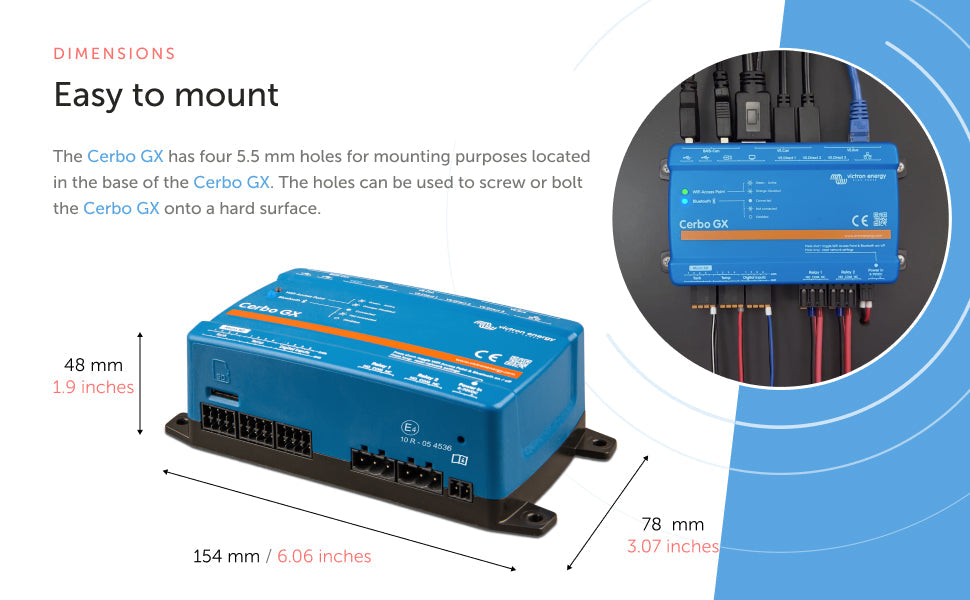

- Outer Dimensions (h x w x d): 78 x 154 x 48 mm
- Protection Category: IP20
- Mounting: Wall mount or DIN rail (Requires optional 35mm DIN rail adapter)
Standards & Compliance
- Safety: IEC 62368-1
- EMC: EN 301489-1, EN 301489-17
- Automotive: ECE R10-6
