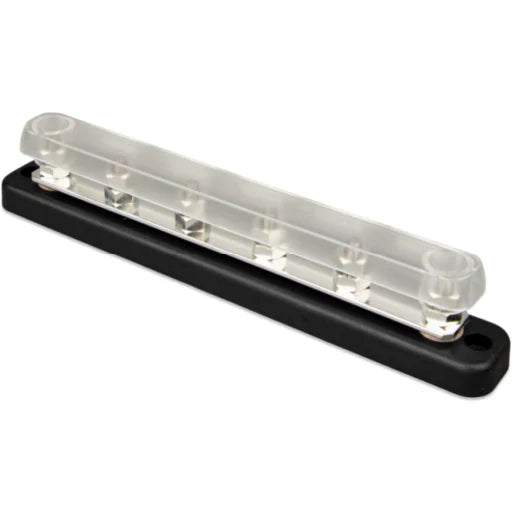

Victron Busbars 250A - 6 High Current Connections & Cover
Victron Busbars 250A - 6 High Current Connections & Cover
SKU:VBB125060020
Brand: Victron
Low stock: 1 left
Couldn't load pickup availability
Product Details
Product Details
250 Amps - 6 Current Connections
Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.
We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protective cover.
Product Specifications
Product Specifications
Technical Specifications
Combined for SKUs: VBB125060020
Base Colour: Black (RAL 9017)
Base Fire Rating: UL 94 V-0
Base Material: ABS
Busbar Dimensions: 19mm x 24mm
Busbar Material: Tin plated copper
Cover Colour: Black (RAL 9017)
Cover Fire Rating: UL 94 V-2
Cover Material: ABS
Depth: 70 mm
Height: 48 mm
Hex Nut Material: Tin plated copper
Max Current: 250 A
Max Voltage: 70 V
Terminal Diameter1: 8 mm
Terminal Height1: 17 mm
Terminal Material: Stainless steel
Weight: 0.43 kg
Width: 237 mm
Source: Victron
