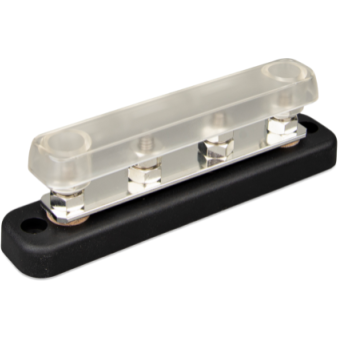

Victron Busbars 250A - 4 High Current Connections & Cover

The Victron Busbars 250A with 4 High Current Connections and Cover (VBB125040010) is a reliable distribution component designed for professional DC power systems. It provides a secure and tidy way to manage multiple high current cables within 12 V, 24 V or 48 V installations. With a continuous rating of 250 A per connection and a maximum working voltage of 70 V DC, it is well suited to off grid systems, marine applications, commercial vehicles and battery banks that require robust electrical distribution.

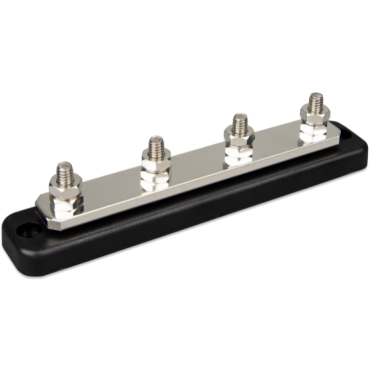

The busbar is built around four tinned copper bars which offer low electrical resistance and consistent performance under high loads. Each connection point uses an M8 stainless steel stud with tin plated copper nuts for improved conductivity and long term corrosion resistance. Victron recommends a tightening torque of 13 N·m, giving installers a secure and repeatable method of ensuring each joint is properly clamped.

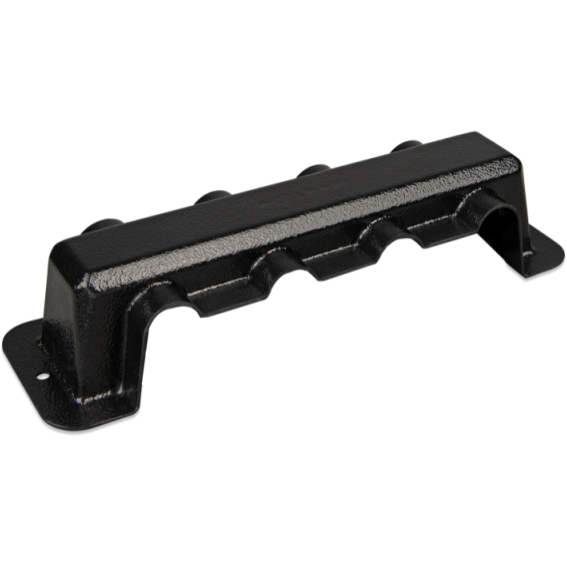

The body is produced from black ABS plastic rated to UL 94 V 0, providing high durability and flame retardance. A matching ABS cover, rated to UL 94 V 2, is included to protect the busbar from accidental contact and to maintain a clean, professional finish within the installation. The cover can be removed easily for inspection or maintenance.

With a compact design measuring 48 mm high, 237 mm wide and 70 mm deep, the busbar fits neatly into cabinets, battery compartments and distribution enclosures. Its layout helps reduce cable clutter, simplifies power distribution and improves overall system organisation. Installers benefit from a clear separation of circuits, reduced risk of exposed conductors and a durable layout that supports routine service work.

This Victron busbar is ideal for installers who want a dependable, compact and safe way to manage multiple high current DC connections. It contributes to a reliable electrical system, reduces installation time and supports long term serviceability across a wide range of professional energy projects.
