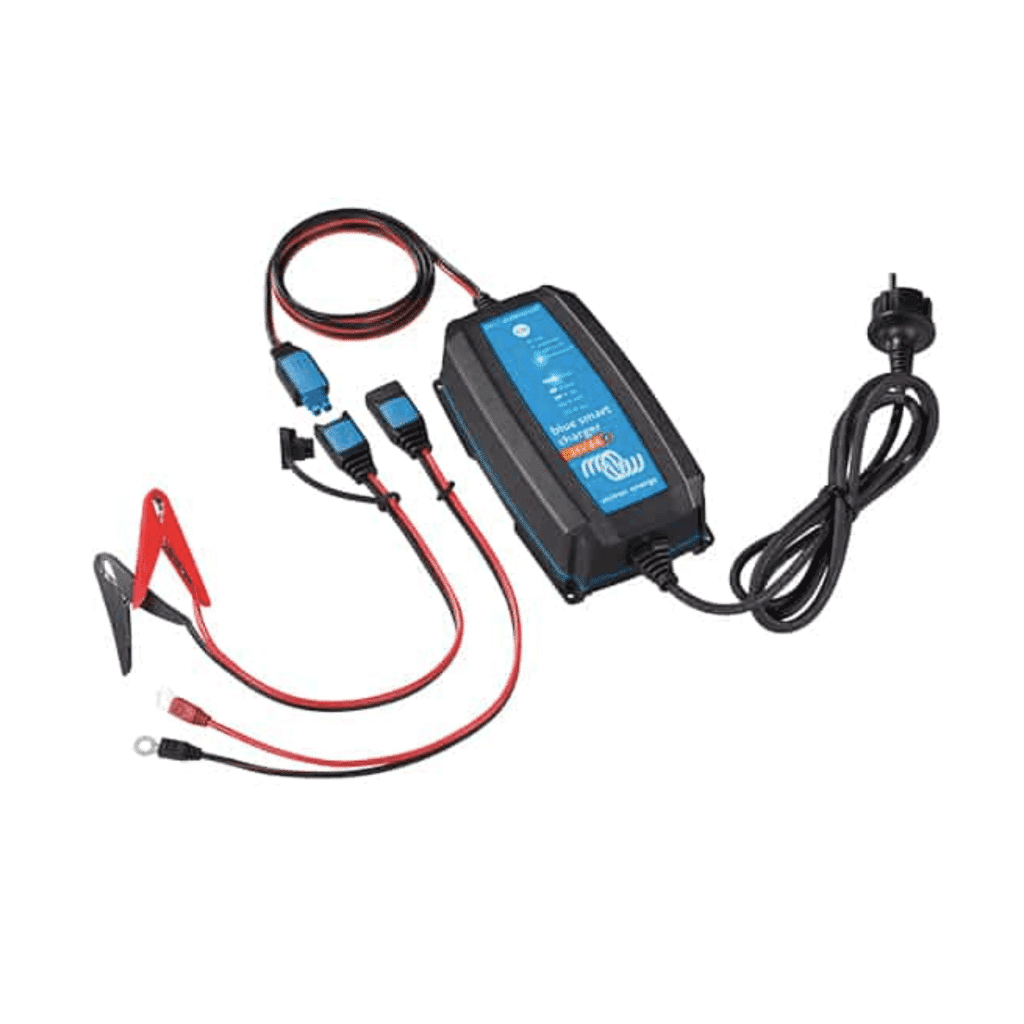

Victron Blue Smart IP65 Charger 24/13(1) 230V CEE 7/16 (BPC241331034)
Victron Blue Smart IP65 Charger 24/13(1) 230V CEE 7/16 (BPC241331034)
SKU:BPC241331034
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron BlueSmart IP65 Charger (SKU BPC241331034) is a rugged, weather-resistant 24 V charger built for demanding environments. It offers a charging current of 13 A, making it suitable for medium to large 24 V battery banks in mobile, marine, or off-grid systems. The IP65-rated housing protects against dust, water spray, and chemical exposure, so it performs reliably in tough outdoor locations.
A smart seven-stage adaptive charging algorithm ensures optimal charging for a variety of battery types, including lead-acid (flooded, AGM, gel) and lithium (LiFePO₄). The charger adjusts its output based on battery condition, helping to prolong battery life. It also includes a recovery mode designed to revive deeply discharged batteries, feeding them a low current until they stabilise.
Efficiency is high, with a peak efficiency of around 95%, which minimises wasted energy and reduces heat. In standby mode, the charger draws only about 0.5 W, making it energy-efficient even when left connected.
Bluetooth Smart connectivity allows trade installers to monitor battery voltage, current, and charging status using the VictronConnect app. They can also update firmware, change charging profiles, and review history to optimise system performance.
The unit withstands a broad temperature range, operating reliably in extreme cold (down to –30 °C) up to +60 °C, with automatic temperature compensation. Both M8 eyelet and clamp connectors are provided for flexible battery connection options.
With a robust aluminium construction, dimensions of 75 × 140 × 240 mm, and a weight of around 1.9 kg, this charger is built to last. Victron backs it with a 5-year warranty, giving specifiers and installers assurance of long-term reliability.
This charger is especially well suited to trade customers working on boats, campervans, industrial power systems or remote installations where resilience, efficiency, and intelligent charging are top priorities.
Product Specifications
Product Specifications
Technical Specifications
Combined for SKUs: BPC241331034
AC Input Voltage Range: [180, 265] VAC
Ac Connection Terminal Type: Cable of 1.5 meter with CEE 7/16 plug
Ac Input Frequency Range: [45, 65] Hz
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Battery Voltage Nominal: 24 V
Charge Algorithm: Adaptive, 7-stage
Charge Current Low: 4 A
Charge Current Normal: 13 A
Charge Voltage Absorption: Normal: 28.8V High: 29.4V Lithium: 28.4V
Charge Voltage Float: Normal: 27.6V High: 27.6V Li-ion: 27.0V
Charge Voltage Storage: Normal: 26.4V High: 26.4V Li-ion: 27.0V
Depth: 240 mm
Efficiency: 95 %
Emission: EN 55014-1,EN-IEC 61000-3-2,EN-IEC 61000-6-3
Height: 75 mm
Immunity: EN 55014-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2
Lithium Compatible: Yes
Max Humidity: 95 %
Power Supply Mode: Yes
Programable: Yes
Protection Category: IP65
Protections: Battery reverse polarity,Output short-circuit,Over temperature
Safety: EN-IEC 60335-1,EN-IEC 60335-2-29
Standby Power Consumption: 0.5 W
Weight: 1.9 kg
Width: 140 mm
Source: Victron
