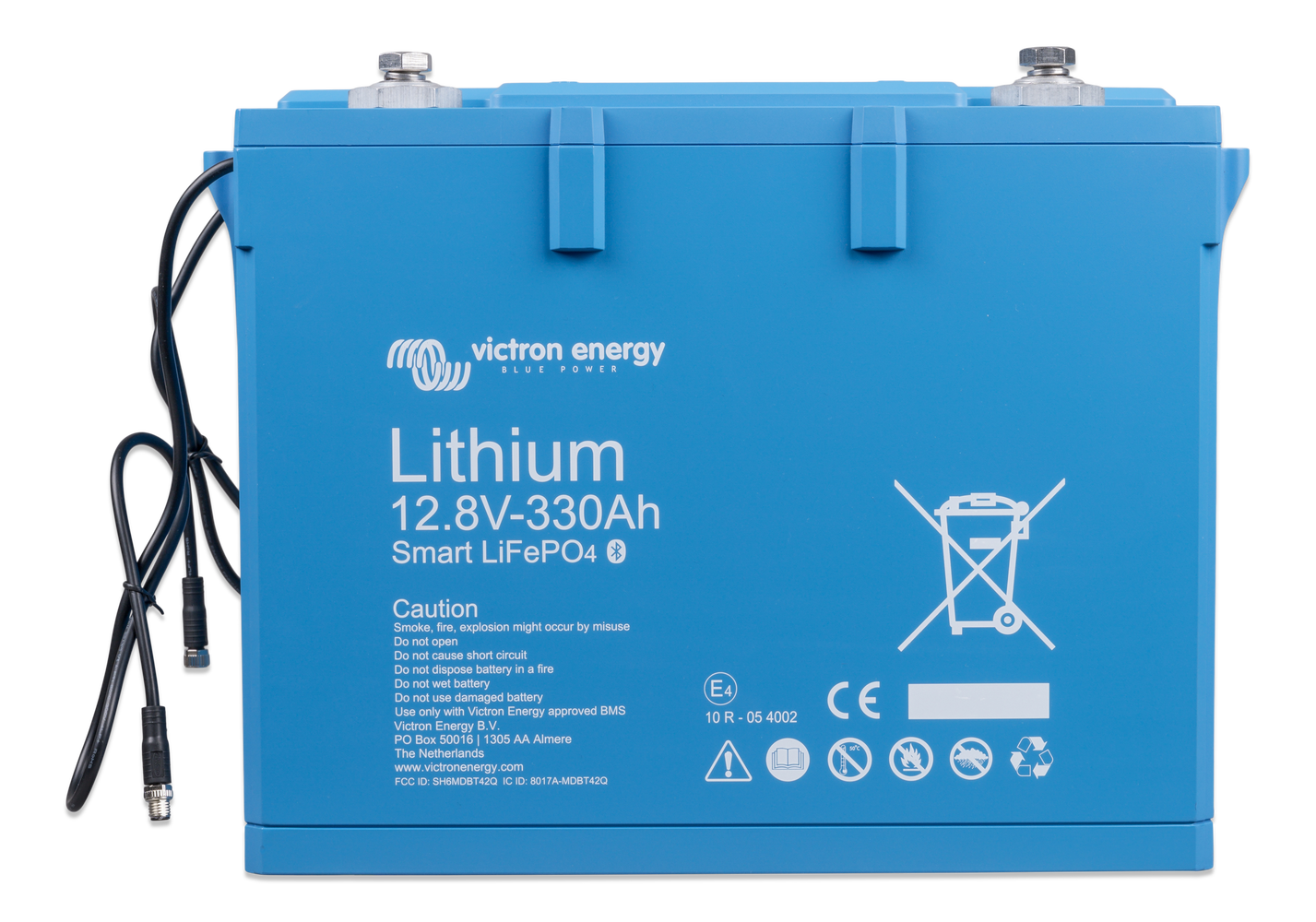

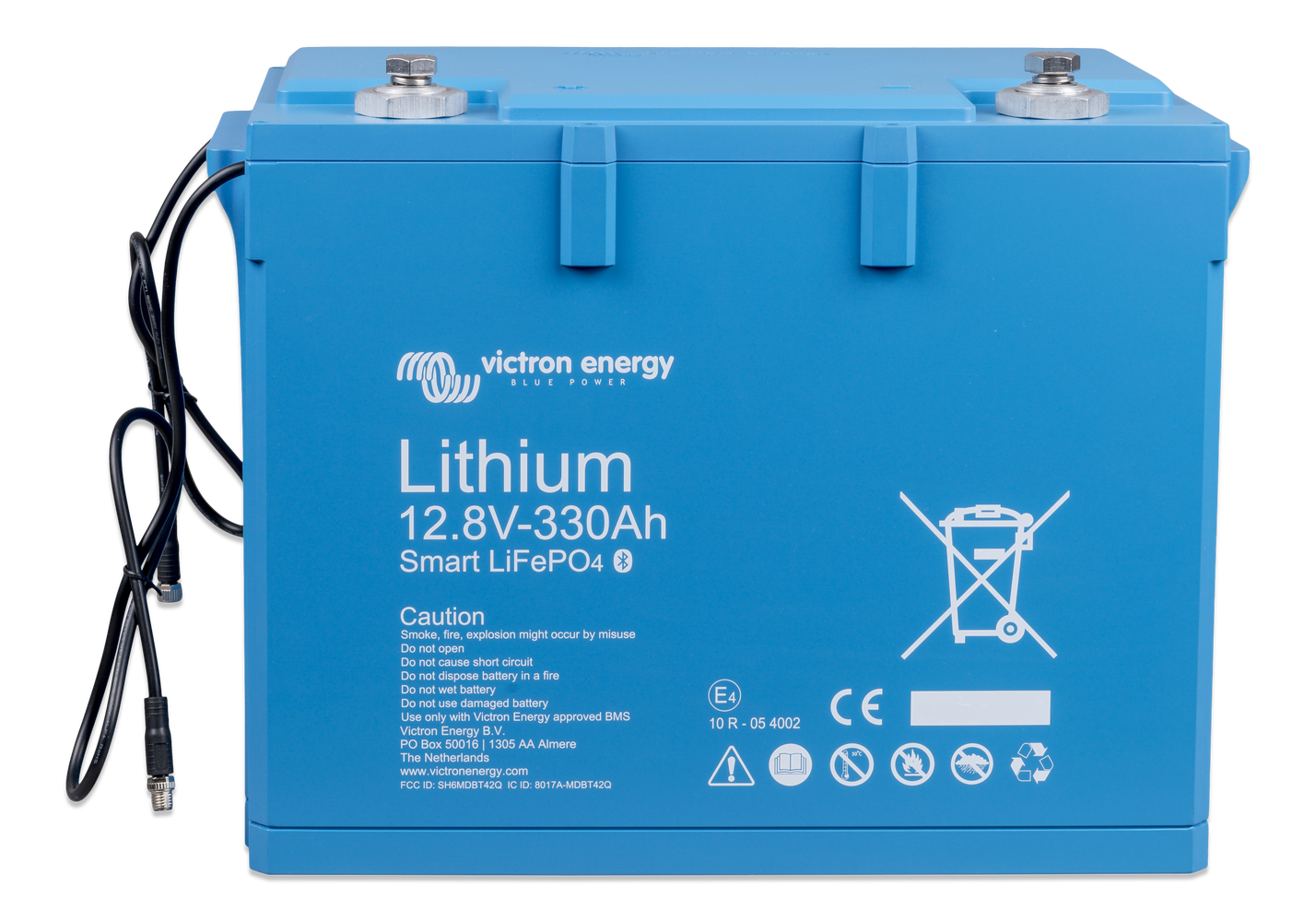

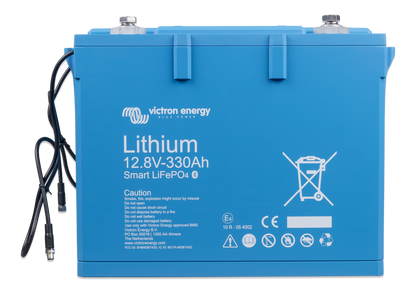

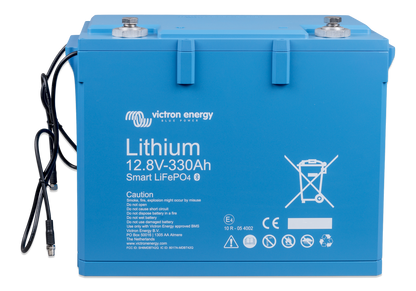

Victron 330Ah LiFePO4 Lithium Smart Battery – 12.8V

The Victron 330Ah LiFePO4 Lithium Smart Battery delivers professional-grade energy storage in a remarkably compact 12.8V package. This high-capacity battery features integrated Bluetooth connectivity, allowing you to monitor cell voltage and temperature via the VictronConnect app, giving you complete control over your power system from your smartphone.

Built with lithium iron phosphate (LiFePO4) chemistry, this battery represents the safest option among mainstream lithium-ion battery types. The robust construction houses four 3.2V cells connected in series, creating the stable 12.8V nominal voltage that makes it a direct replacement for traditional lead-acid batteries, but with significant performance advantages.

At just 70% of the size and weight of equivalent lead-acid batteries, this 330Ah unit transforms installation possibilities for marine, motorhome, and off-grid applications. The compact dimensions of 359mm width, 265mm height, and 206mm depth make it ideal where space is at a premium, whilst the 4,224Wh energy capacity delivers sustained power for high-demand applications.

The integrated cell balancing system ensures each cell maintains optimal performance throughout the battery's lifespan. With a maximum continuous discharge current of 400A and matching 400A charge current capability, this battery handles demanding loads with ease, from inverter systems to high-power appliances.

Unlike lead-acid batteries that suffer from premature failure due to sulfation when operated in partial charge states, LiFePO4 batteries actually benefit from partial charging. This fundamental advantage means you can use the battery without the constant worry of maintaining full charge, making it perfect for systems with variable solar input or irregular charging patterns.

The battery's wide operating temperature range and excellent cycling performance ensure reliable operation in challenging environments. The battery operates effectively in humidity levels up to 95% (non-condensing), making it suitable for demanding marine and tropical installations.

For system expansion, multiple batteries can be connected in parallel or series configurations, with M10 terminals providing secure, high-current connections. The Smart BMS integration options allow the battery to work with various Victron charge controllers, inverters, and monitoring systems, creating a complete energy management solution.

Backed by Victron Energy's reputation for technical innovation and build quality, this battery represents a professional choice for independent power systems. The VictronConnect app provides instant access to battery status, individual cell voltages, balancing information, and firmware updates, ensuring your system remains optimised and up to date.
