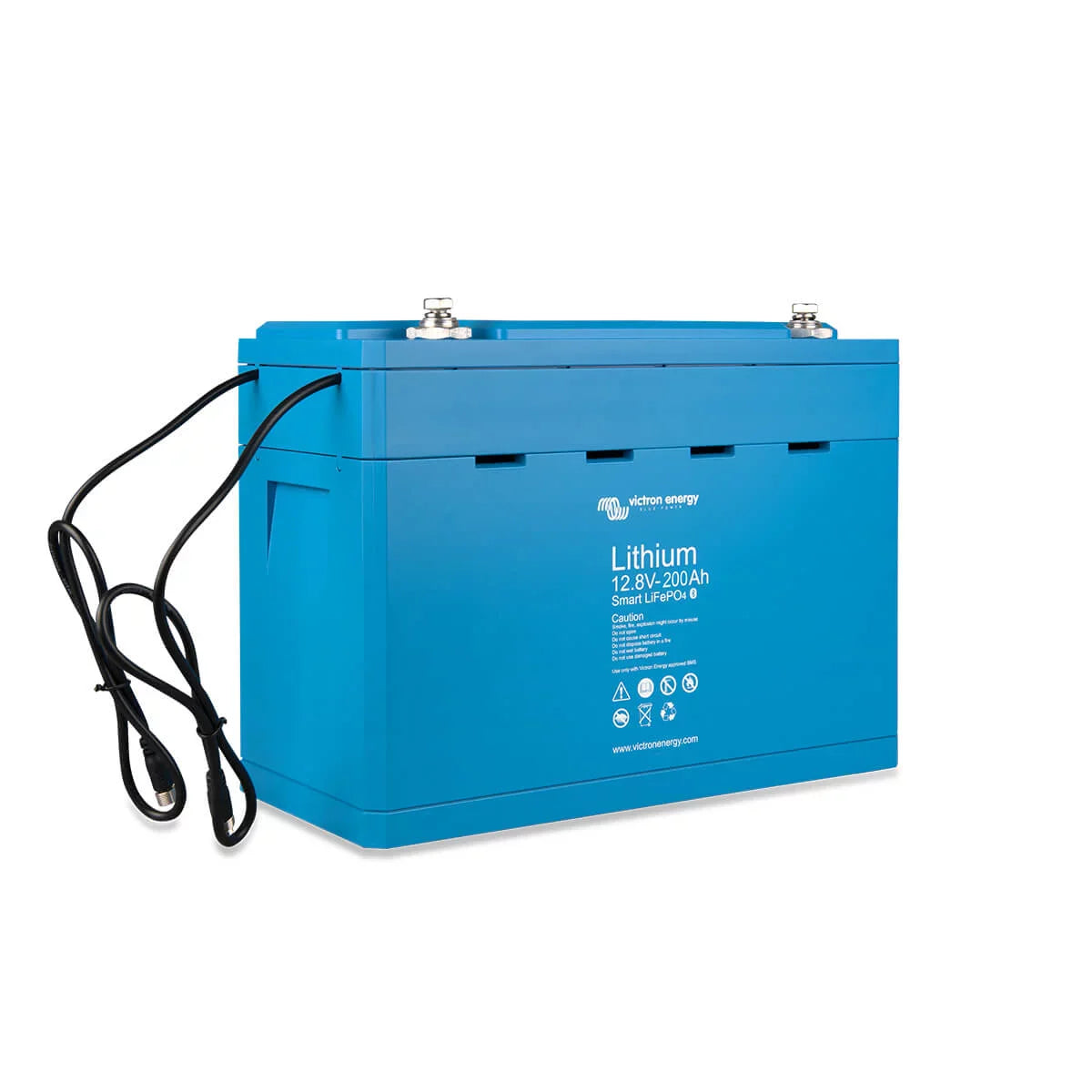

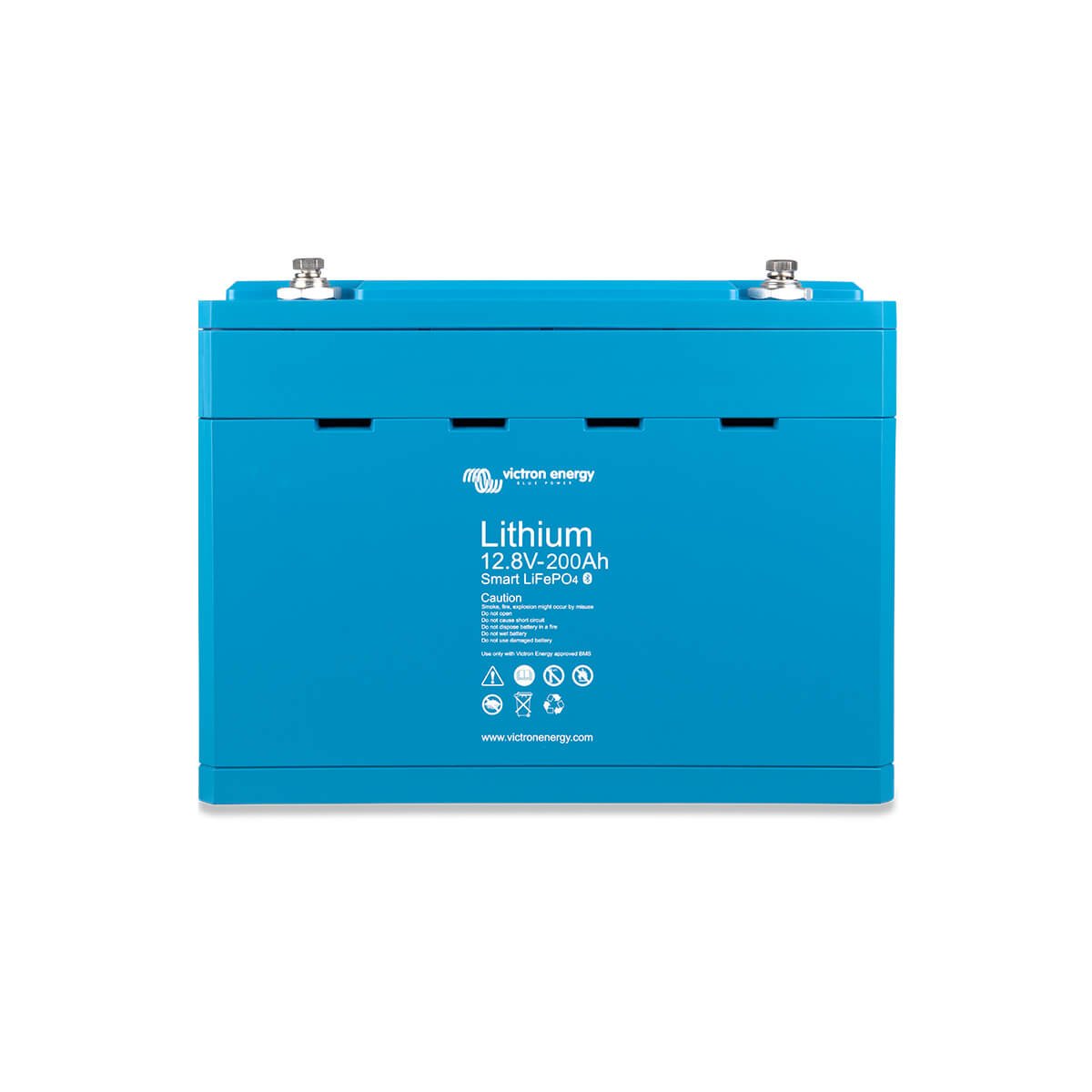

Victron 200Ah LiFePO4 Lithium Smart Battery – 12.8V
Victron 200Ah LiFePO4 Lithium Smart Battery – 12.8V
SKU:BAT512120610
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron 200Ah LiFePO4 Lithium Smart Battery at 12.8 V is a high-performance energy storage solution ideal for trade-grade mobile, marine, off-grid or solar-hybrid installations. With a nominal capacity of 200 Ah and voltage of 12.8 V it offers approximately 2560 Wh (2.56 kWh) of storage capacity.
Built using lithium iron phosphate (LiFePO₄) chemistry the battery offers excellent cycle life — up to 2,500 cycles at 80% depth of discharge and up to 5,000 cycles at 50% depth of discharge. The unit features integrated cell balancing, Bluetooth monitoring of cell voltages and temperature, and supports both parallel and series installation for scalable systems.
Designed for professional installers and trade integrators, this smart battery unit measures 237 × 321 × 152 mm and weighs around 20 kg. It requires a compatible Battery Management System (BMS) such as VE.Bus BMS V2, smallBMS or Lynx Smart BMS depending on your system architecture.
With its robust design, the Victron battery delivers high efficiency (≈ 92% round‐trip), a wide operating temperature range (discharge from -20 °C to +50 °C) and compatibility with 12 V, 24 V or 48 V systems (via series/parallel combinations).
Whether you're equipping a fleet service vehicle, a remote off-grid cabin, marine vessel or a solar-powered site, the battery provides a solid foundation for modern energy systems requiring reliable, scalable storage with smart monitoring.
Product Specifications
Product Specifications
Performance & Electrical Specifications
- Nominal Voltage: 12.8 V
- Nominal Capacity @ 25 °C: 200 Ah
- Nominal Capacity @ 0 °C: 160 Ah
- Nominal Capacity @ -20 °C: 100 Ah
- Nominal Energy @ 25 °C: 2560 Wh
- Round Trip Efficiency: 92%
- Internal Resistance: 0.8 mΩ
- Capacity Loss: <1 % per 100 cycles (at 25 °C, 100 % DoD)
- Energy Loss: <1 % per 100 cycles (at 25 °C, 100 % DoD)
Cycle Life (Capacity ≥ 80% of Nominal)
- 80% DoD: 2500 cycles
- 70% DoD: 3000 cycles
- 50% DoD: 5000 cycles
Discharge Specifications
- Maximum Continuous Discharge Current: 400 A
- Recommended Continuous Discharge Current: ≤ 200 A
- End of Discharge Voltage: 11.2 V
Charge Specifications
- Charge Voltage: Between 14 V and 14.4 V (14.2 V recommended)
- Float Voltage: 13.5 V
- Maximum Charge Current: 400 A
- Recommended Charge Current: ≤ 100 A
System Management & Connectivity

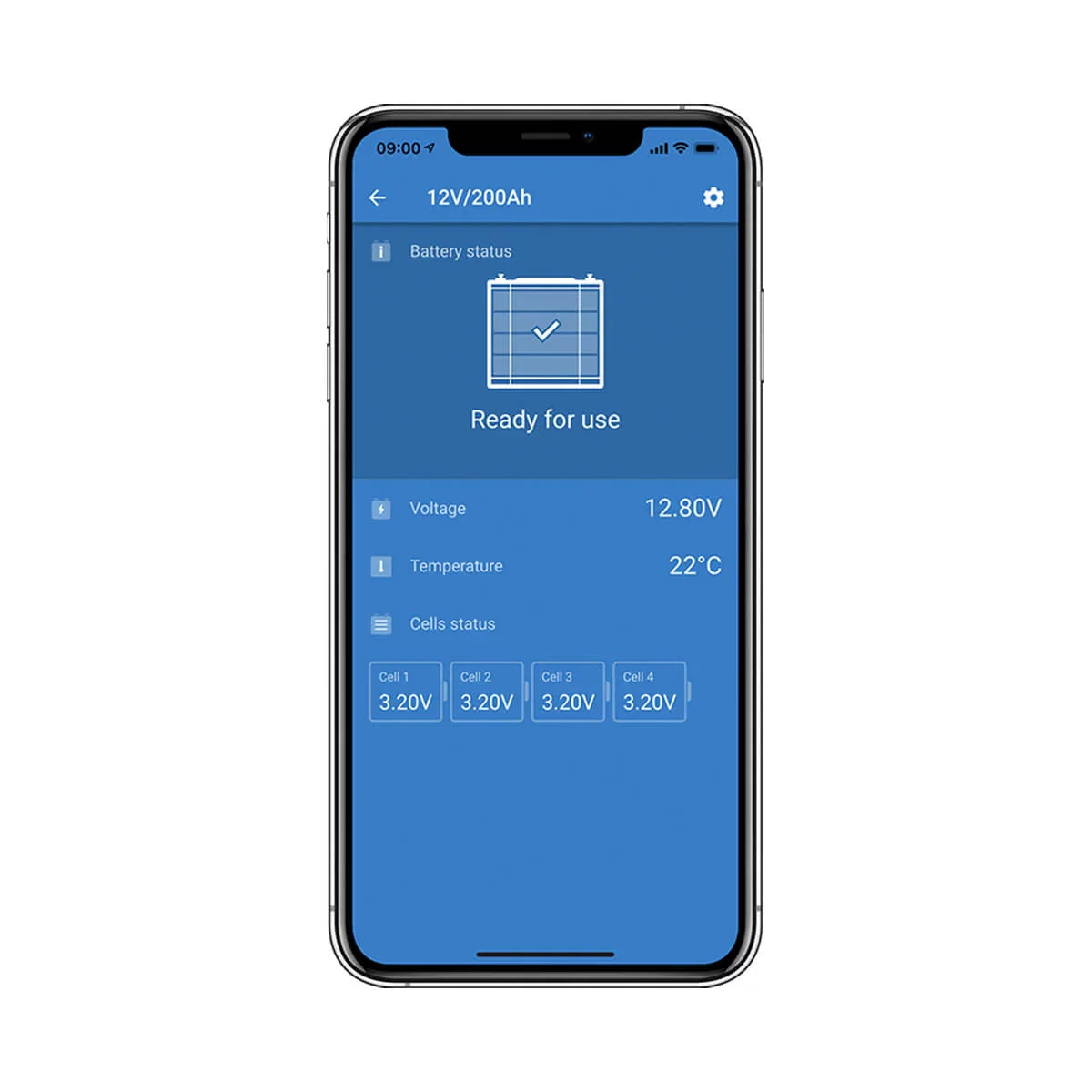

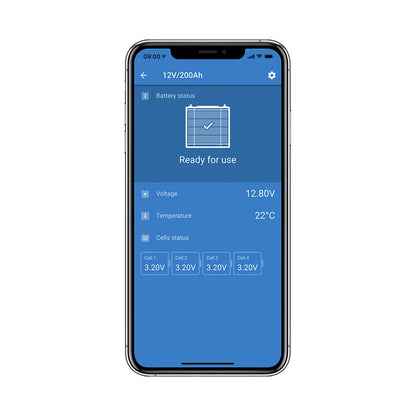

- Bluetooth Smart: Integrated Bluetooth allows for real-time monitoring of cell voltages, temperature, and alarm status via the VictronConnect App.
- Instant Readout: Key data is available on the VictronConnect device list page without needing to initiate a full connection.
- Mandatory BMS: These batteries feature integrated cell balancing and monitoring but must be connected to an external Victron Battery Management System (BMS).
- BMS Connection: Male + female cable with M8 circular connector (50 cm length).
- Scalability: Up to 20 batteries can be connected in a single system, allowing for battery banks of 12 V, 24 V, or 48 V with a maximum energy storage of up to 102 kWh.
Physical & Environmental
- Dimensions (h x w x d): 237 x 321 x 152 mm
- Weight: 20 kg
- Power Connection: M8 threaded inserts
- Protection Class: IP 22
- Operating Temperature (Discharge): -20 °C to +50 °C
- Operating Temperature (Charge): +5 °C to +50 °C
- Storage Temperature: -45 °C to +70 °C
- Mounting: Can be mounted upright or on its side (terminals must not face down).
Standards & Compliance
- Safety (Cells): UL1973, IEC62619:2017, UL9540A
- Safety (Battery): IEC62619:2017, IEC62620:2014, EN 60335-1:2012, EN-IEC 62368-1:2020, IEC 61427-1:2013
- EMC: EN-IEC 61000-6-3, EN 55014-1
- Automotive: ECE R10-6
Technical Specifications
Technical Specifications
| Battery Capacity | 200A |
|---|---|
| Battery Type | Lithium |
