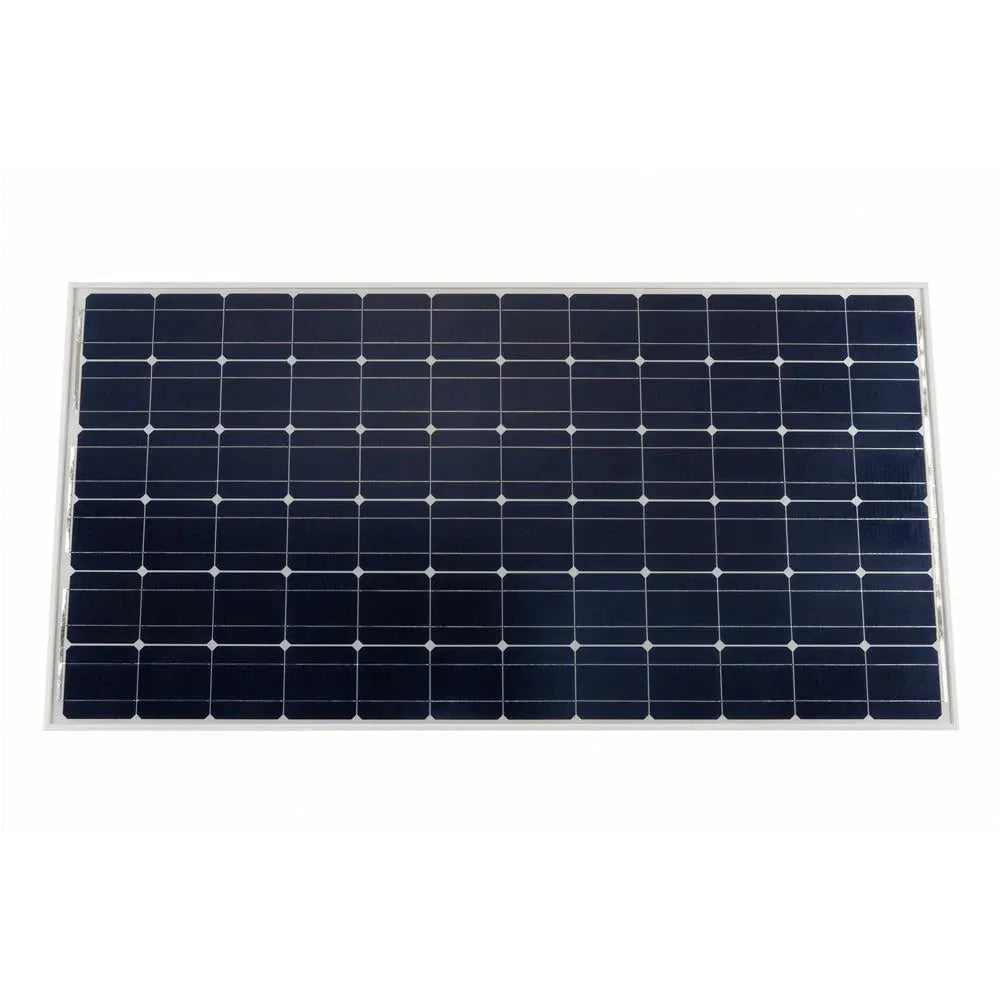

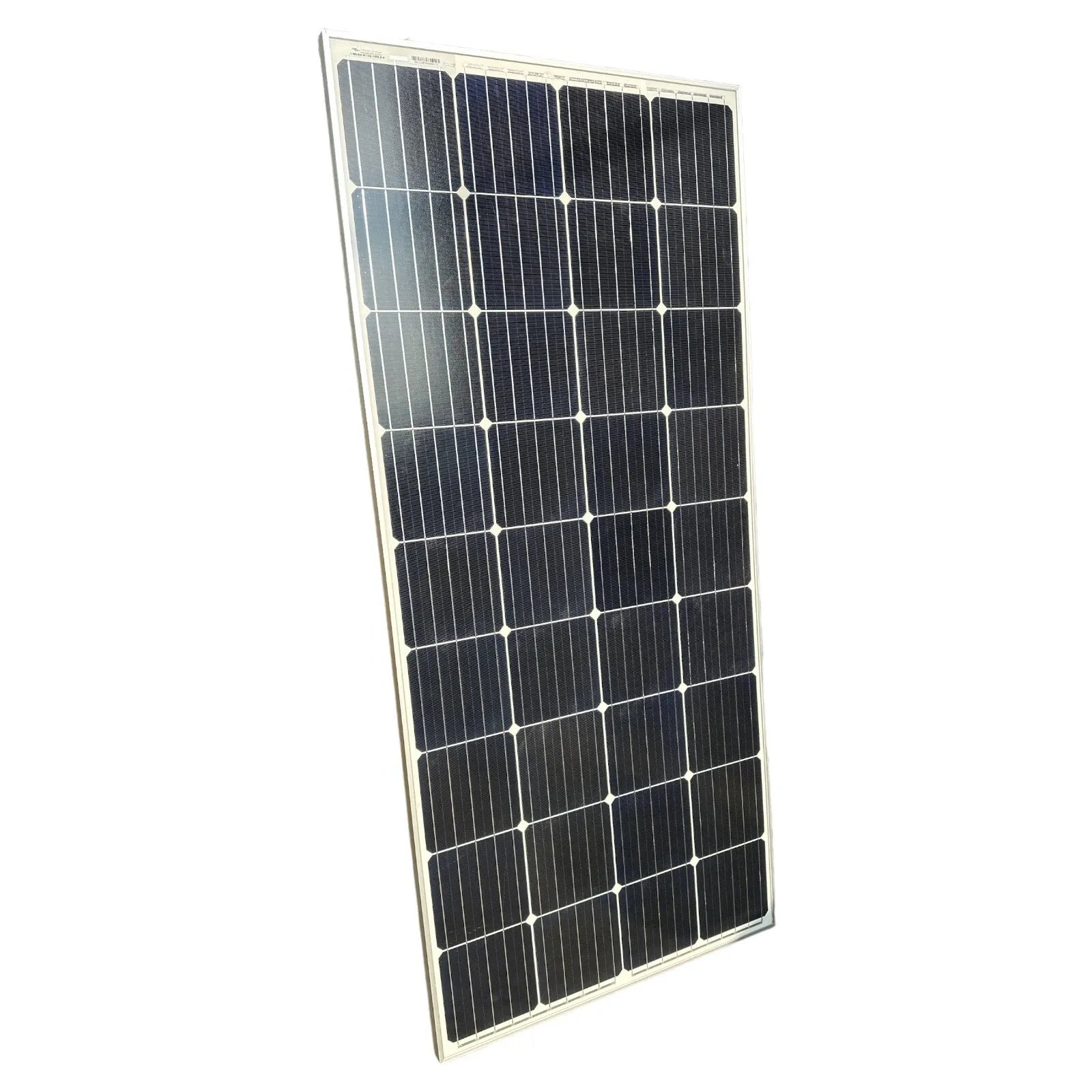

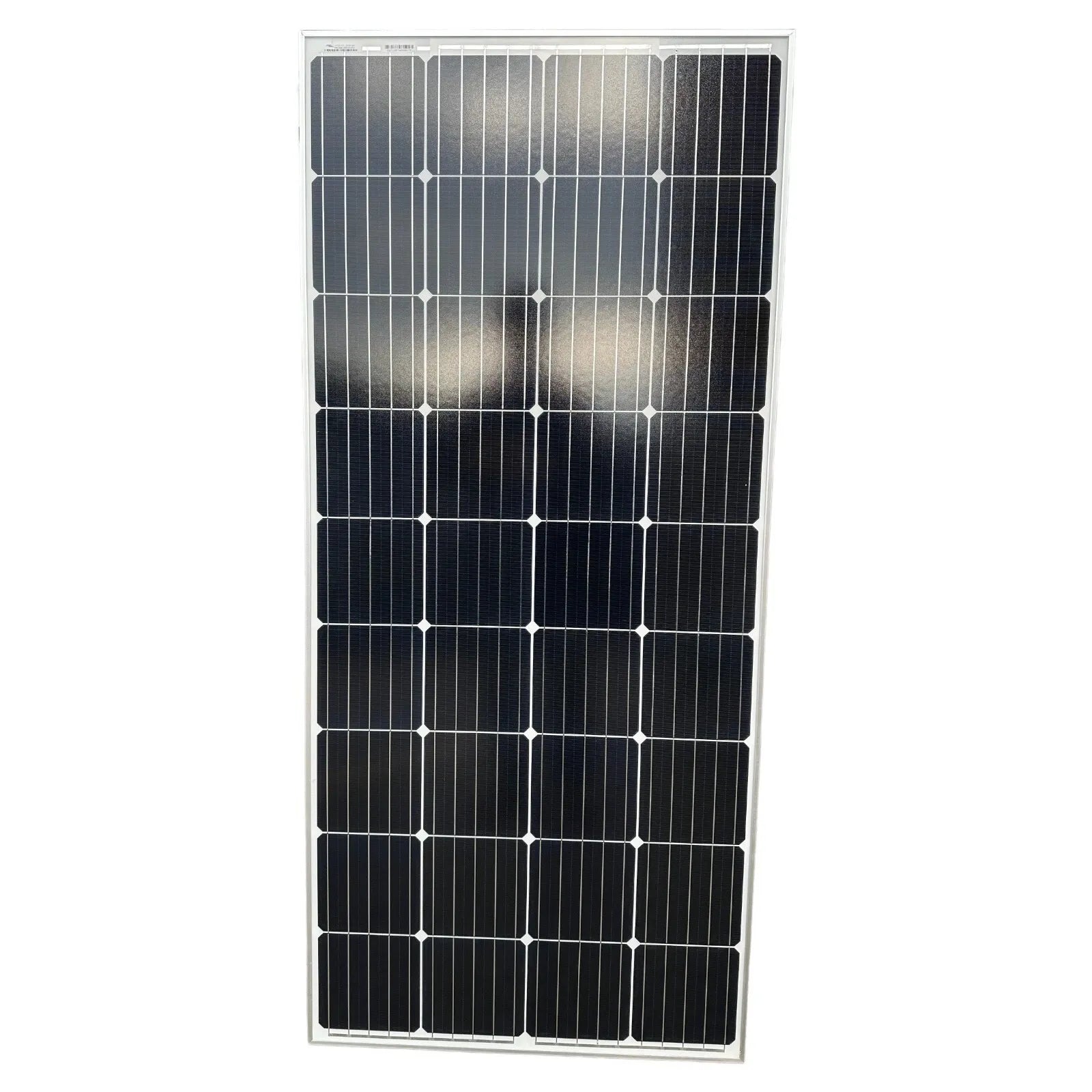

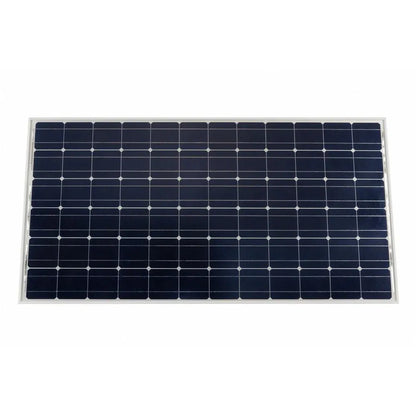

Victron 185W Monocrystalline Solar Panel - 12V (1485mm x 668mm x 30mm)

TECHNICAL INFORMATON

Brand - Victron Energy
Wattage - 185W
Dimensions - 1485MM x 668MM x 30MM
Weight - 11KG
Nominal Power - 185W
Max Power Voltage - 19.68V
Max Power Current - 9.41A
Open Circuit Voltage - 24.11V
Part Number - SPM041851200
GTIN - 8719076064237

FEATURES

Low voltage-temperature coefficient enhances high-temperature operation.
Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
25-Year limited warranty on power output and performance.
5-Year limited warranty on materials and workmanship.

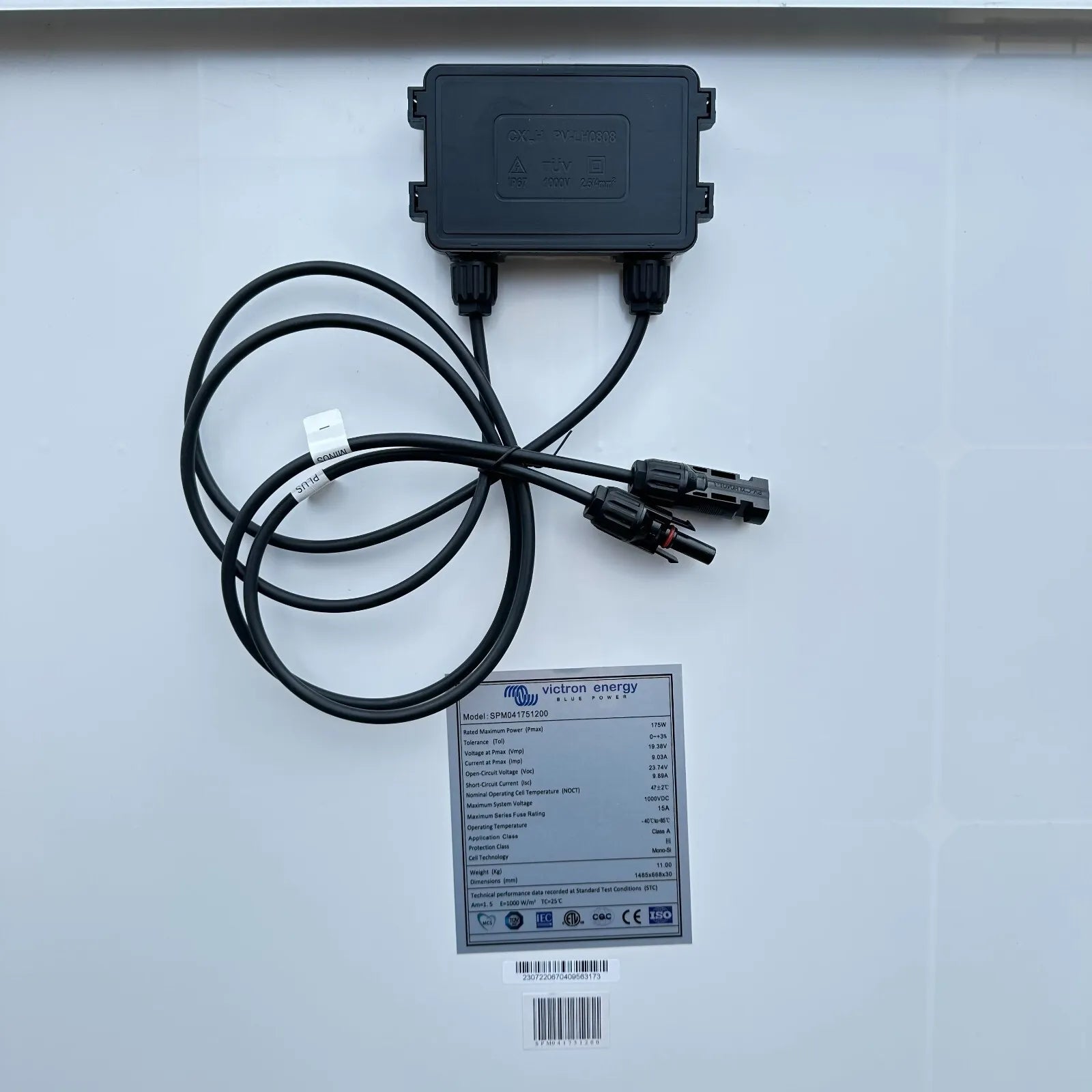

Sealed, waterproof, multi-functional junction box gives high level of safety.
High performance bypass diodes minimize the power drop caused by shade.
Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
A sturdy, anodized aluminum frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
High power models with pre-wired quick-connect system with MC4 (PV-ST01) connectors.

Victron 185W Monocrystalline Solar Panel - 12V (1485mm x 668mm x 30mm) – Manual

Victron 185W Monocrystalline Solar Panel - 12V (1485mm x 668mm x 30mm) – Data Sheet
