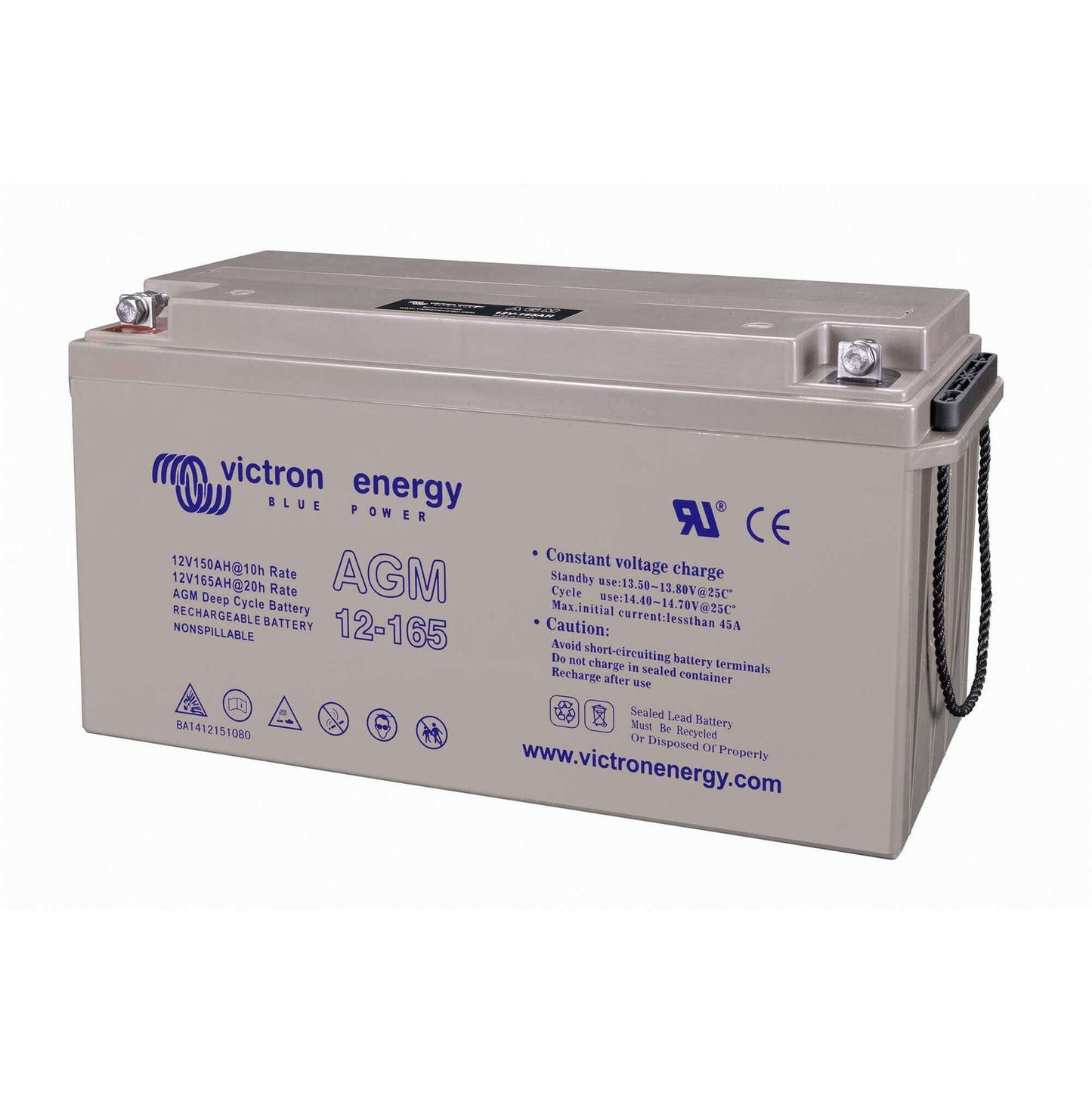

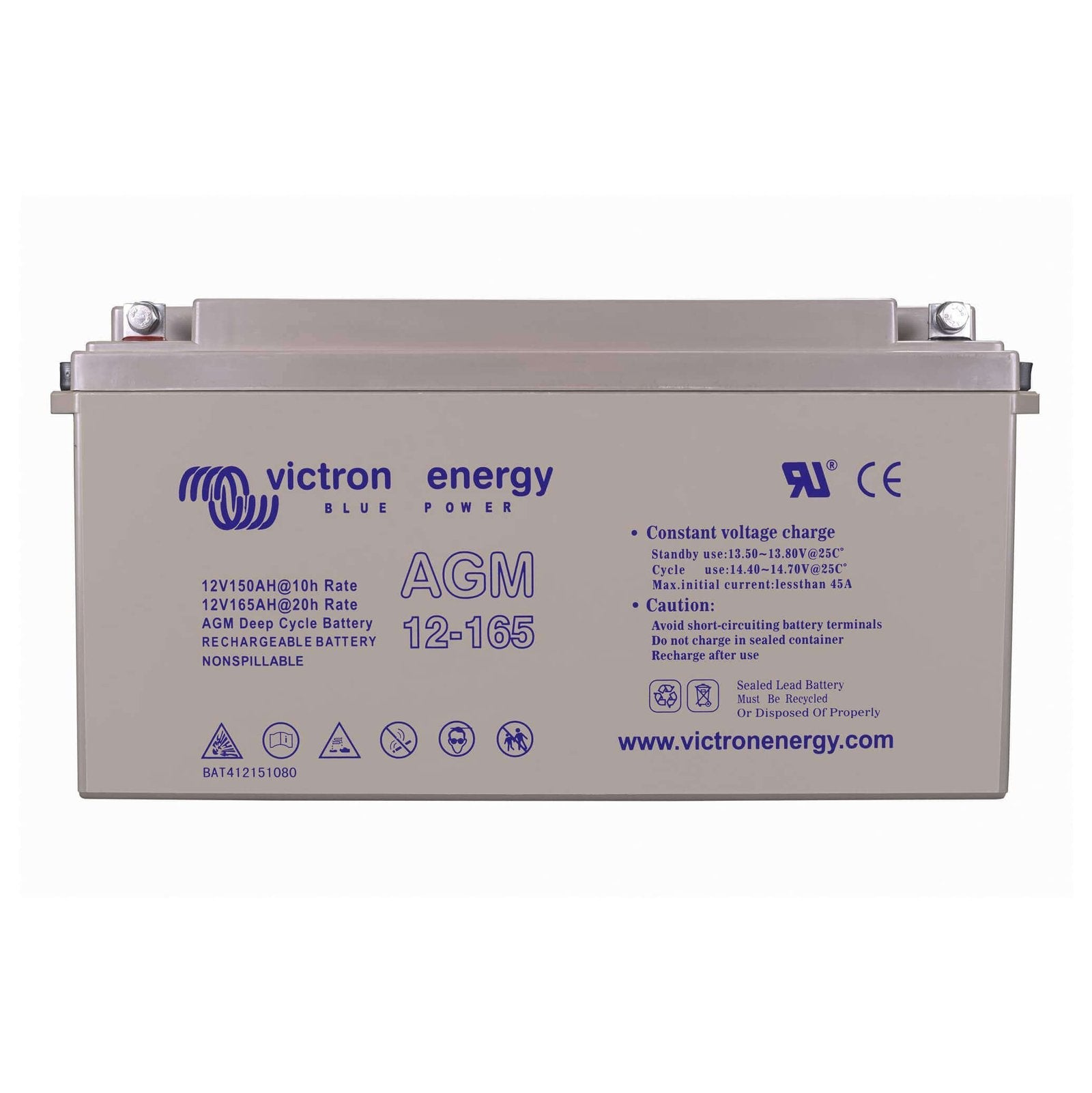

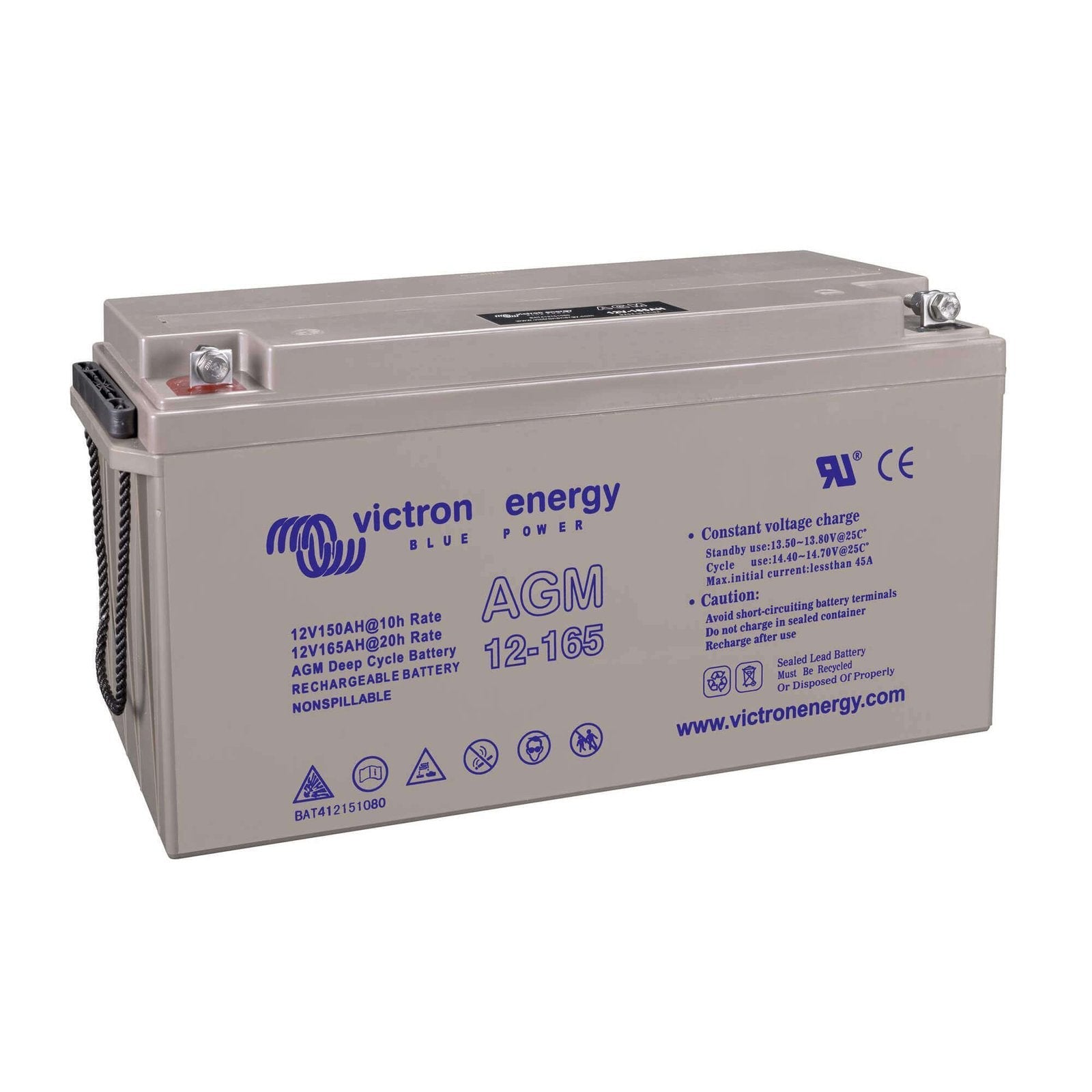

Victron 12V 165Ah AGM Dual Purpose Deep Cycle Battery
Victron 12V 165Ah AGM Dual Purpose Deep Cycle Battery
SKU:BAT412151084
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
This 12 V, 165 Ah AGM dual-purpose deep cycle battery is engineered for professional, high-current DC applications. Built with flat-plate AGM (Absorbent Glass Mat) technology, it offers excellent performance under load while remaining maintenance-free thanks to its sealed VRLA design. The battery has very low internal resistance, which makes it particularly well suited to use with inverters, thrusters or winches.
The battery supports up to 400 cycles at 80 % depth of discharge, 600 cycles at 50 % DoD, and 1,500 cycles at 30 % DoD, giving long life in deep-cycle applications. At a nominal voltage of 12 V, it is ideal for both off-grid and on-grid systems. The recommended charging voltages are 14.2–14.6 V for absorption, 13.5–13.8 V for float, and 13.2–13.5 V for long-term storage, optimising the battery’s longevity.
In terms of physical design, the battery measures 485 × 172 × 240 mm and weighs around 47 kg, making it robust yet manageable for professional installations. It is fitted with M8 bolt-through copper terminals, ensuring a secure, low-resistance connection that is appropriate for heavy-duty power systems.
One of the battery’s key advantages is its very low self-discharge rate (less than 2% per month at 20 °C), which makes it reliable even when stored for extended periods. Its deep-discharge recovery is strong; even after prolonged or deep discharge cycles, the AGM design recovers effectively under the right charging regime.
The build quality, capacity, and cycle life make this battery well suited for trade professionals working on off-grid solar systems, leisure vehicles, marine installations or backup power applications. It delivers reliable power where both capacity and resilience matter.
Product Specifications
Product Specifications
Electrical Specifications
- Nominal Voltage: 12 V
- Nominal Capacity (20 hr. discharge @ 25°C): 165 Ah
- CCA @ 0°F: 600
- RES CAP @ 80°F: 220
Performance & Design Life
- Technology: Flat plate AGM
- Float Design Life: 7 – 10 years at 20°C
- Cycle Design Life (80% Discharge): 400 cycles
- Cycle Design Life (50% Discharge): 600 cycles
- Cycle Design Life (30% Discharge): 1500 cycles
Charging Specifications
- Absorption Voltage (Normal): 14.2 – 14.6 V
- Absorption Voltage (Fastest Recharge): 14.6 – 14.9 V
- Float Voltage: 13.5 – 13.8 V
- Storage Voltage: 13.2 – 13.5 V
- Recommended Charge Current: Should preferably not exceed 0.2 C (33 A for this 165 Ah model).
- Temperature Compensation: -24 mV/°C for a 12V battery (Required if battery temperature is expected to be < 10°C or > 30°C for long periods).
Mechanical Specifications
- Dimensions (l x w x h): 485 x 172 x 240 mm
- Weight: 47 kg
- Terminals: Copper
Key Features
- Excellent High Current Performance: Specifically recommended for high-current applications such as engine starting due to very low internal resistance.
- VRLA Technology: Maintenance-free operation with safety valves to prevent excessive gas pressure and ensure long service life.
- Adaptive Charging Support: Optimized for use with Victron 4-step adaptive chargers, which calculate variable absorption times and include a storage mode to reduce plate corrosion and extend battery life.
Product Downloads
Product Downloads
Technical Specifications
Technical Specifications
| Battery Capacity | 165A |
|---|---|
| Battery Type | AGM |
