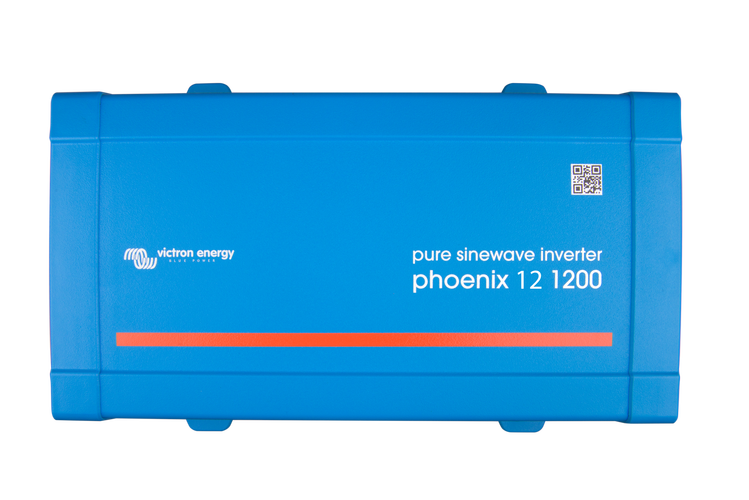

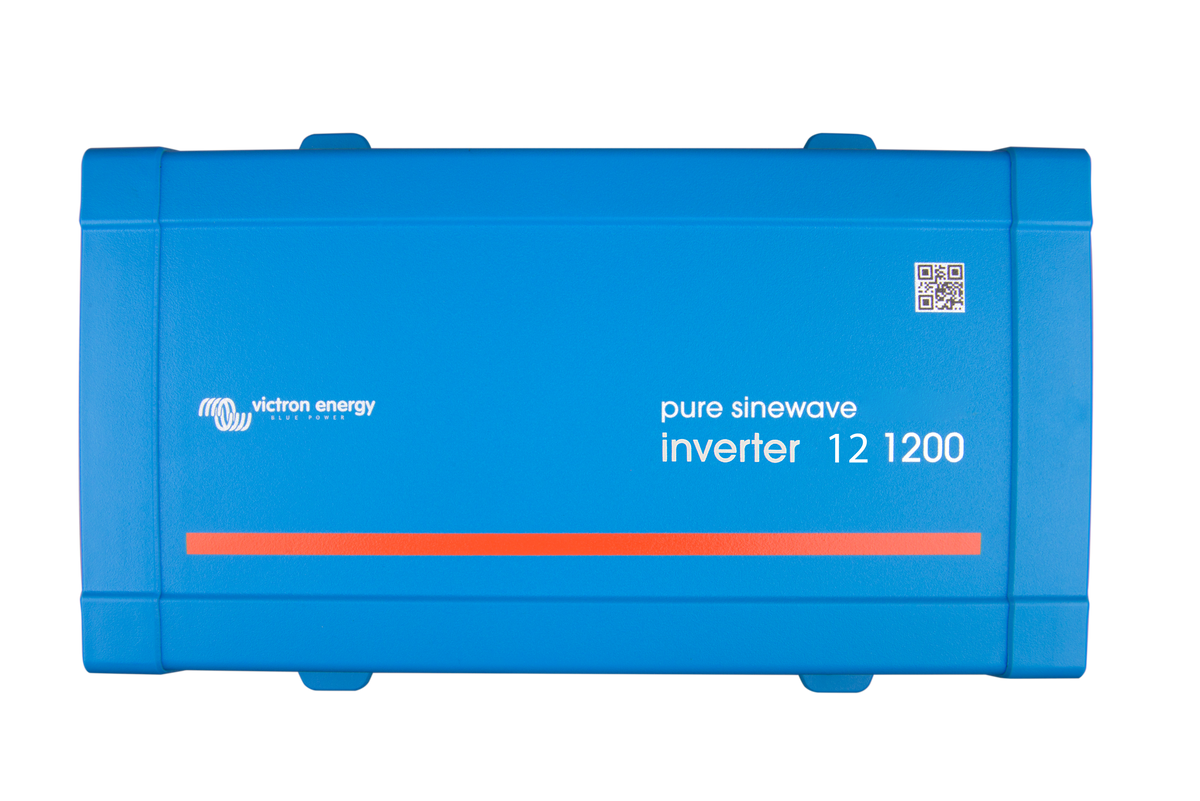

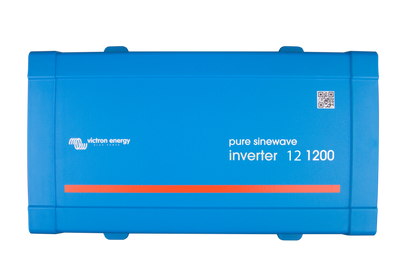

Victron Phoenix Inverter 12/1200 230V VE.Direct UK – PIN122121410
The Victron 1200VA Energy Phoenix inverter is a reliable and efficient power solution designed for off-grid applications, including campervans, motorhomes, RVs, and boats. Converting 12V DC power from your leisure batteries into 230V AC power, this 1200VA pure sine wave inverter ensures a clean and stable power supply for a variety of domestic appliances.
Key Features:
Power Output:
Provides a continuous power output of 1200VA, making it suitable for off-grid scenarios.
Ideal for running appliances such as laptops, camera chargers, and hair straighteners.
Smart Connectivity (with VE.Direct Smart Dongle):
Enhance monitoring and control by pairing with the VE.Direct smart dongle.
Utilize the Victron Connect app to monitor inverter performance and configure settings.
Set programmable alarms and cut-offs for low and high voltages.
Use Case:
Suitable for off-grid electrical systems with a total wattage of 1200VA or less.
Perfect for applications in campervans, motorhomes, RVs, and boats.
Pure Sine Wave Inverter:
Replicates the 230V AC waveform found in household mains power.
Compatible with a wide range of 230V appliances.
Prevents potential damage or operational issues associated with modified sine wave inverters.
Reliability:
Victron inverters are short circuit-proof and protected against overheating, ensuring durability.
High start-up power capability for loads like power converters, LED lamps, halogen lamps, or electric tools.
ECO Mode:
Reduces power consumption by switching to standby when the load decreases below a pre-set value.
Reactivates when the load exceeds the pre-set level, maintaining efficiency.
Remote On/Off:
Connect a remote on/off switch to control the inverter from a convenient location.
Provides flexibility in managing the inverter's operation.
Installation:
Comes with a UK 3-pin plug for easy installation.
MC4 connection points simplify wiring for solar panels.
Proven Performance:
Backed by Victron's reputation for reliability and performance.
Short circuit-proof and protected against environmental factors.
Product Specifications
Product Specifications
Performance & Electrical Specifications
- Continuous Power at 25°C: 1200 VA
- Peak Power: 2200 W
- Output AC Voltage: 230 VAC (Adjustable to 120 VAC)
- Output Frequency: 50 Hz or 60 Hz (Adjustable)
- Output Voltage Tolerance: +/- 3%
- Output Frequency Tolerance: +/- 0.1%
- Input Voltage Range: 9.2 – 17.0 VDC
- Maximum Efficiency: 91%
- Zero-Load Power: 10 W
- Default Zero-Load Power in ECO Mode: 1 W (default retry interval: 2.5s)
Smart Features & Configuration
- VE.Direct Communication Port: Allows for connection to a computer (via VE.Direct to USB cable) or smartphones and tablets (via VE.Direct Bluetooth Smart dongle) for monitoring and setup.
- Fully Configurable Settings: Customize low battery voltage alarm/reset levels, low battery voltage cut-off/restart levels, and output voltage/frequency.
- ECO Mode: In ECO mode, the inverter switches to standby when the load decreases below a preset value (minimum load: 15W). It periodically checks for a load and remains on if the load exceeds the preset level.
- Remote On-Off: Supports a remote on-off switch connected to a two-pole connector or between battery plus and the left-hand contact of the two-pole connector.
- Monitoring Features: Real-time tracking of input/output voltage, percentage load, and system alarms.
Protection & Reliability
- Proven Topology: The full bridge plus toroidal transformer topology ensures robust performance over many years.
- Comprehensive Electronic Protection: Short circuit proof and protected against overheating (due to overload or high ambient temperature).
- Fault Protection Key: Includes protection against output short circuit, overload, battery voltage too high/low, temperature too high, and DC ripple too high.

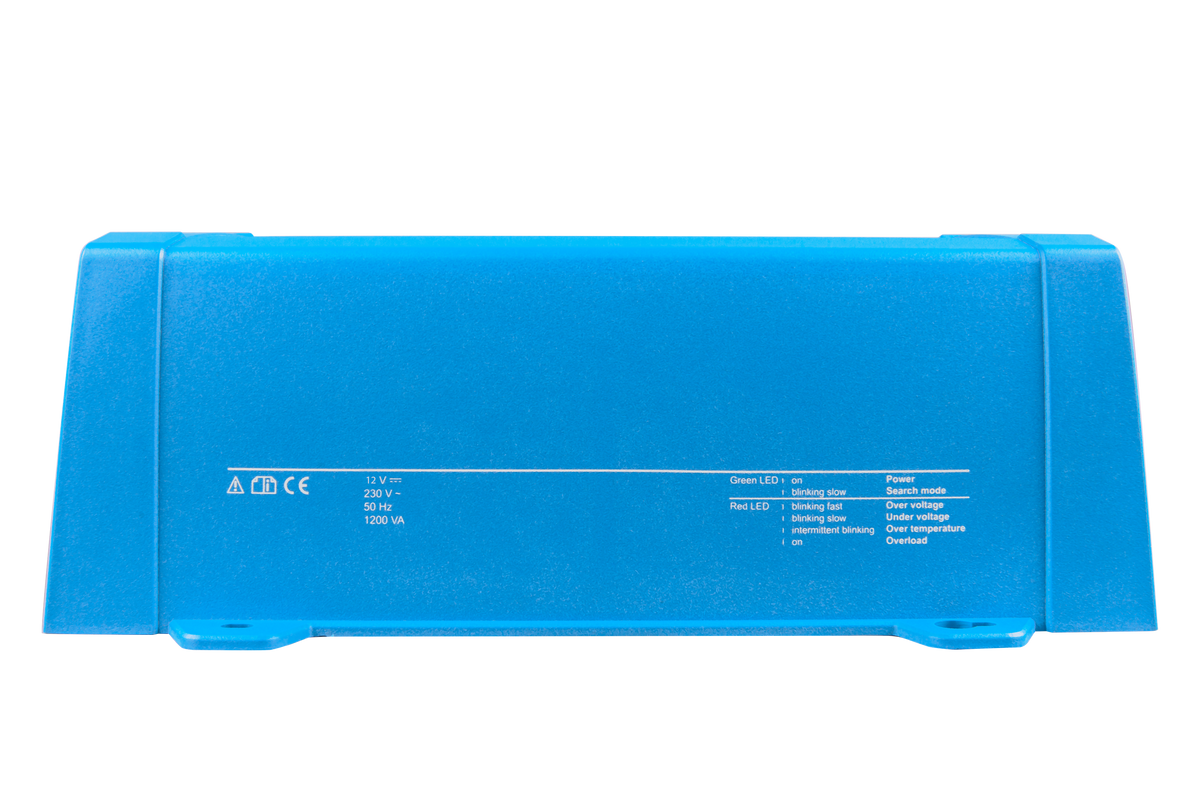

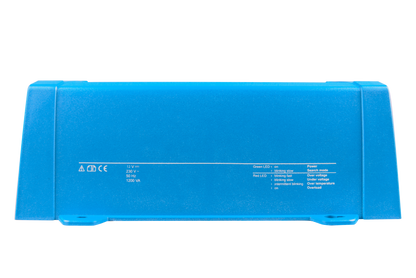

- LED Diagnosis: Integrated LEDs provide visual feedback for system status and alarms.
Mechanical Specifications
- Enclosure Material & Colour: Steel chassis and plastic cover (Blue RAL 5012)
- Dimensions (h x w x d): 117 x 232 x 362 mm
- Weight: 7.4 kg (16.3 lbs)
- Protection Category: IP21
- Battery Connection: Screw terminals
- Maximum Cable Cross-Section: 35 mm² (AWG2)

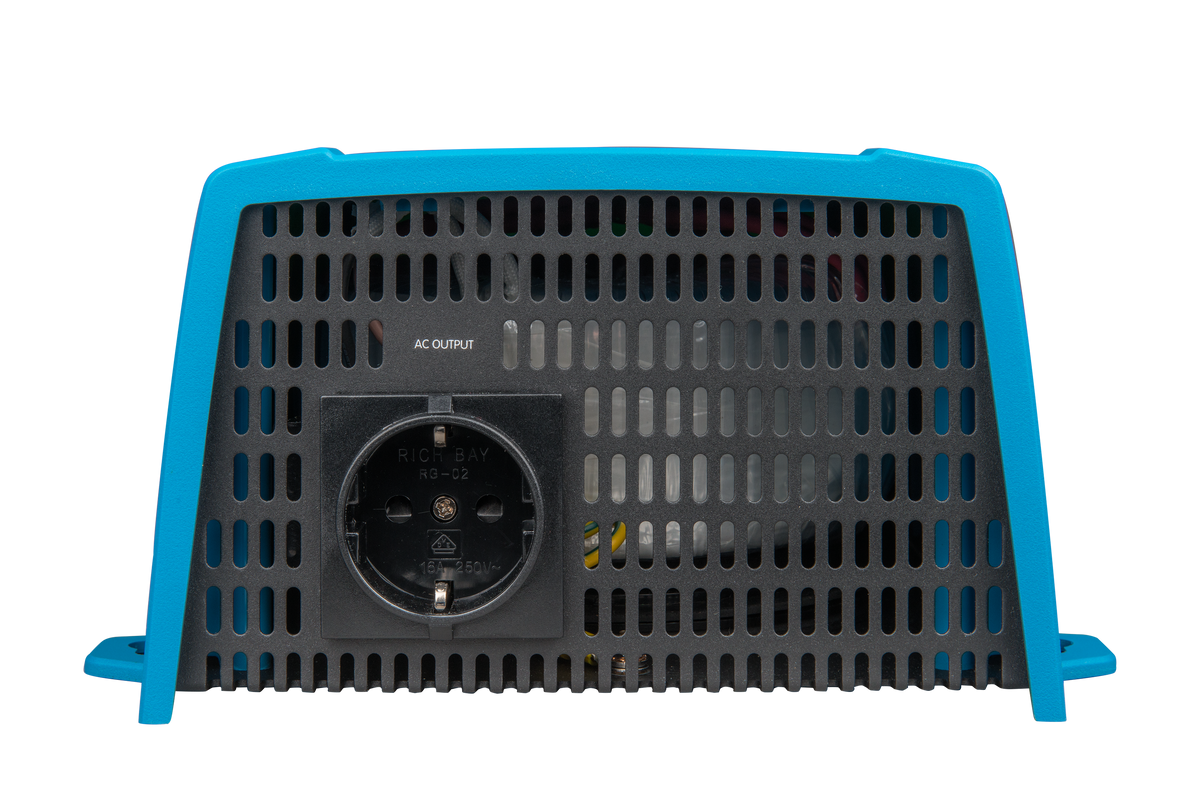

- Available Output Sockets: Schuko, UK (BS 1363), AU/NZ (AS/NZS 3112), and IEC-320 (male plug included).
Environmental & Standards
- Operating Temperature Range: -40 to +65°C (fan-assisted cooling)
- Temperature Derating: 1.25% per °C above 40°C
- Humidity: Max 95% (non-condensing)
- Safety Standards: EN-IEC 60335-1, EN-IEC 62109-1
- EMC Standards: EN 55014-1, EN 55014-2, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
- Automotive Directive: ECE R10-4
Technical Specifications
Technical Specifications
| Inverter Rating | 1200VA |
|---|
